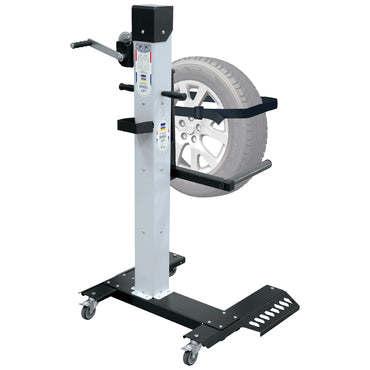

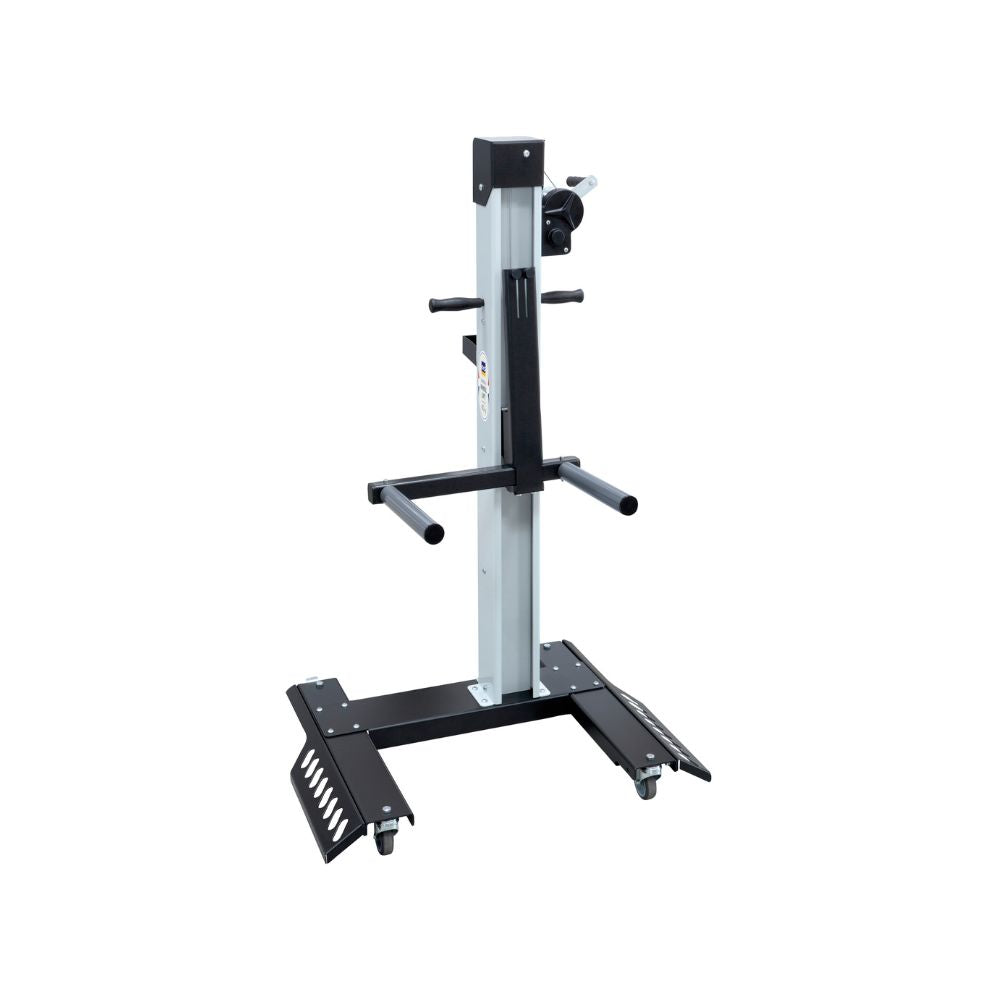

GYS WHEEL LIFT WITH WINCH

Ergonomic Manual Wheel Lift for Safe and Effortless Wheel Handling

The GYS Manual Wheel Lift is a robust, ergonomically designed wheel lifting system engineered to reduce the physical strain of wheel handling in professional workshops. Developed to prevent musculoskeletal disorders (MSDs), it enables safe, efficient lifting and precise alignment of wheels to the vehicle hub without power assistance. Equipped with a self-locking brake winch and twin-roller carriage, the system allows smooth vertical movement and fine alignment for easy bolt insertion.

The stable trolley design with swivel wheels and twin handles ensures effortless manoeuvrability, while the short base legs are compatible with most vehicle lifts. Compact, mobile, and capable of supporting up to 40 kg, the GYS Wheel Lift is an essential piece of equipment for every bodyshop or tyre service centre seeking to improve workshop safety and efficiency.

WHY BUY FROM BWS?

Specification

• Reference: 061385
• Dimensions: 64 × 135 × 84 cm
• Weight: 42 kg
• Maximum Load Capacity: 40 kg
• Maximum Height: 103 cm
• Working Height: Up to 140 cm (at hub)
• Wheel Size Range: 135/65 R13 – 300/35 R22
• System Type: Manual winch with self-locking brake
• Construction: Steel trolley with swivel wheels and twin handles

Features

• Ergonomic Design: Reduces operator fatigue and risk of injury during wheel handling.
• Manual Winch Lift: No power supply required; precise control with self-locking brake.
• Twin-Roller Carriage: Allows smooth rotation of the wheel for accurate alignment with hub fixings.
• Stable and Mobile: Fitted with swivel wheels and rear wheel brakes for secure positioning.
• Universal Compatibility: Short legs allow use with most workshop lifts.
• Easy Wheel Loading: Twin ramps let the wheel roll easily into place.
• Anti-Tip System: Trolley and strap inclination prevent wheel tipping during movement.
• Built for Workshops: Ideal for tyre bays, bodyshops, and maintenance facilities.

FAQs

1. Does the GYS Manual Wheel Lift require power?

No. It operates using a manual winch system with a self-locking brake for controlled lifting and lowering.

2. What size wheels can it handle?

The lift is compatible with wheels ranging from 135/65 R13 to 300/35 R22, making it suitable for cars and light commercial vehicles.

3. How much weight can it lift?

It can safely lift wheels weighing up to 40 kg.

4. Is it compatible with all vehicle lifts?

Yes. The short-leg design ensures compatibility with most two-post and scissor lifts used in modern workshops.
