IMS TIG 220 AC/DC

Save 22%

£4,322.00

£3,360.00

Quantity

A Professional, single phase, 220 Amp AC/DC TIG welding machine, suitable for welding most materials including steel, stainless, aluminium and copper. Manufactured in France with 2-year parts and labour warranty.

WELDING PROCESSES

TIG AC/TIG DC/MMA

WAVE FORMS

Rectangular
Sinusoidal
Trapezoid
Triangular

A PROFESSIONAL INTERFACE

5,7’’ TFT display screen and two control knobs make set-up and adjustment of welding parameters easy and intuitive.

• Flexible Voltage: Works on both 110/240V power supplies.

• Power Factor Correction (PFC): Enables trouble-free use on long extension cables and is generator friendly.

• Anti-dust corridor:Fan cooling system stops metallic dust from being blown onto electronic circuit boards protecting against premature board failure.

• Pulse mode:Adjustable pulse frequency, ideal for working on thin material by reducing heat distortion.

• Synergic mode Time-saving feature, just enter the material type, thickness and electrodes size and the machine

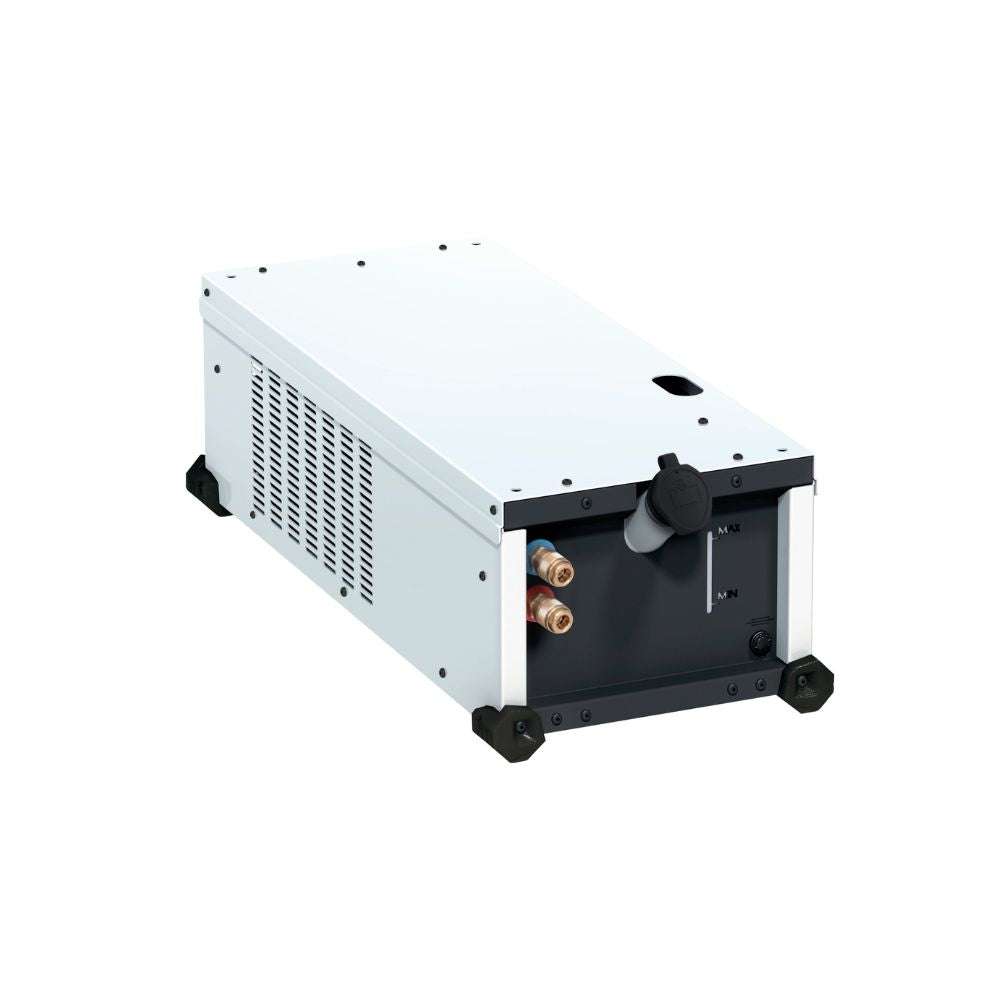

Cooling unit WCU-1Kw A

Ref. 039773

Calculates ideal welding parameters.

• HF and LIFT start options • Tack spot mode :

Fast tack mode with no oxidation.

SPECIFICATION

Supply	110-230V
Fuse	110-32A 230 - 16A
Duty Cycle	185AC @ 230v
Weight	20Kg
Dimensions	25x52x40cm

GYS-IMS TIG WELDING EQUIPMENT

IMS TIG 220 AC/DC
