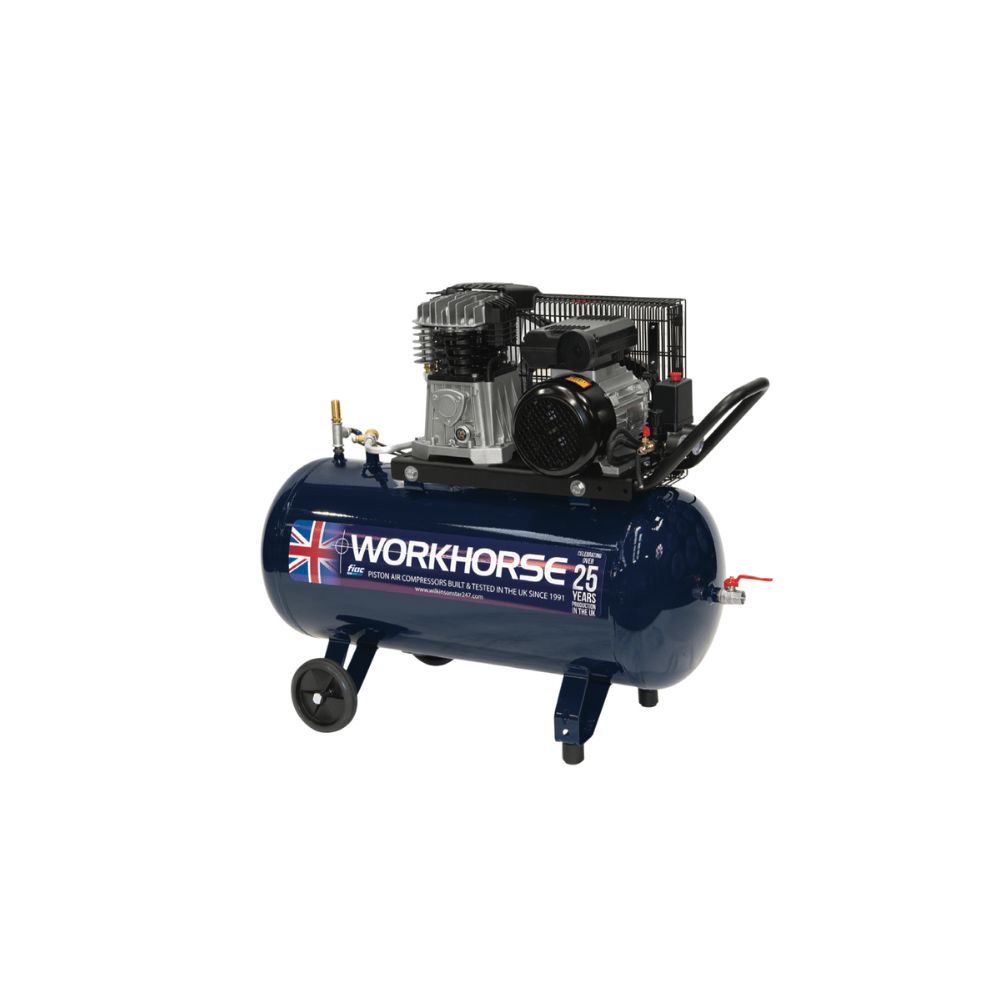

Workhorse Air Compressor 3hp 100l

Name: Workhorse Air Compressor 3hp 100l
Brand: wilkinsonstar247
SKU: WR3HP-100P-1
Price: 653.00 GBP
Availability: InStock

£653.00

Shipping calculated at checkout.

The Workhorse Air Compressor 3hp 100l is a belt-driven, single phase workshop compressor designed for reliable air supply to professional bodyshops and fabrication bays, with a 100 litre receiver suited to general air tools, spraying and light pneumatic equipment. In typical Workhorse 3hp 100l configuration it uses a cast iron twin-cylinder pump, slow running motor and automatic stop/start control for stable output and long service life in daily workshop use, making the Workhorse Air Compressor 3hp 100l a solid choice for body repair and small industrial applications where a compact, portable unit is required. With the Workhorse Air Compressor 3hp 100l you get a practical, serviceable machine that pairs well with standard 230 V workshop supplies and supports ongoing maintenance and backup through professional engineers.

Key Features

3 hp single phase motor
100 litre receiver capacity
Belt driven cast iron pump
Twin cylinder, slow running
Automatic stop start control
Suitable for small workshops

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

2 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

A 3hp, 100 litre air compressor is a solid workshop unit for running air tools, blowing down parts, tyre work and light spraying where a steady air supply matters. In a bodyshop or fabrication shop, I look at these as the backbone of the air system rather than a convenience item.

The main point is matching the compressor to the job and the tool demand. If the air line, regulator and filter are not set up properly, even a capable machine will feel short of air at the gun or tool. Moisture management also matters, especially for paint work and any job where clean air is needed.

In practice, one common issue is people running a compressor hard without allowing enough recovery time, which leads to hot running, more condensate and inconsistent output. I also see poor pipework and undersized fittings causing avoidable pressure loss.

Used correctly, this type of compressor gives dependable workshop air and keeps routine jobs moving without constant waiting.

Dan Jennings, Senior Engineer

📄

Technical Datasheet

Download the official manufacturer datasheet for Workhorse Air Compressor 3hp 100l including specifications, compatibility information and technical details.

Download Workhorse Air Compressor 3hp 100l Datasheet

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Cast iron cylinder block and cast iron pump blocks for longterm durability in professional workshop use
Twincylinder, beltdriven pump for efficient air delivery with slower running speed and reduced wear compared with direct drive units
100litre air receiver sized for typical small to medium bodyshop use, giving reasonable run time for most air tools before the motor cycles
Singlephase 230V, 3hp heavyduty industrial motor suitable for standard workshop power supplies, with overload protection to guard against overheating and motor damage
Air receiver built and tested to current European pressure vessel standards, providing compliance for professional bodyshop and garage environments
Slowrunning pump design with aerodynamic flywheel and aftercooler to improve cooling, reduce noise and extend pump life
Fitted aftercooler to remove a proportion of moisture before it reaches the airline, helping downstream filters and extending tool and spray equipment life
Automatic stop/start pressure switch control so the compressor cuts in and out on tank pressure without operator intervention
Factoryassembled, UKbuilt unit with onsite testing for reliability and straightforward servicing by professional engineers
Twoyear limited/conditional warranty backing for workshop use, assuming correct installation, servicing and registration
Portable horizontal receiver layout with wheels and handle to move the compressor around the workshop or between bays
Outlet configured for standard BSP fittings, making it straightforward to integrate with existing workshop airline, regulators and hose reels
Suitable air output (circa 9 CFM free air) to support common singleuser workshop tasks such as impact guns, ratchets, small spray guns, blow guns and tyre inflation in a controlled duty cycle
Oillubricated compressor pump for better longevity under regular use, provided oil level checks and routine maintenance are followed
Designed as a robust “workhorse” unit for regular trade use rather than occasional DIY, balancing performance with realistic duty cycle expectations for bodyshops and repair centres

Specification

Input Voltage

230V, 1ph

Motor Power

3.0hp

Air Receiver Capacity

100 litres

Displacement

13.0 CFM

Free Air Delivery

9.0 CFM

Maximum Pressure

10 bar

Electrical Phase

Single phase

Outlet Connection

1

Dimensions

1100 x 400 x 830mm (L x W x H)

Weight

69kg

Noise Level

74dB(A)

Drive Type

Belt driven

Pump Type

Twin-cylinder

Cylinder Block

Cast iron

Duty

Automatic stop

Warranty

2-year limited (conditional, subject to registration)

FAQs

What duty cycle and airflow can I expect from the Workhorse 3hp 100L compressor in a busy workshop?

The Workhorse 3hp 100L uses a belt-driven, twin-cylinder cast iron pump with around 13 CFM displacement and roughly 9 CFM free air delivery at 10 bar, so it is well suited to light-to-medium duty workshop tasks such as panel preparation tools, smaller spray guns and general air tools. For continuous, air-hungry equipment like large spray booths or multiple DA sanders running flat out, you would generally step up to a larger receiver or higher CFM unit; this machine is best used with short to medium duty cycles and a realistic expectation of recovery time between heavy loads.

What electrical supply does the Workhorse Air Compressor 3hp 100L require?

This model is a single-phase 230 V machine designed to run in standard UK workshops. In practice, you should run it from a dedicated 230 V supply with appropriate protection, typically a 13–16 A circuit depending on your site wiring and local regulations. Avoid long, undersized extension leads as they cause volt drop and nuisance tripping; hard wiring or a short heavy-duty lead is strongly recommended for reliable starting.

Is the Workhorse 3hp 100L suitable for bodyshops and paint work, and what applications does it cover?

The 3hp 100L Workhorse is suitable for small to medium bodyshops and repair centres for jobs such as blow-guns, panel drying, small spray jobs, sealant guns, impact wrenches, rivet guns and general tyre work. For full respray work, continuous use of large HVLP guns or multiple operators, treat this as an entry-level unit and consider whether a larger receiver or a second compressor is required; we can specify a set-up to match your air demand so the compressor is not constantly at 100% duty.

What maintenance does the Workhorse Air Compressor 3hp 100L need and can BWS support it?

As an oil-lubricated belt drive unit with a cast iron twin-cylinder pump, it needs regular oil checks and changes, periodic belt tension inspection, drain-down of condensate from the 100L receiver, and checking safety devices such as pressure switches and relief valves. BWS engineers can set up a service schedule, carry out on-site maintenance and repairs, and supply genuine parts such as filters, belts and fittings so the compressor remains reliable in daily workshop use.
