TECNA 4641N Rocker Arm Industrial Spot Welder SKU 4641N

TECNA Column  SPOT WELDER with TE 101 Control

TECNA 20 KVA ROCKER ARM INDUSTRIAL SPOT WELDER-4641N

Name: TECNA 20 KVA ROCKER ARM INDUSTRIAL SPOT WELDER-4641N
Brand: TECNA
SKU: 4641
Price: 3348.0 GBP
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

£3,348.00

4641

Brand: TECNA

TECNA Pedal Operated Column SPOT WELDER with TE 101 Control

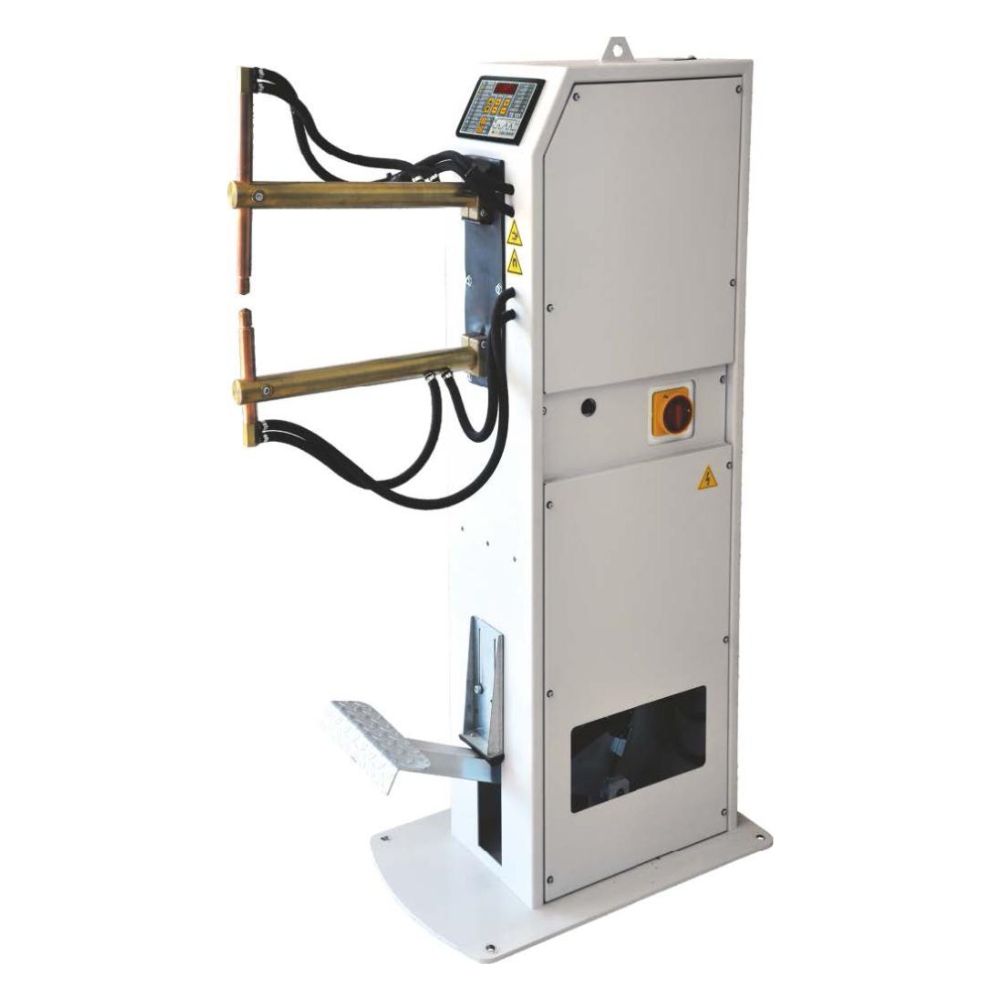

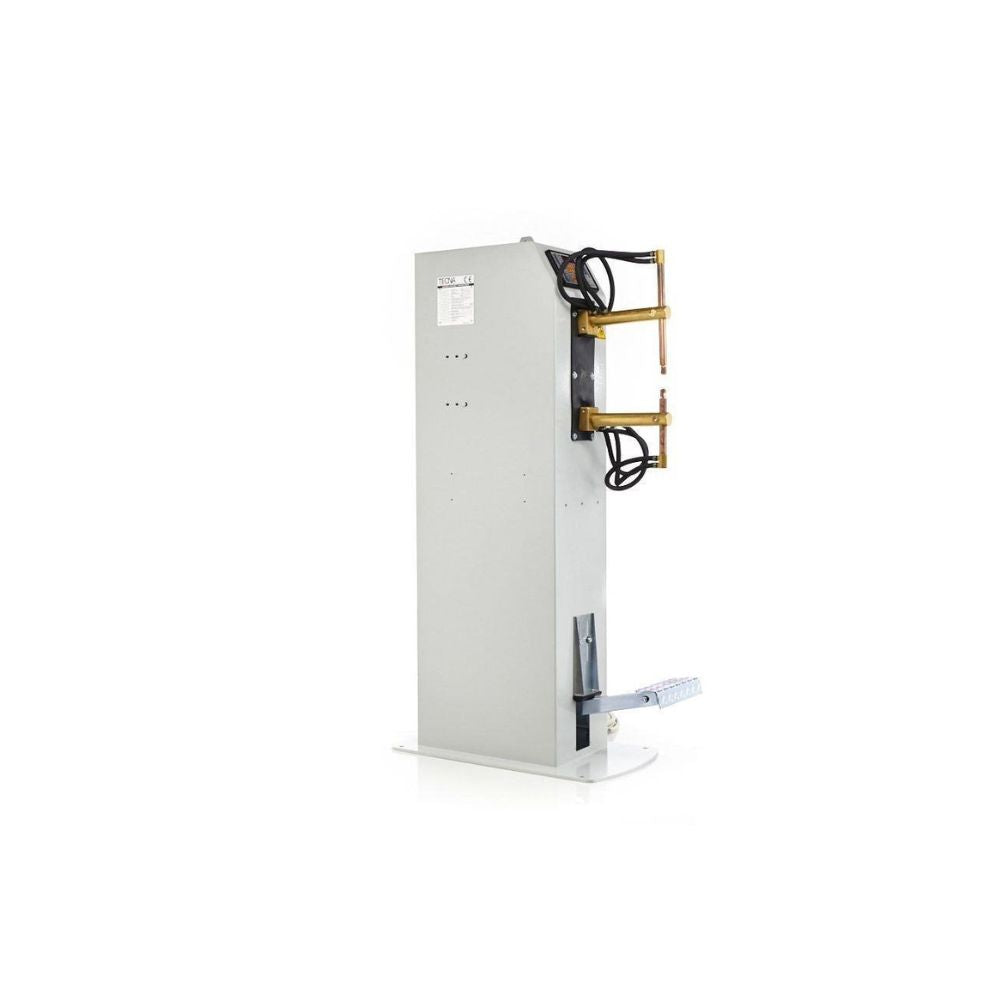

The TECNA 4641N is a versatile 20 kVA foot-operated rocker arm spot welder, designed to meet a variety of spot welding needs. TECNA rocker arm spot welders are most commonly used as stationary spot welders for low-production applications.

Adjustable arm lengths, allowing for better work flexibility.

Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached. The foot pedal is adjustable in length.

Why Buy From BWS?

Technical Support ✓
Service Engineers ✓
Business Account ✓

FEATURES

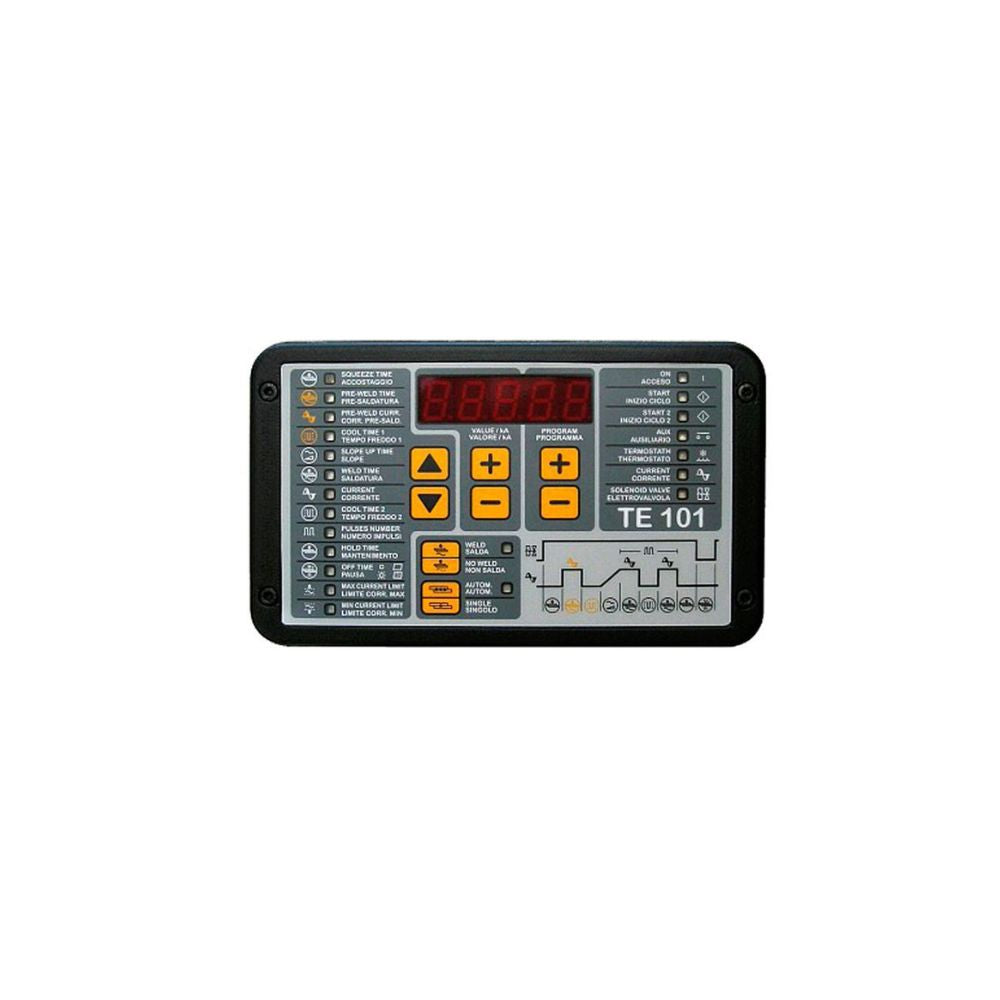

- TE101 weld controls, mounted on the front of the machine, allows operator to view data while welding.
- Water-cooled transformer, arms and electrodes. Epoxy resin coated transformer for maximum protection.
- Adjustable electrode stroke enables access to a greater range of parts.

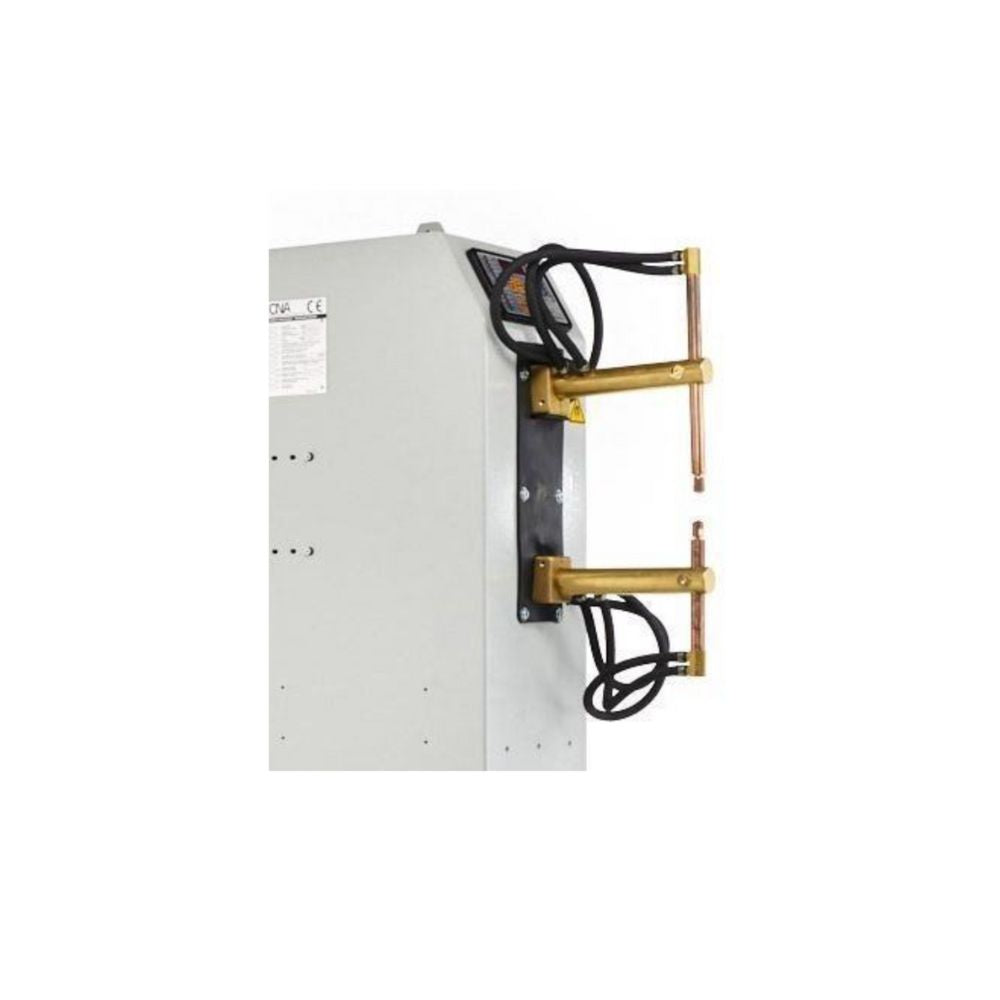

- Chromium-copper electrode holders are designed for long life and heavy-duty service. May be mounted at 12° and 90° positions in the arm.
- Adjustable throat depth enables maximum flexibility.
- Ergonomic frame for long term operation in production environments.
- Single foot pedal

SPECIFICATION

Power @50% : 20Kva
Max .Power: 48Kva
Max Short Cct Current: 14500
Arm Length: 1016mm
Electrode Force: 240 Dan
Supply: 220/400V

DOWNLOAD

TECNA 20 KVA ROCKER ARM INDUSTRIAL SPOT WELDER-4641N

TECNA Pedal Operated Column SPOT WELDER with TE 101 Control
