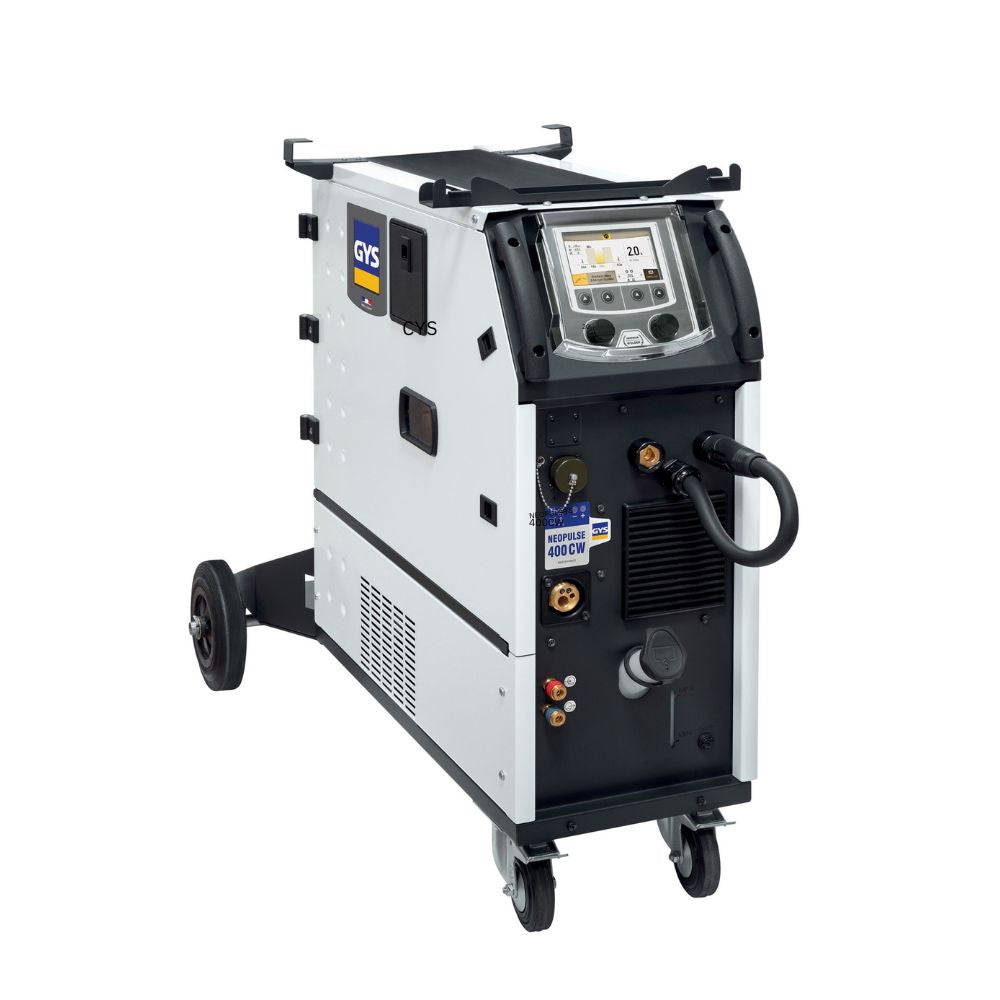

GYS NEOPULSE 400 CW
Prices Exclude Tax
High-Performance Industrial Pulsed MIG/MAG Welder for Heavy Fabrication
The GYS NEOPULSE 400 CW is a robust, three-phase pulsed MIG/MAG inverter designed for high-performance industrial welding applications. Delivering a powerful 400 A at 60% duty cycle, it is ideal for continuous, heavy-duty fabrication of steel, stainless steel, aluminium, and CuSi/CuAl alloys. This advanced machine features four microprocessors for superior process control, enhanced arc stability, and high-speed communication. It offers six MIG/MAG modes — Standard Dynamic, Standard Impact, Standard Root, Pulsed, Modularc, and Manual — ensuring versatility for every application. Built with an integrated cooling unit and a durable IP23-rated chassis, the NEOPULSE 400 CW is perfectly suited to harsh workshop and industrial environments. Its intuitive digital interface with synergic control automatically determines optimal parameters, while allowing fine-tuned adjustments for professional precision and maximum productivity.
WHY BUY FROM BWS?
Specification
- Power Supply: 3 x 400 V ±15%
- Output Current: 10 – 400 A
- Duty Cycle: 400 A @ 60% / 360 A @ 100%
- Wire Speed: 1 – 22 m/min
- Wire Diameter Range: 0.6 – 1.6 mm (steel/stainless/aluminium/CuSi/CuAl), 0.9 – 2.4 mm (flux-cored)
- Protection Rating: IP23 – suitable for indoor/outdoor environments
- Cooling Capacity: 1 kW water-cooled system
- Dimensions (L×W×H): 960 × 510 × 850 mm
- Weight: 78 kg
Features
- Multiprocess Functionality: MIG/MAG, MMA, TIG Lift DC, and gouging up to Ø 6.5 mm.
- Smart Synergic Control: Automatically adjusts wire feed, current, and voltage based on material/gas selection.
- Four Microprocessor Control: Enhances precision, speed, and arc stability.
- Six MIG/MAG Welding Modes: Standard Dynamic, Impact, Root, Pulsed, Modularc, and Manual.
- High Productivity: 400 A output and 60% duty cycle ensure performance in industrial use.
- USB Connectivity: Supports software updates, job data transfer, and machine configuration backups.
- Advanced Cooling: Integrated 1 kW cooling unit for continuous operation.
- Traceability & Data Logging: Records welding parameters compliant with EN ISO 3834.
- Compatible with Push-Pull Torch: Ensures smooth feeding for long-reach applications.
FAQs
1. What materials can the NEOPULSE 400 CW weld?
It can weld steel, stainless steel, aluminium, CuSi, CuAl, and flux-cored wires across MIG/MAG, MMA, and TIG DC processes.
2. Can it be used for robotic or automated systems?
Yes, it can connect to a robot or PLC using the optional SAM control interface for full automation compatibility.
3. How many welding programs can it store?
The NEOPULSE 400 CW can store up to 500 welding programs, which can be saved or transferred via USB stick.
4. Is it suitable for outdoor use?
Yes, with its IP23 protection rating and rugged design, it is suitable for both indoor and outdoor industrial environments.
Why Choose GYS from BWS Ltd
As an authorised GYS Service Centre, BWS Ltd provides full setup, calibration, and ongoing technical support for the NEOPULSE range. Our trained engineers offer certified installation, professional guidance, and nationwide after-sales service. With over 30 years of welding industry expertise, BWS Ltd ensures fast delivery, excellent technical support, and reliability you can trust for your workshop.
