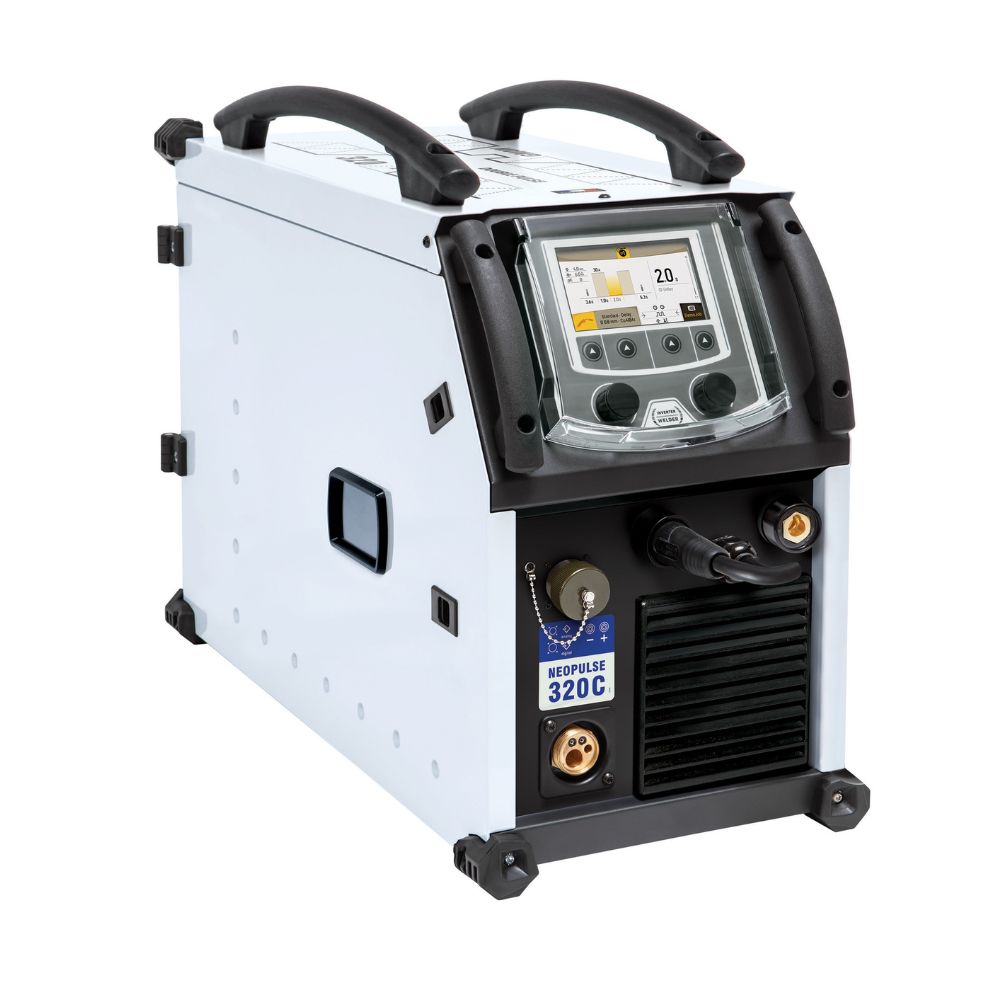

GYS NEOPULSE 320 C
Prices Exclude Tax
High-Performance Industrial MIG/MAG Inverter with Advanced Pulse Technology
The GYS NEOPULSE 320C is a powerful three-phase, digital inverter welding machine engineered for professional fabrication and heavy industrial applications. Delivering up to 320A of output current, it combines MIG/MAG, MMA, and Lift TIG capabilities in a single, high-efficiency unit. Equipped with four advanced microprocessors, this machine ensures precise arc stability, faster communication, and optimised performance across all metals including steel, stainless steel, aluminium, CuSi, and CuAl alloys. Its user-friendly digital interface provides quick access to synergic programs, allowing automatic adjustment of wire speed, voltage, and current while retaining manual fine-tuning. With a duty cycle of 300A @ 60%, IP23 protection rating, and optional cooling and wire-feed accessories, the NEOPULSE 320C delivers durability, accuracy, and consistent welding quality suitable for the most demanding environments.
WHY BUY FROM BWS?
Specification
- Power Supply: 3 x 400 V ±15%
- Current Range: 10 – 320 A
- Duty Cycle: 300 A @ 60% / 280 A @ 100%
- Wire Speed: 1 – 22 m/min
- Wire Diameter: Steel 0.6–1.2 mm / Stainless 0.8–1.2 mm / Aluminium 0.8–1.2 mm / CuSi–CuAl 0.8–1.2 mm
- Processes: MIG/MAG Pulsed, MMA DC, Lift TIG
- Protection Rating: IP23
- Dimensions (L×W×H): 680 × 300 × 550 mm
- Weight: 36 kg
Features
- Multi-Process Capability: MIG/MAG, MMA, and TIG DC Lift in one compact system.
- Pulsed Welding Technology: Enables superior control over heat input and spatter reduction.
- Four Microprocessors: Ensures high-speed communication and consistent arc quality.
- Smart Synergy Mode: Automatically optimises welding parameters for selected materials and gases.
- Six MIG/MAG Modes: Includes Standard, Pulsed, ModulArc, Root, Impact, and Manual.
- Traceability & Data Logging: Records welding parameters for EN ISO 3834 compliance.
- High Duty Cycle: 300 A @ 60% for heavy-duty continuous use.
- USB Connectivity: For updates, data transfer, and storage of up to 500 JOBS.
- Optional Cooling Unit & Remote Controls: Enhances operational comfort and process control.
FAQs
1. Can the NEOPULSE 320C weld aluminium effectively?
Yes, it supports aluminium wire diameters from 0.8 to 1.2 mm and provides pulsed MIG/MAG capability for superior aluminium welds.
2. What materials can this machine weld?
It can weld steel, stainless steel, aluminium, CuSi, and CuAl alloys using both MIG/MAG and TIG processes.
3. Does the machine store weld programs?
Yes, the NEOPULSE 320C can store up to 500 custom JOBS, which can be exported or loaded via USB for full traceability.
4. Is it suitable for robotic or automated systems?
Yes, it can connect to a SAM control interface for robotic or automated welding applications.
Why Choose GYS from BWS Ltd
As an authorised GYS Service Centre, BWS Ltd provides full setup, calibration, and ongoing technical support for the NEOPULSE range. Our trained engineers offer certified installation, professional guidance, and nationwide after-sales service. With over 30 years of welding industry expertise, BWS Ltd ensures fast delivery, excellent technical support, and reliability you can trust for your workshop.
