GYS NEOPULSE 220 C
Prices Exclude Tax

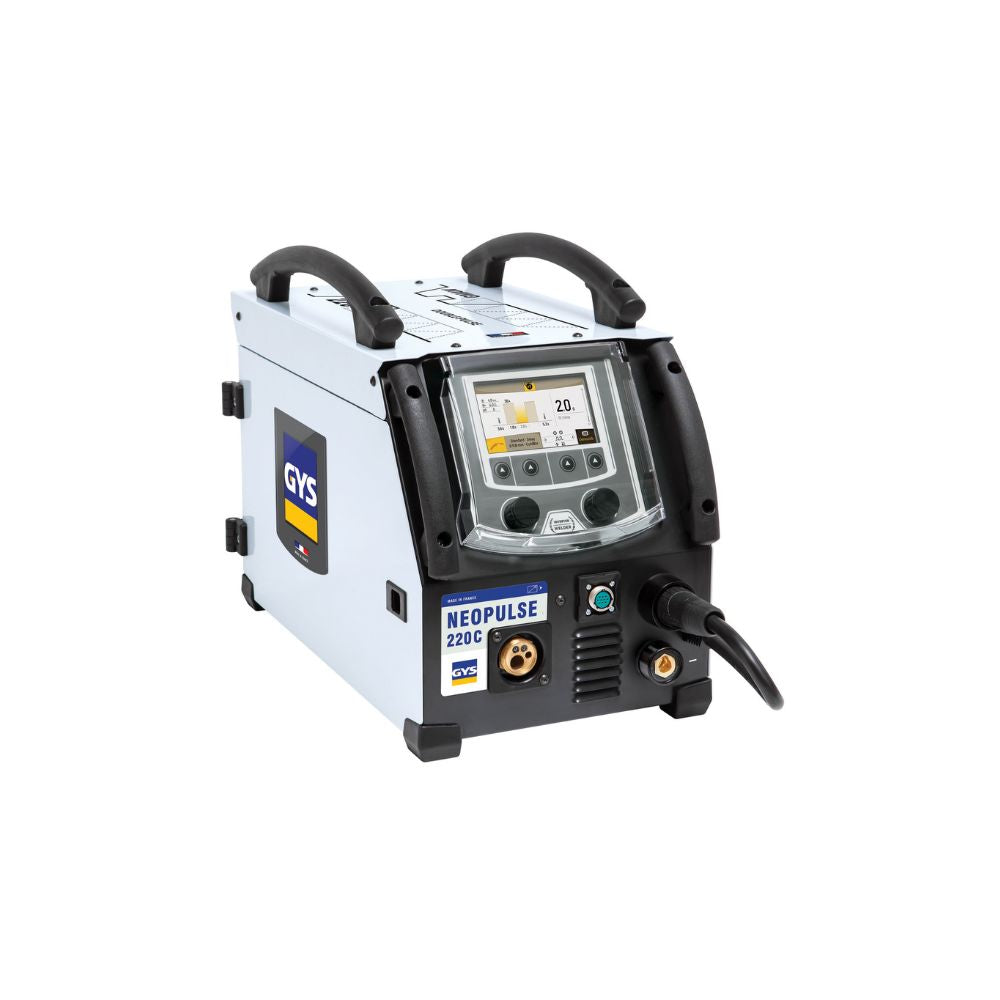

GYS NEOPULSE 220C – High-Performance Multi-Process Pulse MIG/MAG Welder
The GYS NEOPULSE 220C is a powerful single-phase pulse MIG/MAG inverter engineered for professional welding performance across multiple processes including MIG/MAG, MMA, and TIG DC Lift/Pulse. Built with digital control and four microprocessors, it offers four times the processing power for precise arc control, exceptional welding quality, and enhanced productivity. Its intuitive digital interface and synergic mode make setup simple: select material, gas, and wire diameter, and the machine automatically calculates optimal parameters while allowing manual fine-tuning. The NEOPULSE 220C supports six MIG/MAG welding modes, stores up to 500 welding programs, and provides full traceability in compliance with EN ISO 3834. Encased in a durable metal housing with IP23S protection, dual handles, and a 4-roller drive system, this welder is ideal for demanding workshop and industrial applications where precision and reliability are critical.
Who Is It For + Pros & Cons
The NEOPULSE 220C is designed for professional fabricators, automotive bodyshops, and light industrial users seeking a compact, high-performance pulsed MIG/MAG welder.
- Pros: Pulse welding capability, 500 program storage, traceability, USB updates, intuitive interface.
- Cons: Single-phase input limits output for heavy industrial use.
Specification
| Specification | Details |
|---|---|
| Reference | 061835 |
| Input Voltage | 230V – 1~ (50/60Hz) |
| Output Current Range | 10 – 220A |
| Duty Cycle | 150A @ 60% / 130A @ 100% |
| Processes | MIG/MAG, MMA DC/Pulse, TIG DC Lift/Pulse |
| Wire Diameter Range | Steel/Stainless: 0.6–1.0mm | Aluminium: 0.8–1.2mm | CuSi/CuAl: 0.8–1.0mm |
| Wire Feed Speed | 0.5 – 20 m/min |
| Display Modes | Easy, Expert, and Advanced |
| Synergic Programs | Preloaded + updatable via USB |
| Dimensions (L × W × H) | 55 × 29 × 41 cm |
| Weight | 27 kg |
| Protection Class | IP23S |
| Power Consumption | 10 kVA |
Features
- Multi-Process Capability: Supports MIG/MAG Pulse, MMA DC/Pulse, and TIG DC Lift/Pulse processes.
- Digital Synergic Control: Automatically calculates optimal parameters for precise results.
- Six MIG/MAG Modes: Standard Dynamic, Standard Impact, Standard Root, Pulsed, ModulArc, and Manual.
- USB Connectivity: Enables updates, data export, and storage for up to 500 welding programs.
- EN ISO 3834 Traceability: Records and tracks welding steps and energy data for compliance.
- Advanced Arc Control: Functions include Softstart, Hotstart, CreepSpeed, Crater Fill, and Postgas.
- 4-Roll Wire Feeder: Ensures reliable feeding of steel, aluminium, and CuSi/CuAl wires.
- Compact and Robust Design: Reinforced metal housing, anti-slip rubber pads, dual handles, and IP23S rating.
- Push-Pull Torch Compatible: Supports 24V push-pull torches for precision wire feeding.
Frequently Asked Questions
1. Can the NEOPULSE 220C perform pulsed MIG welding on aluminium?
Yes, it is designed for pulsed MIG welding of aluminium wires (0.8–1.2mm) using synergic settings and precise arc control.
2. How many programs can be stored on the machine?
The NEOPULSE 220C can store up to 500 welding programs directly on the machine and back them up via USB.
3. Is it suitable for workshop and field use?
Absolutely. Its 27kg lightweight frame, IP23S protection, and reinforced casing make it perfect for workshop or mobile service use.
4. Does the welder offer traceability for quality systems?
Yes. It includes EN ISO 3834-compliant data logging, recording energy and weld parameters for every job.
