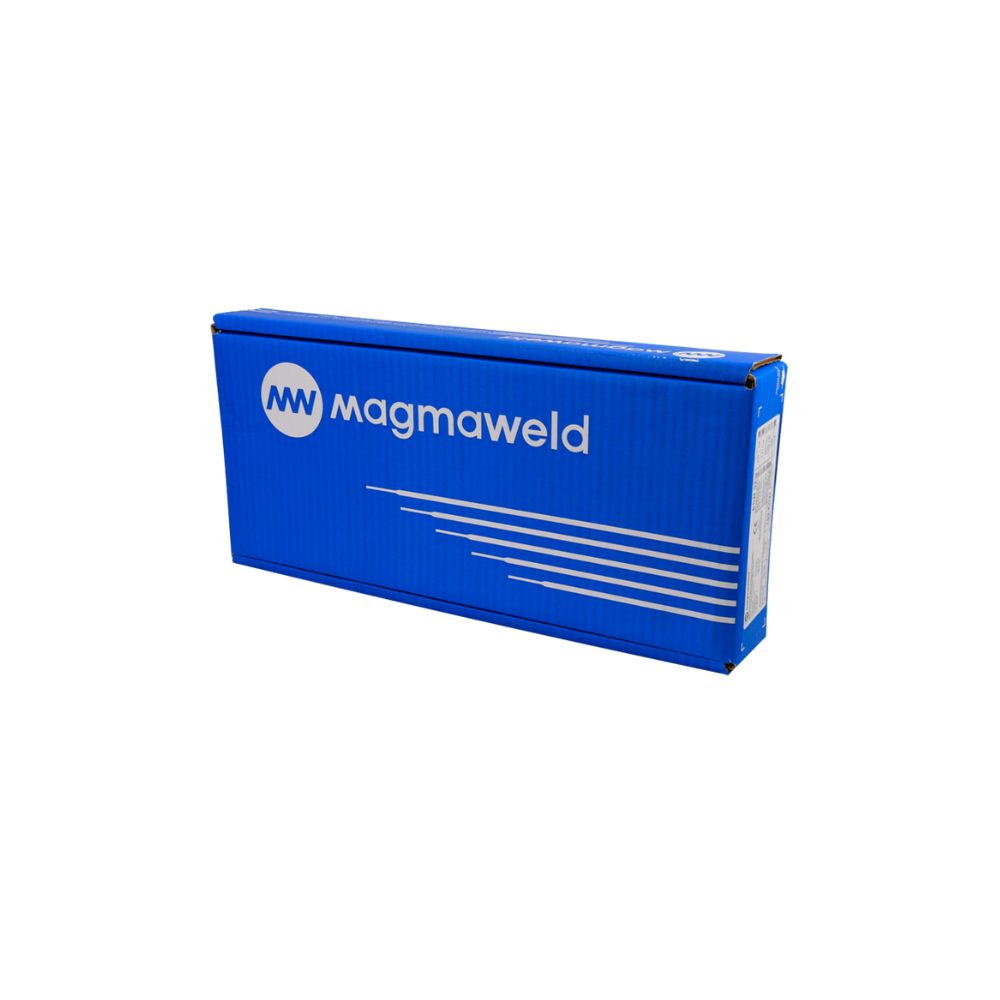

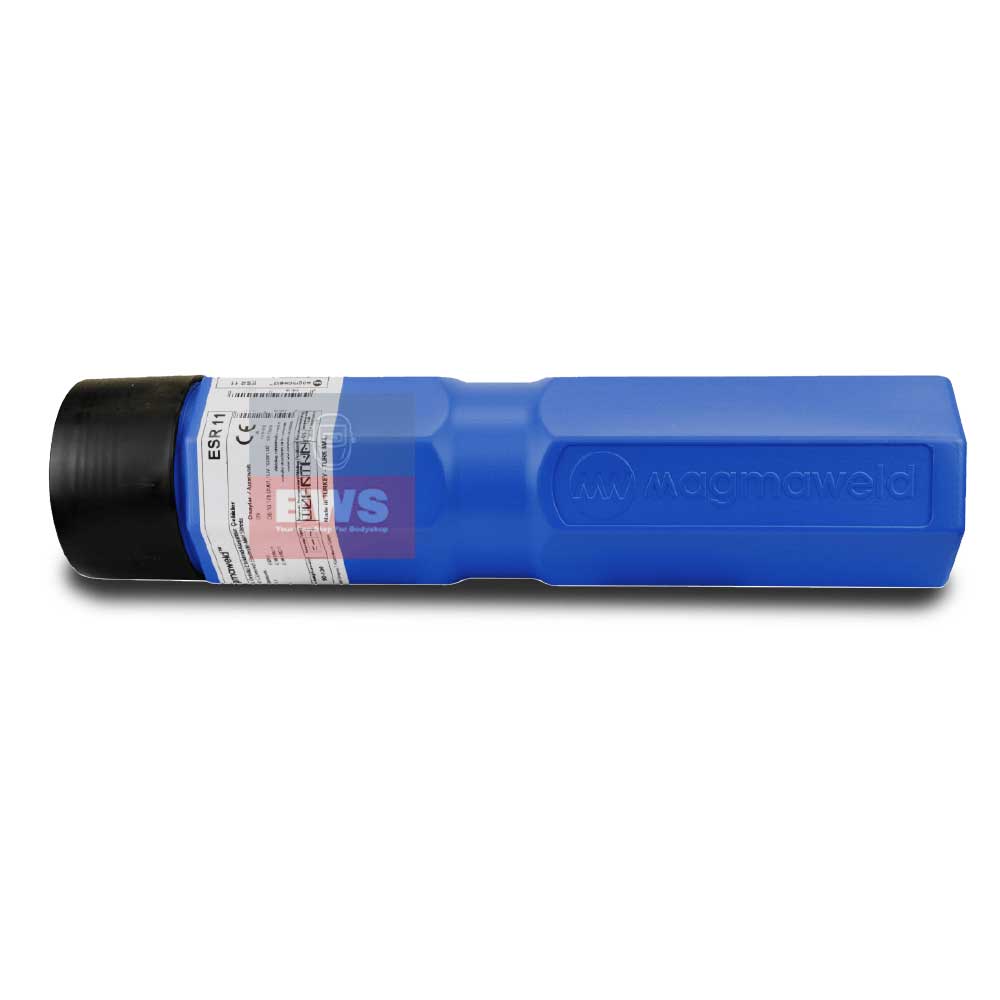

MAGMAWELD ESR 11 E6013 GENERAL PURPOSE WELDING ELECTRODE
-
Prices Exclude Tax
General Purpose Multi-Positional Welding Rod
Especially suitable for welding sheets thinner than 5 mm
APPLICATION
- galvanized sheets and tubes
- primer painted, painted, and slightly rusty steels
- production of tanks and boilers
- tube installations
Very easily operated in positional welding, including vertically-down. Good gap-bridging. Smooth arc, well suited for tack-welding due to its easy arc striking and re-striking properties. Possible to use equally well both with AC and DC. Welds are smooth, slightly concave, and blending into the base metal without undercutting.
Slag is self-releasing.
CLASSIFICATION
- AWS SFA A-5.1 E6013
- AWS/ASME SFA-5.1 E6013
- DIN 1913 E43 22 R(C)3
WELDING PARAMETERS
| Diameter x Length (mm) | Current (A) |
|---|---|
| 2.00x300 | 40-60 |
| 2.00x350 | 40-60 |
| 2.50x300 | 60-85 |
| 2.50x350 | 60-85 |
| 3.25x350 | 90-130 |
| 3.25x450 | 90-120 |
| 4.00x350 | 130-180 |
| 4.00x450 | 140-180 |
| 5.00x350 | 180-230 |
| 5.00x450 | 180-230 |
**Note-May come in sealed boxes.
