Gyspot Alu Pro Fv Aluminium Dent Puller

Name: Gyspot Alu Pro Fv Aluminium Dent Puller
Brand: GYS
SKU: 021990
Price: 1763.00 USD
Availability: InStock

$1,763.00

Shipping calculated at checkout.

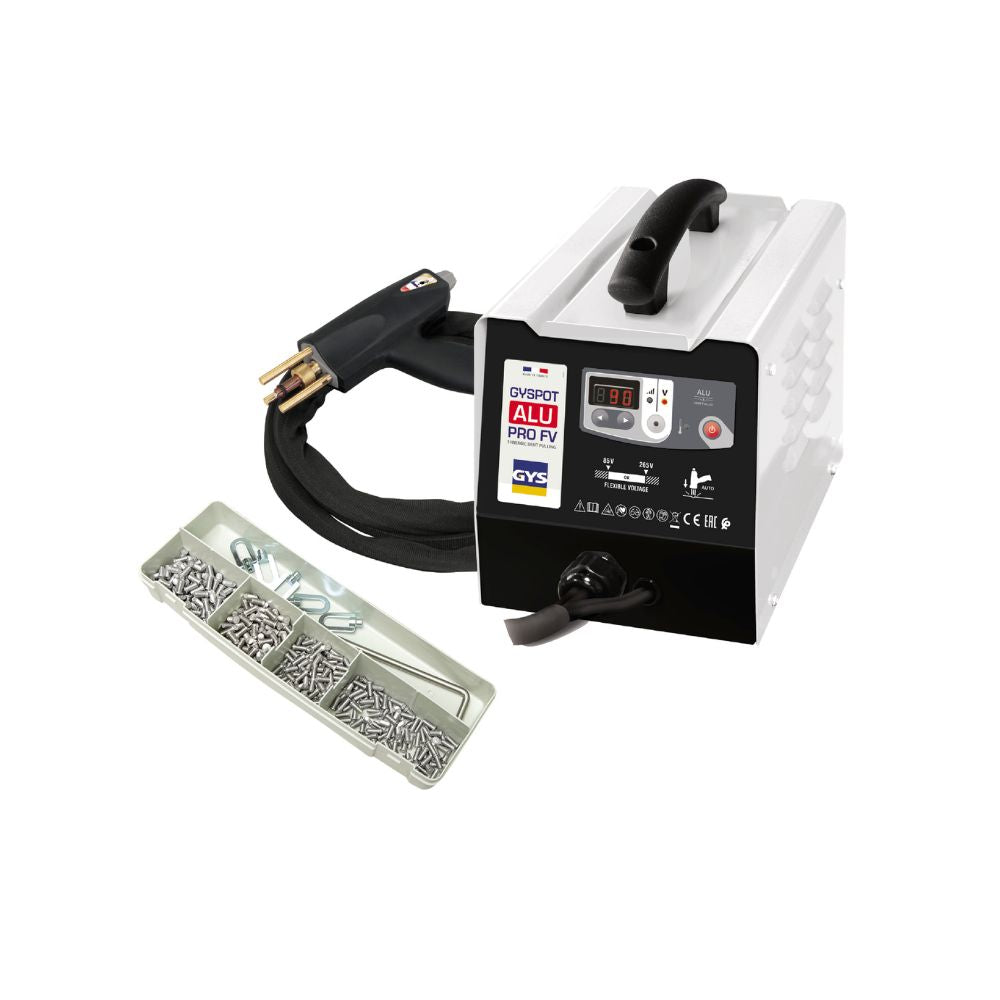

Gyspot Alu Pro Fv Aluminium Dent Puller is a professional capacitor-discharge system for repairing minor dents in aluminium vehicle panels without stripping or replacing the panel.

Key Features

Dedicated aluminium panel dent repair
Capacitor-discharge stud welding technology
Automatic gun with integrated earths
Microprocessor control for consistent operation
Suitable for M4, M5 and M6 studs
Compact workstation for bodyshop use

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

110V-230V

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

The Gyspot Alu Pro FV is a capacitor-discharge dent pulling system for straightening aluminium body panels such as doors, bonnets and wings without removing the panel.

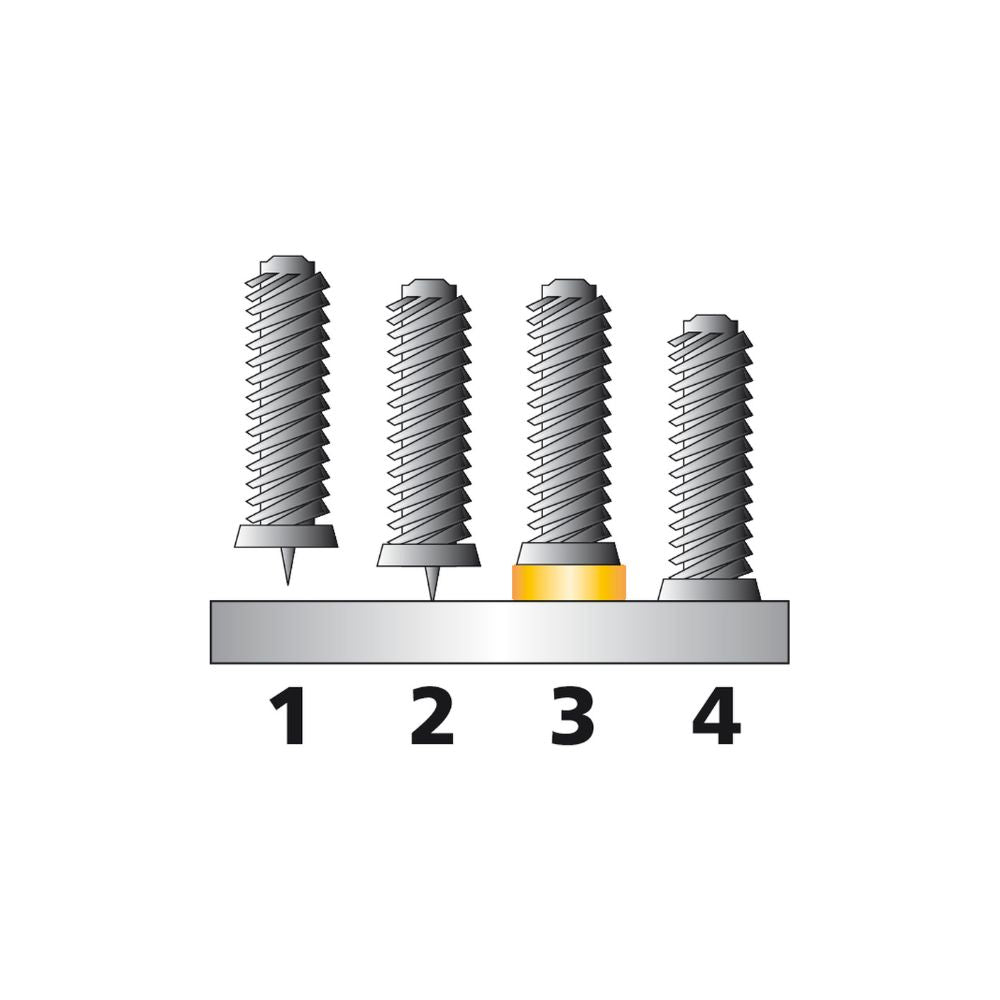

In a bodyshop, the automatic gun welds aluminium M4, M5 or M6 studs to the prepared panel. A pulling bridge, slide hammer or suitable hook can then draw out the damaged area progressively before the studs are removed and the surface is finished. The process is useful where access behind the panel is limited, but it depends on clean aluminium and a sound electrical contact.

I pay particular attention to surface preparation and the gun’s spring pressure. Contamination, coatings or poor contact at the integrated brass earth points can cause inconsistent welds or damage the panel. Power and voltage settings also need to match the stud size and panel thickness rather than simply being set to maximum.

A common fault in practice is trying to pull too much metal in one operation. Controlled, localised pulls produce a better repair and reduce stretching. With correct preparation and adjustment, the unit is reliable for professional aluminium body repair.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Designed for straightening aluminium body panels such as doors, bonnets and other impactdamaged components without stripping the panel

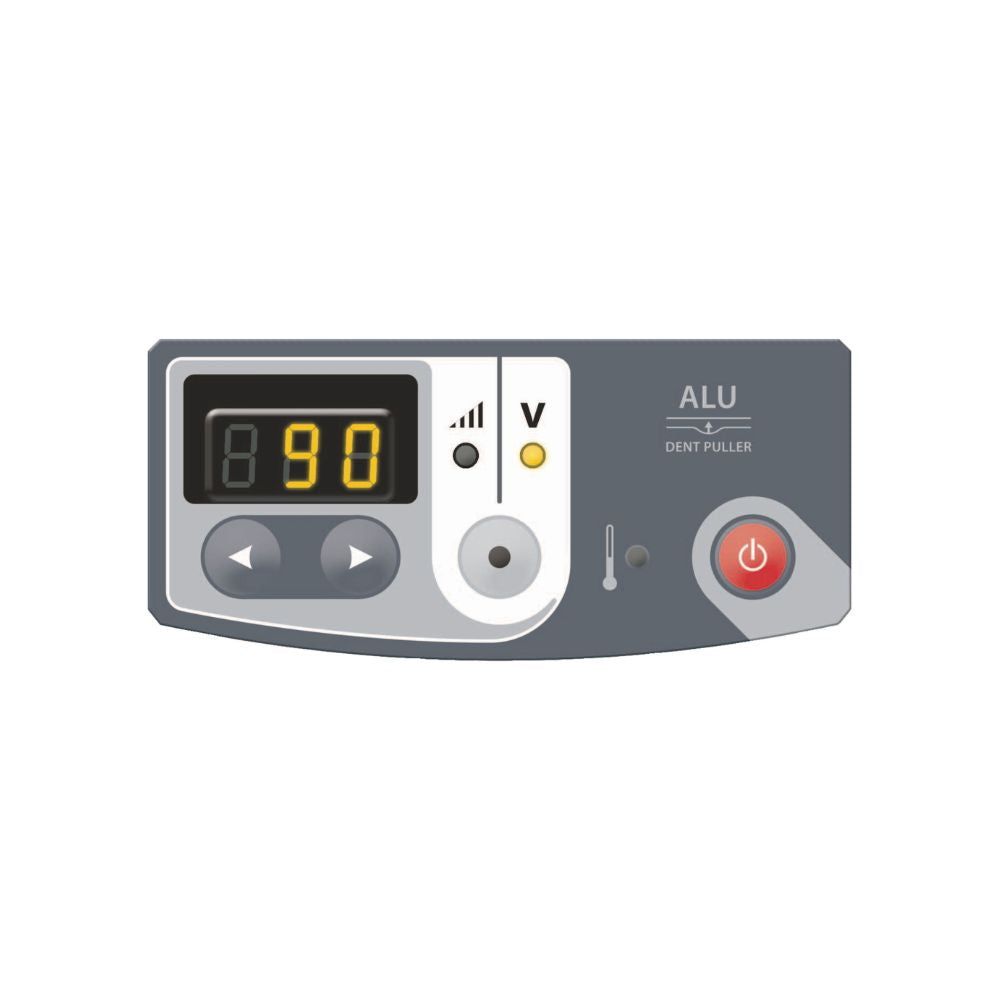

Microprocessor control provides separate adjustable voltage and power operating modes
Voltage mode adjustable from 50 V to 200 V for controlled aluminium stud welding
Power mode adjustable from 0 to 10 to suit different repair requirements
66 mF capacitordischarge system produces rapid 3 millisecond weld pulses
Automatic welding gun operates without a trigger, starting the weld when the tip is inserted into the gun
Integrated earth terminals are built into the automatic gun for convenient panel contact
Three springloaded brass earth studs improve contact and help stabilise the gun during welding
Manual springforce adjustment allows the gun pressure to be matched to the panel surface
Flexible Voltage power supply operates from 85 V to 265 V for use with a range of workshop supplies
Suitable for connection to 110 V or 230 V sockets, subject to the available circuit capacity
Capacitordischarge welding supports aluminium M4, M5 and M6 studs
Supplied with an aluminium dentremoval accessory box and chuck for 4 mm studs
Suitable for pulling dents and impacts on aluminium bodywork while retaining the original panel where practical
Compact workshop unit supplied with an automatic aluminium gun for professional bodyshop repair work

Specification

Reference

021990

Input Voltage

85–265V, 1-phase, 50

Maximum Current

13,000A

Voltage Adjustment

50–200V

Power Adjustment

0–10

Capacitor Capacity

66mF

Welding Time

3ms

Stud Compatibility

M4, M5 and M6

Gun Type

Automatic aluminium gun

Gun Cable

3m, 25mm²

Earth Terminals

3 integrated

Included Accessory Box

ALU BOX STANDARD M4, ref. 050020

Included Stud Chuck

For Ø4mm studs

Dimensions

48.5 x 37.5 x 29cm

Weight

14.18kg

EAN

3154020021990

FAQs

What type of aluminium repairs is the GYSPOT ALU PRO FV designed for?

It is designed for straightening aluminium body panels such as doors, bonnets and other exterior components. The unit welds aluminium studs to the panel so dents and impacts can be pulled without stripping the panel.

What power supply does the GYSPOT ALU PRO FV need?

Its Flexible Voltage supply accepts between 85 V and 265 V, making it suitable for common 110 V and 230 V single-phase workshop sockets. The manufacturer lists operation from a 230 V 2 A or 110 V 5 A supply.

How does the aluminium stud welding system work?

The capacitor-discharge system stores 66 mF and welds a stud in approximately 3 milliseconds. The automatic gun has no trigger: welding starts when the tip is inserted into the gun, while the integrated earth terminals and adjustable spring force help maintain contact with the panel.

What is included with the GYSPOT ALU PRO FV?

The package includes the automatic aluminium gun with three integrated earth terminals, an ALU BOX STANDARD M4 accessory box and a chuck for 4 mm studs. The system is intended for M4, M5 and M6 stud welding; confirm the required stud and consumable kit for your repair method with BWS before ordering.
