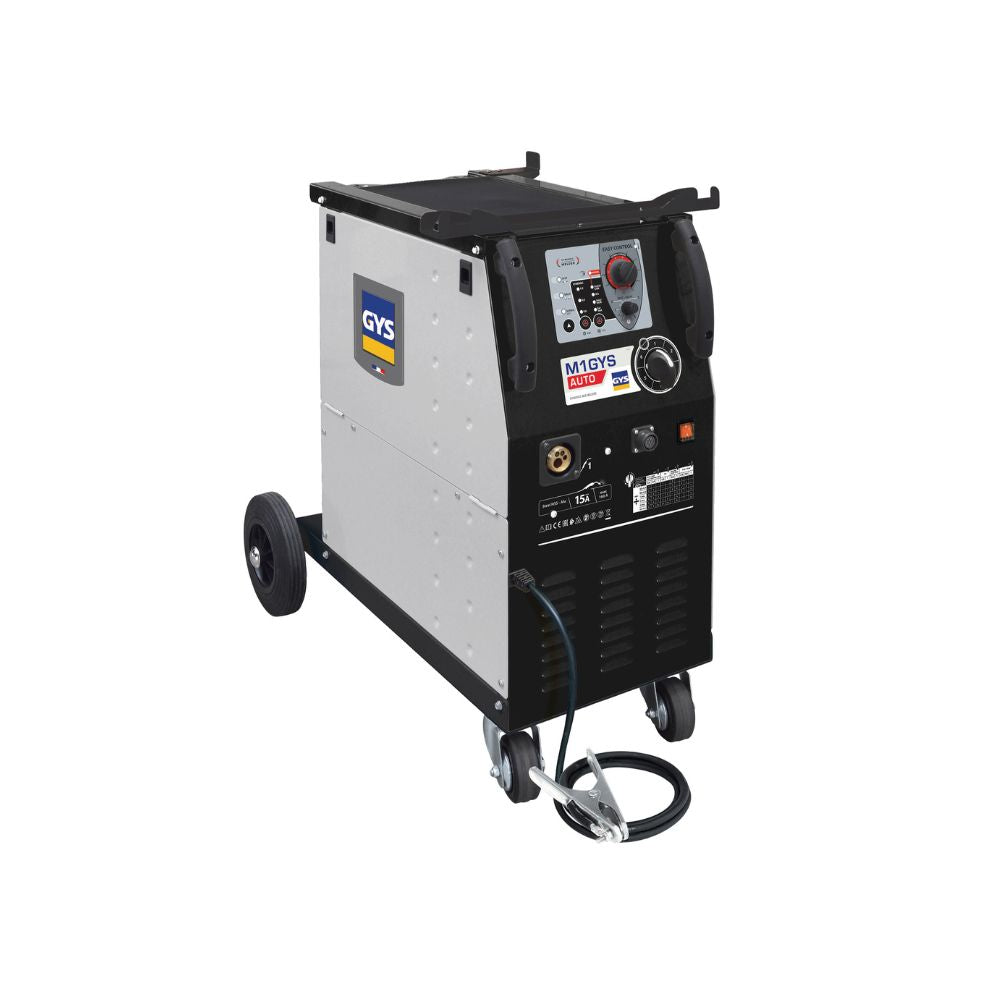

GYS M1 GYS AUTO MIG WELDER 230V
Prices Exclude Tax
GYS M1 MIG Welder for Automotive Repair-with Accessories
The GYS M1 GYS AUTO is a compact, professional-grade single-phase MIG-MAG welder designed for high-precision car body repairs. With a current range of 15–160A and fully synergic control, it ensures perfect weld quality on steel, stainless steel, aluminium, and high-tensile steels using CuSi and CuAl wires. Featuring a 4-roll wire drive system, memory save function, and optional Spool Gun compatibility, the M1 GYS AUTO offers superior reliability and versatility for modern workshops.
Te GYS M1 MIG Welder enables Operators can quickly select wire type, diameter, and mode (Standard, Spot, or Delay), allowing the welder to automatically adjust wire feed speed for optimal welding performance. Ideal for automotive applications, this machine combines precision, ease of use, and upgrade options for aluminium bodywork.
Collections: 240V MIG WELDERS, Best Selling Products, GYS MIG WELDERS, MIG WELDERS, MIG WELDING, Newest Products
WHY BUY FROM BWS?
Specification
- Reference: 032903
- Power Supply: 230V Single Phase (50/60 Hz)
- Fuse Rating: 16A
- Output Current: 15 – 160A
- Duty Cycle: 15% @ 160A (40°C)
- Welding Processes: MIG / MAG / Brazing (CuSi, CuAl)
- Wire Feed System: 4-roll motorised drive
- Wire Diameter: Ø 0.6 – 1.0 mm
- Wire Reel Compatibility: Ø100 / Ø200 / Ø300 mm (up to 15 kg)
- Protection Class: IP21
- Dimensions: 47 × 77 × 79 cm
- Weight: 50 kg
- Generator Compatibility: Yes – with +/- 15% voltage variation
Features

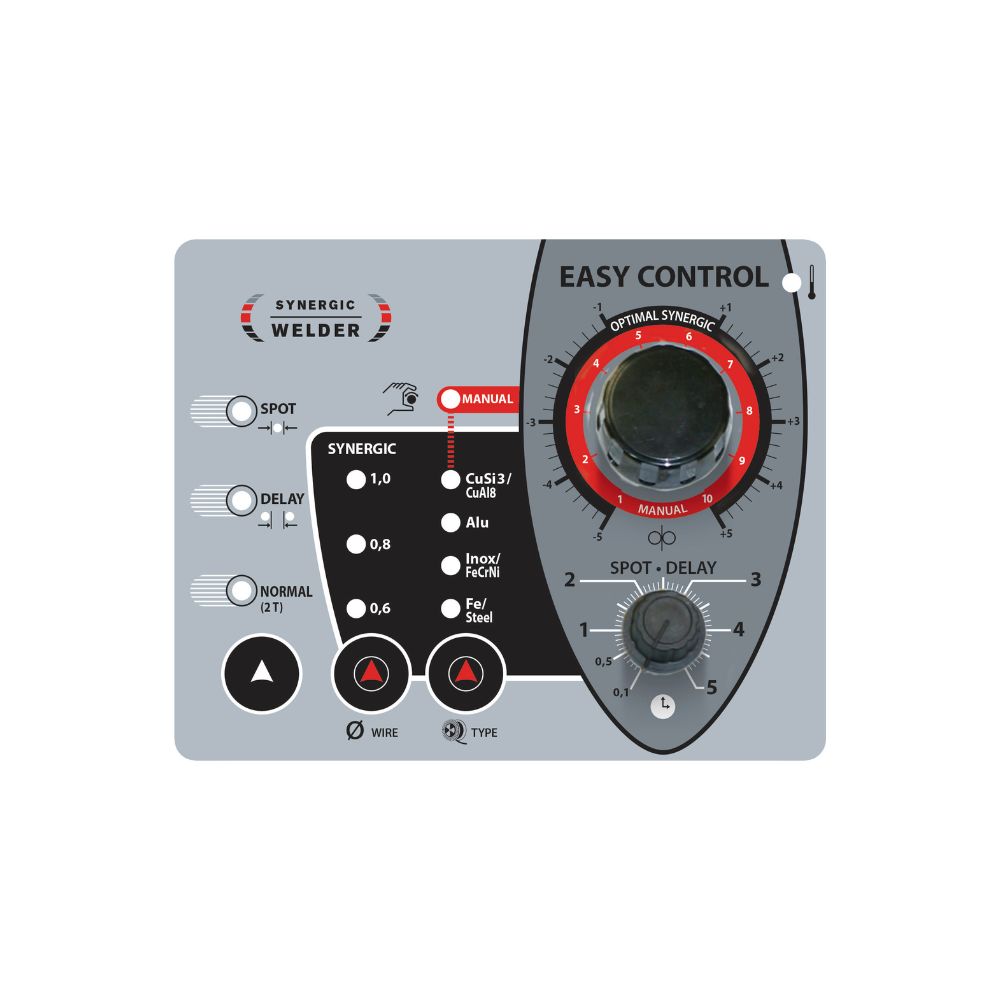

- Synergic Control: Automatically adjusts wire feed speed and voltage for optimal welds.
- Multi-Metal Capability: Welds steel, stainless steel, aluminium, and high-strength steels with CuSi/CuAl wire.
- Spool Gun Compatible: Ideal for aluminium repair using AlSi5 or AlSi12 wire.
- 4-Roll Wire Drive: Ensures stable and consistent wire feed for all materials.
- Memory Save Function: Saves welding parameters for each torch, including “last used” settings.
- Three Welding Modes: Standard (2T), Spot, and Delay modes for flexible operation.
- Upgradeable Design: Supports optional Spool Gun (Ref. 041486) for dedicated aluminium work.
- Optimised for Car Body Repairs: Perfect for thin-gauge panels and high-strength steel applications.
- Delivered With: 150A MIG torch (3m), 200A earth clamp (3m) – regulator optional.
FAQs
1. What materials can the M1 GYS AUTO weld?
It can weld steel, stainless steel, aluminium, and perform MIG brazing on high-strength steels using CuSi or CuAl wire.
2. Does it include a gas regulator?
No, the unit is supplied with a MIG torch and earth clamp. A gas regulator is available separately.
3. Can I use a Spool Gun with this machine?
Yes. The welder includes a Spool Gun connector and supports the GYS Spool Gun (Ref. 041486) for 100 mm aluminium wire reels.
4. What type of environment is it suited for?
The M1 GYS AUTO is designed for automotive workshops and repair facilities requiring precision welding of lightweight panels and aluminium structures.
Why Choose GYS from BWS Ltd As an approved GYS service centre with a nationwide team of trained engineers, BWS Ltd offers full sales, setup, and after-sales support for the GYS range. Buying from BWS ensures your investment includes: * Certified installation and training * Ongoing calibration and servicing * Expert support from real bodyshop engineers Trusted UK bodyshop & welding equipment supplier since 1994. Approved GYS Sales Service and Support Supplier – exceptional service, expert advice, and fast delivery you can rely on.
