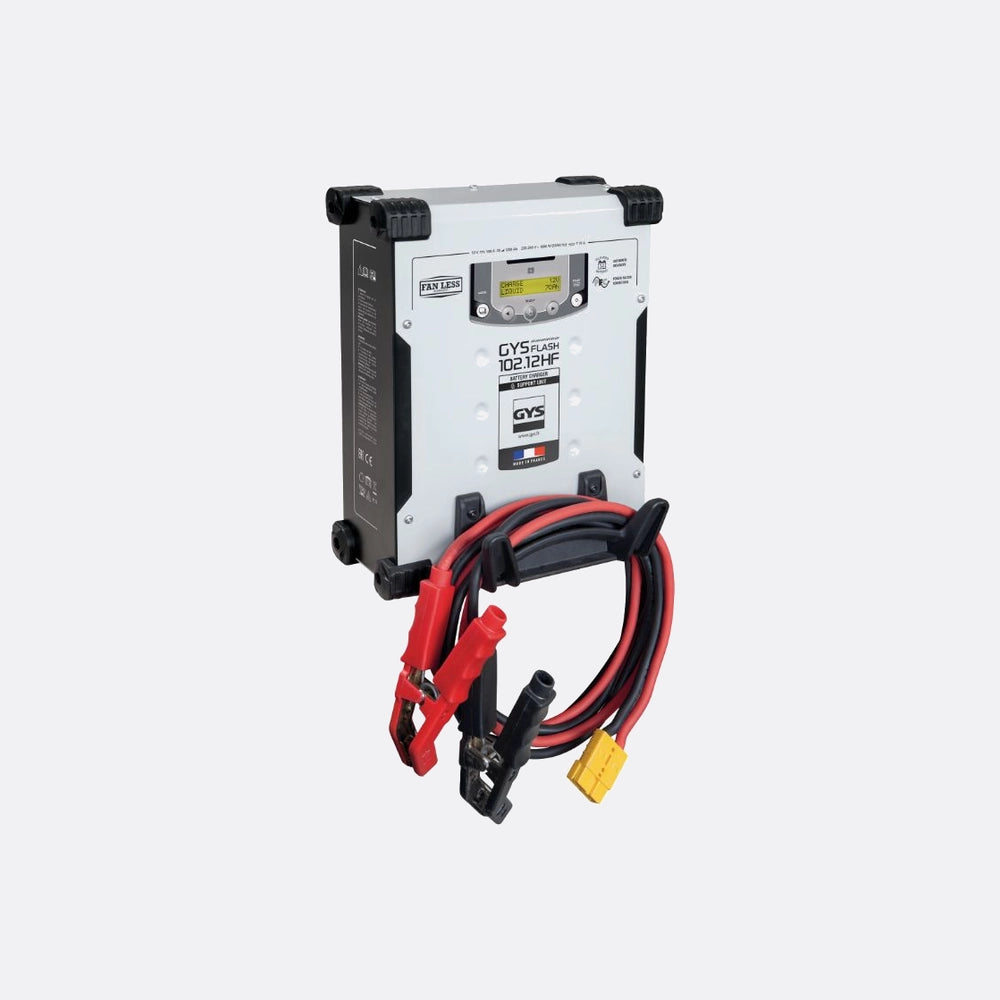

GYSFLASH 102.12 HF BATTERY SUPPORT UNIT

Price Exc Tax

029606

GYSFLASH 102.12 HF 100A high power connected charger and BSU

SKU 029606

Specifically designed to be fitted on a wall or a car lift, the vertical GYSFLASH 102.12 is a very powerful inverter battery charger able to supply up to 100A.

The GYSFLASH 102.12 will stabilise the battery’s voltage at 12V during the diagnostic phases. It will deliver the best charging cycle recommended for the maintenance of the most advanced vehicles on the market.

ADVANCED

• The «Auto Restart» function means that the charger will memorize the settings in case of a power cut and restart automatically.
• Control and calibration of cables, the charger can be fitted with cables up to 2x8m long and 16mm2 thick.
• Locked in Showroom mode, avoid the risks of misuse, perfect for garages and exhibition spaces.
• 4 charging curves available, the Easy mode for a simplified charge adapted to all lead-acid batteries.

• Activation and set-up of an «Expert» charging curve. 100% AUTOMATIC

CHARGE

• The 9-step charging curve ensures maximum battery performance and longevity. • It can recover deeply discharged batteries below >2 V (SOS automatic Recovery)

OPTIONS

Magnetic Support Bracket - 029637

Download Data Sheet

Download



Charge: for 12V batteries (lead-acid/AGM/gel) from 20 to 1200 Ah.
Diag +: support up to 100 A the 12V batteries for vehicles in the diagnostic phase.
Battery change: ensures a stabilized power supply to the vehicle during battery replacement to preserve memory settings.
Power Supply: adapt the charger to the stabilized power supply with voltage and adjustable maximum current.
Showroom: the charger will compensate for the current use by the consumers on the vehicle.
supplied with 5m cables

Manufacturer GYS

Part No. 029606

Supply 220-240 V AC

Power 2000W

Charge 120A

GYSFLASH 102.12 HF inc 5m Cables
