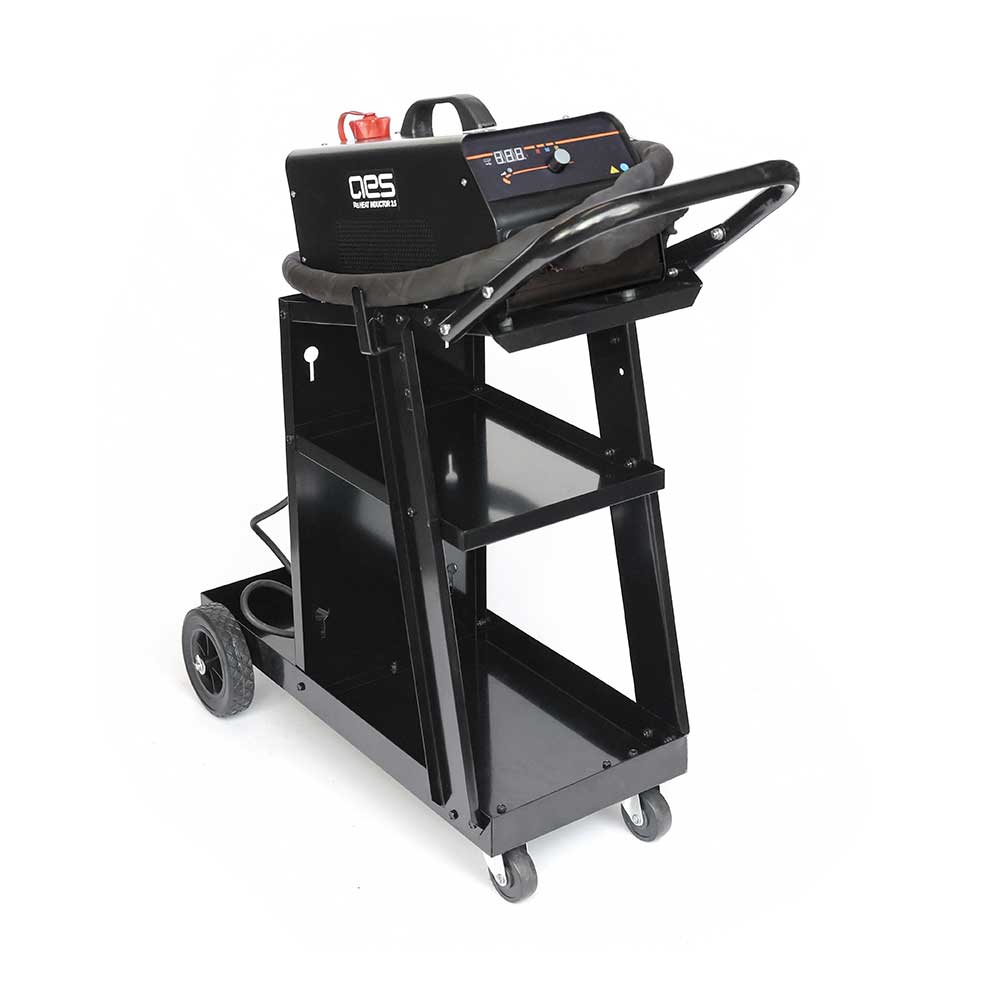

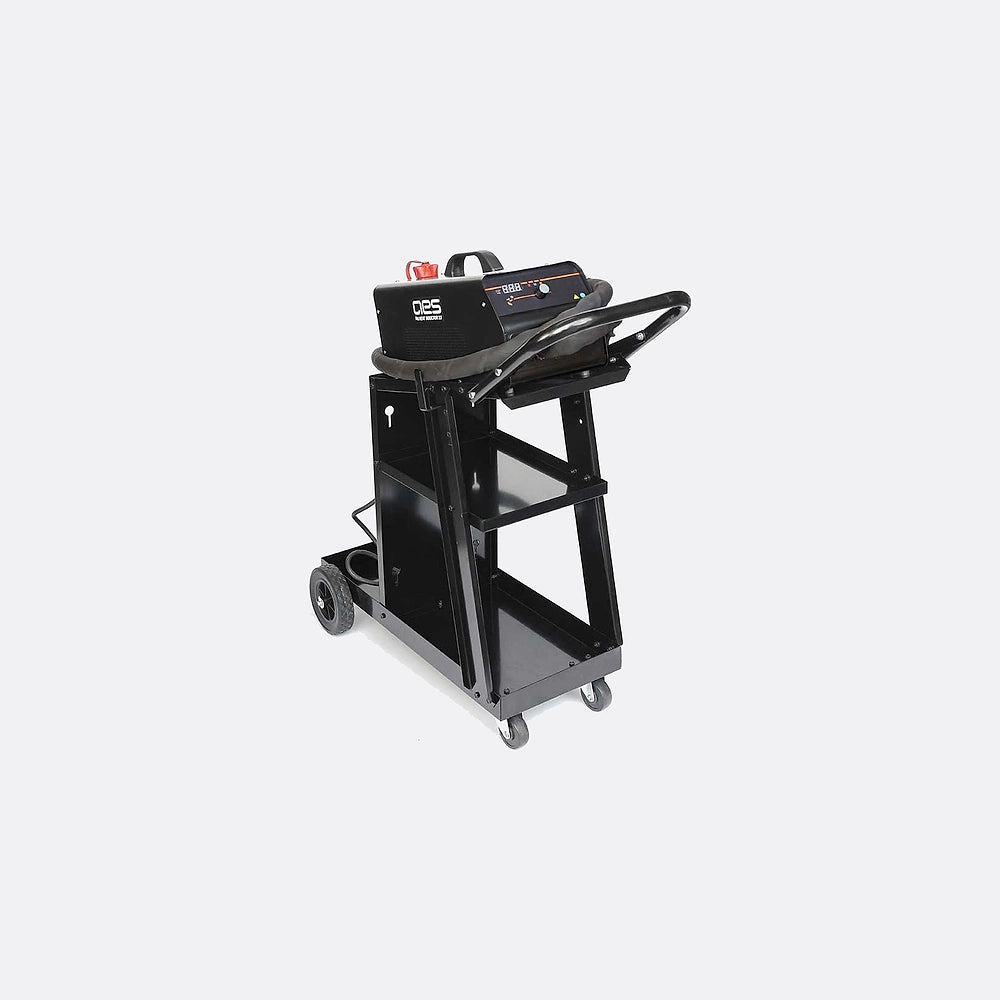

Aes Hi 3.5kw Liquid Cooled Induction Heater

Name: Aes Hi 3.5kw Liquid Cooled Induction Heater
Brand: EAS
SKU: AESHI35
Price: 2275.00 GBP
Availability: InStock

£2,275.00

Shipping calculated at checkout.

AES HI 3.5KW LIQUID COOLED INDUCTION HEATER provides controlled, flameless heat for professional automotive and workshop applications, including seized fasteners and component removal.

Key Features

3.5kW controlled induction output
Liquid-cooled operating system
Variable heat control
Interchangeable induction coil tips
Compact portable workshop design
Suitable for automotive repairs

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

This type of liquid-cooled induction heater is used for controlled, flameless heating in vehicle repair and general workshop work. I use it mainly for seized bolts, nuts, bearings, hubs and bonded components where applying heat locally is safer than using a torch around paint, wiring or other vulnerable parts.

The 3.5 kW output runs from a 230 V supply and uses interchangeable coils, so the coil must suit the shape and material being heated. Steel and other ferrous materials respond well, while aluminium and non-ferrous parts require the correct application and may not heat in the same way. Keep the coil close to the work without touching it, and allow clearance around adjacent components.

A common issue is poor coil positioning, which gives slow or uneven heating and encourages excessive dwell time. The liquid cooling system also needs the correct coolant level and unobstructed hose routing.

Used with the right coil and sensible heat control, this is a reliable workshop tool that reduces damage and makes difficult component removal more predictable.

Paul Jones, Technical Director, BWS Ltd

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Compact, portable 230V induction heater for professional automotive, HGV and general workshop use
Controlled, localised heat for loosening seized or rusted nuts, bolts, screwed joints, bearings, hubs and other metal components
Liquidcooled system supports consistent operation during demanding workshop tasks
Variable heat settings allow the operator to match heating intensity to the component and application
Smooth power adjustment provides controlled heating rather than the broad heat spread associated with flame
Interchangeable coil heads and tips allow the unit to be configured for different component sizes and heating tasks
Pinpoint heat application helps limit heat transfer to nearby wiring, hoses, paintwork and adjacent components
Suitable for spot heating, shrinking, bending, preheating before welding or soldering, and component removal
Flameless operation avoids open flame, hot gases and gascylinder handling in the work area
Designed for use on vehicle repairs, bearing replacement, general maintenance, production and fabrication work
Integrated hose arrangement keeps the induction head connected to the compact portable unit during use
Optional footpedal operation allows handsfree heating control where the job benefits from both hands being available
Constant heating power mode helps maintain a steady heat output during longer applications
Builtin timer supports repeatable heating cycles and helps control application time
Automatic cooling operation reduces unnecessary pump and coolingsystem noise when full cooling demand is not required
USB port provides connection for supported service or operating functions
Compact, lightweight case with carrying handle is practical for moving between workshop bays
Can be used from a standard 230V mains supply without gas, reducing consumables and setup requirements
Suitable for heating steel components and materials where electromagnetic induction can be applied
Interchangeable coils and accessories allow the same machine to cover smaller fixings, bearings, cases, tubes and profiles

Specification

Input Voltage

230V, 50

Input Power

3.7kW

Output Power

3.5kW

Working Frequency

18–60kHz

Cooling System

Liquid cooled

Cooling Capacity

2.5L

Hose Length

2m

Duty Cycle

10 minutes

Protection Rating

IP22

Weight

12.5kg

Dimensions

440 x 200 x 240mm (L x W x H)

Brand

AES

Model

AES HI 3.5

SKU

07-003

FAQs

What is the AES HI 3.5 suitable for in a professional workshop?

It provides controlled, flameless heat for removing rusted nuts, bolts, bearings, hubs and other seized metal parts. It is also useful for pre-heating before welding or soldering, shrinking, bending and general repair work on cars, commercial vehicles and industrial equipment.

What power supply does the AES HI 3.5 require?

It runs from a 230V single-phase supply and delivers 3.5kW of induction output. This makes it suitable for most UK workshops without needing a three-phase connection.

How does the liquid cooling system work?

The induction unit uses liquid cooling with a 2.5-litre capacity and a 2-metre hose, helping maintain consistent performance during its rated 10-minute operating cycle. Use the specified induction-heater coolant and check the cooling circuit before regular professional use.

Which coils or tips are available for the AES HI 3.5?

The heater uses interchangeable coil heads so the heat pattern can be matched to the job. It is supplied with a U-coil, with additional interchangeable coils and reducers available for different fasteners, components and heating areas. Confirm coil compatibility when ordering accessories.
