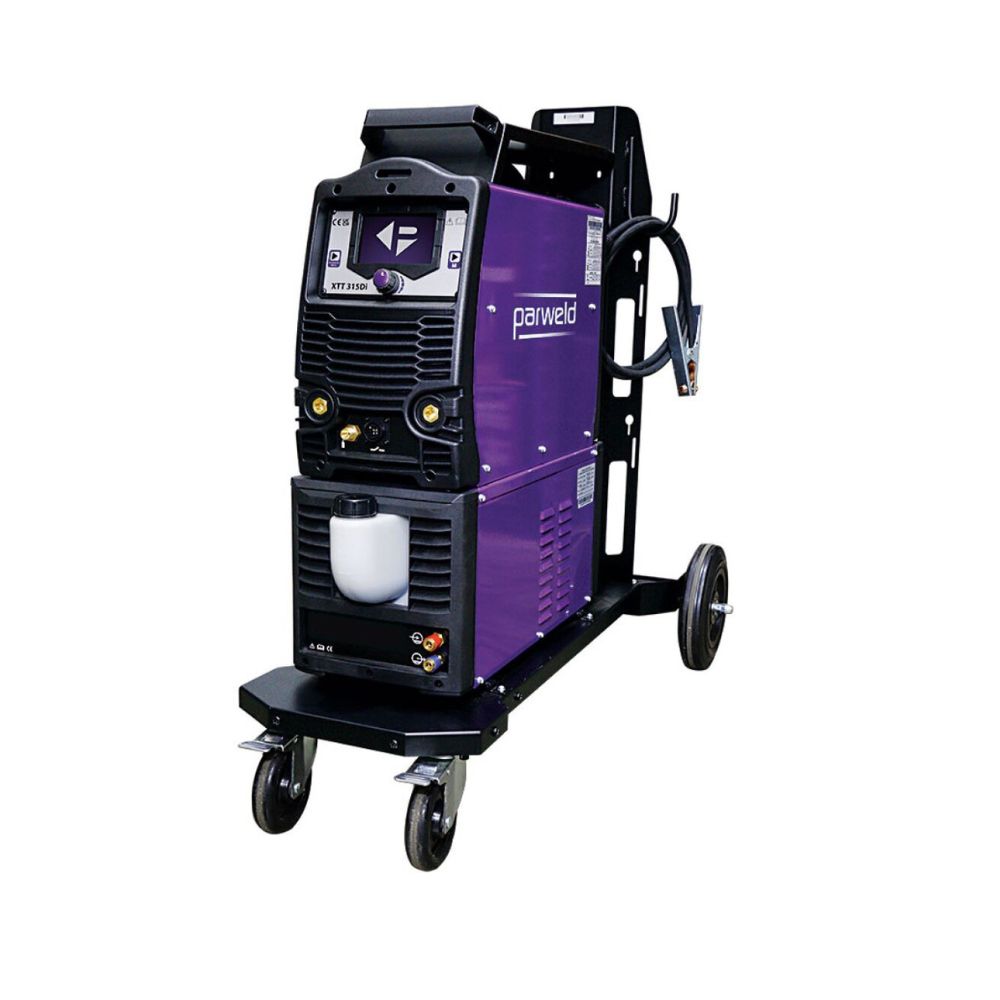

PARWELD XTT 315Di AC/DC PULSED TIG WELDER 400V
Prices Exclude Tax
High-Performance AC/DC Pulsed TIG Welder for Professional Multi-Material Applications
The PARWELD XTT 315Di AC/DC is a powerful three-phase inverter TIG and MMA welder designed for precision welding on a wide range of materials. Operating in both AC and DC modes, it delivers exceptional performance on steels, stainless steels, aluminium, and magnesium alloys. With a maximum output of 315A and a 50% duty cycle at full power, this unit provides consistent results even under demanding conditions. The advanced multi-wave AC output offers selectable waveforms including Sine, Triangle, and Square for precise heat input and weld bead control, while the Pulse TIG function enhances arc stability and reduces heat distortion. Featuring a digital user interface, synergic control, and generator compatibility, the XTT 315Di is ideal for production, maintenance, and specialist fabrication environments where accuracy and reliability are essential.
Collections: Best Selling Products, Newest Products, PARWELD, PARWELD TIG WELDERS
WHY BUY FROM BWS?
Specification
- Input Voltage: 400V Three Phase
- Output Current Range: 5–315A DC / 10–315A AC
- Duty Cycle: 315A @ 50%
- Maximum Current: 315A DC
- Input Current (Eff): 17.1A
- Fuse Rating: 16A minimum
- KVA: 13.6
- Generator Requirement: 17 KVA (with AVC)
- Cooling Type: Air, Fan, Forced, Water (with cooler unit)
- Dimensions: 580 × 240 × 440 mm
- Weight: 38 kg
- Compliance: IP23S, ISO/IEC 60974-1 & 60974-6, RoHS
Features
- Multi-Process Output: AC and DC modes for TIG and MMA welding across all metals.
- Pulse TIG Function: Adjustable pulse frequency (0.5–200 Hz) for superior heat control.
- Multi-Wave AC: Select between Sine, Triangle, and Square waveforms for custom weld profiles.
- Digital Control Interface: Simple, precise parameter adjustment with full TIG settings.
- Synergic TIG Control: Automatically optimises parameters for consistent performance.
- 2T/4T Trigger Modes: Ideal for both short runs and extended welds.
- Pre/Post Flow & Slope Control: Adjustable 0–10s for professional-quality arc starts and finishes.
- Generator Friendly: Operates with ±15% input fluctuation and suitable generator output.
- Spot & Lift TIG Modes: Flexible for delicate or fast work.
- 5-Year Warranty: Full manufacturer warranty for peace of mind.
FAQs
1. What materials can the XTT 315Di weld?
This machine can weld steel, stainless steel, aluminium, and magnesium alloys in both AC and DC modes.
2. Does the unit include a water cooler?
The welder is compatible with a water cooler unit attachment and trolley, allowing the addition of water-cooled torches for extended use.
3. Is this model generator compatible?
Yes. The XTT 315Di can operate with most generators of 17 KVA or higher, provided they feature automatic voltage control (AVC).
4. What accessories are supplied with the welder?
The package includes a 3 m earth cable, 3 m input cable, and gas hose. Torches and cooler units are optional.
