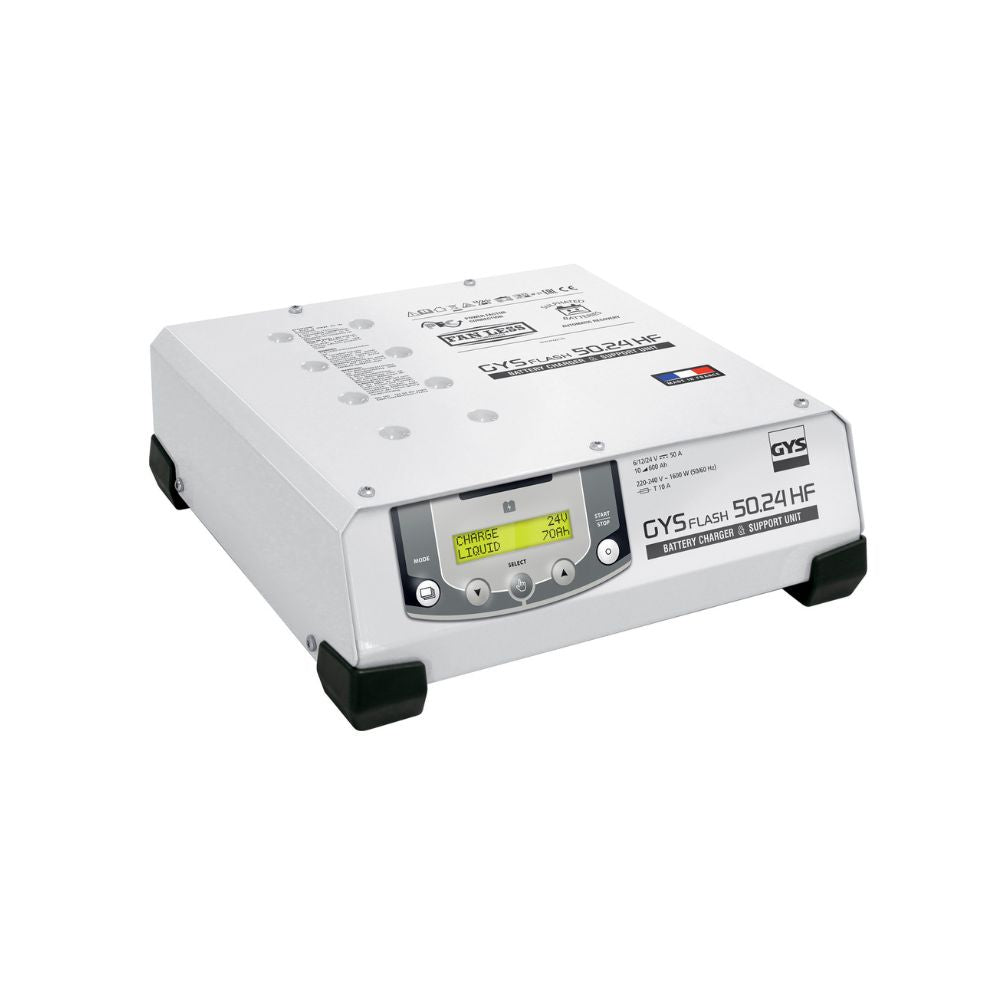

GYSFLASH 50.24 HF (2.5m Cables)
Prices Exclude Tax
GYS 50A 6V / 12V / 24V Professional Smart Battery Charger and Power Supply
The GYSFLASH 50.24 is a powerful, high-precision inverter-based smart charger and support unit designed for 6V, 12V, and 24V battery systems. Delivering up to 50A at 12V and 45A at 24V, it provides exceptional stability and accuracy for workshop, diagnostic, and showroom use.
Using advanced inverter technology, it achieves a 94% efficiency rate, offering a light, compact, and durable solution with no external fan—ensuring silent, dust-free operation. The GYSFLASH 50.24 includes five key operating modes: Charge, Diagnostic, Showroom, Battery Change, and Power Supply, making it ideal for maintaining vehicle batteries, performing ECU updates, or powering demonstration vehicles.
Compact in design and under 11 cm high, it fits easily under vehicles, while its automatic calibration, Showroom Mode Lock, and SOS Recovery for sulphated batteries make it one of the most versatile and professional charging units available.
WHY BUY FROM BWS?
Specification
- Reference: 029620
- Input Voltage: 220 – 240 V AC (50/60 Hz)
- Power Output: 1600 W
- Battery Voltages: 6 V / 12 V / 24 V
- Charging Current: 50 A (12V) / 45 A (24V)
- Battery Capacity Range: 10 – 600 Ah
- Charging Curve: Inverter-controlled multi-step with automatic recovery
- Ripple Voltage: <150 mV RMS (safe for ECU and onboard electronics)
- Protection Rating: IP21
- Efficiency: 94%
- Duty Cycle: 100% at 40°C
- Dimensions (L × W × H): 30 × 10.5 × 29.2 cm
- Weight: 6.5 kg (standard) / 7.9 kg (with 5 m cables)

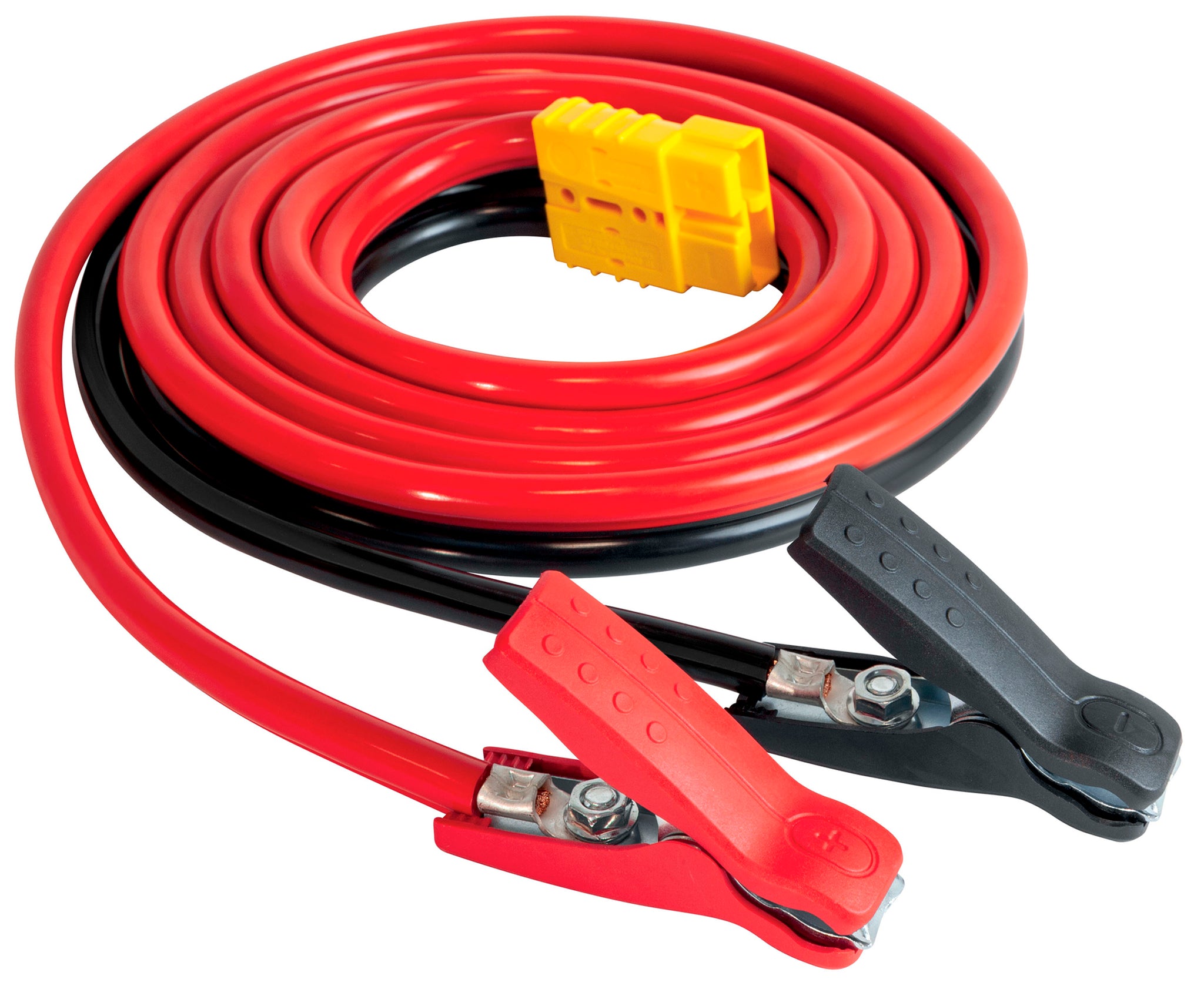

- Cable Options: 2 × 2.5 m (10 mm²) or 2 × 5 m (16 mm²) with automatic calibration
Features
- Five Operating Modes: Charge, Diagnostic, Showroom, Battery Change, and Power Supply.
- Multi-Voltage Operation: Supports 6V, 12V, and 24V systems for all vehicle types.
- Showroom Mode Lock: Prevents accidental mode changes during display or maintenance.
- Fanless Cooling: Silent operation and no dust ingress for longer lifespan.
- Automatic Restart: Recovers last mode after power loss without user input.
- Advanced Inverter Technology: High duty cycle, lightweight build, and low heat output.
- SOS Recovery Function: Reactivates sulphated or deeply discharged batteries safely.
- Cable Calibration: Automatically compensates for voltage drop in long leads.
- Durable Construction: Shock- and vibration-absorbing design for workshop use.
- Easy Charge Mode: Simplifies setup for quick and secure battery connection.
FAQs
1. What battery types are supported by the GYSFLASH 50.24?
It supports all 6V, 12V, and 24V lead-acid batteries, including Gel, AGM, Liquid, and Calcium types.
2. Can it be used for vehicle diagnostics?
Yes. In Diagnostic Mode, it provides a stable current supply for ECU updates and electronic system testing.
3. Is it suitable for showroom display vehicles?
Yes. Showroom Mode maintains voltage for long periods while preventing accidental power interruptions.
4. What is “SOS Recovery” mode?
This function automatically reactivates heavily discharged or sulphated batteries that would otherwise not accept a charge.
