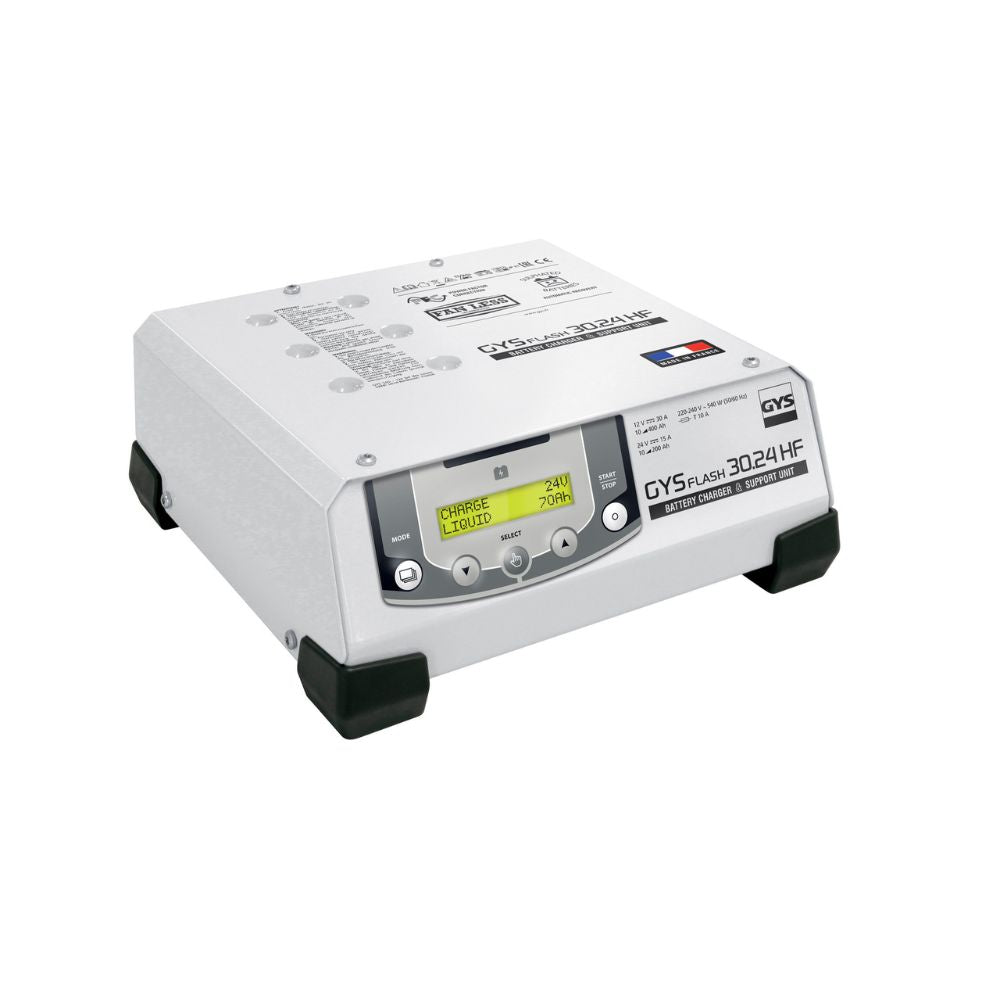

GYSFLASH 30.24 HF BATTERY SUPPORT UNIT
Prices Exclude Tax
30A 6V / 12V / 24V Professional Smart Charger and Power Supply Unit
The GYSFLASH 30.24 is a powerful multi-voltage inverter charger designed for 6V, 12V, and 24V battery systems. Delivering up to 30A at 12V or 15A at 24V, it provides precise and stabilised power for modern automotive and diagnostic applications. Built with advanced inverter technology, it offers five key functions — Battery Support, Advanced Charging, Showroom, Battery Change, and Power Supply — making it ideal for workshops, diagnostics, and showrooms. With a slim 10.5 cm profile, it can be easily placed under vehicles, while fanless cooling ensures silent, dust-free operation. Automatic cable calibration, “Easy Charge” mode, SOS battery recovery, and Showroom Mode Lock provide full control and safety for both operator and vehicle electronics.
Collections: Best Selling Products, Newest Products
WHY BUY FROM BWS?
Specification
- Reference: 029231
- Input Voltage: 220 – 240 V AC (50/60 Hz)
- Power Output: 540 W
- Battery Voltages: 6 V / 12 V / 24 V
- Charging Current: 30 A (12V) / 15 A (24V)
- Battery Capacity Range: 10 – 400 Ah
- Charging Curve: Advanced inverter-controlled multi-stage
- Ripple Voltage: <150 mV RMS (safe for ECU systems)
- Protection Rating: IP21
- Duty Cycle Efficiency: 94% at 40°C
- Dimensions: 25.5 × 10.5 × 23 cm (body)
- Weight: 2.8 kg (body only)

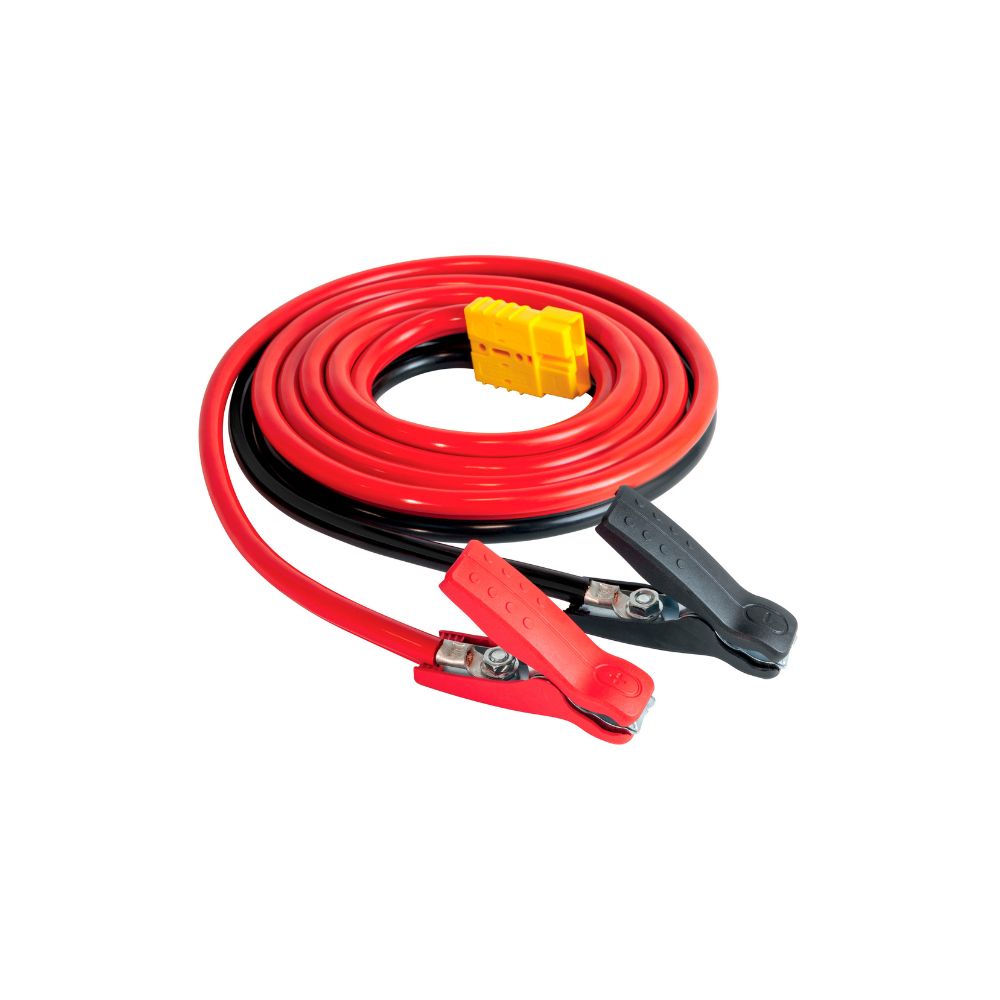

- Cables: 2 × 2.5 m (6 mm²) standard / optional 5 m (16 mm²)
Features
- 5 Operating Modes: Charge, Diagnostic, Showroom, Battery Change, and Power Supply.
- Multi-Voltage Support: Charges 6V, 12V, and 24V lead-acid batteries with stabilised output.
- Advanced Inverter Technology: 94% efficiency and full 100% duty cycle at 40°C.
- Automatic Cable Calibration: Detects and compensates for voltage drop across longer cables.
- Fanless Cooling: Silent, dust-free design for long-term reliability.
- Showroom Mode Lock: Prevents accidental mode changes — ideal for display vehicles.
- Auto Restart: Resumes charging with previous settings after power loss.
- Easy Charge Mode: Simplifies operation for fast battery connection and charging.
- SOS Battery Recovery: Automatically restores heavily discharged or sulphated batteries.
- Durable Construction: Reinforced anti-vibration feet and shock-resistant housing.
FAQs
1. Can the GYSFLASH 30.24 charge both 12V and 24V batteries?
Yes. It automatically adjusts to charge 6V, 12V, or 24V systems, making it ideal for vehicles, machinery, and equipment fleets.
2. What does the “Showroom Mode Lock” do?
This feature locks the charger in showroom mode, preventing accidental changes during display or long-term battery maintenance.
3. Can it recover a flat battery?
Yes. The SOS Recovery function can reactivate batteries that have been deeply discharged or sulphated.
4. Is it suitable for under-vehicle use?
Yes. Its slim 10.5 cm design allows the charger to fit easily beneath vehicles while providing silent operation.
