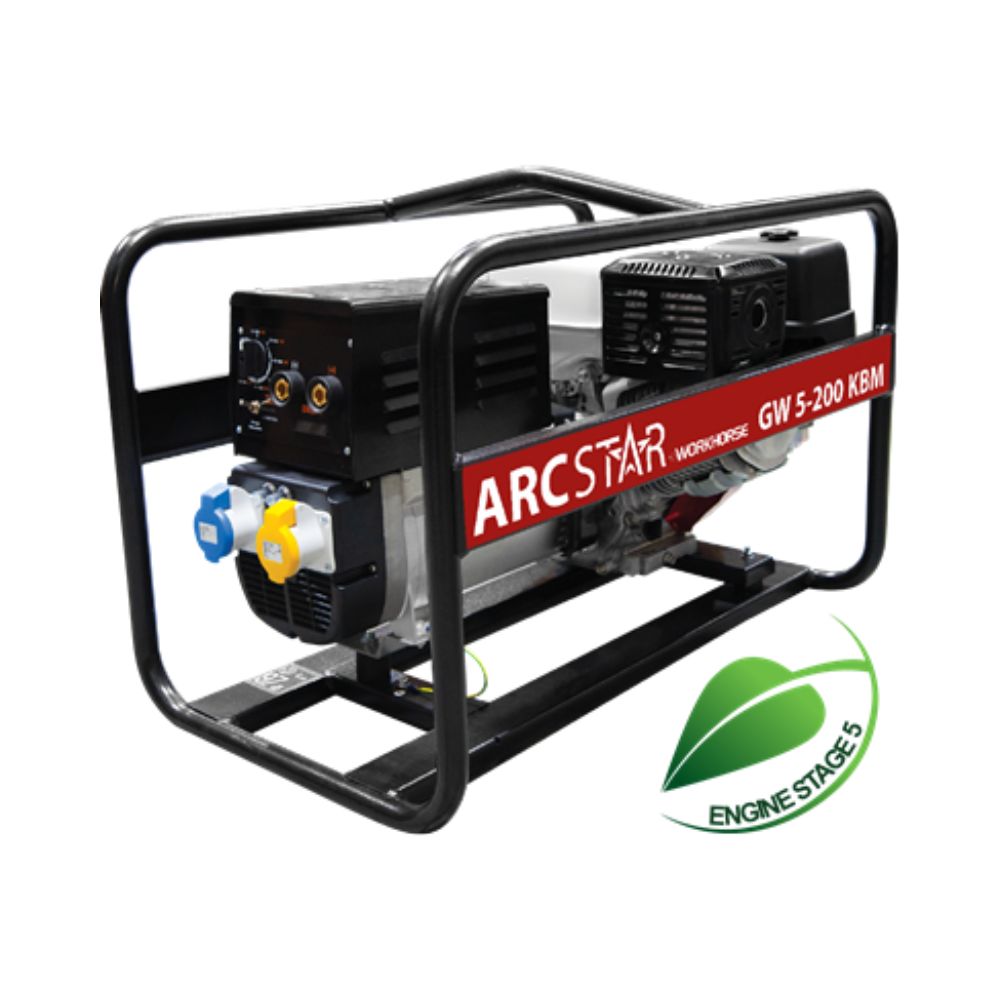

ARCSTAR GW5-200 KBM PETROL GENERATOR 200A

Arc welding source in D.C. welding
• Welds any type of electrode, including cellulosic
• High frequency control of welding current and voltage
• D.C. generator
• Chopped D.C. auxiliary current (safe for tools) - 110V
• Engine shut-down (oil alert)
• MOSA Power optimiser (patent pending)
• Auto Idle
• Portable (34 kg)
• Meets EC directives

Model
Type/Cooling system
Cylinders/displacement
Net power Stand-by
*Power
Fuel consumption (welding 60%)
Engine oil capacity
Starter
Kohler CH440 Command
Pro (Stage V)
Petrol OHV 4-stroke/Air
1/429 cm3
8.2 kW (11.1 HP)
3000rpm
2.1 Wh
1.1 litres
Recoil
* Maximum output (not overloadable) according to SAE J 1349
General Specifications
Fuel tank capacity
6.1 litres
Running time (Welding 60%)
2.9 hours
Protection
IP 23
*Dimensions max LxWxH
870 × 525 × 613
*Weight (dry)
97 Kg
Acoustic power LWA
97 dB(A) (71 dB(A) @ 7m)

1xArcStar GW5-200 KBM Petrol Welder Generator 200 Amp
