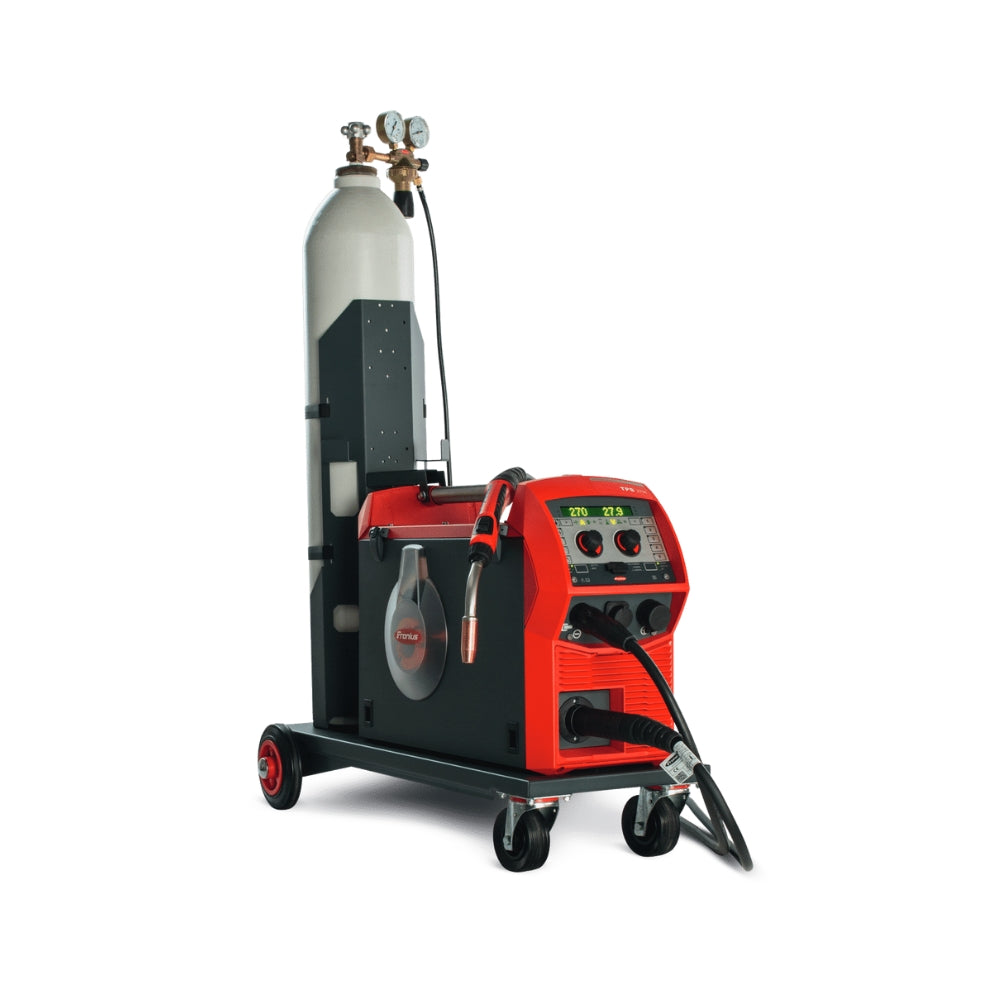

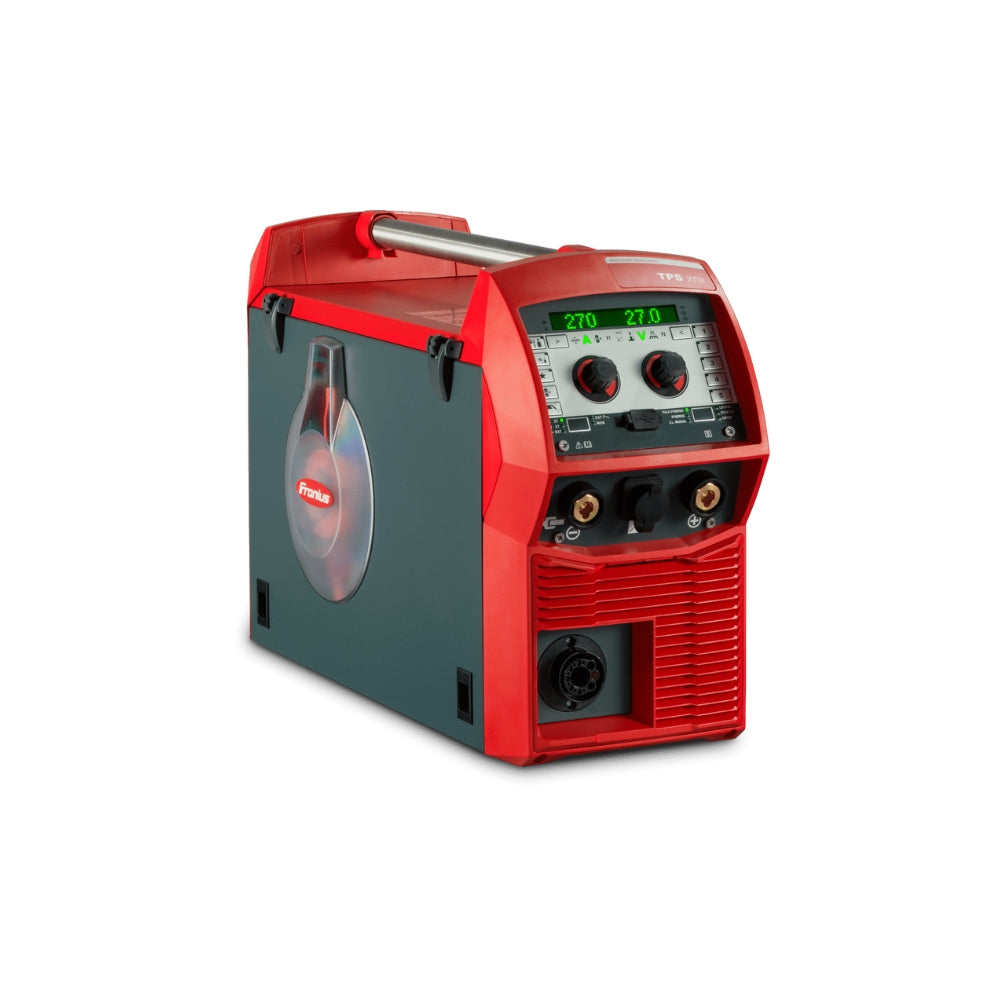

FRONIUS TPS 270I C PULSED INVERTER MIG-AIR COOLED
-
Brand: Fronius Type: Mig Welders
Professional-Grade Fully Digital MIG/MAG Welding System
The FRONIUS TPS 270I C PULSED INVERTER MIG is a fully digitised, microprocessor-controlled inverter power source designed for professional welders who demand excellence. This compact welding system combines advanced features with precision engineering to deliver flawless welds consistently across various applications. With its single-knob operation and synchropulse functions, this welder offers exceptional ease of use while maintaining the high performance standards expected from Fronius.
Mercedces Benz Approved
The modular design and easy system expansion capabilities ensure outstanding adaptability to specific welding requirements, making it an ideal choice for professionals in automotive, manufacturing, and industrial sectors.
Specification
- Mains voltage: 3 x 400 V (±15%)
- MIG/MAG welding current range: 3 - 270 A
- Duty cycle: 40% at 270 A, 60% at 220 A, 100% at 190 A (40°C/104°F)
- Maximum effective primary current: 9.7 A
- Power factor (Cos phi): 0.99
- Output voltage MIG/MAG: 14.2 - 27.5 V
- Dimensions (L x W): 687 mm x 276 mm
Features
- Fully digital multi-process synergic inverter with improved arc characteristics
- Multi-process capabilities: MIG/MAG, STICK welding
- Integrated wire feeder with color-coded consumables for quick setup

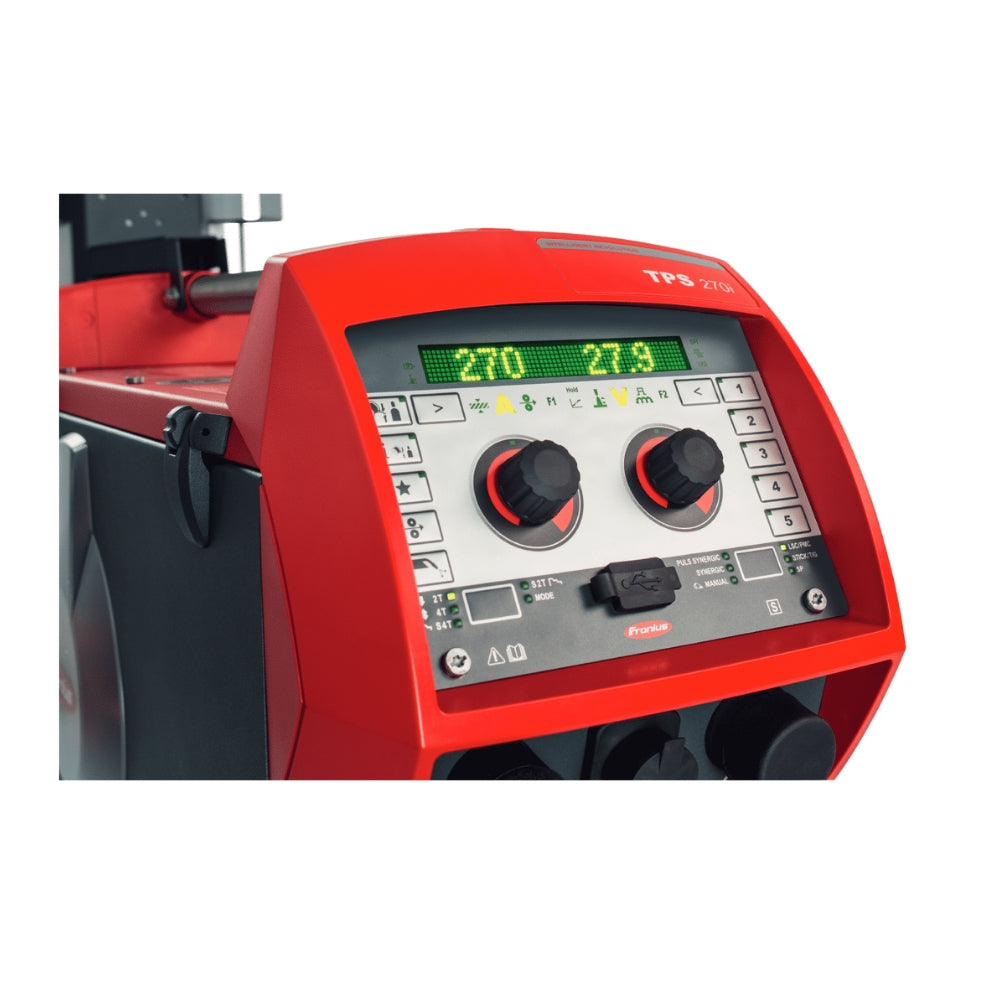

- DOT matrix display with full text menu representation
- Highly adaptive arc for consistent performance across materials
- Single-knob operation and synchropulse functions for ease of use
- Modular design allowing for system expansion and customization
FAQs
1. What power supply requirements does the Fronius TPS 270i C need?
The Fronius TPS 270i C requires a 3-phase 400V power supply with a tolerance of ±15%. It has a maximum primary current of 15.3A and requires a 16A slow-blow fuse. Multi-voltage models are available that can operate on 3-phase 220V/480V supplies.
2. What types of welding can be performed with the Fronius TPS 270i C?
The Fronius TPS 270i C is primarily a MIG/MAG welder with pulse capabilities, but it also supports STICK welding. It offers a welding current range of 3-270A for MIG/MAG applications and 10-270A for rod electrode (STICK) welding, making it versatile for various welding tasks.
3. What comes in the standard package with the Fronius TPS 270i C?
The standard package includes the Fronius TPS 270i multi-process welder, Synergic & Pulse software, integrated wire feeder, air-cooled MTG 320i MIG gun (14'), a 13' ground cable, 0.035" (0.9mm) and 0.045" (1.2mm) setups and consumables, a flow meter with gas adapter, and a 3-year parts and labor warranty.
4. Is the Fronius TPS 270i C capable of welding aluminum?
Yes, the Fronius TPS 270i C with pulse capability is excellent for aluminum welding. For optimal aluminium welding performance, you can upgrade to the optional Push-Pull MIG torch (320i Push-Pull, 19 ft.), which provides better wire feeding control for softer aluminium wires.

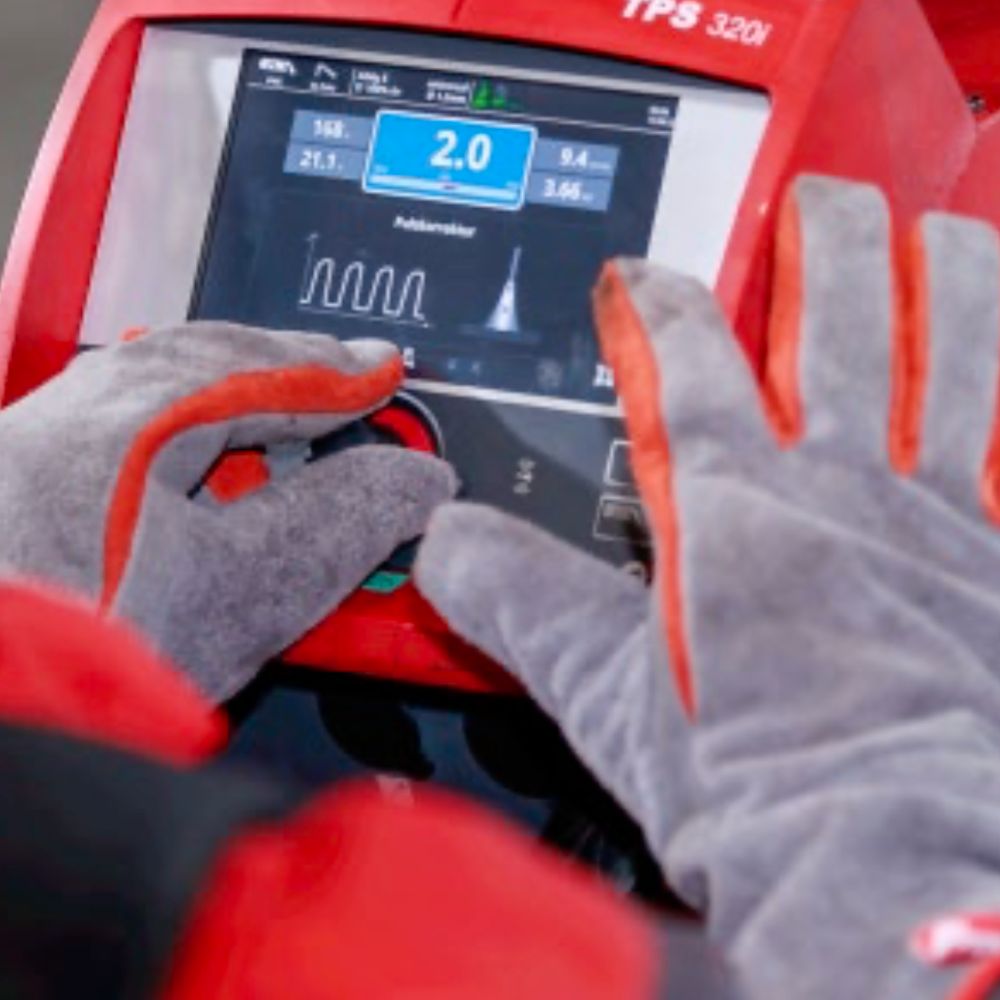

DESIGNED FOR THE FUTURE
The primary features of the TPS/i are built upon cutting-edge technology. Compared to earlier models, the processor operates significantly faster and has the capability to calculate multiple variable parameters. This enables a remarkably precise analysis, leading to enhanced control over the welding process. As a result, you'll experience fewer splatters, smoother transitions during droplet formation and ignition, greater arc stability, and an overall increase in welding speed. With these advancements, welding has never been as straightforward and of such high quality.

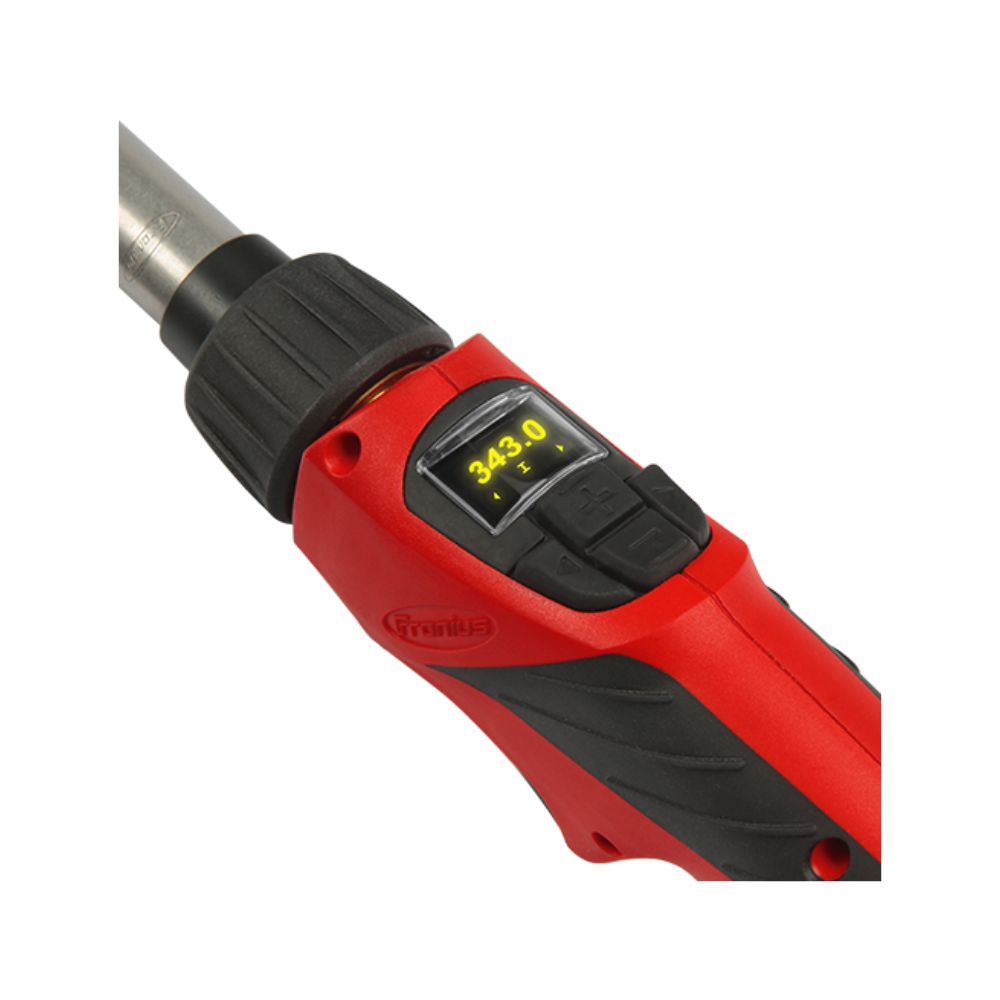

Optional Jobmaster Torch
BUY Now
The Fronius Jobmaster torch is the ultimate combination of ergonomics, functionality and practicality. You can control all the welding properties from the torch handle by using the control buttons and enclosed digital display
DESIGNED FOR PULSE WELDING
What Is Pulse?
Perfect starting, perfect arc starting time after time, precise rapid power and wire speed controls ensure crisp precise arc starting every time.
Precise control of output ensures reduced heat input and allows faster welding speeds with pulsed welding. Positional welding is possible with minimal skill.
Professional Install
More Information
Pro Installation packages mean one of our dedicated welding engineers will deliver , setup and instruct how to use your welder at your premesis. In some curcumstances and if requested welding inspectors can be used to carry out weld testing on your equipment if required.
