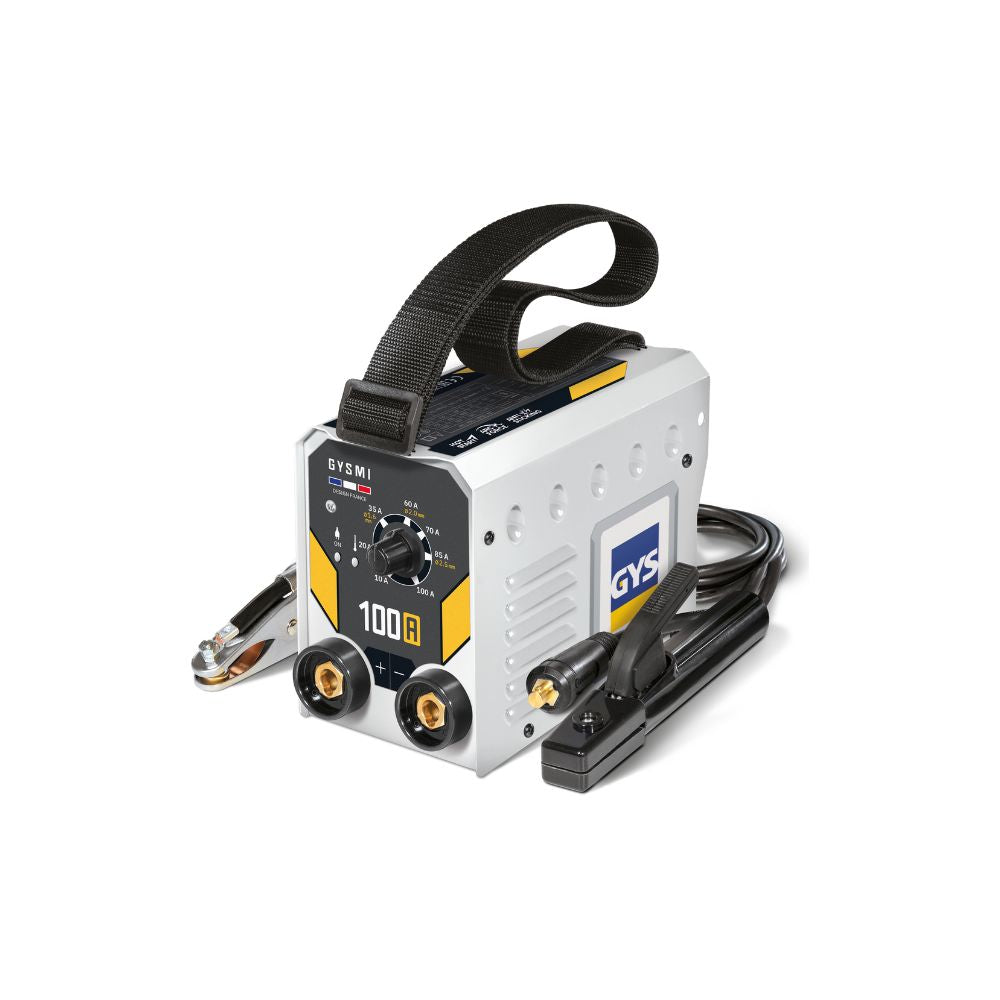

GYSMI 100A MMA INVERTERE 230V
Prices Exclude Tax
Ultra-Portable Single-Phase MMA Inverter Welder for Professional and DIY Use
The GYS GYSMI 100A is a lightweight, single-phase MMA inverter welder designed for both professional repair applications and on-site work. Built using the latest IGBT inverter technology, it delivers excellent arc stability, smooth fusion, and reliable ignition across a wide range of electrodes. Weighing only 2 kg, the GYSMI 100A is highly portable and compact enough to store anywhere — ideal for quick jobs in the workshop or on site. Its intuitive control panel allows precise adjustment of the welding current between 10 A and 100 A, and built-in safety features protect against overcurrent and overheating. With advanced functions such as Hot Start, Arc Force, and Anti-Sticking, the GYSMI 100A provides exceptional ease of use and dependable welding performance on steel, stainless steel, and cast iron up to 5 mm thick.
Collections: Best Selling Products, GYS ARC WELDERS, Newest Products
WHY BUY FROM BWS?
Specification
- Reference: 083622
- Input Voltage: 230 V AC (1 Phase) – 50/60 Hz
- Output Current Range: 10 – 100 A
- Duty Cycle (60 %): 100 A
- Welding Process: MMA (Stick) – Rutile, Stainless, Cast Iron & Basic Electrodes
- Electrode Diameter: Ø 1.6 – 2.5 mm (max Ø 3.2 mm)
- Rated Power: 4.5 kW / 5.0 kVA
- Protection Rating: IP21
- Dimensions: 21 × 13 × 10 cm
- Weight: 2 kg
- Generator Compatible: Yes (± 15 % tolerance)
Features
- IGBT Inverter Technology: Provides smooth, stable arc and precise current control.
- Hot Start: Eases ignition for perfect arc striking every time.
- Arc Force: Automatically increases current to prevent arc extinction in tough conditions.
- Anti-Sticking: Prevents electrode sticking for cleaner welds and easier operation.
- Lightweight & Compact: Only 2 kg – ideal for mobile work or confined spaces.
- Plug-and-Play Setup: Supplied ready for use with earth and electrode cables.
- Generator Friendly: Operates safely from portable generators with ±15 % voltage fluctuation.
FAQs
1. What materials can the GYSMI 100A weld?
It welds mild steel, stainless steel, and cast iron up to 5 mm thick using coated electrodes.
2. Is it suitable for home or workshop use?
Yes, it’s perfect for DIY, light fabrication, and on-site repairs thanks to its lightweight, plug-and-play design.
3. Can I run the machine from a generator?
Yes, it’s generator compatible and handles ±15 % voltage fluctuations without performance loss.
4. What electrode sizes can it use?
The machine supports electrodes from Ø 1.6 mm to Ø 2.5 mm and up to Ø 3.2 mm for short welds.
