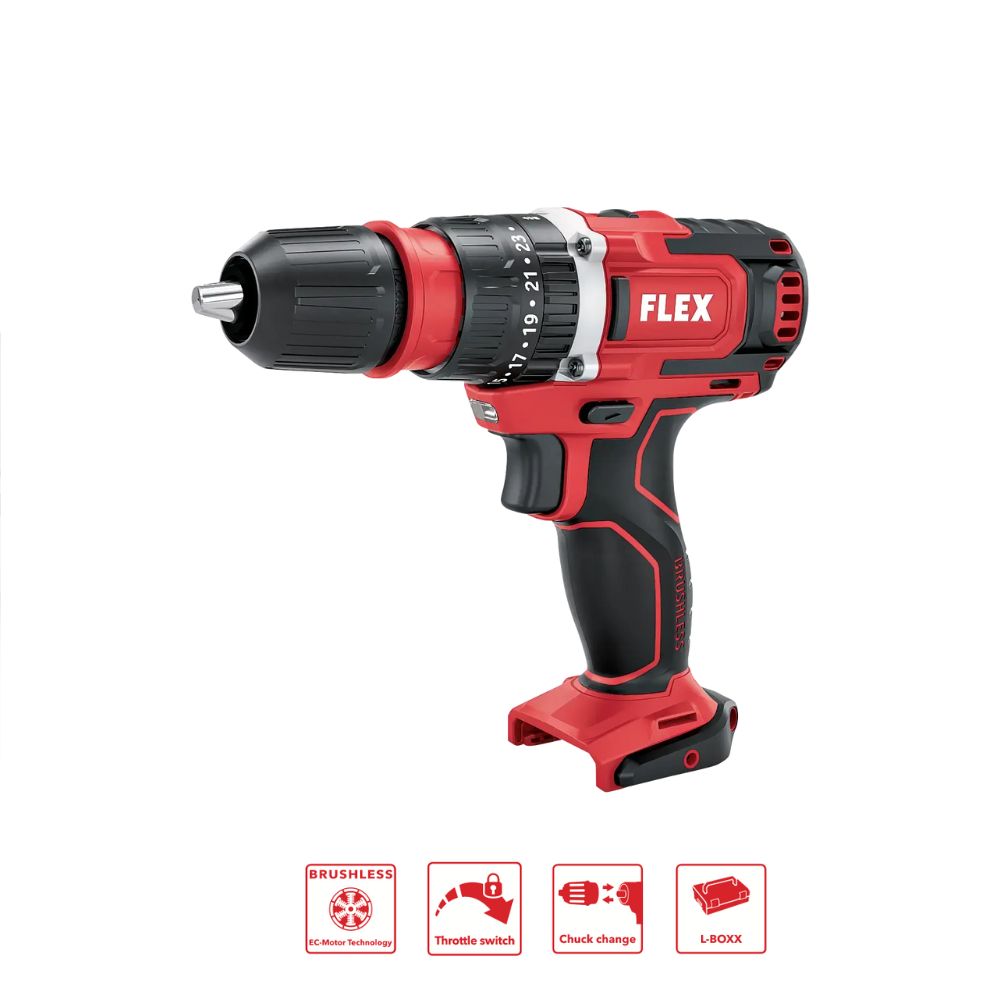

FLEX PD 2G 12 EC 2 SPEED CORDLESS PERCUSSION DRILL 12V

532273

Price Exc Tax

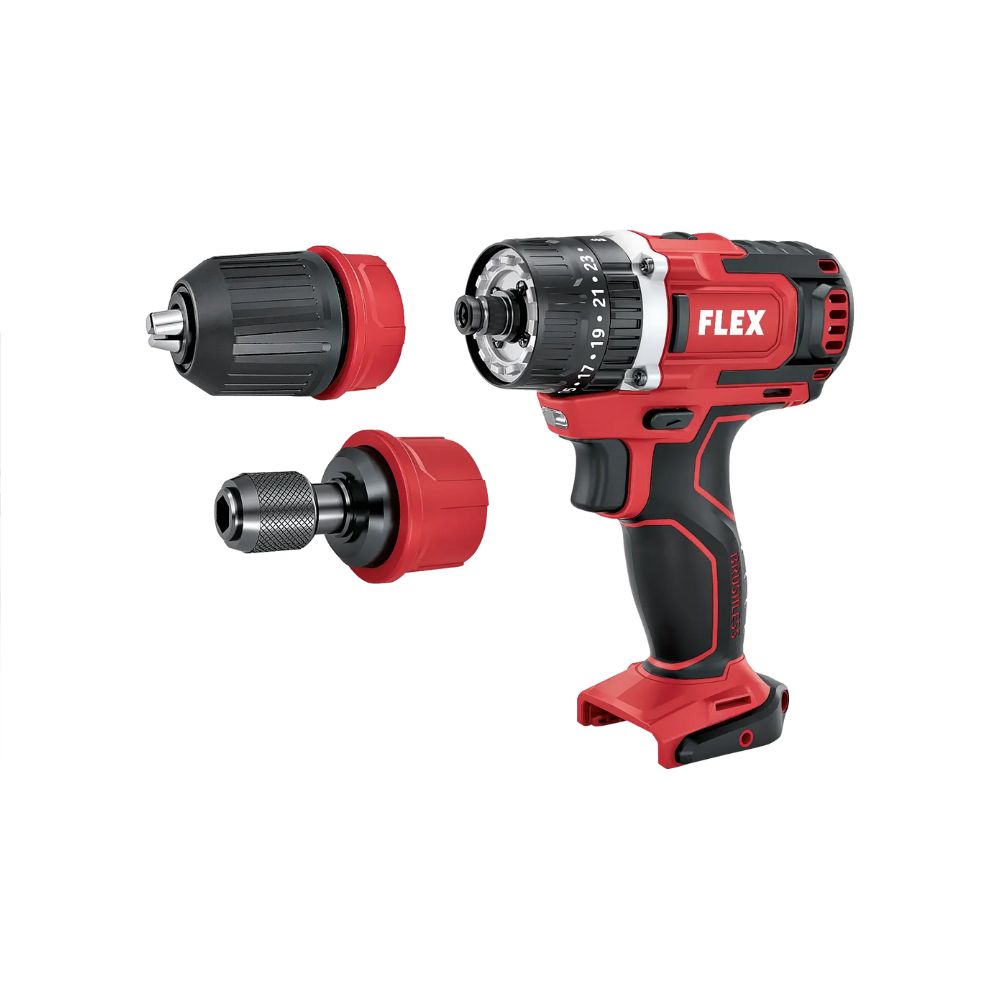

Flex 12v Multi-head Percussion Drill- Dual Speed

The Flex PD 2G 12-EC 2-speed cordless drill driver is a quality drill driver equipped with a brushless motor and quick change chuck.This drill driver offers greater efficiency and a longer service life compared to traditional motors. The Electronic Management System (EMS) protects the machine, extends its service life, and increases efficiency, ensuring reliable performance over time.

The drill driver features two speed settings: the first gear operates at 0 - 450 rpm, and the second gear at 0 - 1700 rpm, allowing for precise control over different tasks. It has a maximum torque of 58 Nm in hard mode and 32 Nm in soft mode, making it suitable for drilling in wood and steel. The chuck clamping width ranges from 1.5 to 13 mm, and the drill can handle a maximum drilling diameter of 25 mm in wood and 13 mm in steel.


WHY BUY FROM BWS?

Mobile Service Engineer support
Technical Support Engineers
Equipment Trained Engineers

ERGONOMIC

The ergonomic design includes a non-slip, soft grip handle for comfortable use and an integrated LED lamp with a persistence function to enhance visibility. The LED battery capacity display keeps you informed about the battery status. Additional features include a quick-clamp chuck with an auto-lock function, electronic quick-acting brake, and right/left rotation with a safety catch.

FAQs

1. What is the battery voltage and capacity of the Flex DD 2G 12-EC?

The Flex DD 2G 12-EC operates on a 12 V battery with capacities of 2.5 / 5.0 Ah.

2. What are the no-load speeds of the drill driver in its two gears?

The no-load speed in the first gear is 0 - 450 rpm, and in the second gear, it is 0 - 1700 rpm.

3. What is the maximum torque and drilling diameter capabilities of the drill driver?

The maximum torque is 58 Nm in hard mode and 32 Nm in soft mode. The maximum drilling diameter in wood is 25 mm and in steel is 13 mm.

4. Does the drill driver come with additional accessories?

Yes, the standard equipment includes a belt clip, bit storage, carrying case L-BOXX®, case insert, and a bit holder.



Download

Features

Brushless motor for greater efficiency and longer service life
Electronic Management System (EMS) for machine protection and efficiency
Quick-clamp chuck with auto-lock function
Electronic quick-acting brake
Accelerator trigger with lock-off switch
Right/left rotation with safety catch
Robust gearbox housing made of die-cast aluminium
Ergonomically designed, non-slip, soft grip handle
Integrated LED lamp with persistence function
LED battery capacity display

Battery voltage 12 V
Battery capacity 2.5 / 5.0 Ah
Max. torque, hard 58 Nm
Max. torque, soft 32 Nm
Torque adjustment 25 Steps
No-load speed, 1st gear 0 - 450 rpm
No-load speed, 2nd gear 0 - 1700 rpm
No-load blows, Setting 1 0 - 5850 1 rpm
No-load blows, Setting 2 0 - 22100 1 rpm
Chuck clamping width 1,5 - 13 mm
Max. drilling diameter in wood 25 mm
Max. drilling diameter in steel 13 mm
Dimensions WxLxH 200 x 66 x 185 mm
Weight without battery pack 1.14 kg

1× Belt clip DD/PD/ID 18.0 (430714)
1× Bit holder DD/PD/ID 18.0 (430862)
1× TK-L 136 (414085)
1× TKE DD/PD 2G 10.8-EC (440841)
1× BV 12-EC (532294)
