TELWIN ELECTROMIG 300 MULTIPROCESS INVERTER 400V

by Telwin
£1,967.00

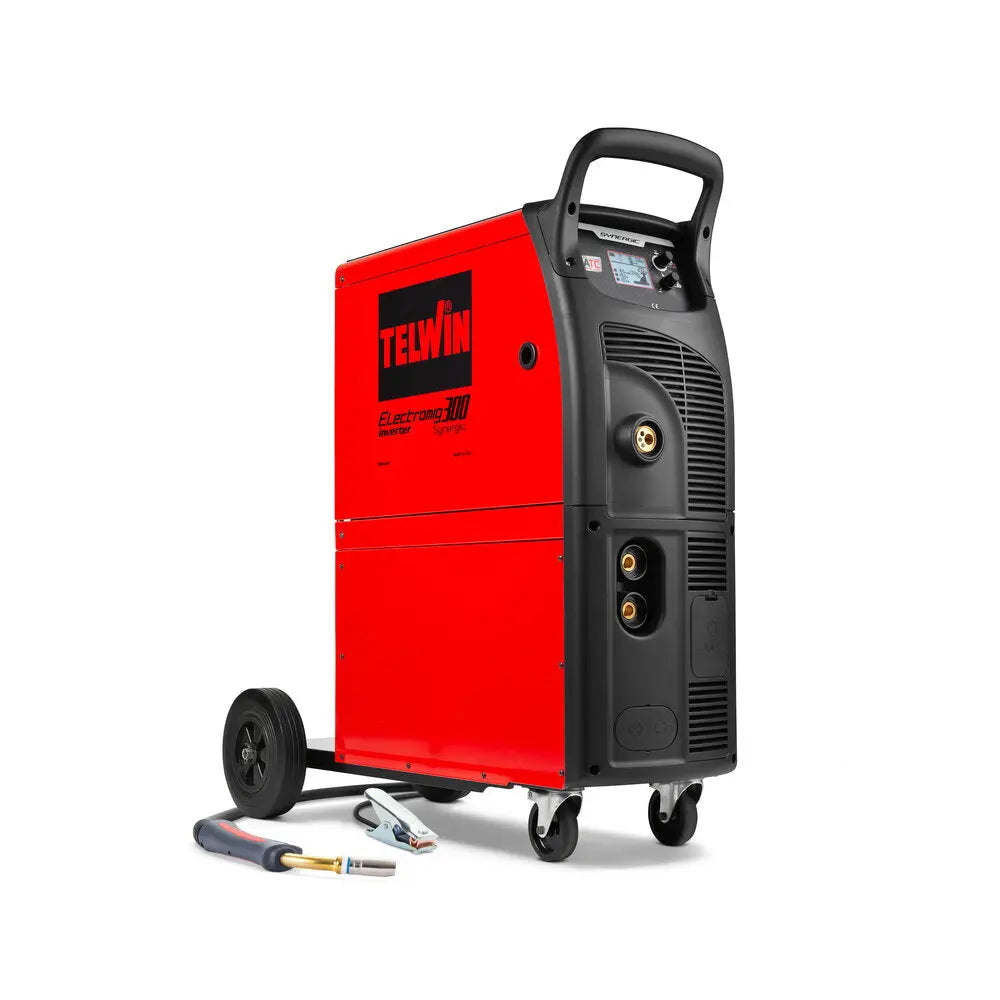

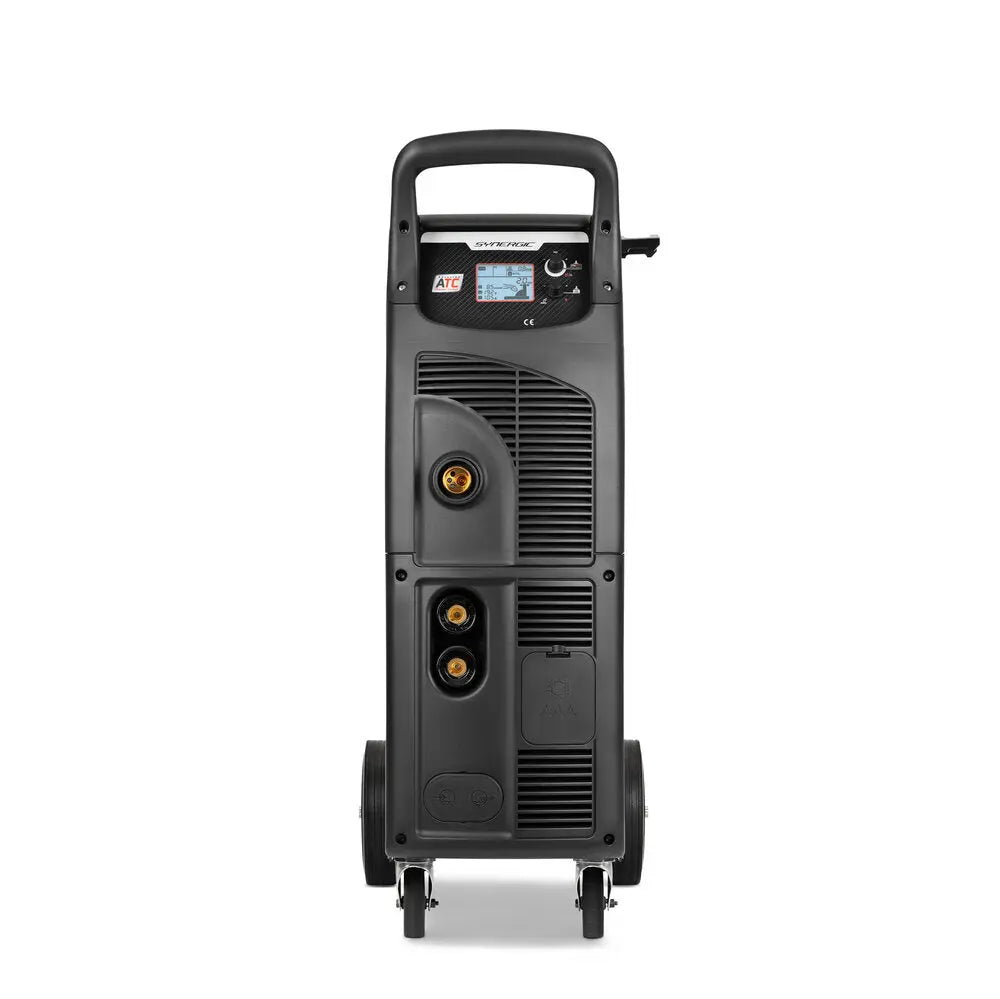

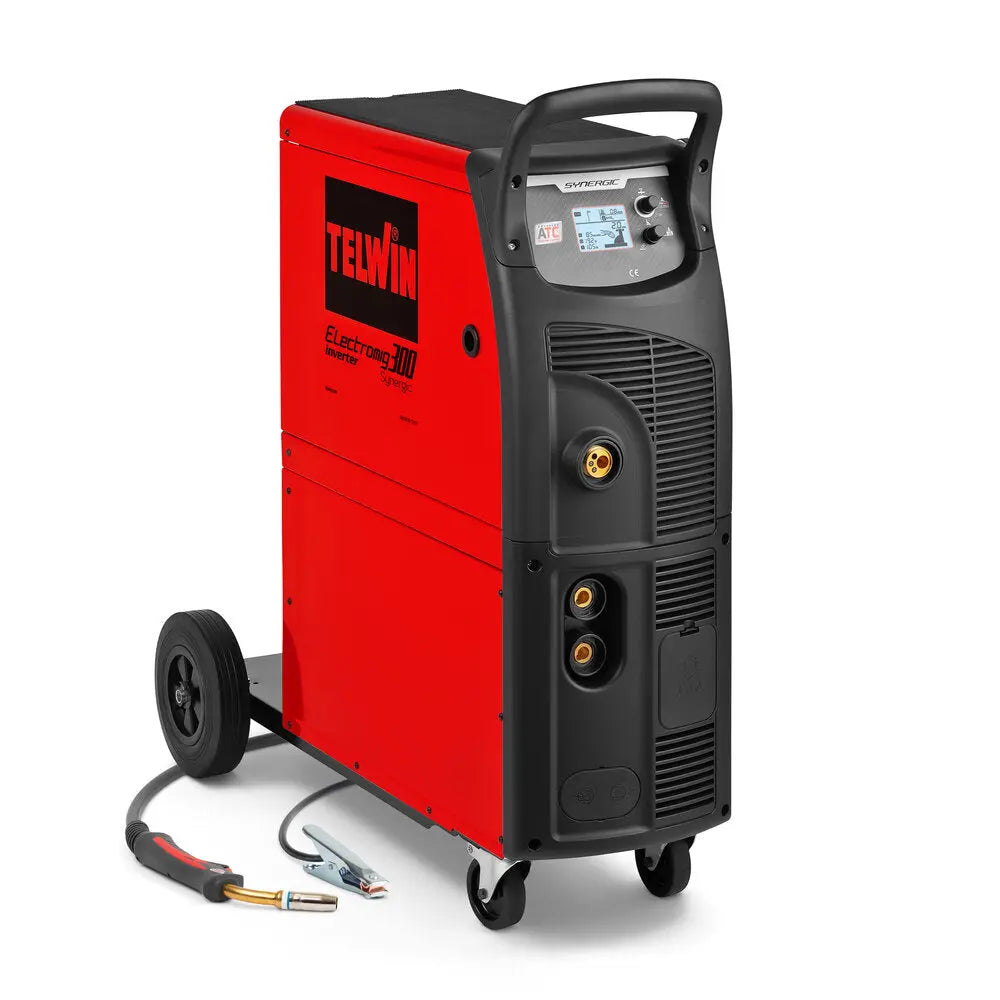

Telwin Electromig 300 Synergic Inverter MIG Package 400V

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine controlled by a microprocessor, with a 4-roll wire feeder.

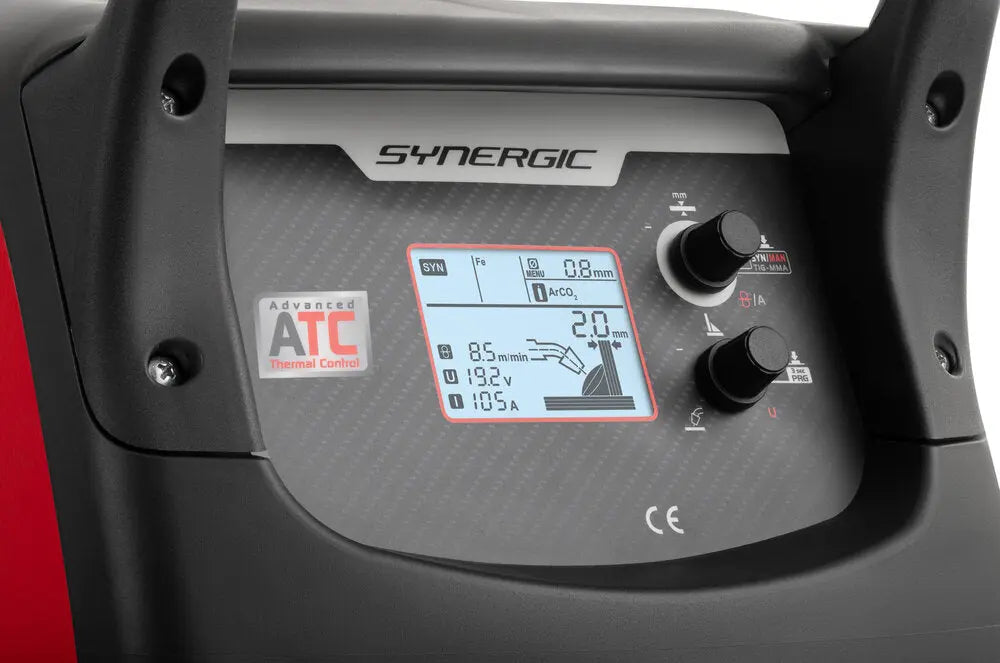

One Touch
Simple one touch synergic control gives easy setup of the optimum welding programme.

Synergic Programmes

Steel, stainless steel, aluminium) or brazed materials (galvanised sheet metal). Wide variety of application fields, from industry to maintenance, installation to bodywork activities.
The synergic adjustment makes the product simple to use.

ATC

The Made in Telwin ATC technology makes it easy to achieve excellent standards of welding on thin materials thanks to state-of-the-art control of the arc.

This makes welding thin materials easier.

Applications

Wide variety of application fields, from industry to maintenance, installation to bodywork activities.

Features


Manual or synergic operating;
30 pre-set synergic curves;
MIG-MAG adjustments: wire upslope, electronic reactance, wire burn-back time, post gas;
2/4 time operation selection, spot, inch and mm material thicknesses;
Protections: thermostatic, overvoltage, under-voltage, overcurrent, engine driven generator (+/-15%);
TIG Lift
Complete with MIG-MAG torch, cable and earth clamp.

Specification

Code:816065

Frequency: 50 - 60 Hz

Current Range: 20 - 300 A
Max Current: 270 A - 30%
Duty Cycle: 60%  205 A
