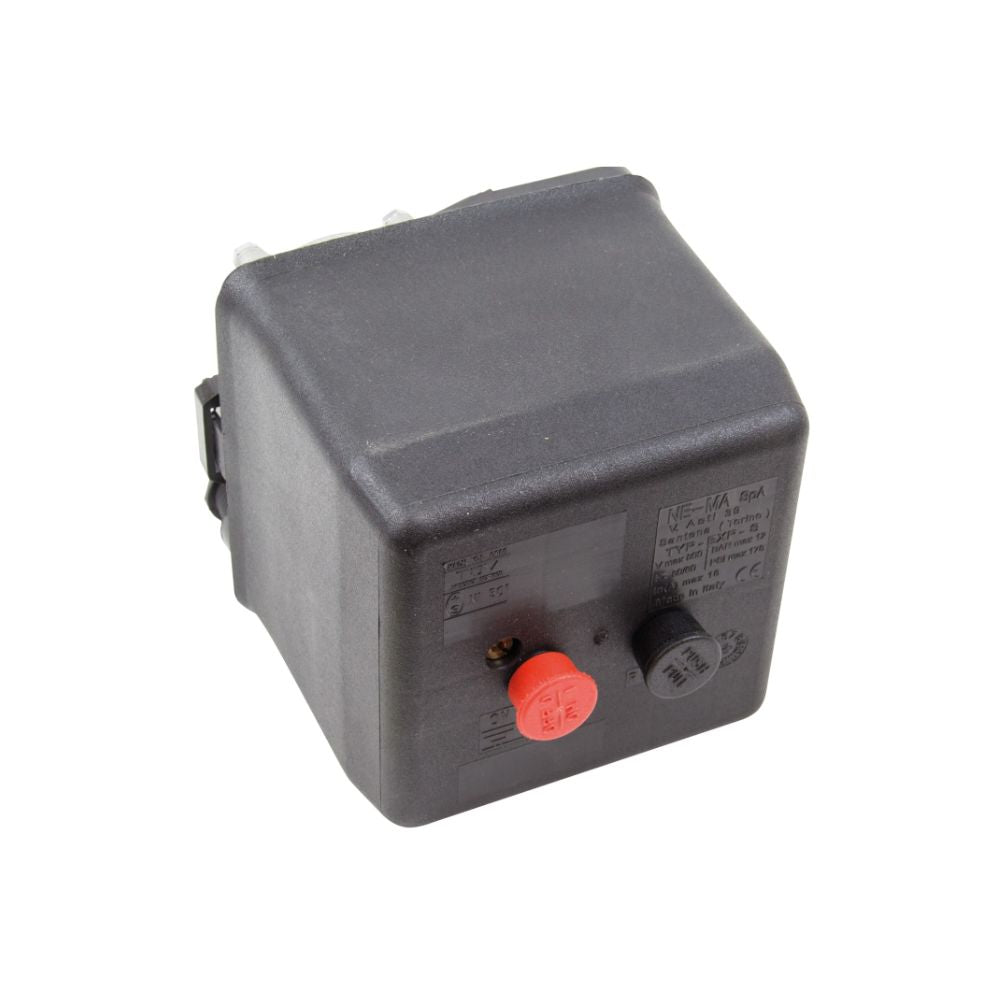

TELE10 9A COMPRESSOR SWITCH 20A 3PH

TELE10 Pressure switch with integrated motor starter

SKU. 02344

The SIP TELE10 9A - 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

TELE10 pressure switch with integrated motor starter
Easily adjustable cut-off pressure via built-in switch
Designed to start and stop electric compressor motors
Manufactured for long-lasting and reliable use

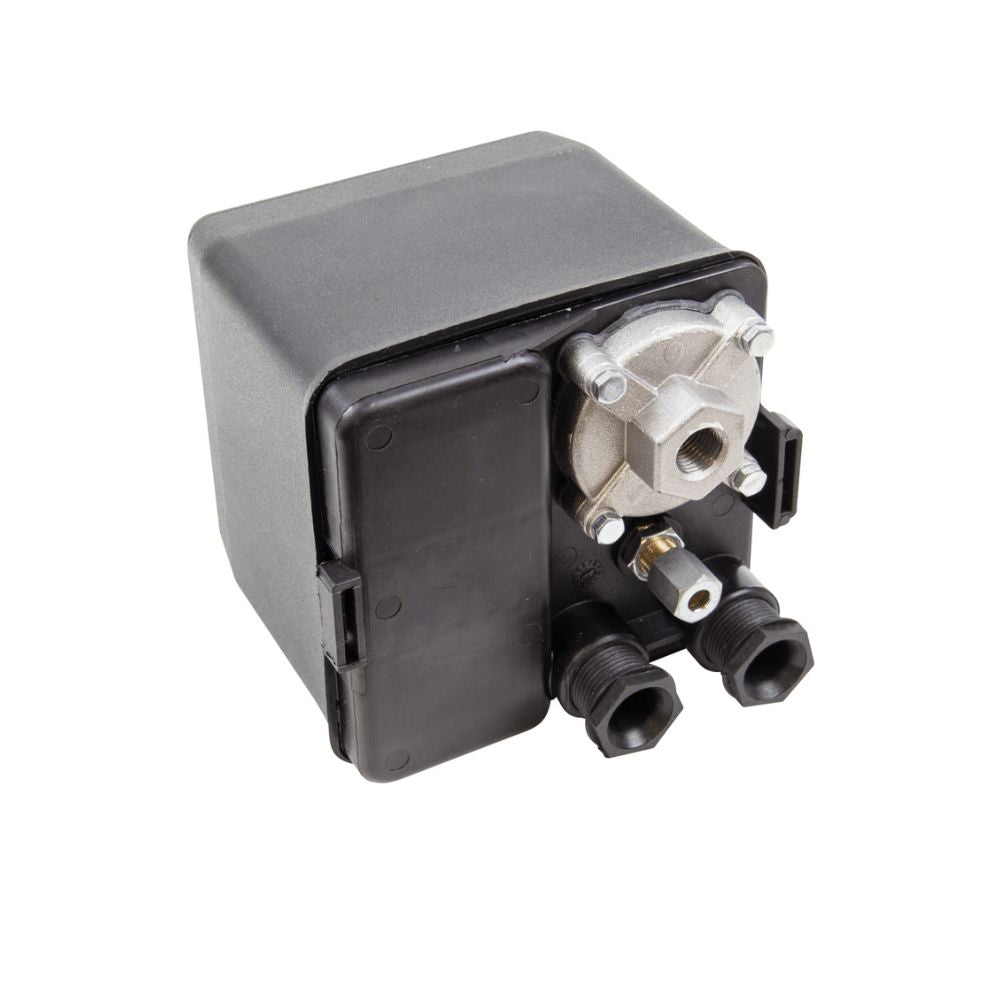

Integrated bleed facility with 6mm pipe entry

ITEM NO. 02344
Switch Type: TELE10
Voltage / Current: 400v / 20A
Overload: 9A - 14A
Inlet Connection Size: 1/4" BSP
Inlet Connection Type Bottom Entry
Side Port Size: None
Switch Type: Pull
Phase Type: 3-phase
No. of Poles: 3 poles
Net Weight: 1.00kg
Gross Weight: 1.00kg
