GYS PORTASPOT 230 (PX1 arm included)
Prices Exclude Tax

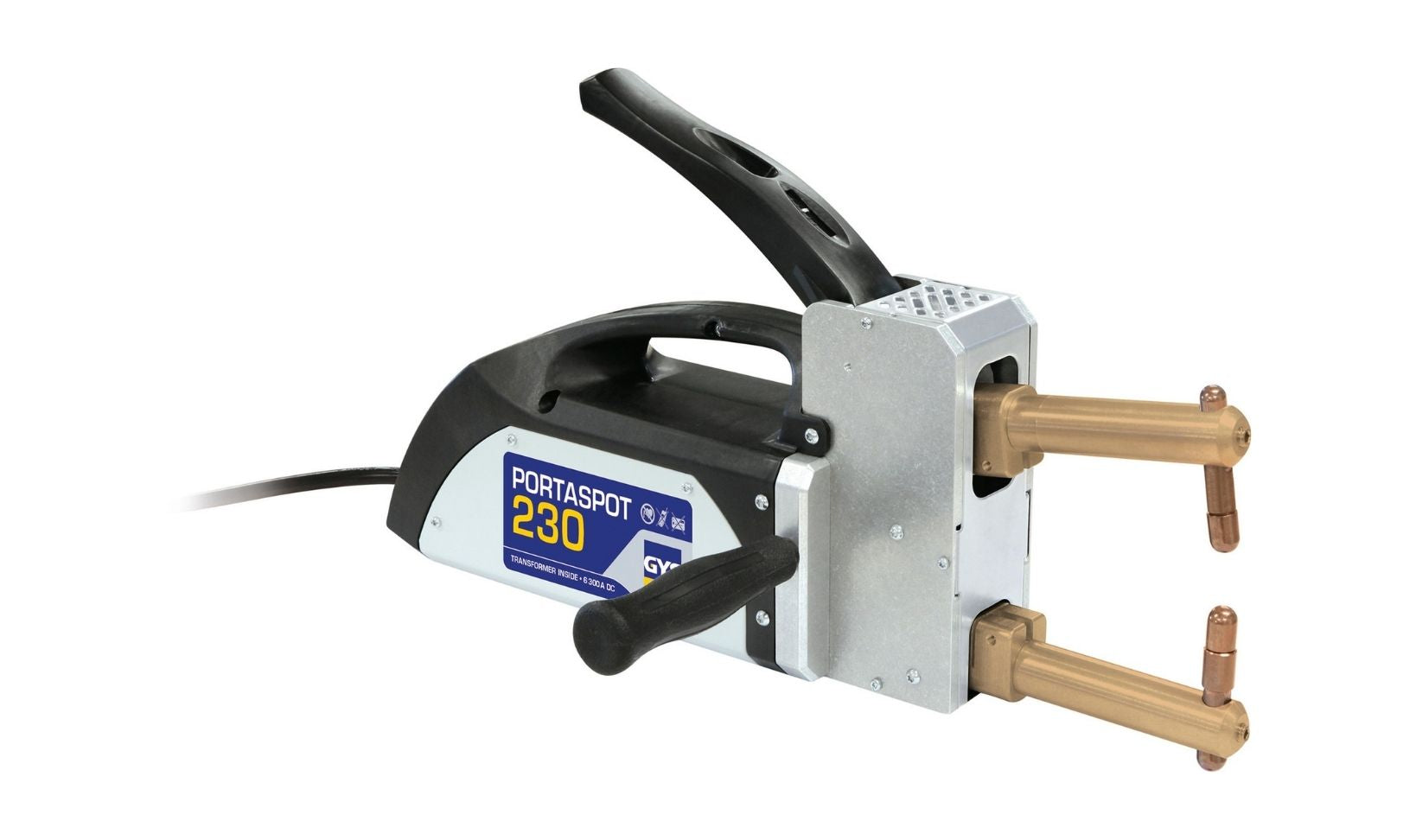

GYS Portable 230V Synergic Resistance Spot Welding System
The PORTASPOT 230 is a compact, single-phase resistance spot welder designed for professional bodyshops, restoration workshops and light fabrication environments. Operating on a standard 230V 16A supply, this French-manufactured unit features synergic control technology that automatically adjusts welding current and spot time according to selected sheet thickness. Capable of welding mild steel sheets from 0.6 + 0.6 mm up to 2.0 + 2.0 mm (ideal at 1.2 + 1.2 mm), it delivers consistent, repeatable weld quality. The microprocessor-controlled keypad ensures simple operation, while continuous and pulse modes allow effective welding of harder steels and coated materials. With adjustable clamping force from 30 daN to 120 daN and integrated thermal protection, the PORTASPOT 230 provides reliable, safe performance for non-intensive production and vehicle restoration applications.
WHY BUY FROM BWS?
Specification
- Power supply: 1 x 230V, 50/60Hz
- Input current: 16A
- Maximum welding current (I2p): 700A
- Continuous current (I2cc): 300A
- Open circuit voltage (U20): 2.45V
- Welding capacity: 0.6 + 0.6 mm to 2.0 + 2.0 mm mild steel
- Adjustable clamping force: 30 daN – 120 daN (arm length 110 mm)
- Dimensions: 36 x 29 x 10 cm
- Weight: 11.32 kg
- Protection rating: IP20
Features
- Synergic mode automatically sets current and weld time
- Manual adjustment option for precise control
- Continuous and pulse welding modes
- Microprocessor-controlled display keypad
- Insulated thermal handle for operator safety
- Maintenance-free design
- Integrated thermal overload protection
- Supplied with PX1 arms as standard
FAQs
1. What thickness of steel can the PORTASPOT 230 weld?
It welds mild steel sheets from 0.6 + 0.6 mm up to 2.0 + 2.0 mm, with optimal performance at 1.2 + 1.2 mm.
2. Does it require a three-phase power supply?
No. It operates on a standard single-phase 230V 16A supply.
3. Can welding parameters be manually adjusted?
Yes. While synergic mode sets parameters automatically, weld time can also be adjusted manually.
4. Is it suitable for intensive production work?
The PORTASPOT 230 is designed for non-intensive professional use, such as bodyshop repairs and light fabrication tasks.
