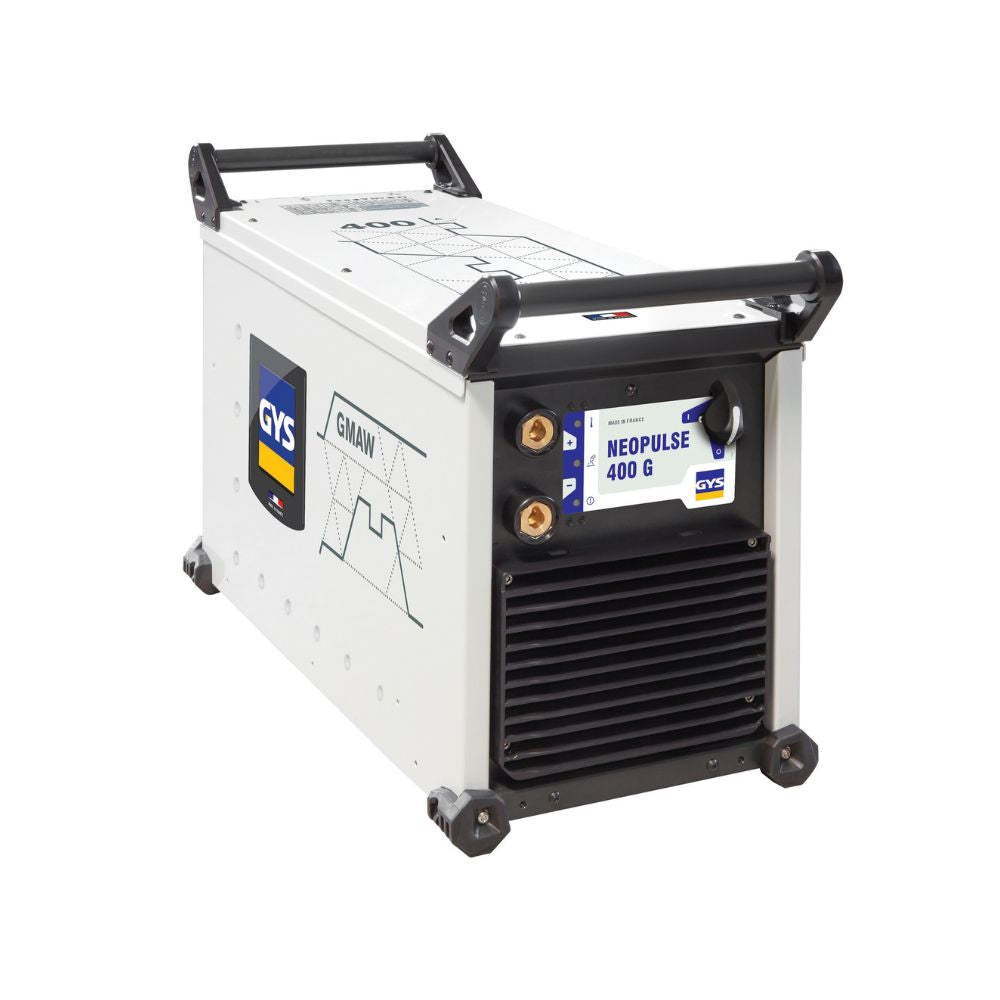

NEOPULSE 400 G
Prices Exclude Tax
Industrial Pulsed MIG/MAG Multi-Process Welding Power Source
The NEOPULSE 400 G is a high-performance pulsed MIG/MAG welding power source designed for demanding industrial fabrication and production environments. Built with advanced digital inverter technology and four dedicated microprocessors, it delivers exceptional arc stability, fast parameter response and consistent weld quality across a wide range of materials. With over 100 synergic programs, the system automatically optimises welding parameters based on material type, wire diameter and shielding gas, while still allowing fine manual control when required.
Offering true multi-process capability, the NEOPULSE 400 G supports MIG/MAG, MMA, TIG DC Lift and gouging, making it a highly versatile solution for workshops handling varied applications. Its high duty cycle of 400 A at 60%, combined with a powerful 4-roll wire feed system and optional robotic interface, ensures maximum productivity, repeatability and traceability for both manual and automated welding operations.
WHY BUY FROM BWS?
Specification
- Input Supply: 3 x 400 V ±15%, 32 A delayed protection
- Welding Current Range: 10 – 400 A (MIG/MAG, MMA, TIG)
- Duty Cycle: 400 A @ 60%, 360 A @ 100% (MIG/MAG)
- No-Load Voltage: 85 V
- MIG/MAG Voltage Range: 14.5 – 34 V
- Protection Class: IP23
- Efficiency: Up to 91%
- Dimensions: 680 x 300 x 420 mm
- Weight: 28.5 kg
Features
- Pulsed MIG/MAG technology with over 100 synergic welding programs
- True multi-process capability: MIG/MAG, MMA, TIG DC Lift and gouging
- High-duty cycle for continuous industrial production welding
- 4-roll electronically controlled wire feed motor for stable feeding
- USB update and storage for up to 500 welding JOBs
- Advanced digital interface with real-time current and voltage display
- Optional robotic and automation interface for production lines
- Robust reinforced metal casing with IP23 protection
FAQs
1. What materials can the NEOPULSE 400 G weld?
It is suitable for steel, stainless steel, aluminium, CuSi and CuAl wires, with optimised synergic programs for each material type.
2. Is the NEOPULSE 400 G suitable for automated welding?
Yes. The machine can be connected to robotic or automated systems using the optional SAM control interface, making it ideal for industrial production environments.
3. Can welding programs be saved and transferred?
Up to 500 welding JOBs can be stored internally and transferred via USB, allowing repeatable welding setups and WPS/PQR compliance.
4. Does the machine support multiple welding processes?
Yes. In addition to pulsed MIG/MAG, it supports MMA DC, TIG DC Lift and gouging, providing excellent versatility for workshops.
