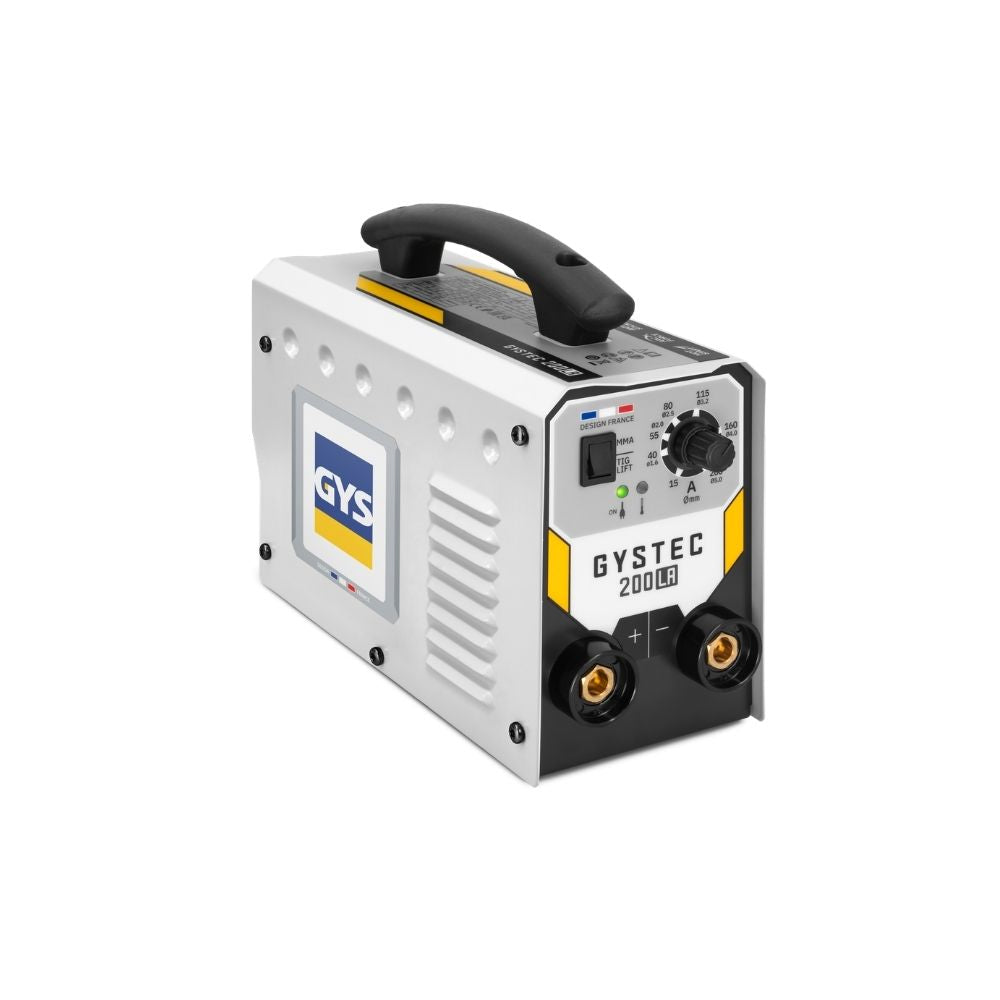

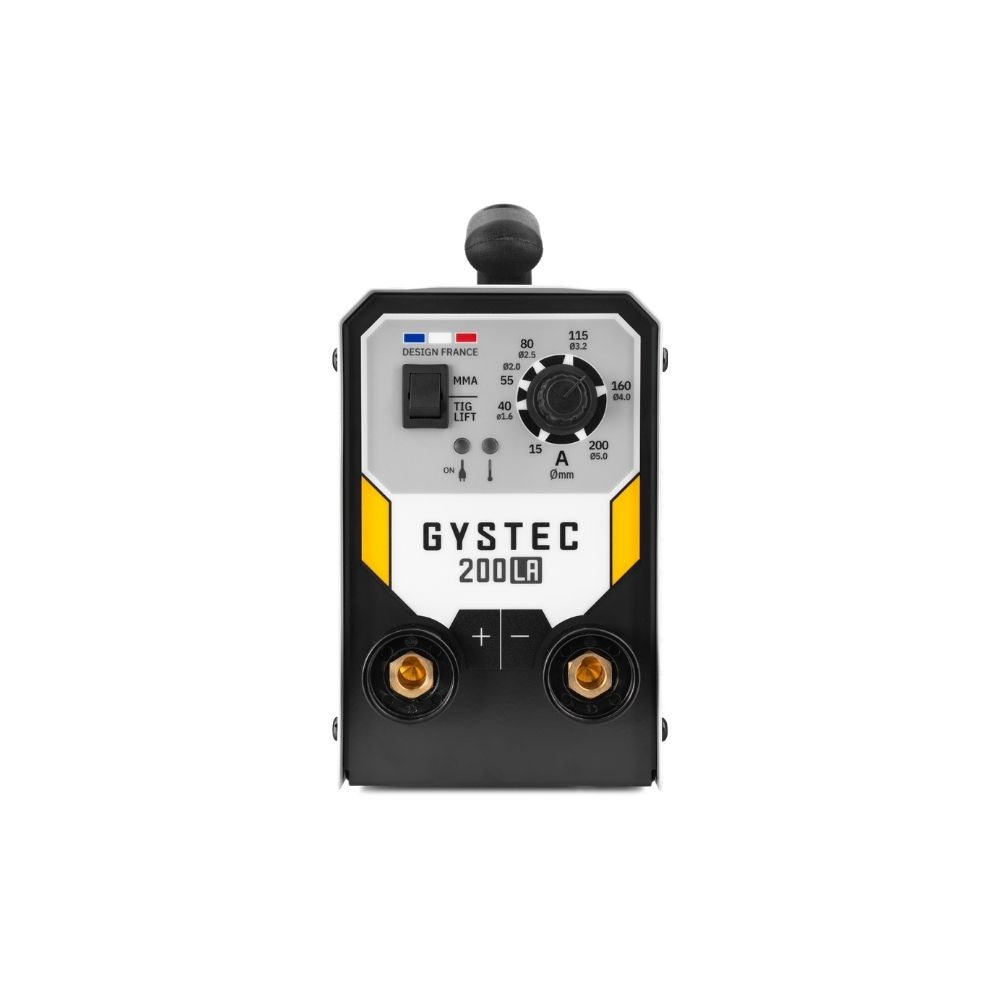

GYSTEC 200 LA WITH CASE
Prices Exclude Tax
Professional 200A Single-Phase MMA & TIG Lift Inverter Welding System
The GYSTEC 200 LA is a powerful single-phase inverter welder engineered for professional fabrication, maintenance, and site applications. Built with advanced IGBT inverter technology, it delivers exceptional arc ignition and stable welding performance across a current range of 15 to 200 amps. Designed for versatility, it supports both MMA and TIG Lift welding modes, providing high-quality welds on mild steel, stainless steel, and cast iron up to 10 mm thick. The machine accommodates coated electrodes up to Ø5.0 mm, making it suitable for heavier-duty applications. Integrated welding aids including Hot Start, Arc Force, and Anti-Sticking enhance arc control, penetration, and ease of use in demanding conditions. Lightweight at just 3.7 kg and featuring a compact, ultra-portable design, the GYSTEC 200 LA is generator compatible (±15%) and ideal for workshop, maintenance, and mobile welding environments.
WHY BUY FROM BWS?
Specification
- Welding current range: 15 – 200 A
- Power supply: 230V single-phase (16A)
- Duty cycle: 200 A @ 60%
- Electrode diameter range: Ø1.6 – 5.0 mm
- Welding modes: MMA and TIG Lift
- Generator compatible (±15%)
- Protection rating: IP21
- Dimensions: 27 x 21 x 11 cm
- Weight: 7.28 kg
Features
- Advanced IGBT inverter technology for stable arc performance
- High open-circuit voltage for immediate arc ignition
- Hot Start function for improved electrode striking
- Arc Force control for enhanced penetration and weld quality
- Anti-Sticking function to reduce electrode seizure
- Dual MMA and TIG Lift welding capability
- Compact and lightweight ultra-portable design
- Single potentiometer control for intuitive current adjustment
- Overcurrent protection for increased durability
FAQs
1. What materials can the GYSTEC 200 LA weld?
This welder is suitable for mild steel, stainless steel, and cast iron up to approximately 10 mm thickness.
2. What electrode sizes can be used?
The unit supports coated electrodes from Ø1.6 mm up to Ø5.0 mm, including rutile and basic electrodes.
3. Is the GYSTEC 200 LA suitable for generator use?
Yes, it is compatible with generators and protected against voltage fluctuations of ±15%, making it ideal for site work.
4. Can this machine perform TIG welding?
Yes, it features TIG Lift functionality when paired with an optional TIG17 valve torch (4 m), enabling precise welding on thinner materials.
