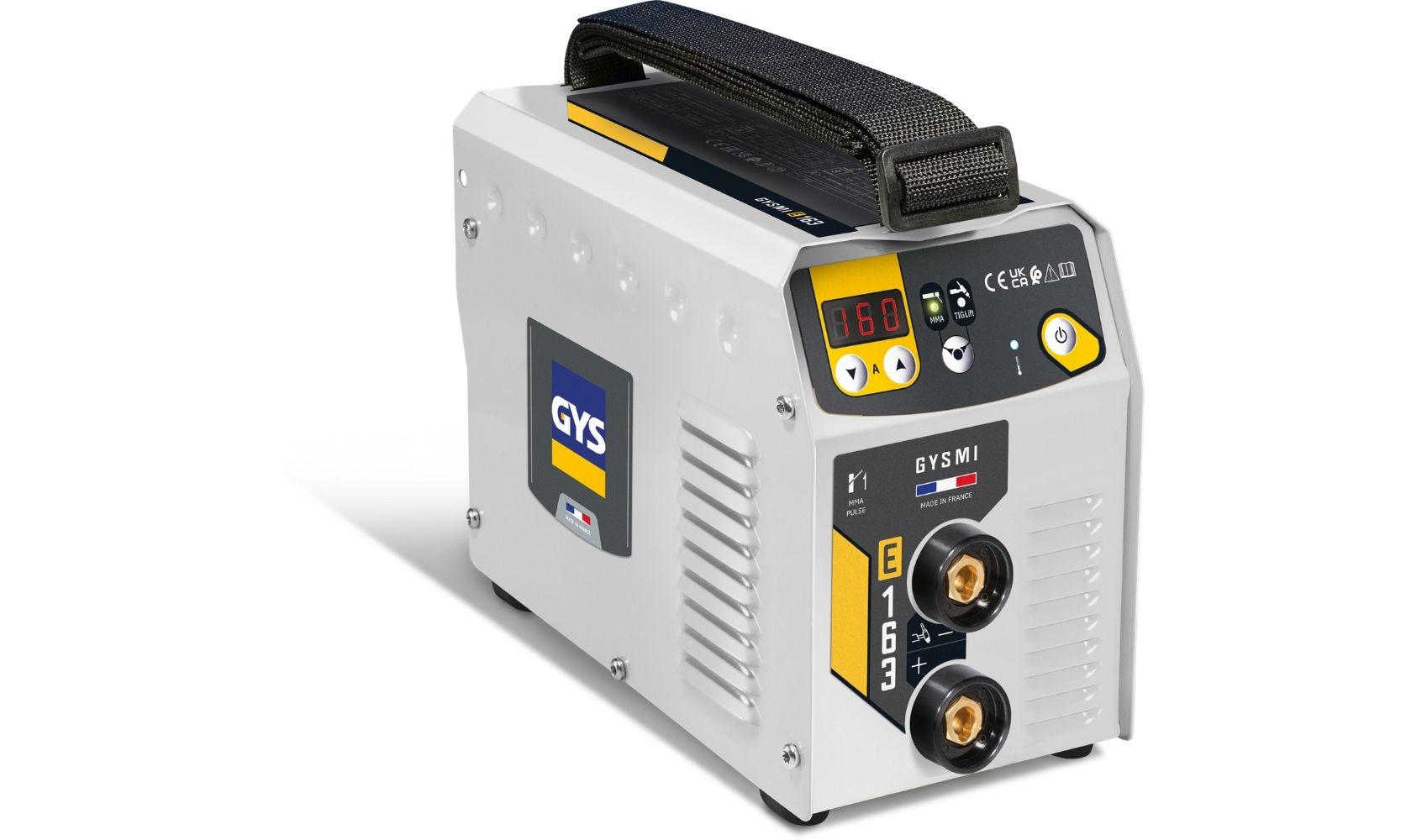

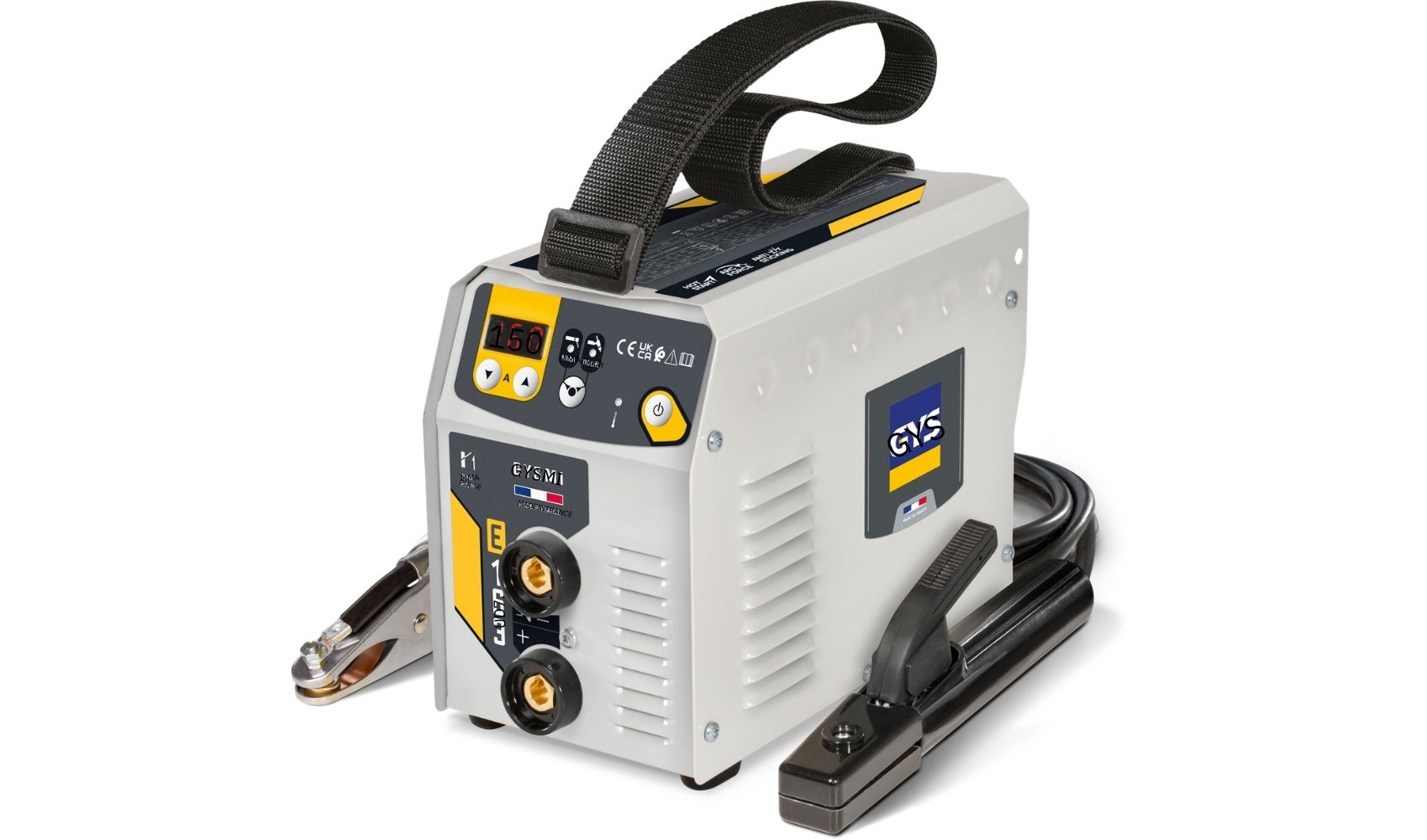

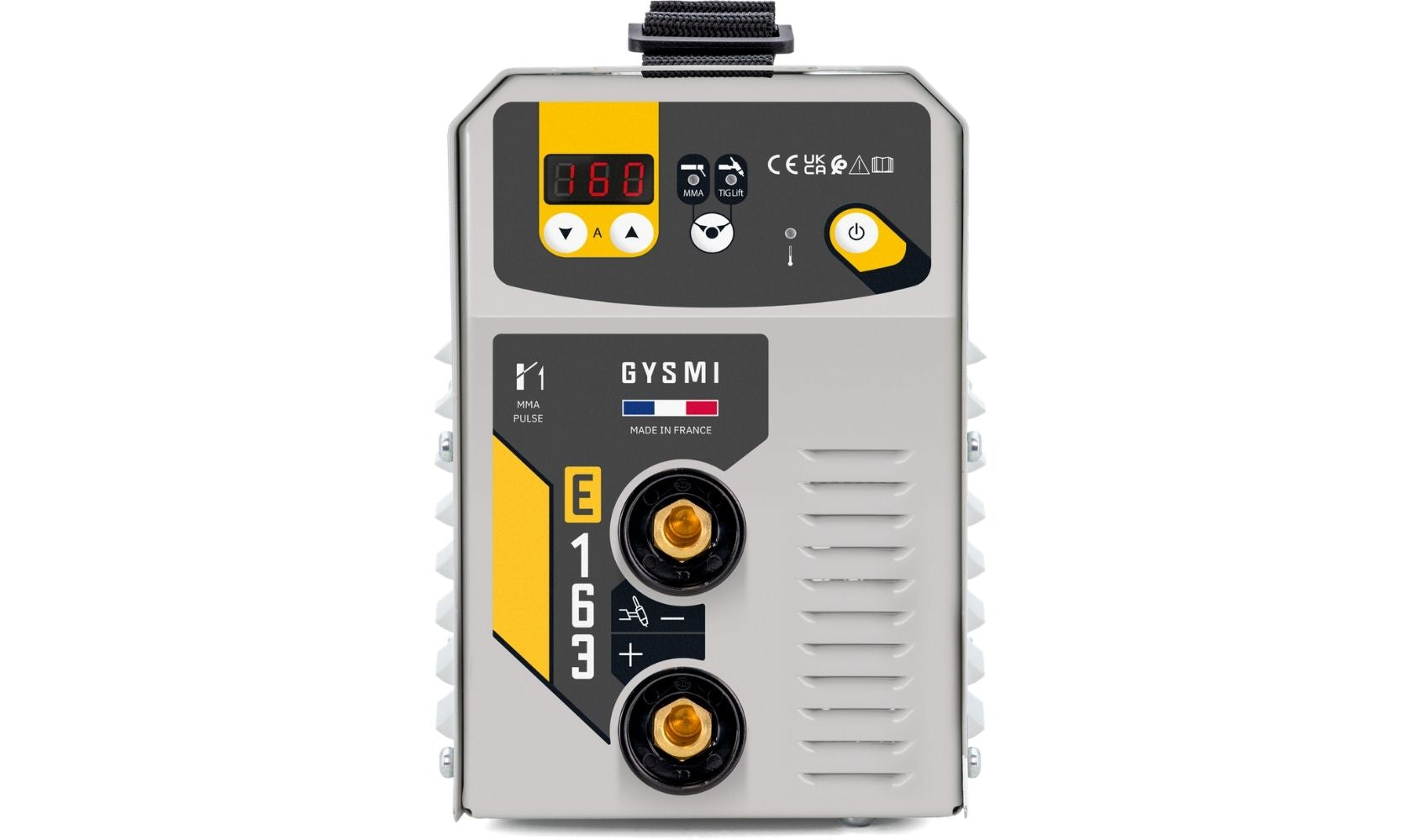

GYSMI E163 (WITH CASE)
Prices Exclude Tax
Professional 160A Multi-Process Inverter with MMA Pulse and TIG Lift
The GYSMI E163 is a high-performance single-phase inverter welder designed for professional fabrication and maintenance applications. Manufactured in France to EN 60974-1 standards, it delivers an adjustable welding current from 10 to 160 amps and supports three welding modes: MMA, MMA Pulse, and TIG Lift. Featuring advanced inverter technology and a digital display interface, the unit ensures precise parameter control, stable arc characteristics, and exceptionally smooth fusion. Capable of welding steel, stainless steel, and cast iron up to 10 mm thick, it accommodates electrodes up to 4.0 mm diameter. The integrated Protec 400 technology allows safe operation on generator power and protects against voltage fluctuations up to 400V. Lightweight at just 4 kg and extremely compact, the GYSMI E163 combines portability with industrial-grade performance, making it ideal for workshop and on-site use.
WHY BUY FROM BWS?
Specification
- Welding current range: 10 – 160 A
- Power supply: 230 V, single-phase, 50/60 Hz
- Welding processes: MMA, MMA Pulse, TIG Lift
- Maximum electrode diameter: Ø 4.0 mm
- Suitable material thickness: Up to 10 mm
- Open circuit voltage: 72 V
- Dimensions: 26 x 19 x 13 cm
- Weight: 6.9 kg w/ case
- Protection rating: IP21
- Generator compatible with Protec 400 technology
Features
- Digital display with intuitive control panel
- Adjustable Hot Start for improved ignition control
- Arc Force function to maintain arc stability
- Anti-Sticking system to reduce electrode seizure
- MMA Pulse mode for vertical-up welding applications
- TIG Lift mode for precise thin sheet welding
- Dual-speed fan cooling with thermal protection
- Lightweight and compact with shoulder strap for portability
FAQs
1. What welding processes does the GYSMI E163 support?
The machine supports MMA, MMA Pulse for positional welding, and TIG Lift for fine, high-quality weld finishes.
2. What materials can be welded with this unit?
It is suitable for welding mild steel, stainless steel, and cast iron up to approximately 10 mm thickness.
3. Can it operate from a generator?
Yes, it features Protec 400 technology, allowing safe use with generators and protection against voltage fluctuations.
4. Is the machine suitable for site work?
Absolutely. Weighing only 4 kg and featuring a compact design with shoulder strap, it is ideal for mobile and on-site applications.
