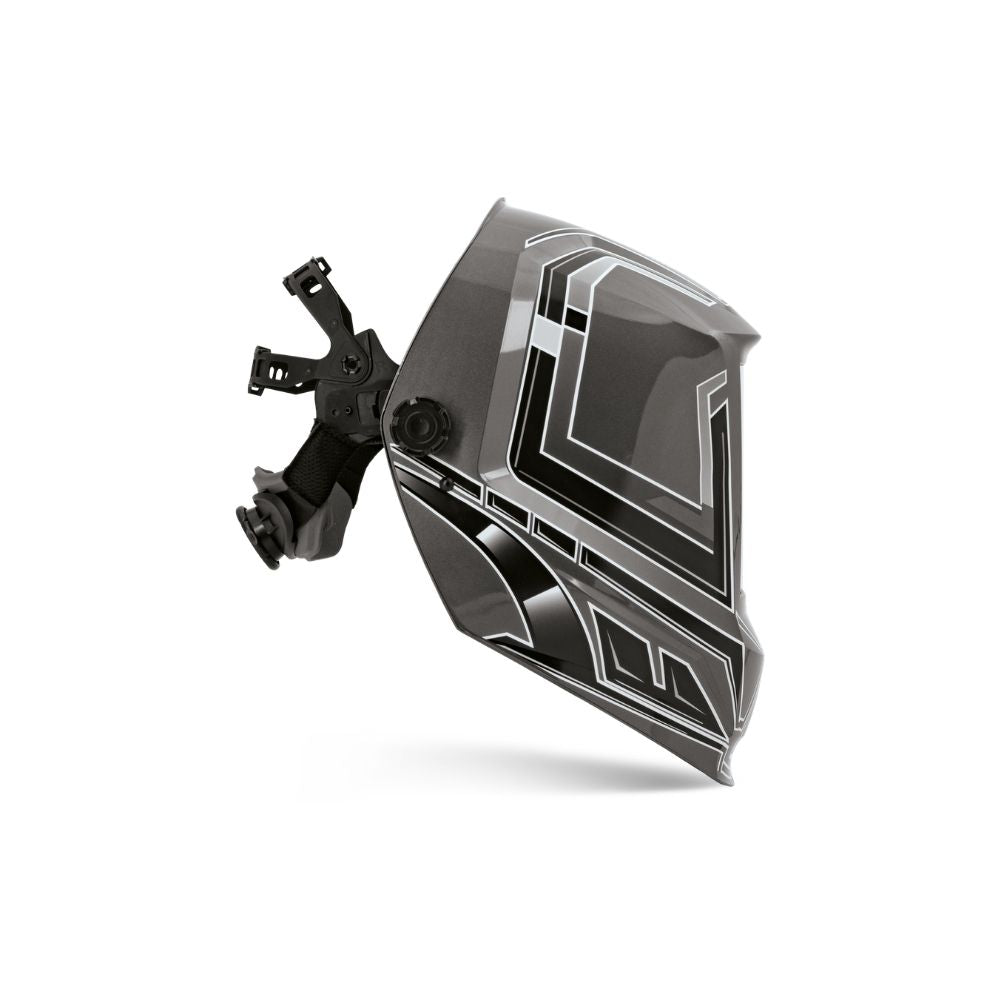

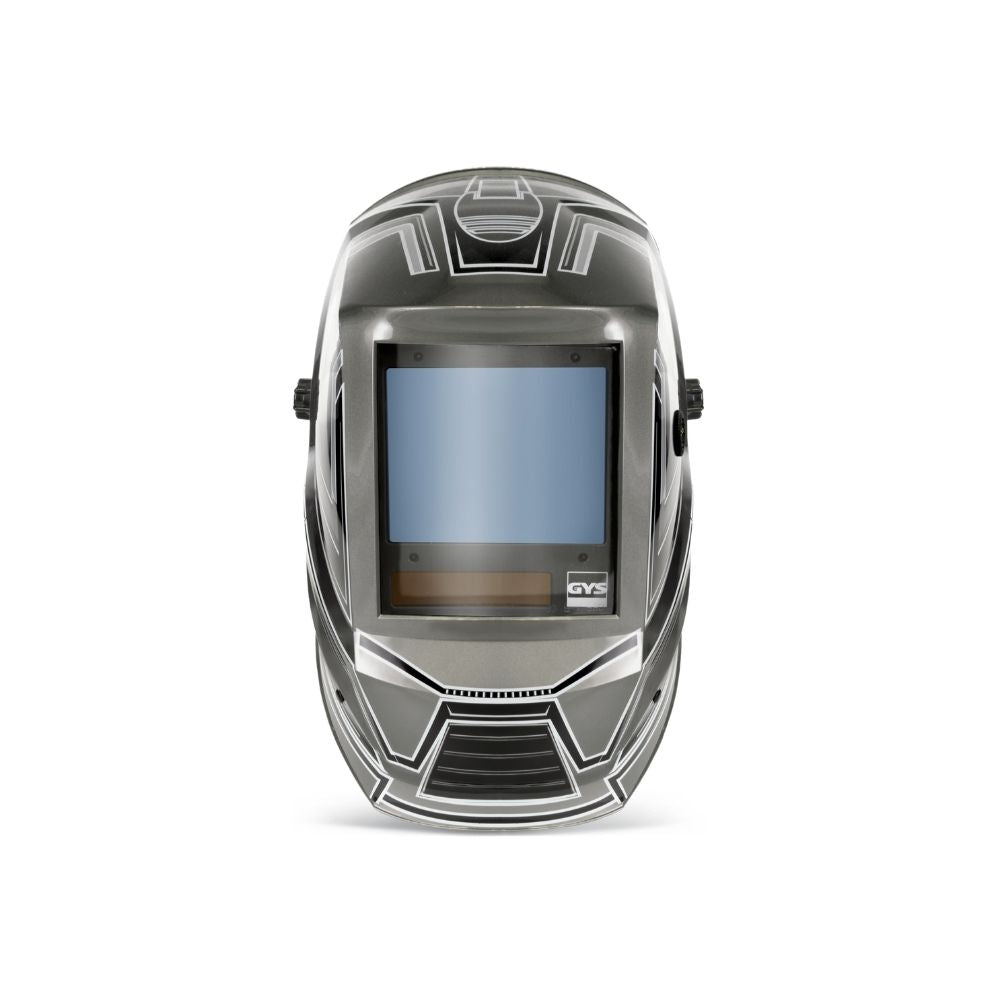

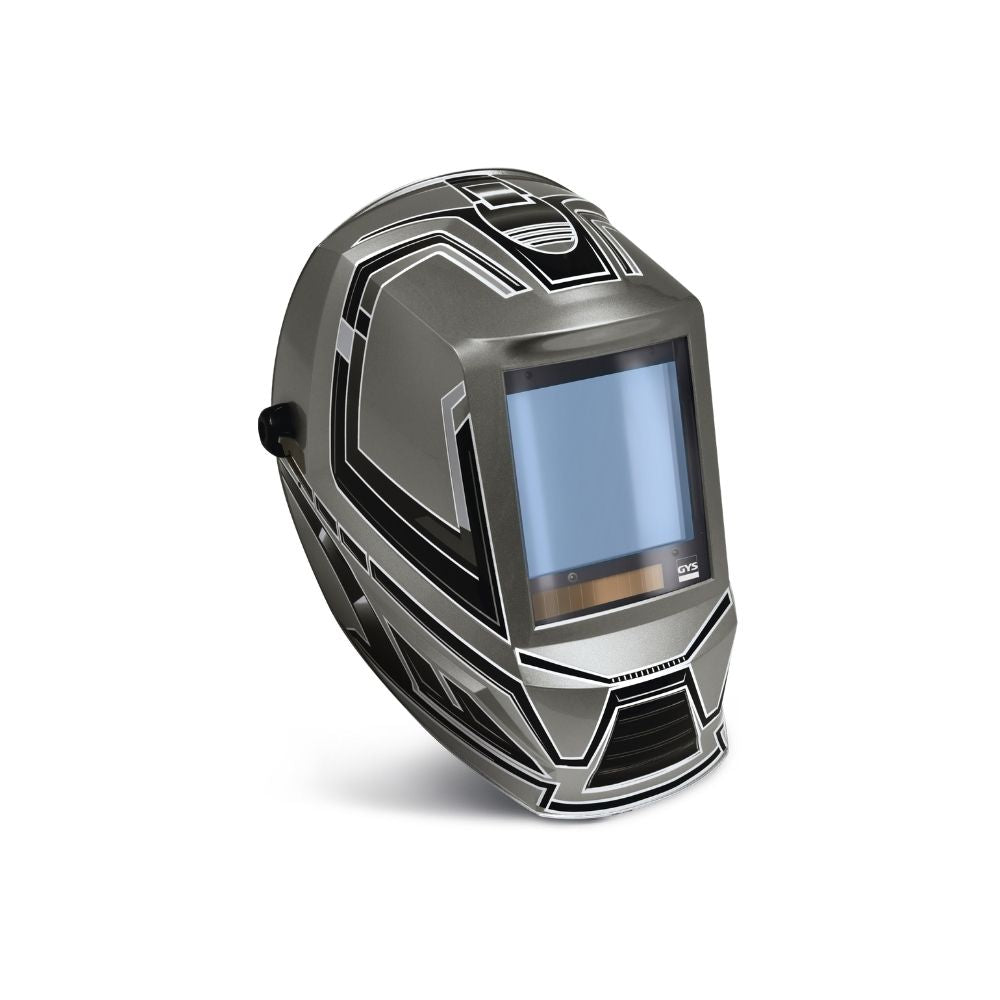

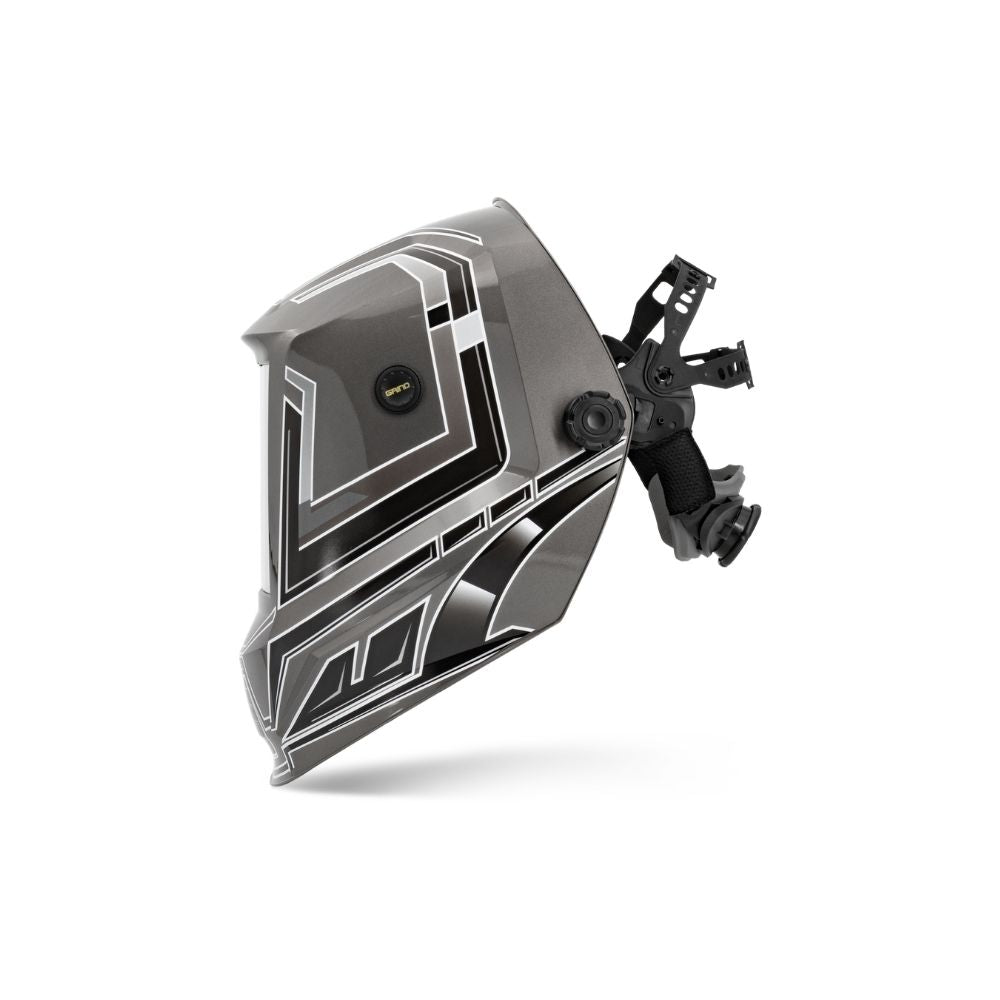

GYSMATIC 5-13 G TRUE COLOR XXL HELMET
Prices Exclude Tax
Professional Auto-Darkening Welding Helmet with XXL True Colour Viewing Area
The GYSMATIC XXL 5-13G TRUE COLOR welding helmet is a high-performance automatic welding mask designed to provide superior eye and face protection while delivering exceptional visual clarity. Featuring advanced True Color technology, this helmet improves colour recognition and contrast, allowing welders to see the workpiece and weld pool with greater accuracy than traditional filters. The extra-large 100 x 83 mm viewing area enhances visibility and control during welding operations.
The fully automatic filter switches from light to dark in just 0.04 milliseconds when the arc is struck, ensuring instant protection from harmful UV and infrared radiation. With adjustable shade ranges from DIN 5–9 and 9–13, the helmet is suitable for a wide range of welding applications including MIG/MAG, TIG, and MMA welding. Four integrated sensors ensure reliable arc detection even at low amperages, while programmable memory settings allow users to save up to three preferred configurations for fast setup. Designed with comfort in mind, the helmet includes an ergonomic Multi Pro headband that reduces neck strain during extended welding tasks.
Collections: Best Selling Products, Newest Products
WHY BUY FROM BWS?
Specification
- Light shade: DIN 4
- Dark shade range: DIN 5–9 / DIN 9–13
- Viewing area: 100 x 83 mm XXL screen
- Reaction time: 0.04 ms
- Return to light delay: 0.1 – 0.9 seconds
- Optical classification: 1/1/1 (EN379)
- Power supply: Solar cells with 2 x CR2450 batteries
- Weight: 550 g
- Number of arc sensors: 4
- Standards: EN 175B / EN 166 / EN 379
Features
- True Color technology for improved colour clarity and realistic weld pool visibility
- Extra-large 100 x 83 mm viewing window for improved visibility and precision
- Ultra-fast 0.04 ms auto-darkening response for maximum eye protection
- Adjustable shade range (DIN 5–13) suitable for multiple welding processes
- Four high-sensitivity arc sensors for reliable detection even at low amperage
- Grinding mode for non-welding operations
- Programmable memory to store up to three preferred settings

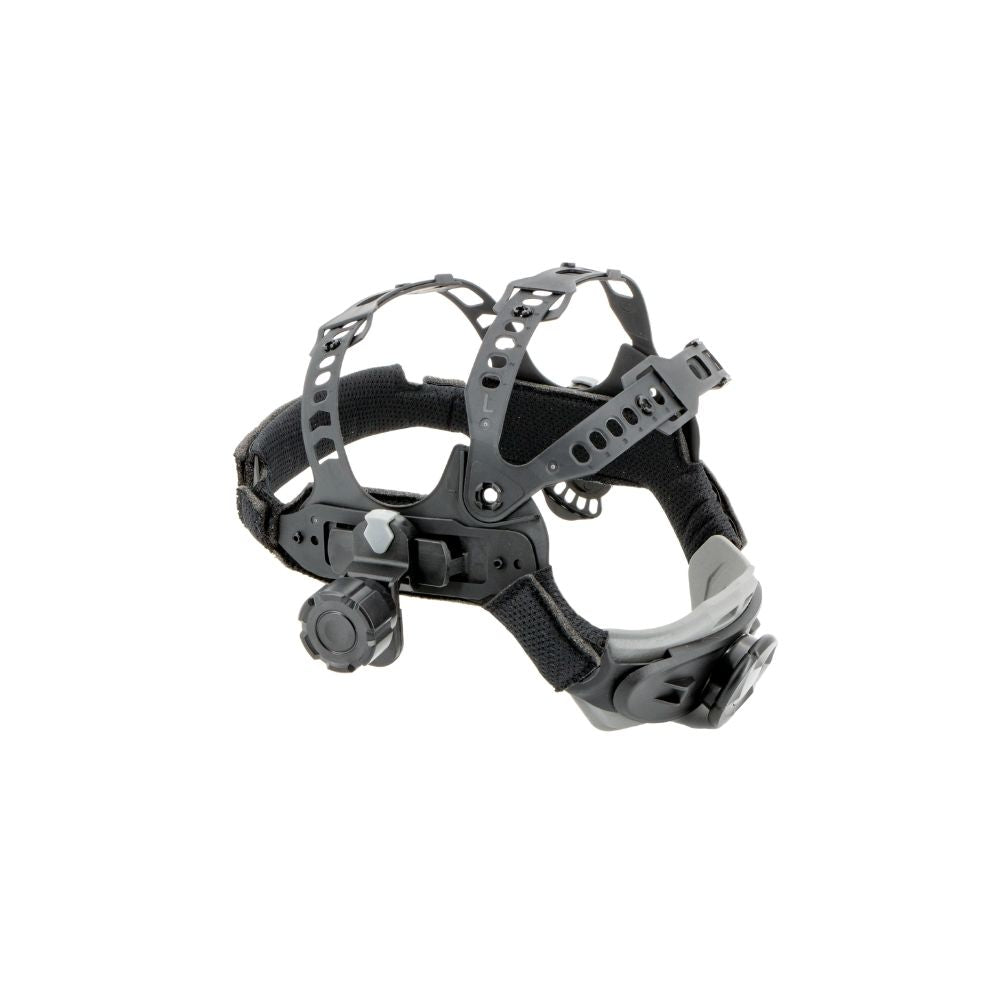

- Ergonomic Multi Pro headband designed to minimise neck fatigue
FAQs
1. What welding processes can the GYSMATIC XXL 5-13G be used for?
The helmet is suitable for MIG/MAG, TIG, and MMA welding applications, supporting TIG welding from as low as 2 amps for precision work.
2. What is the benefit of True Color technology?
True Color technology improves colour recognition and contrast, allowing welders to see the weld pool, workpiece, and surrounding area more clearly compared with traditional green filters.
3. Does the helmet have a grinding mode?
Yes, the helmet includes a dedicated grinding mode that disables the auto-darkening filter so it can be safely used during grinding or preparation work.
4. Can settings be saved for repeated use?
Yes, the helmet features programmable memory allowing up to three user-defined settings to be saved and recalled quickly for different welding tasks.
