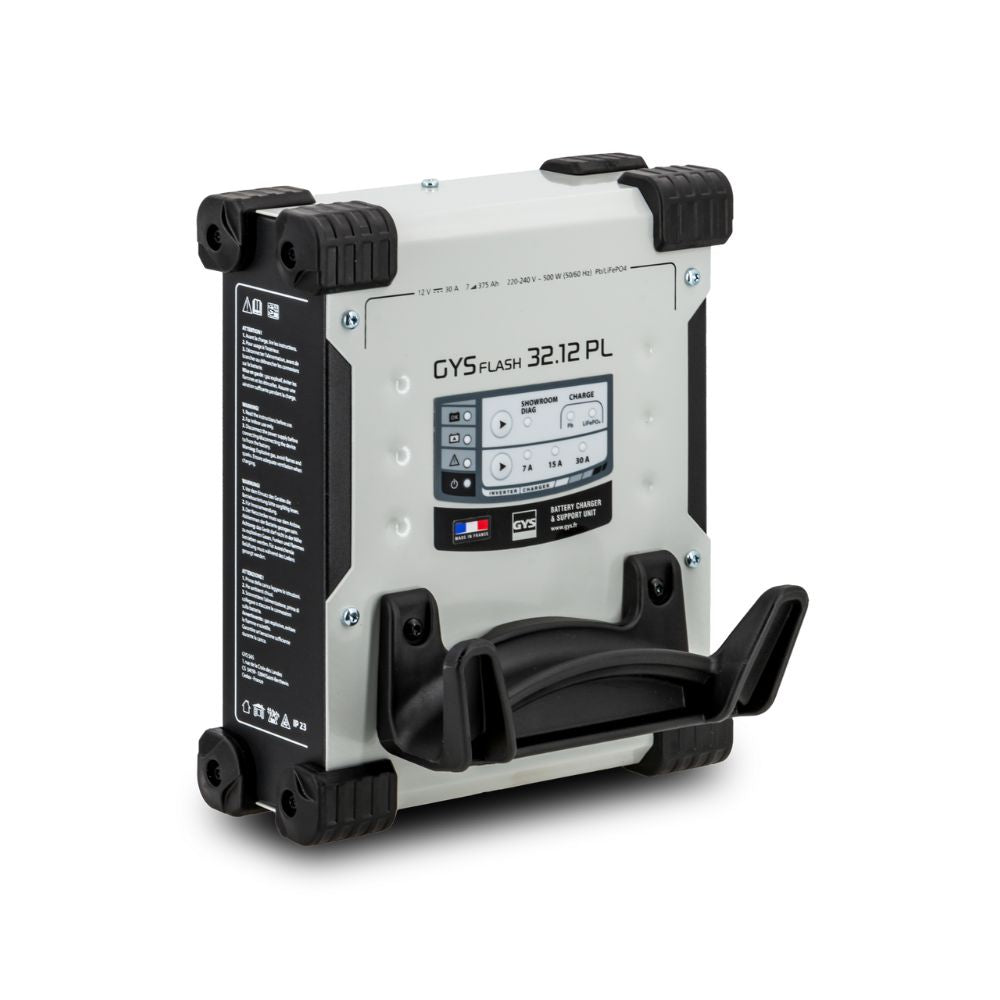

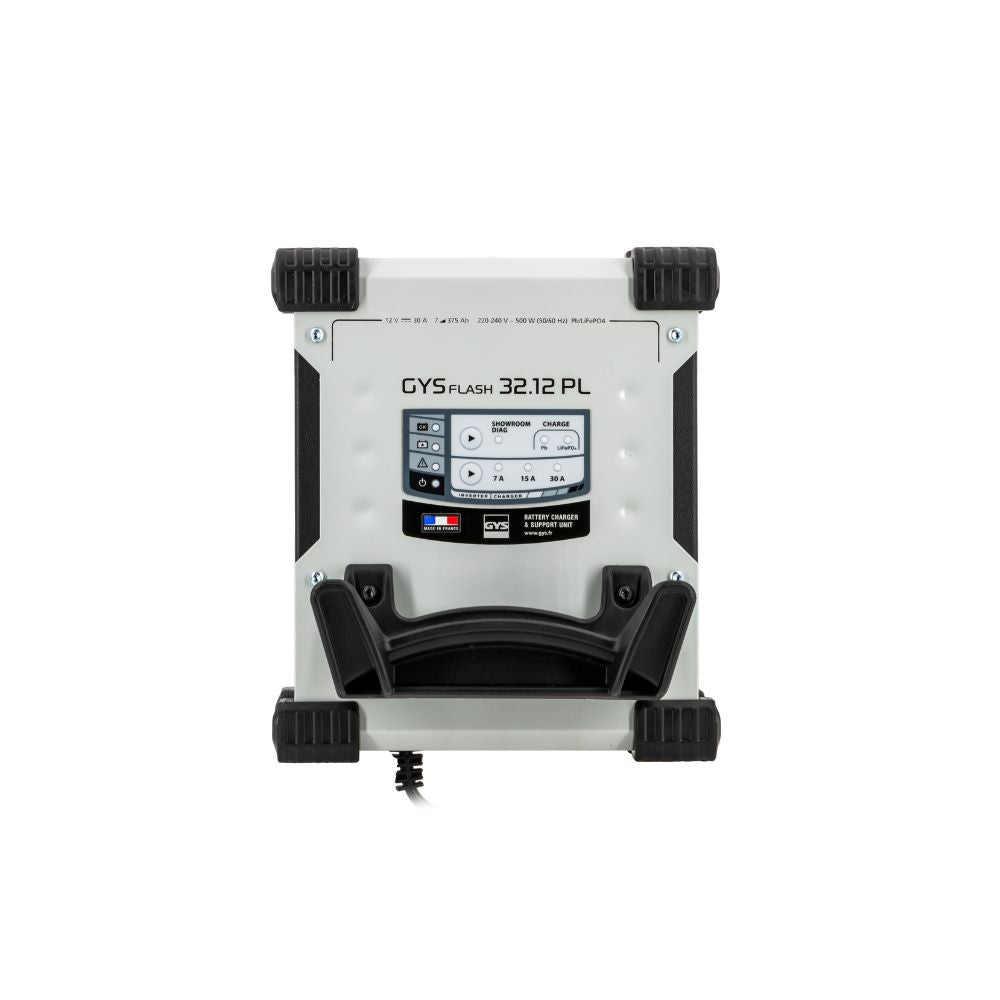

GYSFLASH 32.12 PL BATTERY CHARGER
Prices Exclude Tax
32A 12V Smart Battery Charger and Power Supply for Lead-Acid & Lithium Batteries
The GYSFLASH 32.12 PL is a professional-grade 12V charger and support unit delivering up to 32A continuous current for both Lead-Acid (Gel, AGM, Liquid, Calcium) and Lithium-Iron Phosphate (LiFePO₄) batteries. With selectable output settings of 7 A, 15 A, or 30 A, it offers full control and adaptability for vehicle diagnostics, showroom maintenance, or workshop charging.
Featuring fanless technology and advanced thermal regulation, it provides silent operation with no dust infiltration — ideal for clean and professional environments. Its intelligent 7-step (Lead) and 8-step (Lithium) charging curves ensure optimal battery performance, while Showroom/Diag mode maintains vehicle voltage stability during demonstrations or ECU updates. Compact, robust, and wall-mountable, the GYSFLASH 32.12 PL delivers safe, automatic charging with complete protection for both the battery and the vehicle’s electronic systems.
WHY BUY FROM BWS?
Specification
- Reference: 027381
- Input Voltage: 220–240 V AC (50/60 Hz)
- Power Output: 500 W
- Charging Current: 7 A / 15 A / 30 A (Selectable)
- Battery Voltage: 12 V
- Battery Capacity Range: 15 – 375 Ah (Lead) / 7 – 375 Ah (Lithium)
- Charging Curve: 7-step (Lead) / 8-step (Lithium)
- Ripple Voltage: <150 mV RMS
- Duty Cycle: 30 A @ 100% (30°C)
- Protection Rating: IP23
- Dimensions: 250 × 200 × 80 mm
- Weight: 3.0 kg

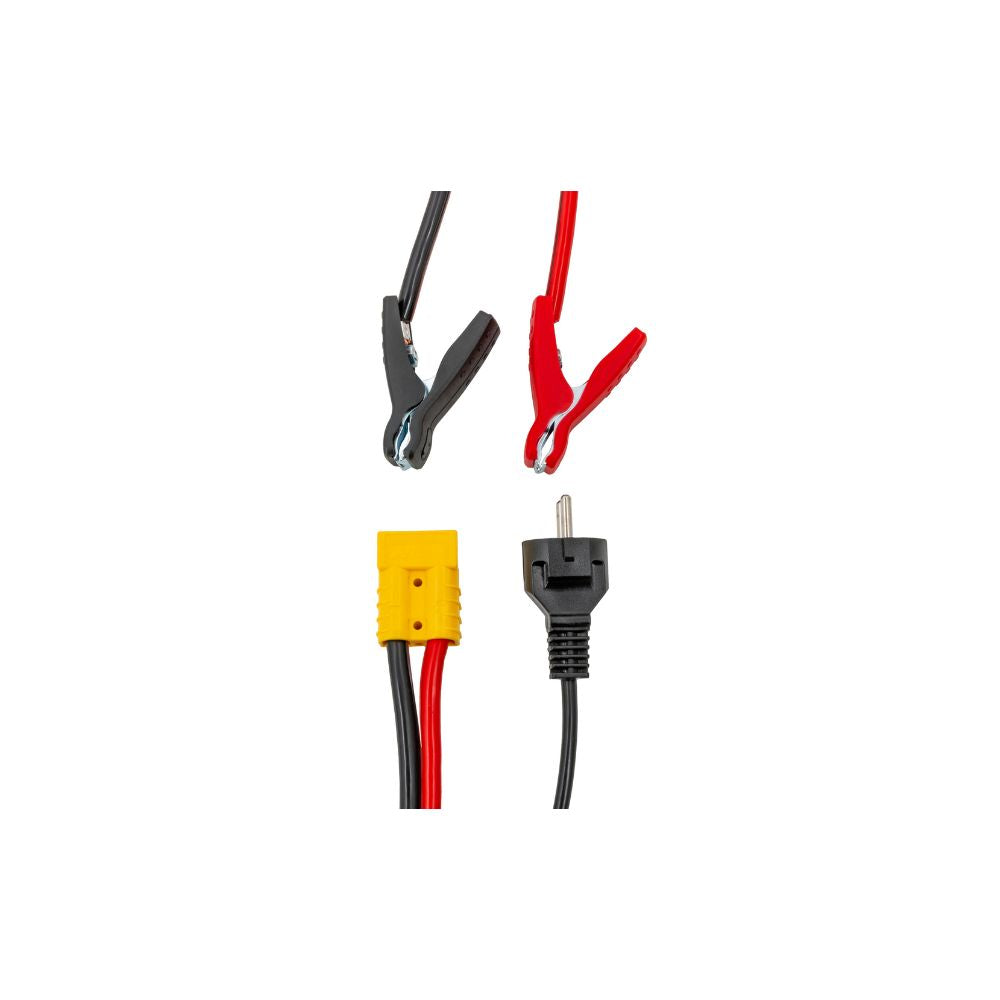

- Cables: 2.5 m – 6 mm² (standard)
Features
- Dual Charging Technology: Supports both Lead-Acid and Lithium-Iron Phosphate (LiFePO₄) batteries.
- Selectable Output Levels: 7 A, 15 A, and 30 A modes for flexible operation across vehicle types.
- Showroom/Diag Mode: Maintains voltage stability during demonstrations or diagnostic operations.
- Fanless Cooling: Silent, dust-free design ensures long-term reliability and low maintenance.
- Automatic Restart: Resumes operation after power loss, retaining previous settings.
- Advanced Safety Systems: Protection against short circuits, reverse polarity, and overcharging.
- Temperature Regulation: Integrated sensor prevents overheating of internal components.
- Wall or Lift Mounting: Compact vertical housing with anti-shock pads and cable reel.
- Diagnostic Support Mode: Provides a stabilised DC supply during ECU reprogramming and battery swaps.
FAQs
1. What batteries can the GYSFLASH 32.12 PL charge?
It charges all 12V Lead-Acid (Gel, AGM, Liquid, Calcium) and Lithium LiFePO₄ batteries ranging from 7 Ah to 375 Ah.
2. Can it be used for diagnostic or showroom applications?
Yes. The Showroom/Diag Mode provides stable current compensation up to 30 A during demonstrations or ECU programming.
3. Is the charger suitable for permanent installation?
Yes. The compact vertical design with wall mounting and vibration-absorbing pads makes it ideal for workshops and lifts.
4. Does it recover flat or deeply discharged batteries?
Yes. The charger automatically detects and reactivates batteries with voltages as low as 2 V using its advanced recovery mode.
