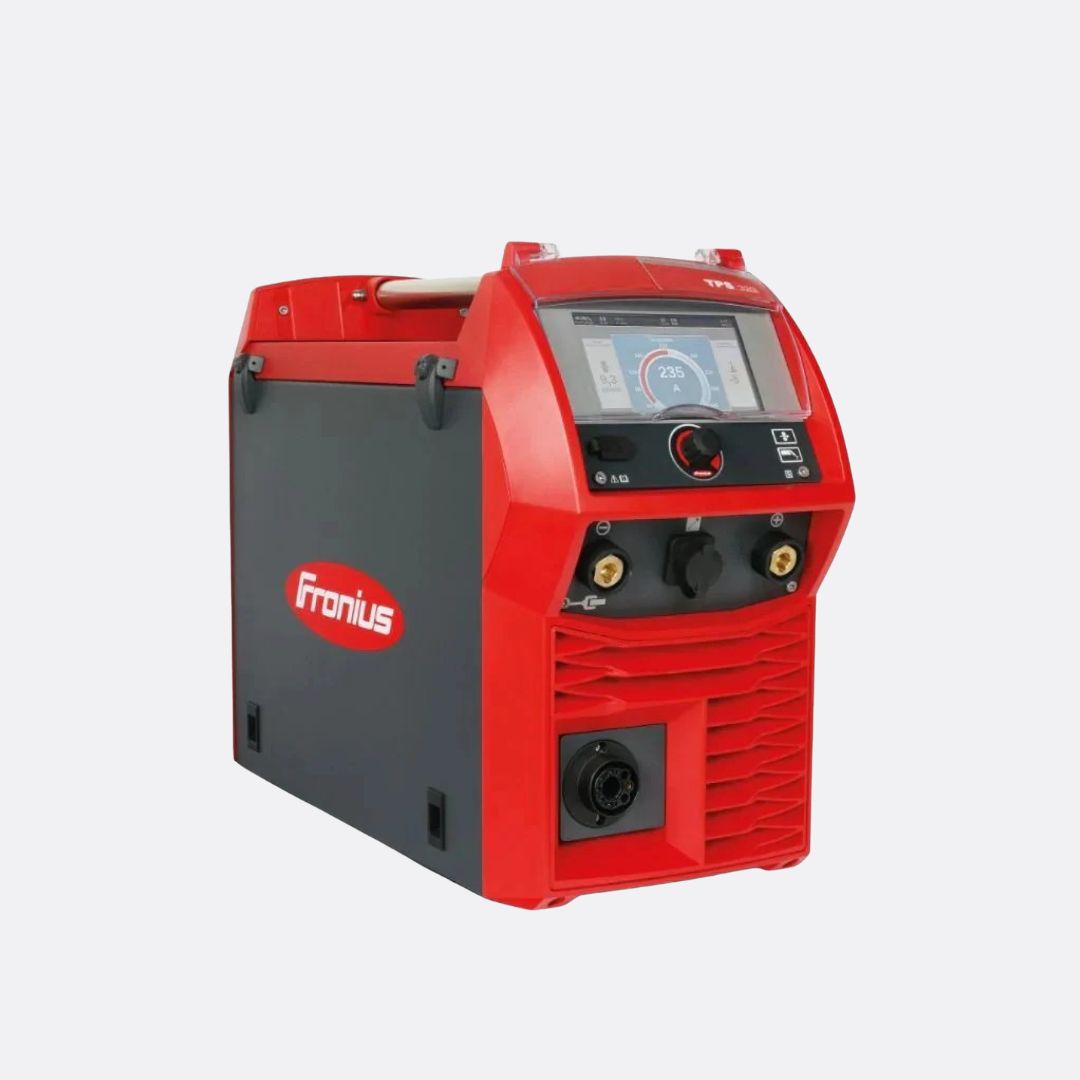

FRONIUS 320I C PULSED INVERTER MIG

Technical Overview

The FRONIUS 320I C PULSED INVERTER MIG is built on the advanced TPS/i platform — a fully digitised, microprocessor-controlled architecture that continuously monitors and adjusts welding parameters in real time. This level of process control delivers exceptional arc stability, minimal spatter, and consistently repeatable weld quality across steel, stainless steel, and aluminium applications.

The 320i C's SynchroPulse function cyclically modulates between pulse levels, producing a TIG-like rippled weld bead with the speed and ease of MIG. This results in up to 40% faster welding speeds with dramatically reduced post-weld cleanup, making it an ideal choice for high-throughput production and bodyshop environments approved by manufacturers including Audi, Mercedes-Benz, Volkswagen, and Tesla.

Its modular design allows the machine to be upgraded and expanded with additional welding characteristics via USB or internet connection, future-proofing the investment. The Fronius System Connector provides a tool-free, centralised media connection point, reducing maintenance downtime and simplifying torch replacement.

Technical Features

• Fully digitised TPS/i inverter platform with digital signal processor and continuous real-time arc regulation for maximum weld consistency
• SynchroPulse function delivers TIG-quality rippled bead appearance at MIG speeds, reducing heat input and enabling up to 40% faster travel speeds
• Multiprocess capability covers MIG/MAG (steel, CrNi, aluminium), MIG brazing, TIG DC, and MMA from a single unit
• Modular and upgradeable architecture allows new welding characteristics and firmware to be loaded via USB or internet connection without hardware changes
• Fronius System Connector provides a tool-free centralised connection point for hose packs, ensuring reliable current transfer and simplified maintenance
• Plug & Weld automatic component recognition detects connected torches and accessories, preventing incompatible configurations and incorrect parameter setup

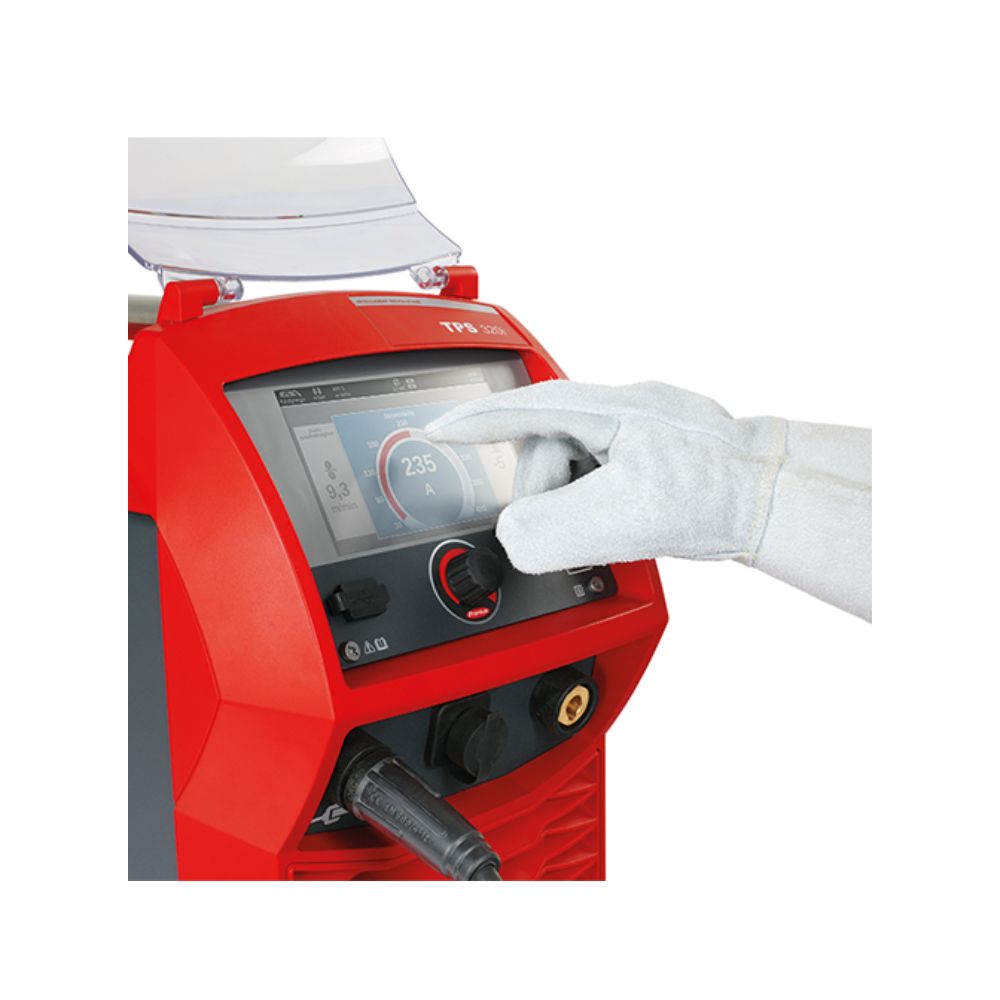

• Synergic digital control interface guides the operator through parameter setup quickly, with preset synergic lines optimised for material and wire diameter
• Approved for use in manufacturer-certified bodyshops including Audi, Mercedes-Benz, Volkswagen, and Tesla repair networks

Specification

• Mains Voltage: 3 x 400V (-10% / +15%)
• Mains Frequency: 50–60 Hz
• Welding Current Range: 3–320A
• Duty Cycle at 320A: 40% (10 min / 40°C)
• Duty Cycle at 260A: 60% (10 min / 40°C)
• Duty Cycle at 220A: 100% (10 min / 40°C)
• Welding Processes: MIG/MAG Pulse, MIG/MAG Standard, TIG DC, MMA, MIG Brazing
• Cooling: Air-cooled power source (water-cooled torch package available)
• Design: Compact modular inverter — TPS/i platform

FAQs

1. What materials can the FRONIUS 320I C PULSED INVERTER MIG weld?

The 320I C is a true multiprocess inverter capable of welding mild steel, stainless steel (CrNi), and aluminium using MIG/MAG processes, as well as MIG brazing for coated or galvanised materials. TIG DC and MMA capability is also included, making it suitable for a wide range of fabrication, repair, and bodyshop applications from a single machine.

2. What is SynchroPulse and why does it matter for production welding?

SynchroPulse is a Fronius-developed function that cyclically varies the pulse energy during welding, producing a characteristic rippled weld bead that closely resembles TIG in appearance. Because heat input is precisely modulated, distortion is minimised on thin material and positional welding becomes more accessible. In production environments, this translates to up to 40% faster welding speeds with virtually zero spatter, significantly reducing post-weld grinding and cleanup time.

3. Is the FRONIUS 320I C suitable for automotive OEM-approved bodyshop work?

Yes. The Fronius TPS 320I C is approved for use in manufacturer-certified repair programmes including Audi, Mercedes-Benz, Volkswagen, and Tesla approved bodyshops. Its precise pulse control and reliable arc characteristics meet the stringent weld quality requirements set by these OEMs for structural and cosmetic repair work on modern vehicle platforms.

4. Can the machine be upgraded or expanded after purchase?

The TPS/i platform is built with a modular, future-proof architecture. New welding characteristics, process packages, and firmware updates can be loaded directly onto the machine via USB stick or internet connection — no hardware replacement is required. This means that additional capabilities such as advanced pulse modes or specialised characteristics can be added as your production requirements evolve, protecting the long-term value of the investment.
