BORON AWARENESS-WHY DO WE WELD?



The automobiles that we see on the market today have changed significantly over the last 20 years, due to the need for stronger structures in the event of an accident whilst also reducing weight due to meet carbon emissions laws, has necessitated manufacturers looking beyond conventional, to more specialised types of steels,

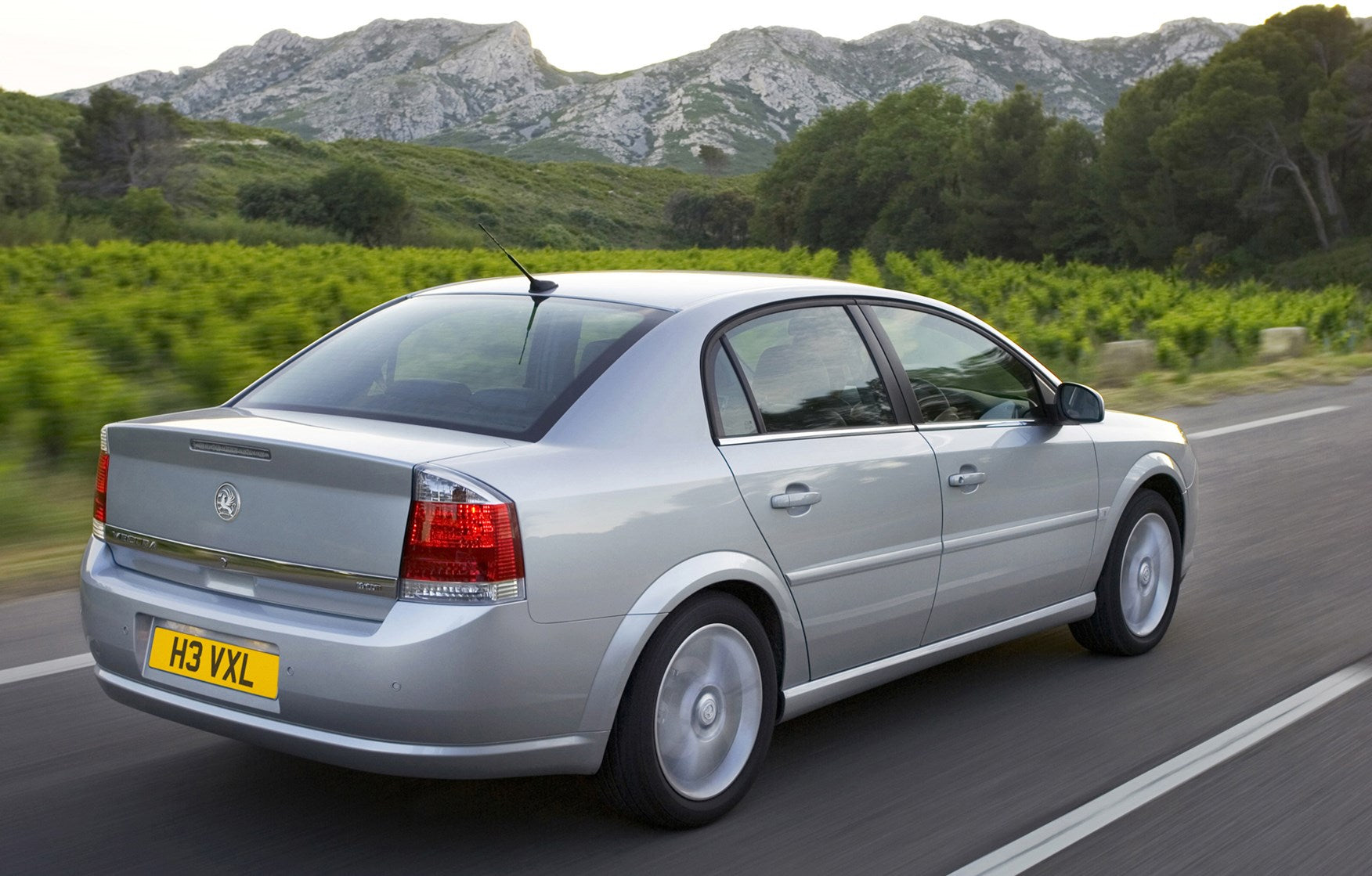

Vauxhall Vectra and Boron Steel



BORON STEEL

In the late 1990s manufacturers such as GM and Volvo started to introduce body shells with a new alloying element in them.  It was called "Boron",  a common element in the earths crust that when added to carbon steel it increases its hardness.

This alloying element coupled with the cold stamping presses used in manufacture for making thin car body panels creates a strong, stiff panel with a high yield point.

The type of boron steel used on vehicles today has extremely high strength. The boron steel used on Volvo cars has a yield point of about 1,350-1,400 MPa (196,000-203,000 psi). That’s about four times stronger than average high-strength steel. But the process used to make it that strong takes away some of the steel’s workability properties, such as being able to straighten it.



Boron Steel in vehicle frame

Typical applications of press-hardened steels

  • Hot stamped A-pillar
  • Hot stamped B-pillar
  • Hot stamped door ring
  • Hot stamped front / rear side member
  • Hot stamped crossmembers
  • Hot stamped tunnel
  • Hot stamped seat crossmembers

 Boron steel gained  an almost mythical status among panel technicians, as it could not be cut with a saw, and drills would not make a mark either!  This created confusion among technicians who were in the dark about new kinds of steel, believing that boron was the only new type of steel used in the latest automobiles. They presumed that, since they could drill and cut the panel, it must be "normal" steel and so welded it as usual.

It was because of this that training was initiated by the IMI for technicians so that they could understand these steels and repair responsibly. They subsequently had to attend "Boron Awareness" courses so that they could understand these materials and how a vehicles chassis frame is made. This Blog post is part of that Boron Awareness course.

UHSS Steels Chart



ULTRA HIGH STRENGTH STEELS

Boron is what we call a UHSS (Ultra High Strength Steel) and is part of the Martensitic family of steels (graph: MART). There are many grades and names of this family of steels and Boron is but one. Martensitic steel's are characterised by their strength and not being very flexible, it is, therefore, not easy to press into extreme shapes and curves, so tends to be found in strengtheners behind other panels. Martensitic Steels, though, are severely affected by heat during repair and, if overheated, lose their strength characteristics.

Using X type guns over rear trunk panels can cause problems - the pressure drops significantly because of the arm length, and so, heavy splash out and weld fracture can be observed. If you use these types of welders, we would recommend MIG MAG welding of the panel instead. Higher weld currents



ADVANCED HIGH STRENGTH STEELS

Most commonly used are HSS, DP, TRIP and TWIP which are labelled Advanced High Strength Steels (AHSS). TRIP and TWIP are types of what is commonly known as "plasticity steel". These steels have a certain amount of flexibility for machine pressing, but a hardening characteristic in the event of an accident.

AHSS steels give the designer lots of options to make the vehicle lighter but, also, stronger and stiffer - all this while reducing the steel sheet thickness!

Modern vehicles can contain many steels, not just one or two as before this can make repair difficult for the technicians,

Thatcham Methods Example

Engineers need to know that panels are thinner because of their special characteristics; and so, need to repair them according to what manufacturers advise. This means many repairs cannot be done without guidance and Vehicle Manufacturers Repair Methods.

A lot of these new steels are affected by excess heat which weakens the steel and, consequently, the weld quality (i.e. welds breaking under vibration). Some steels can be welded as normal, some require MIG Braze, and some cannot be welded at all - but all steels require correct fitting to maintain their special structural properties.

 Crash Rating test

CRASH RATING

The crash rating is the goal manufacturers work to in order to sell vehicles in the Euro zone and so it is now the go to standard.

The vehicle pictured above shows two vehicles performing a Euro NCAP crash rating test. The white vehicle only manages a crash rating of 3, utilizing older, weaker technology. The red vehicle achieves a crash rating of 5 and utilises the New UHSS and AHSS steels. The red vehicle's safety cell has provided much better protection for the occupants, potentially saving one or more lives in a real-world crash.

The job of a technician is to ultimately return the vehicle back to this state after repair so that it retains its crash rating in the event of another crash.



WELDING AND JOINING

CAN YOU WELD BORON or UHSS?

ANSWER - It depends on the process and the heat applied.

MIG MAG welding of Boron is a big no no. The heat generated in the welding pool is far in excess of that allowed for Boron steels. The HAZ (heat affected zone) that is around your weld is weaker than the weld bead and the material. It is In this area that it can fail in a subsequent crash.

The panel you are putting on is NOT boron or UHSS steel, its of a lower grade. The strengthener panels tend to be replaced as a whole and sectioning criteria for repair would mean sectioning the old panel away from these strengtheners so that you do not damage them.

If you were to cut through an outer panel and slightly scratch or cut into the Boron below this would create a fracture point as the Boron steel is extremely hard and as such brittle.

Therefore if repair is allowed and you are joining your panel TOO Boron or UHSS steels a lower temperature joining method is preferred. These include:

  • Spot welding
  • MIG Brazing
  • Bonding and Riveting



RESISTANCE WELDING





Spot welding is a particular concern in the industry as it is easy to set incorrect welding parameters and overheat the weld. The welding nugget and burn ring criteria must be carefully observed.

Spotwelding

The first generation of inverter spot welders had 9000 amps and, typically, 200 Dan of welding pressure with an X type gun. This pressure is only sufficient to control 7000 amperes of current unless the welding time is sufficiently increased.

AHSS steels need to be welded with shorter welding times and higher welding currents.  This use of a higher welding currents requires the gun to achieve higher electrode tip pressures to control the weld.

C type guns can achieve this pressure easier than X type guns, when welding over large areas such as rear panels  and so are the preferred approach for AHSS steels.

Using X type guns over rear trunk panels can cause problems - the pressure drops significantly because of the arm length, and so, heavy splash out and weld fracture can be observed. If you only have  these types of welders, then we would recommend using MIG MAG welding for the repair of these panels instead.

Using X type guns over rear trunk panels can cause problems - the pressure drops significantly because of the arm length, and so, heavy splash out and weld fracture can be observed. If you use these types of welders, we would recommend MIG MAG welding of the panel instead.



Spot welding nugget size

NUGGET DIAMETER

Many new vehicles now have larger weld nuggets compared to older mild steel vehicles. This is because of the nature of the steels and its resistance.UHSS and the new Alloy Steels have lower remittances to current flow when compared to mild steel. This makes them harder to heat up and also more difficult to spot weld, this is why spot welders have been getting bigger whilst vehicle panel thickness has been getting less.

This lower resistance also causes a problem called "shunting", this is where the electricity would rather travel through a previous weld or shunt than through the area you are trying to join. This can weaken your weld as well as the one performed previously.

 Larger gaps are then required  between spot welds and so this means fewer spot welds per panel, hence welds now are larger than before.

A typical welding parameter for an 8mm welding nugget diameter on 0.9mm AHSS steel requires a welding current of around 10000 amps and a pressure in excess of 380 Dan. So, as you can see, larger welding guns and more powerful welders are required to weld these steels very quickly and keep the HAZ (Heat Affected Zone) to a minimum. When instructing, we often explain this heat problem by referring to water in a kettle ie: if you boil it for too long, the water will evaporate. In essence, the same effect can happen in the weld nugget if you weld too long .

Always observe your spot weld and adjust as necessary,  so called "smart welders can help but they are no substitute for a technician observing the weld. Read our post on "are smart spot welders really smart!"



WELD TESTING

The only way to ensure a spot weld is good is to “Destroy It!”. To do this we do spot weld tags, we then measure the spot weld size and compare it to the manufacturers size on the vehicle. Please see our post on how to do a a peel test Here.

We would recommend doing weld tags BEFORE welding to ensure correct welding parameters for the vehicle to be repaired.



MIG BRAZE WELDING

MIG Braze Welding joints example on a vehicle

MIG BRAZING

MIG Braze welding is a bonding process, the heat produced isn't high enough to melt steel and so "bonds" to the surface. It has a capillary action in that it spreads out to areas that have been heated. Its lower melting temperature means it can be used by manufacturers to join UHSS steels. An example of a Braze Seam is shown above from a vehicle manufacturers method sheet.

MIG Braze welding though is still a heat process and as such you can still damage the UHSS panel by over welding the joint. Heat builds up, and so the more welding you do at any one time means the more heat is produced on the whole of your panel.

Always be aware of this heat and do not perform to many welds quickly at any given time.

MIG Brazing is an arc process and so it can be performed using normal transformer MIG welders but be aware, the heat generated by these welders can easily mean you have overheated the weld seam, this is why synergic inverter welders have come to the fore as they offer easy programme selection of parameters.

See our post on "How to MIG Braze vehicles " for more information.





REFERENCES

https://www.totalmateria.com

www.thyssenkrupp-steel.com

i-car.com

Thatcham Methods
