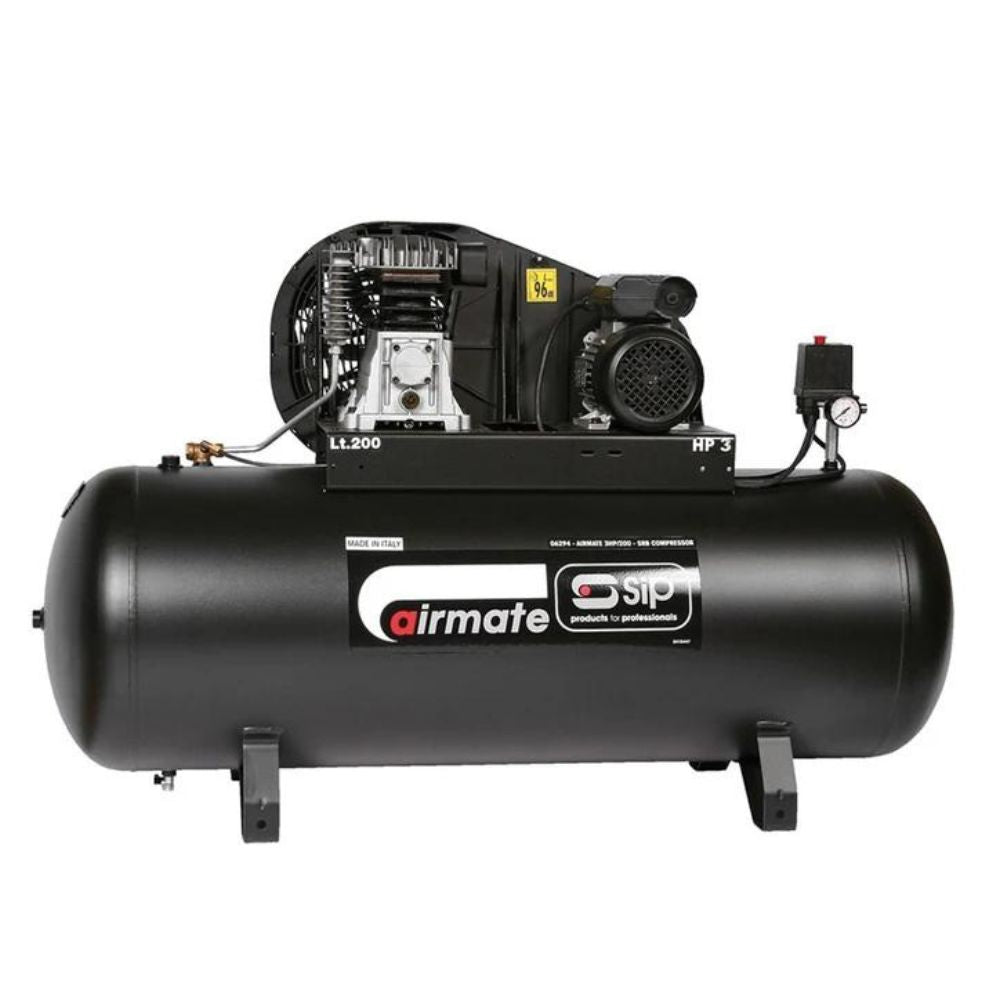

SIP 3HP/200-SRB Air Compressor

Name: SIP 3HP/200-SRB Air Compressor
Brand: SIP
SKU: 06477
Price: 575.00 GBP
Availability: InStock

£575.00

Shipping calculated at checkout.

SIP 3HP/200-SRB Air Compressor is a 3HP, oil-lubricated, belt-driven unit intended for professional garage and workshop compressed-air use.

Key Features

3HP (2.2kW) motor power
200 litre receiver capacity
SIP 3HP/200-SRB oil lubricated
145psi (10 bar) maximum pressure
13CFM piston displacement rating
SIP 3HP/200-SRB workshop specification

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

220 - 240V ~ 50Hz

Warranty

24 month parts and labour warranty

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Mark Allen says

This is a 3hp (2.2kW) belt-driven piston air compressor with a 200-litre receiver, intended for garage and workshop use. I’m Mark and I routinely specify these where a steady store of compressed air is needed for pneumatic tools, tyre work and spray preparation; it delivers up to 10 bar and about 240 litres/min free air delivery so it will run hand tools and low-flow spray guns without constant short-cycling if matched correctly. The unit is oil-lubricated with a cast iron barrel, finned manifolds and an aluminium aftercooler, which helps cooling and reduces moisture into downstream equipment. Two technical points matter: install with adequate ventilation and the recommended clearances, and use the ON/OFF pressure switch correctly because the motor is rated for intermittent S3 50 duty. In practice I see faults from blocked intakes, poor condensate drainage and loose belts, so check the air filter, drain daily and set belt tension. With routine oil, filter and drain maintenance this compressor gives dependable service in a trade workshop.

Mark Allen, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Oillubricated, beltdriven pump arrangement for reliable power transfer and smooth operation.
3.0hp (2.2kW) motor designed for 230V singlephase supply (18A noted).
200litre receiver capacity for larger stored air volume between pump cycles.
Piston displacement 13 CFM (368 litres/min) and maximum free air delivery 8.5 CFM (240 litres/min) as rated.
Maximum working pressure 10 bar (145 psi) with automatic pressure switch control (cutout at 10 bar, cutin at 8.5 bar).
Multifinned flywheel and finned manifolds combined with an aluminium aftercooler to reduce moisture in the compressed air.
Heavyduty cast iron barrel and an oversized crankcase for improved durability and lubrication retention.
Extrastrong moulded plastic guards protecting the belt and moving components during operation and servicing access restrictions in place for safety compliance guidance in the manual. (Do not operate with guards removed.)

Specification

Model

SIP 3HP/200-SRB

SKU

06477

Input Voltage

220 - 240V ~ 50Hz

Input Supply

230v (18amp)

Motor Power

3.0hp (2.2kW)

Motor Duty Cycle

S3 50

Drive Type

Belt-driven

Lubrication

Oil-lubricated

Pump Speed

1130rpm

Piston Displacement

13CFM (368 litres/min)

Max. Free Air Delivery

8.5CFM (240 litres/min)

Max. Pressure

145psi (10 bar)

Receiver Size

200 litres

Barrel Material

Cast iron

Aftercooler Material

Aluminium

Insulation Class

F

Protection Rating

IP54

Noise Level

97dB(A)

Gross Weight

96kg

Packaged Dimensions

1090 x 1500 x 430mm

Warranty

24 month parts and labour warranty

FAQs

What electrical supply and protection does the SIP 3HP/200-SRB require?

The unit is designed for 230 V single-phase supply (220–240 V ~ 50 Hz) and is listed as 18 amp on the product specification. It must be earthed/grounded and used with the correct fuse. SIP and the manual recommend connection through a Residual Current Device (RCD). If you use an extension lead ensure the cable size is adequate for the current draw. Do not modify the plug; contact a qualified electrician if in doubt.

What are the pressure and airflow figures I can expect?

Motor power is 3.0 hp (2.2 kW). Receiver capacity is 200 litres. Piston displacement is given as 13 CFM (368 litres/min) and maximum free air delivery as 8.5 CFM (240 litres/min). Maximum working pressure is 145 psi (10 bar). Use these figures when matching the compressor to tool air consumption and run-time requirements.

Can the compressor run continuously for long production use?

No. The compressor is specified for intermittent duty (S3 50). That means the motor runs for approximately 5 minutes within a 10-minute cycle (50% duty) and must be allowed to rest. It is intended for garage and workshop use rather than continuous 24/7 production duty. Ensure the unit has good ventilation (minimum 50 cm from a wall) and avoid dusty or damp locations that will affect cooling and reliability.

What routine maintenance and warranty cover should I plan for?

Drain the receiver daily and dispose of condensate in accordance with local regulations. Change the oil after the first 100 hours and every 300 hours thereafter; the manual recommends SIP Advanced Compressor Oil. Change the air intake filter after 100 hours. Check V-belt tension periodically (monthly) — the manual states about 10 mm (1 cm) deflection when correctly tensioned. Only qualified personnel should carry out repairs. The compressor is supplied with a 24 month parts and labour warranty; the warranty excludes misuse, use in inappropriate environments, consumables and non-standard installations (for example van installations).

📄

Technical Datasheet

Download the official manufacturer datasheet for SIP 3HP/200-SRB Air Compressor including specifications, compatibility information and technical details.

Download SIP 3HP/200-SRB Air Compressor Datasheet
