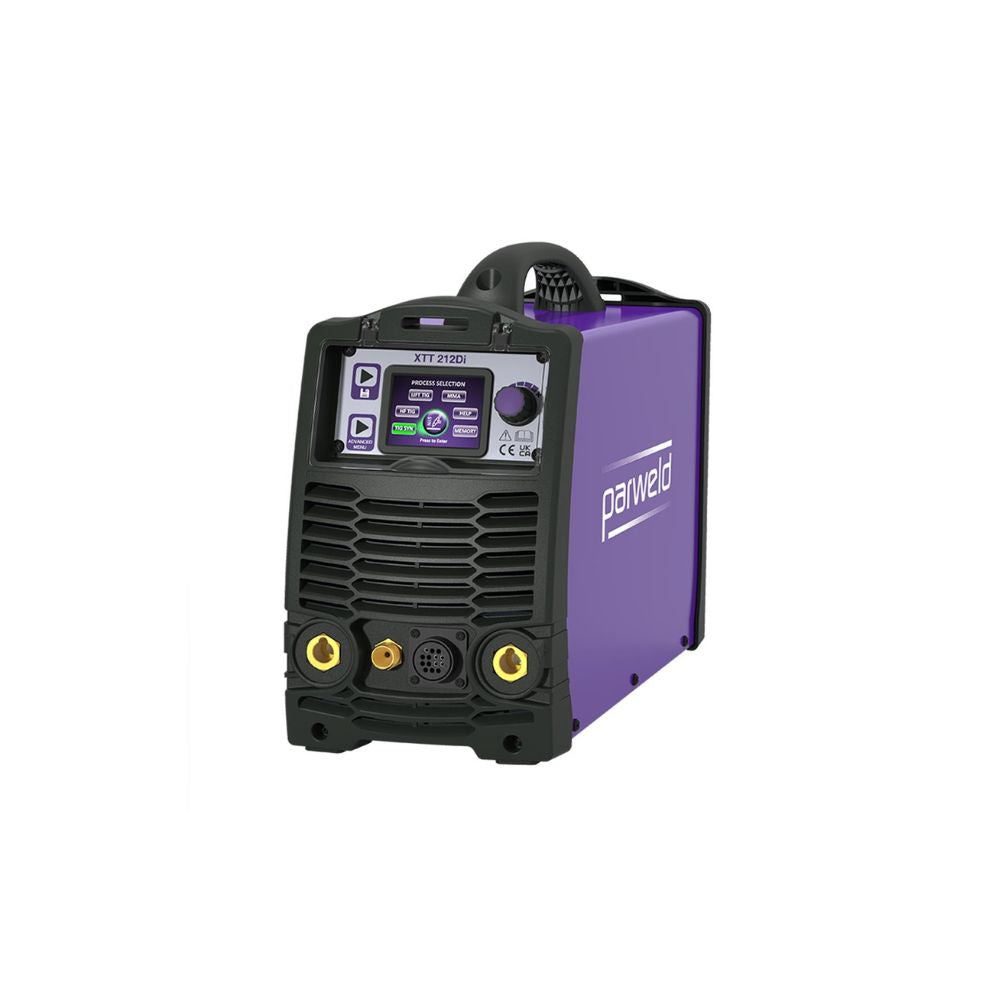

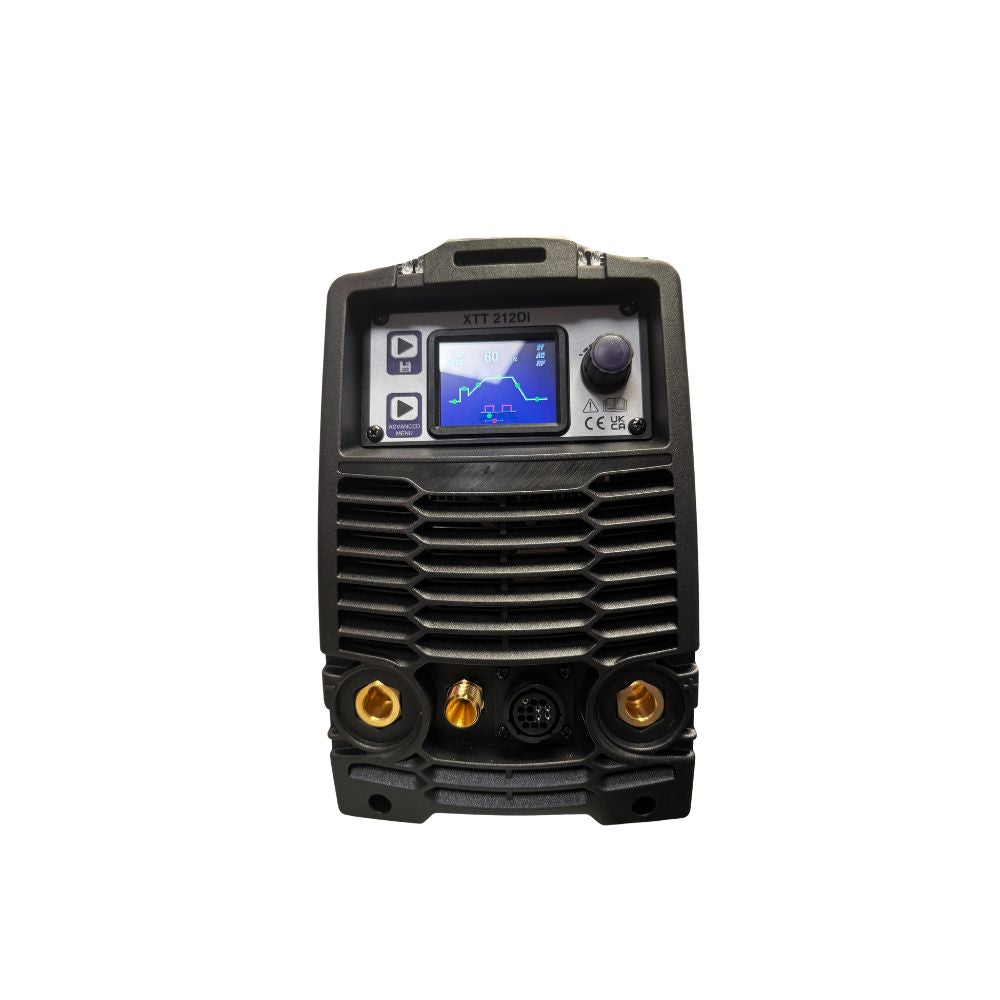

PARWELD XTT212DI ACDC TIG WELDER

Brand: Parweld

Parweld 200A AC/DC Pulsed TIG Inverter 110/230V

SKU XTT212P-P1

Are you looking For an Aluminium TIG Welder at a Great Price? The NEW digital display PARWELD XTT212DI AC/DC Inverter TIG Welder is the one for you!

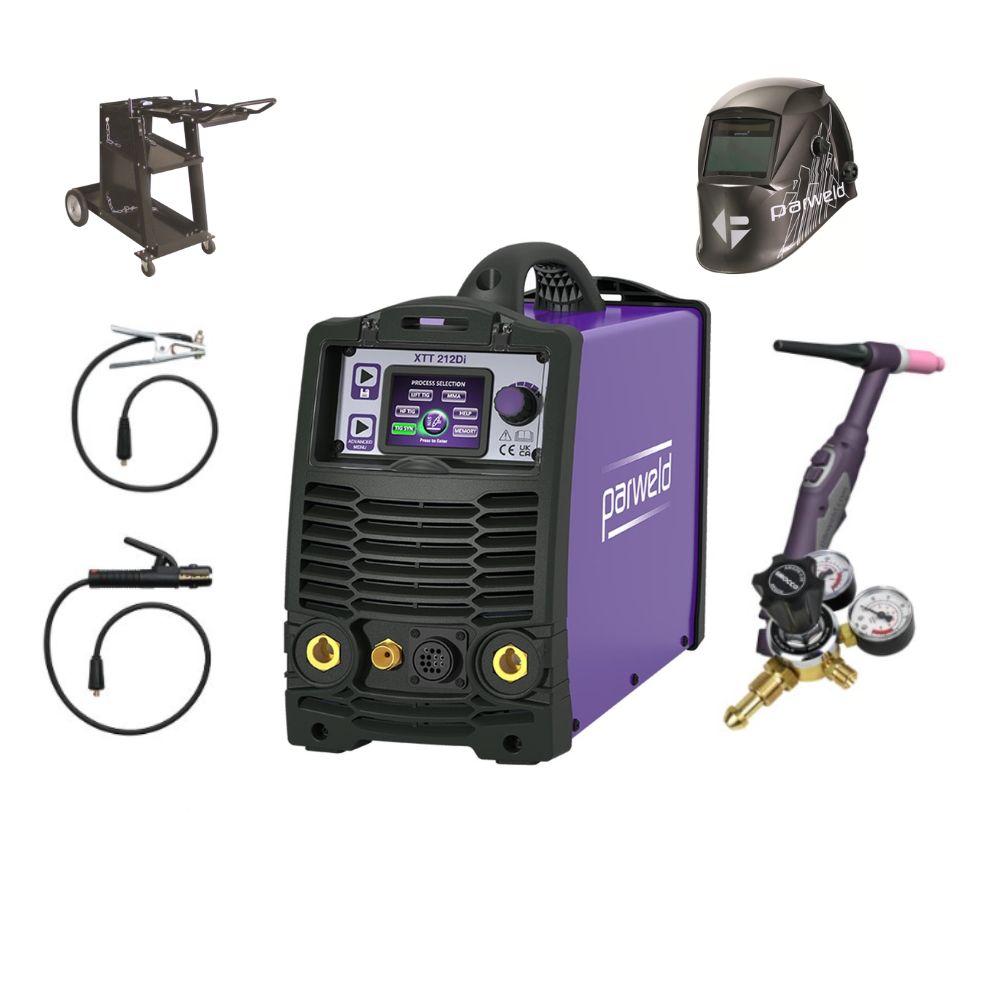

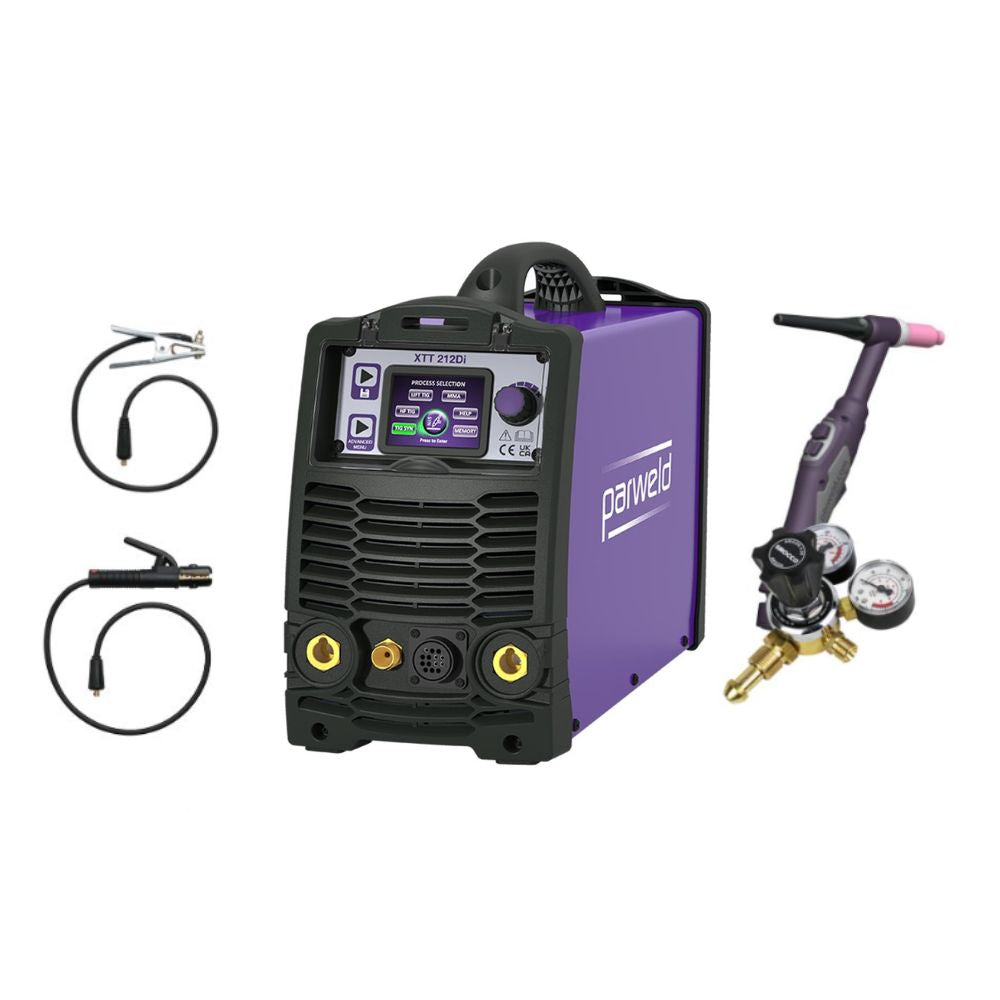

Full Package with everything you need to weld aluminium like a PRO

The Parweld XTT212PDI is a Professional Level Dual Voltage ACDC TIG Inverter, suitable for light industrial manufacturing, maintenance repair, agriculture and DIY, training, sheet metal fabrication and site work. It's brilliant for aluminium repair work, especially alloy wheel repair. It comes with a current control TIG torch which is useful at the price!

Applications

Light Industrial Manufacturing Training
Sheet Metal Work
Aluminium Fabrication Stainless Steel Fabrication

PRO Installation is available!

Parweld XT202 AC/DC TIG Instruction Manual



The Parweld XTT212DI is our best-selling and best-value ACDC TIG welder. It has proven to be very popular with alloy wheel repair companies due to its features, excellent torch, and duty cycle.

PULSED TIG WELDING

Not to be confused with the AC waveform as used when welding aluminium Pulse is a process of hot/cold weld cycles whilst welding. We can alter the top weld current (peak) and the drop current (base) as well as the frequency of the pulses and duration. I usually go half and half. so if I have 100 amps at the peak, I set the drop to 50 amps. This is a great feature, not only is it used for welding thin steels and for stainless steel it's also great when welding thin aluminium as the drop in current enables the weld to stay as cool as possible.

Cleaning Effect/ AC BALANCE

This is used in AC mode when welding aluminium. The cleaning effect is the action that cleans off the oxidation layer of the material before the weld current follows and melts the material. A good setting on this machine is 30

AC Frequency

This is the frequency of the pulses. 1 is one pulse per second. The higher the number the more pulses per second up to 200

• Dual Voltage 110/230V
• 200A @25% Duty Cycle
• Lightweight 7.8kg
• Connections 35-50mm Dinse
• Generator Friendly
• HF arc starting
• Easy electrode re-striking with hot start (MMA)
• Adjustable post flow (TIG)
• Supplied with 3m earth lead
• latch trigger option (TIG)
• Adjustable upslope/ downslope (TIG)
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant

Manufacturer: Parweld
Part No. XTT212 DV
Supply: 110-230V
Fuse: 16A/32A
Output: 200A @ 25% Duty Cycle
