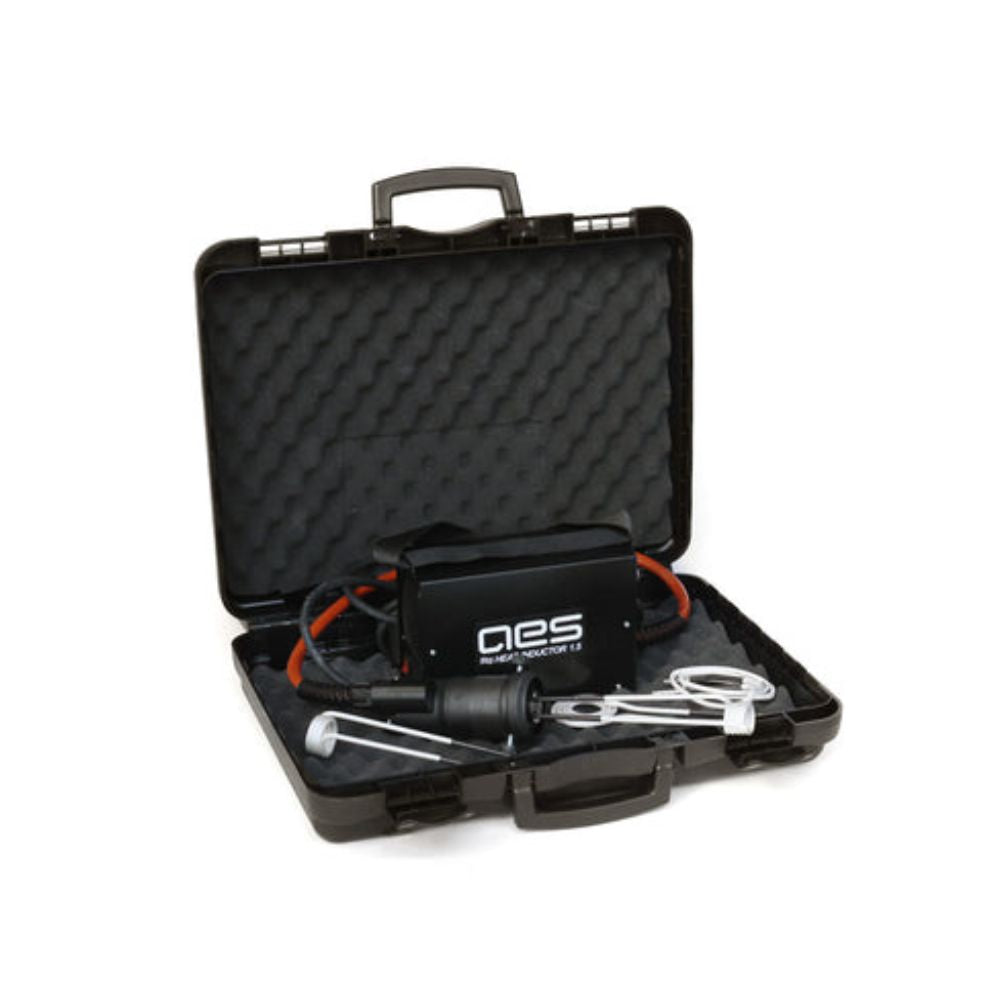

AES HEAT INDUCTOR 1.5 KW

AESHI15

COMPACT INDUCTION HEATER FOR BOLTS

SKU AESHI15

The AES hi1.5 heat inductor is a superior substitute to your workshop's autogenous or LPG flame-based heating methods; it is particularly useful for applications with screwed joints in vehicles, cases, bearings, hubs, etc.

  • Safe heating without a flame
  • Lightweight and mobile
  • Interchangeable coils
AES HI1.5 is used for sheet metal straightening and loosening of smaller machine parts such as:
  • Bolts, rod and profile steel
  • Metallic sheets, bearings, cases, driving shafts
  •  Nuts, pipes, gears, spring bases

The AES hi1.5 inductor will heat an M12 bolt or a nut to a temperature over 800°C in only 15 sec.

An induction heating system's preparation and setup time are much faster than an autogenous burner system.

Simply connect the AES hi1.5 to a 230V socket, install the appropriate coil type onto the part you wish to heat, and then push the ON/OFF button to begin the induction process. The heating process is accomplished in seconds, even for parts requiring red-hot temperatures. Induction coils may be easily replaced with bigger or smaller ones. The same applies to the heating coil to be wrapped around the part. A set of coils of various diameters may be ordered as optional items together with the induction heater.

ADVANTAGES
  • Mobility – weighs only 4.5 kg in a compact size comparable to a small welding machine.
  • Capacity 1.5 kW, high load factor.
  • Easy handling and access – coil connecting cable length of 70 cm with a small carrying handle.
  • Flexibility and simple operation – it may be connected anywhere to the power grid with a single 230 V connection, which makes it simple and quick preparation.
  • Versatile heating elements for every application – for shaped, flat, circular, positioned or standard parts.
  • State-of-the-art and affordable method of workshop heating.

Robust IGBT transistor technology
Short-circuit and open-circuit proof
Automatic adjustment to the resonance frequency
Frequency: 25 kHz – 60 kHz
Very user-friendly and cost-efficient
Processor-based control system
Overload alarm
Connecting cable 70 cm
Controlled fan cooling


Mains supply: 230 V, 50/60 Hz
Working frequency: 25-60 kHz
Output power – induction power: 1.5 kW
Cooling system: Fan
Continuous operating time: 5 minutes*
Cable Length 70cm
Weight: 4.5 kg
Size (L×W×H): 200x140x75 mm
