SCANGRIP UV-GUN
SCANGRIP UV-GUN
Scangrip Uv Curing Led For Large-Sized Paint Repair Areas
SKU 03.5803UK

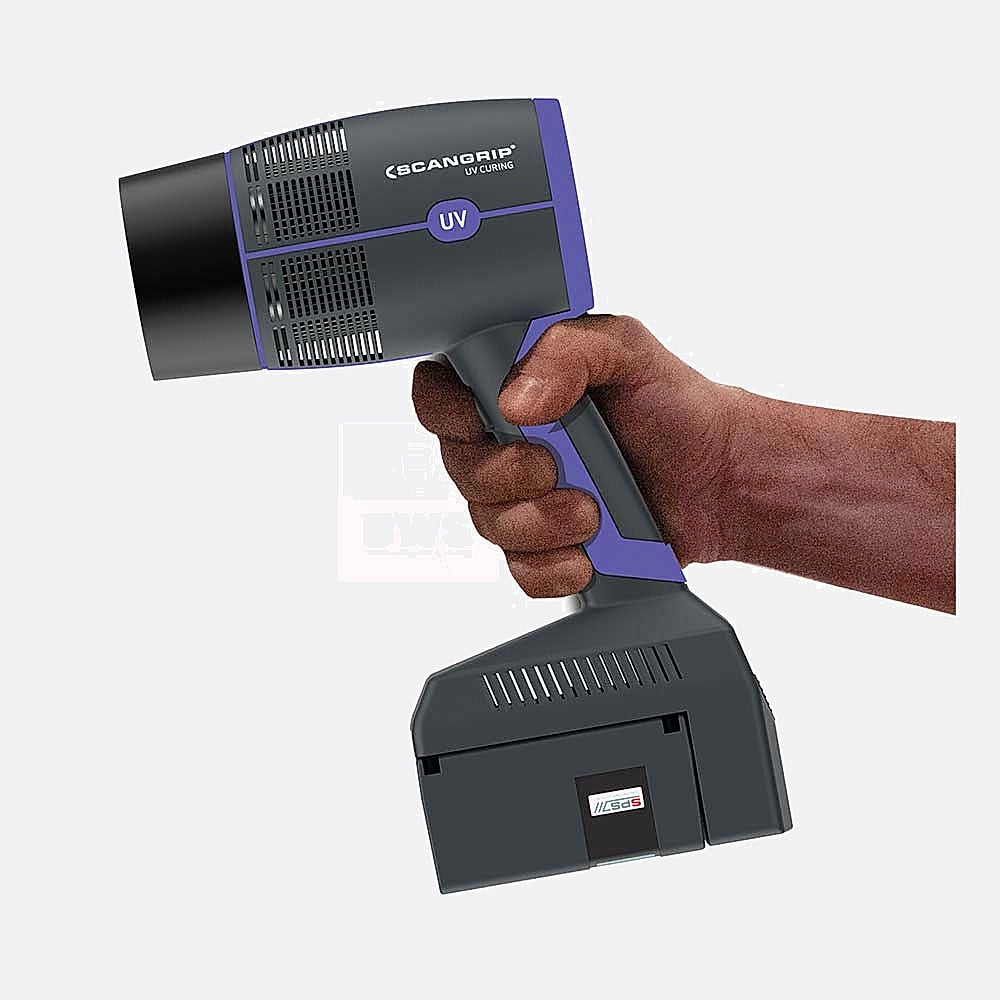

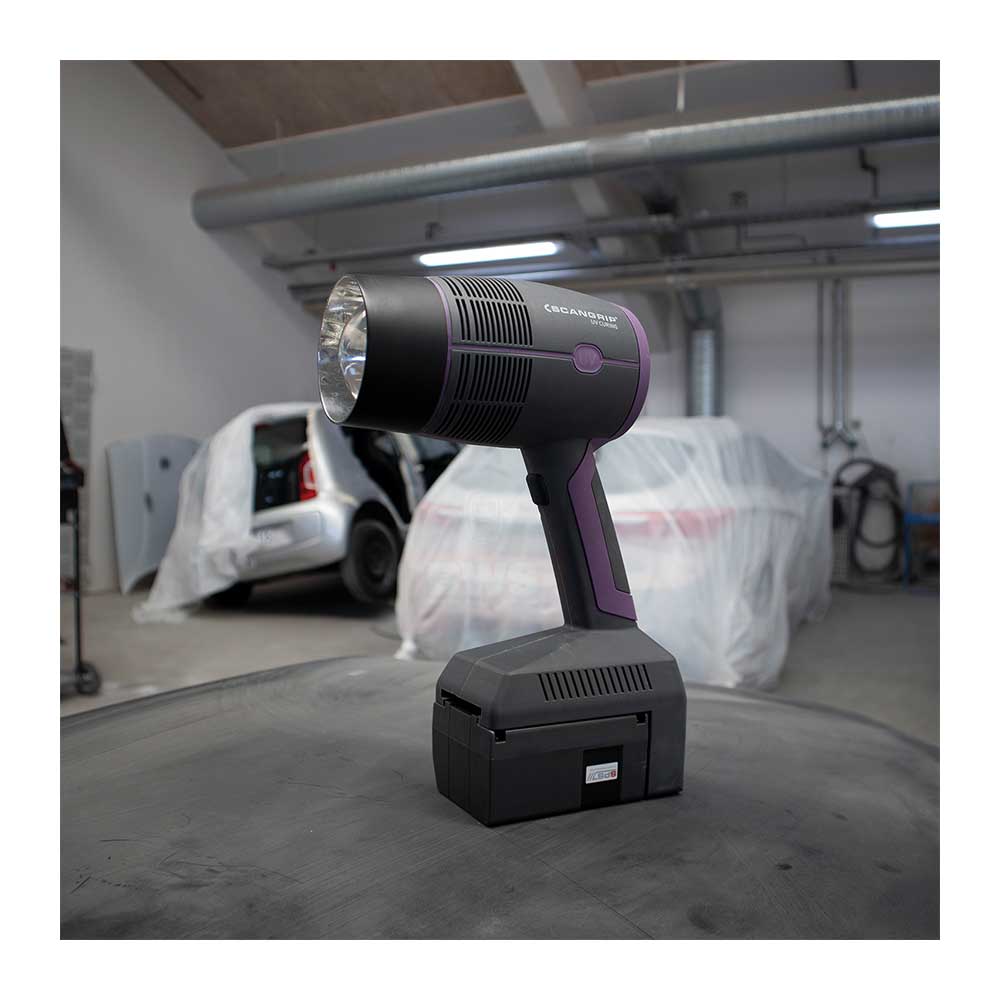

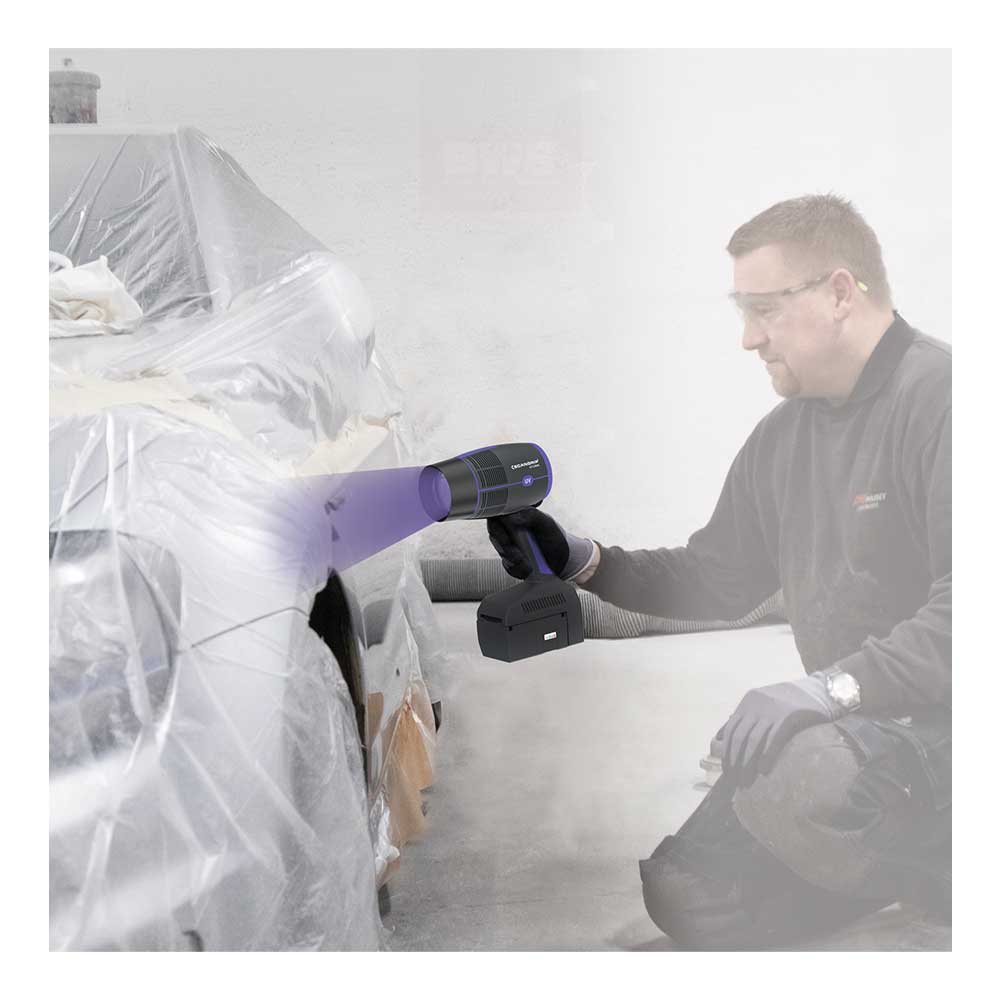

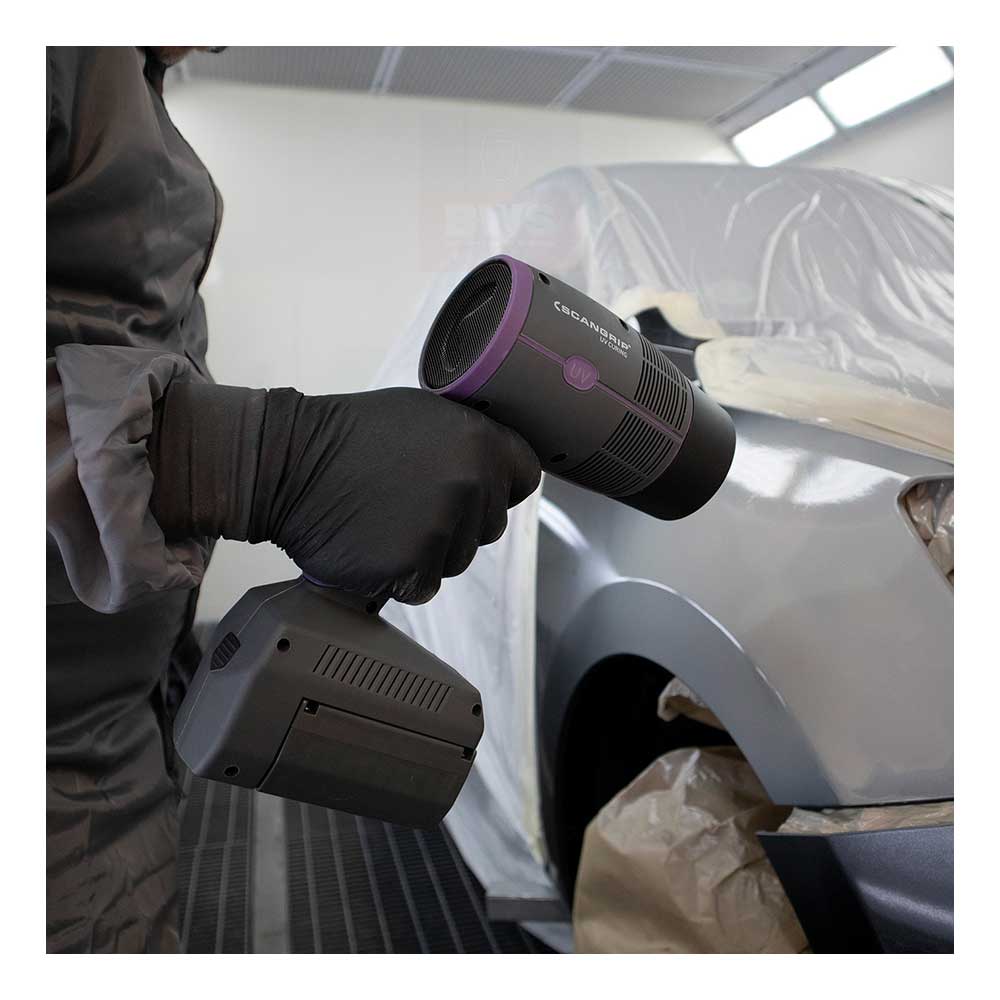

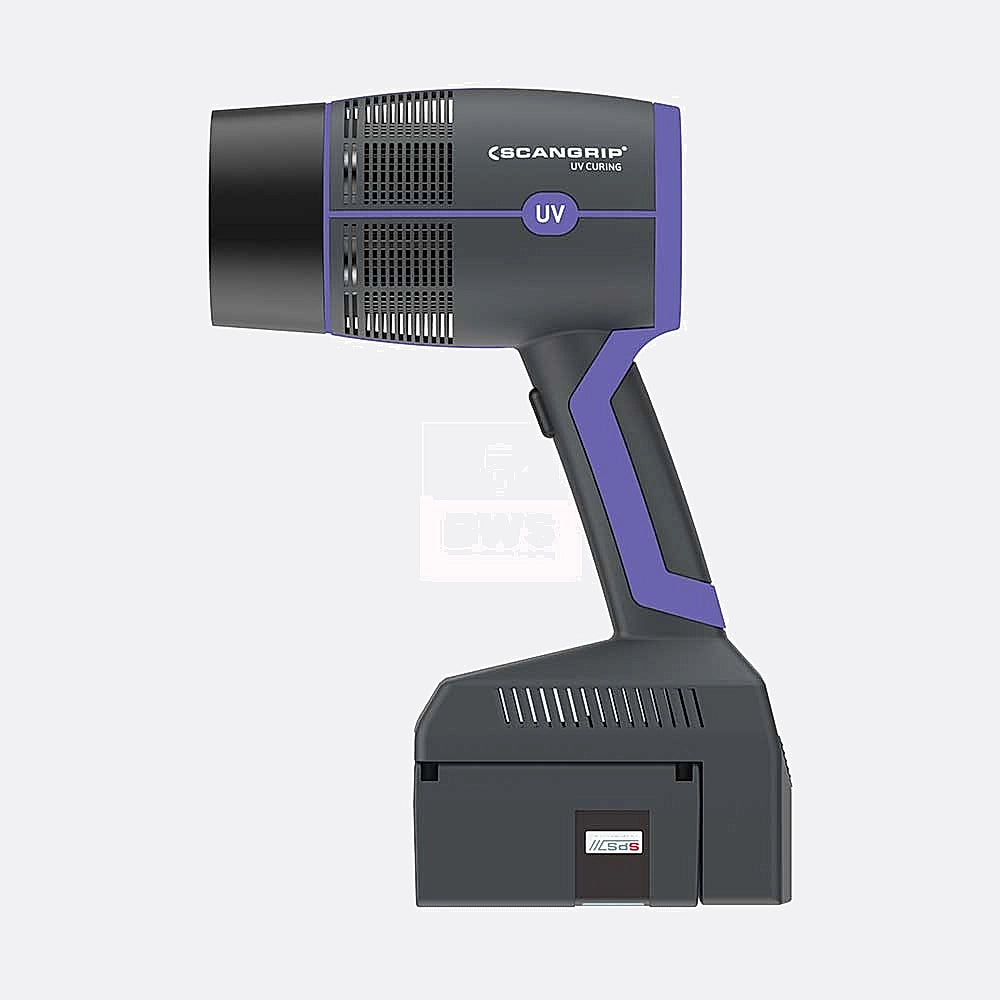

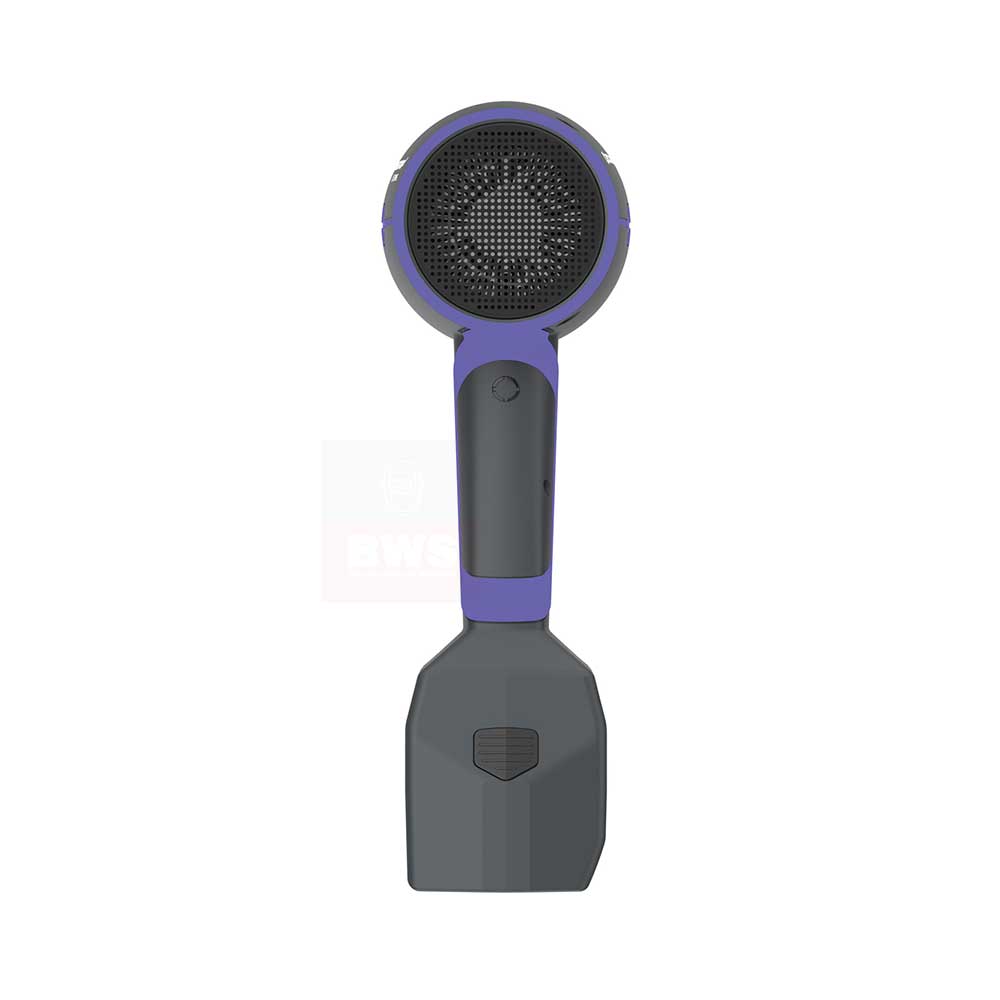

The Scangrip UV LED Gun is the latest paint curing technology from Scangrip. This lamp is designed to cure a large surface area, from 10cm off the panel the lamp will cure and approx. area of 250cmsq but held at 56cm off the panel the area is increased to 3600cmsq or a single panel.
The UV Gun operates at the best UV peak wavelength ideally suited to cure UV primer coats in just 1 minute.
The lamp doesn't generate any heat on the panel to be repaired allowing even plastic parts to be cured in only a minute ready to prepare for colour.The Scangrip NO QUIBBLE 3 year warranty gives added peace of mind when purchasing this professional UV tool.
Scangrip specialised LED work lights for UV CURING has been tested and proven successful on leading brands of UV-cured
products. LEARN MORE HERE!
Download
READ OUR PRODUCT REVIEW HERE!
Shipping
We aim to dispatch all in-stock items for next working day delivery when ordered before 1pm. Larger or heavier equipment may require a 48-hour delivery service.
Mainland UK Delivery
Orders over £70 (excluding VAT) qualify for free delivery.
Orders under £70 (excluding VAT) are charged at £6.95.
Remote & Offshore Locations
Deliveries to the Scottish Highlands, Islands, Northern Ireland, Isle of Man, Channel Islands and Isles of Scilly are subject to additional carriage charges. These typically start from £18.95 and may increase depending on size and weight.
If you need urgent delivery or want to confirm stock availability before ordering, please contact our team.
Returns
We offer a 14-day approval period from the date of delivery to ensure the goods meet your expectations.
Returned items must be in new, unused condition and in their original packaging. Return carriage costs are the responsibility of the customer.
We strongly recommend using a tracked and insured delivery service, as we cannot be held responsible for items lost or damaged in transit.
Items ordered incorrectly and returned for credit may be subject to a 15% restocking fee. This may be waived on orders at our discretion.
Technical Features
- Technical Features
- Highirradiance UV LED array provides center intensity of 340 mW/cm² at 10 cm and 14 mW/cm² at 56 cm, enabling rapid curing over ø68 cm areas for large panel repairs.

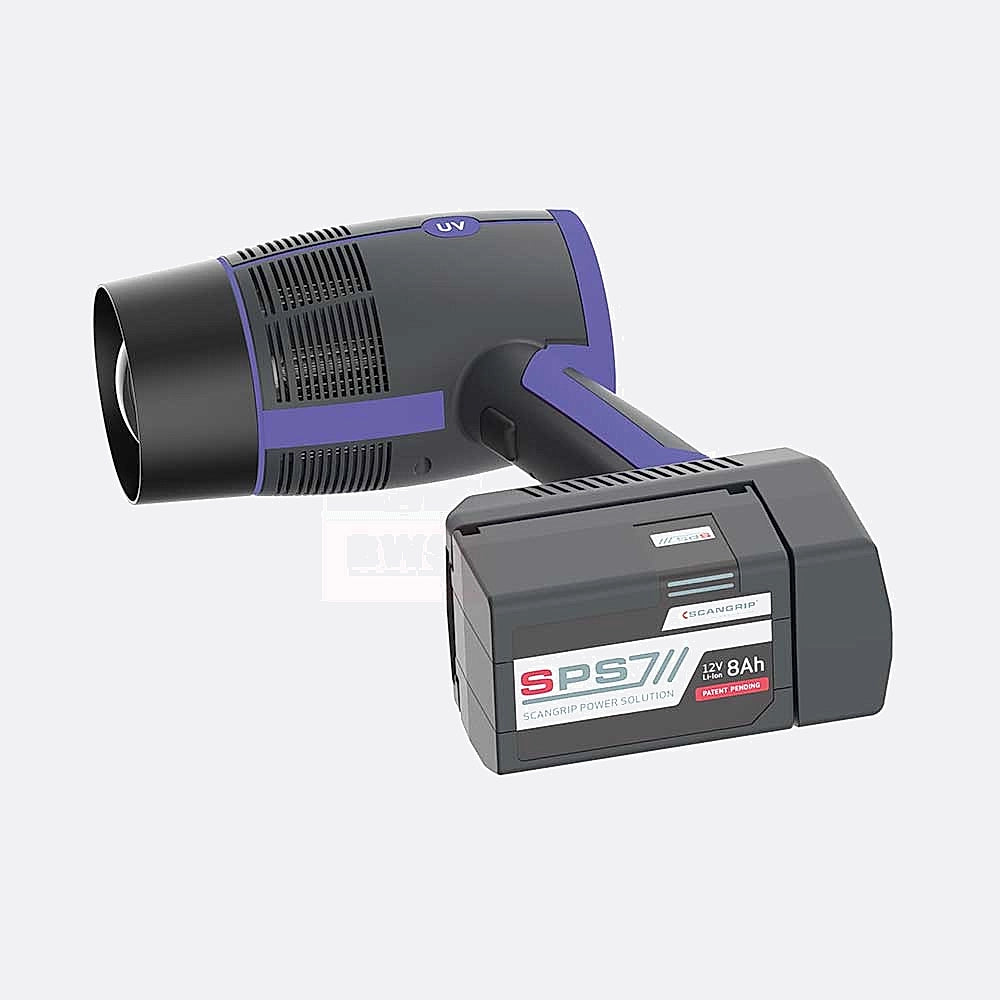

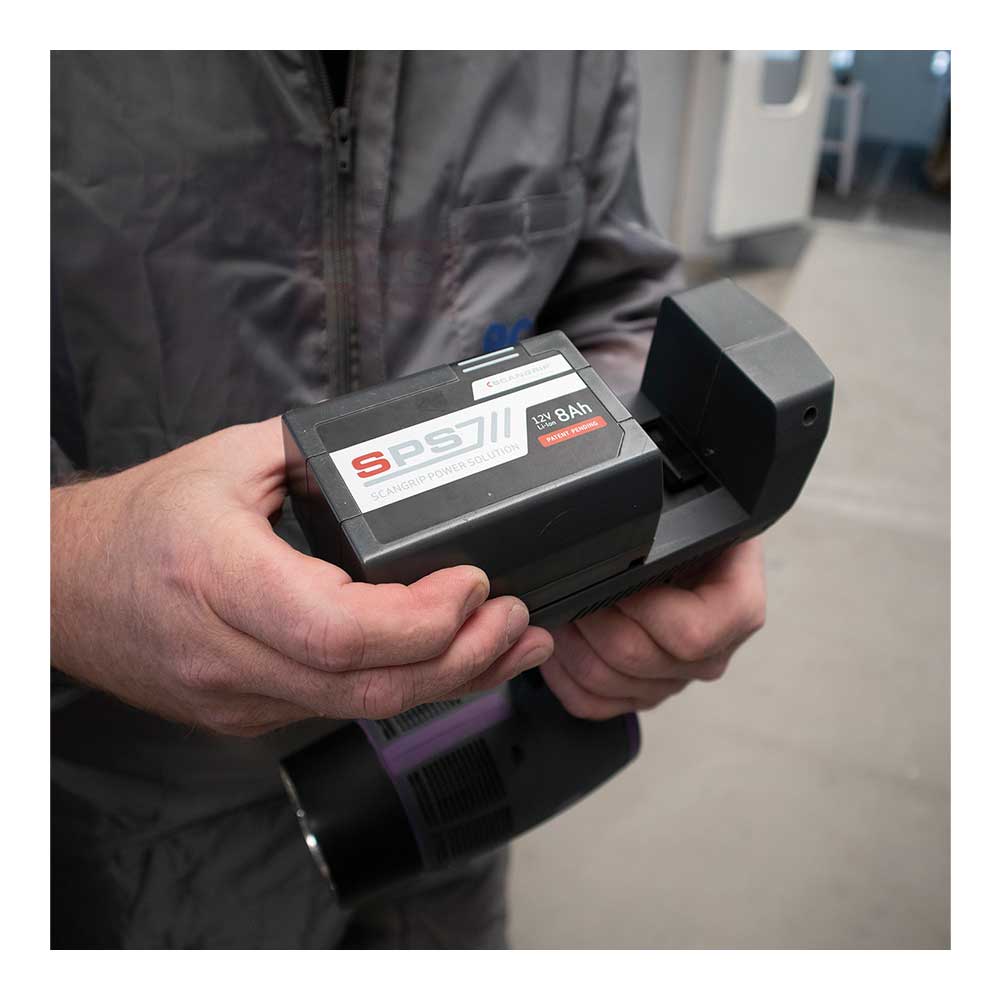

- Rechargeable 8000 mAh Liion battery delivers 40 minutes of continuous operation, with hotswappable design and 2hour fast charge to 80% via included 50W SPS charger.
- Solventresistant glass lens protects the UV output in harsh paint shop environments, combined with IP30 dust/water and IK07 impact resistance for durability.
- Precise 395400 nm UV peak wavelength optimized for automotive clear coat and filler curing, with recommended usage up to 26″ diameter at 22″ distance.

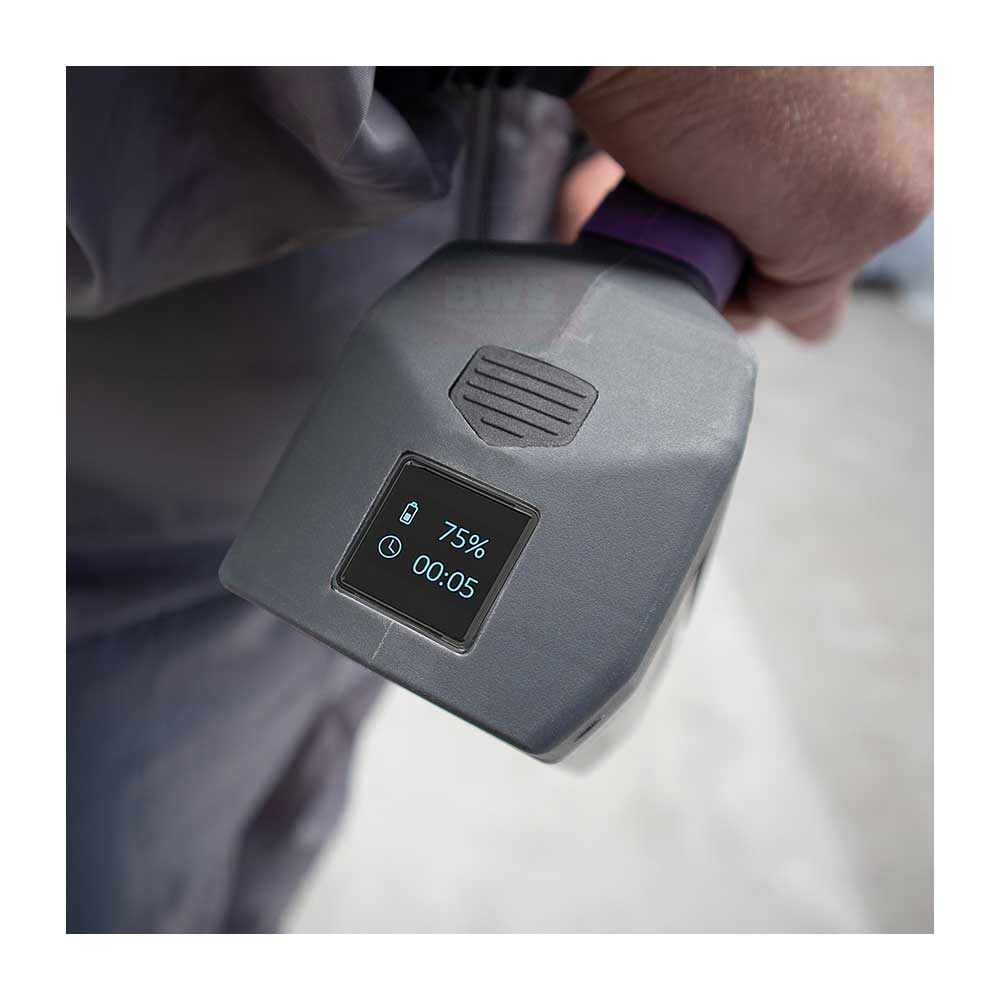

- Integrated LCD display for battery status and operation monitoring, plus ergonomic handheld design weighing just 4 lbs total for extended use without fatigue.
- Complete kit includes SPS battery (03.6004) and universal 100240V AC charger (03.6007) with 5m cable, supporting cordless workflow in professional settings.
Specification
FAQs
What is the curing coverage area of the Scangrip UV Gun?
The Scangrip UV Gun covers a curing diameter of ø68 cm (27 inches) at 56 cm distance with minimum irradiance >6 mW/cm², or up to ø18 cm at 10 cm for higher intensity tasks. It's recommended for up to 26″ diameter circles at 22″ from the panel.[1][3][5]
How long does the battery last and how do I charge it?
The UV Gun provides 40 minutes of operation time on its 11.1V 8000 mAh Li-ion battery. It charges to 80% in 2 hours using the included SPS 50W charger (03.6007), which supports 100-240V AC input and features a 5m cable. Batteries are hot-swappable.[1][2][8]
Is the Scangrip UV Gun suitable for outdoor or wet environments?
It has an IP30 rating for basic dust and water protection, making it suitable for typical workshop use but not for direct water exposure or heavy rain. The IK07 impact rating adds robustness against drops.[1][2]

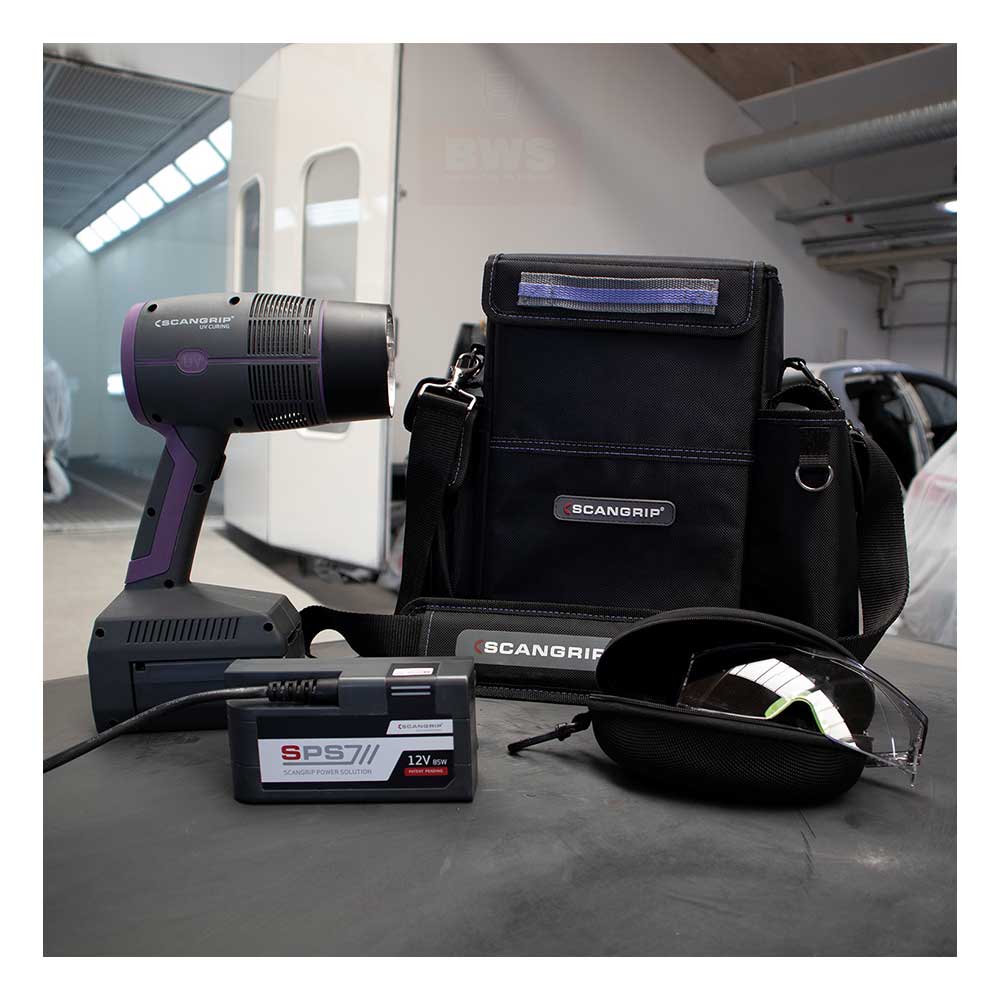

What accessories are included with the Scangrip UV Gun?
The kit includes the UV Gun, SPS battery (03.6004), and SPS 50W charging system (03.6007) with 5m cable. The solvent-resistant glass lens is factory-installed.[1][8]
