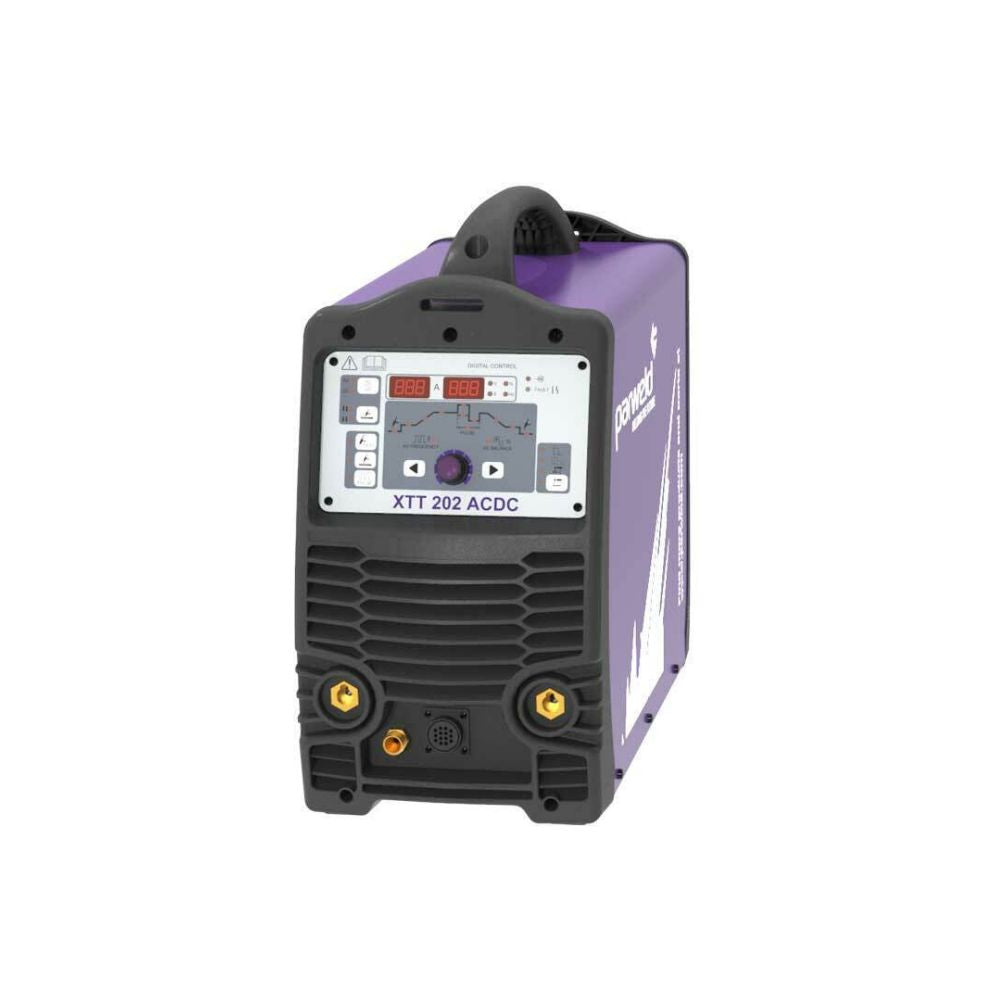

PARWELD XTT 202P AC/DC TIG WELDER

Price Exc Tax

Parweld TIG Welder with Pulsed Function TIG and PRO TIG Torch

Our most popular ACDC TIG Set. We have sold many units to alloy wheel repair companies, highlighting its good duty cycle and ease of use.

The Parweld XTT 202P TIG Welder can be used in both AC and DC modes for TIG or MMA welding, allowing the welding of virtually any metal. Square wave AC output and power pulsing maximise productivity whilst reducing heat output.

ACDC TIG Welders can seem complicated so Understanding a TIG Welders Functions is essential for you to get the best out of your welder.

Most steels can quickly be welded in DC mode using the pulse power function. The AC mode allows the welding of aluminium and magnesium alloys. The square wave output and adjustable frequency maximize the arc energy offering high welding speeds when coupled with the power pulsing function.

  • TIG Welds Steel & Stainless Steel to 6mm
  • Adjustable TIG Parameters
  • Pulse Function for Superior Arc Control
  • Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant

If you want one of our engineers to deliver your welder and provide technical training on-site, choose the PRO Package. UK only!



 Download download







WHY BUY FROM BWS?

At BWS we have factory trained welding engineers able to repair down to component level and therefore can offer extra support and technical knowledge above what the manufacturers offers. We support the whole of the UK and have been teaching TIG welding for nearly 30 years so can offer you unrivalled backup. We want you to know that we have your back if anything should go wrong.

FAQs



Q6 What Thickness aluminium will this TIG weld?

A4: That depends on how large the aluminium piece is and wether you want to do it in one run. Being air cooled its limited to how much torch time you can have.  Due to the torch getting hot run time is limited but we have repaired many alloy wheels with this weld no problem. The unit can always be water cooled to increase run time and the option of increasing the frequency to 200hz will give better penetration on thicker materials.

• 230V input
• 200A @ 25% duty cycle
• Square wave AC TIG mode
• Variable AC frequency
• Variable pulse frequency
• HF arc starting

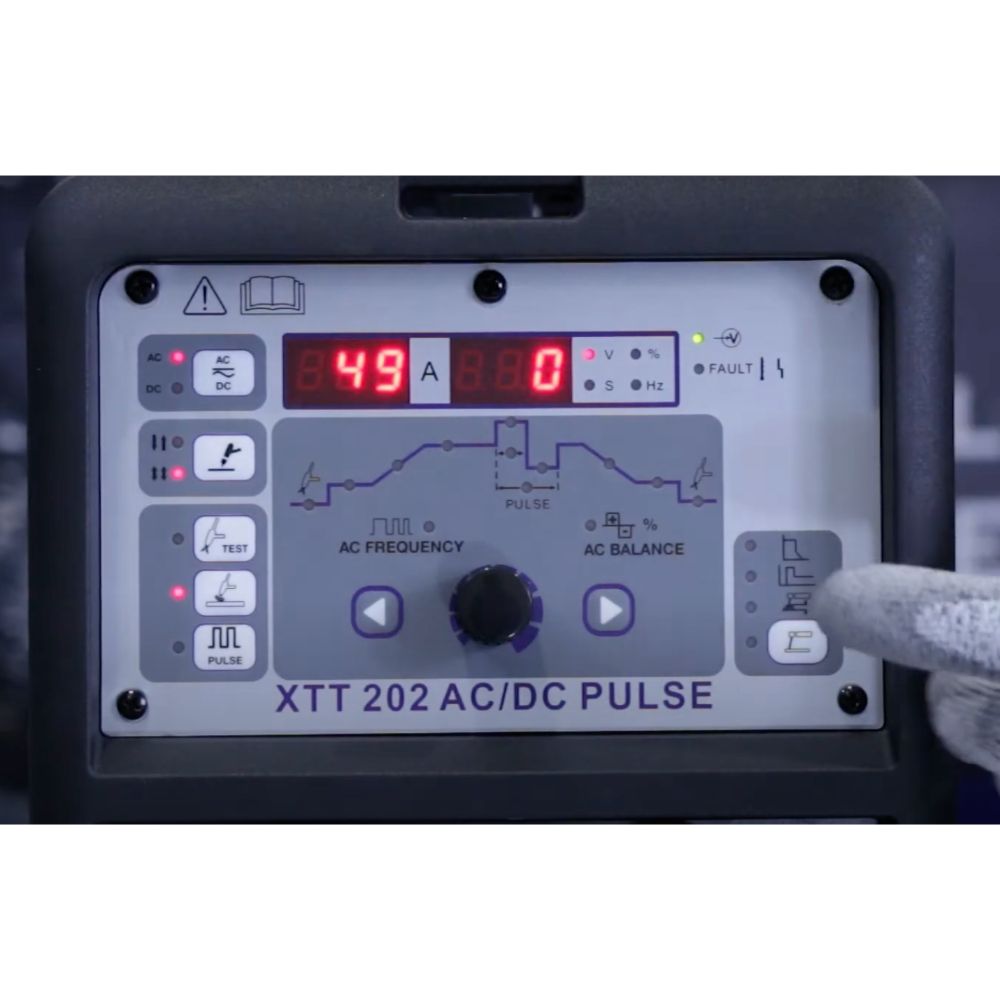

• Digital control
• Optional foot control
• Generator friendly
• Adjustable downslope (TIG mode)
• Supplied with 3m earth lead
• Connections 35-50mm dinse
• 3 Years return to base warranty + 3 years servicing plan
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant
• 3m Input Cable, 3m Earth Lead, Gas Hose

Ac Frequency 50-250Hz
MMA Function Yes
Package XTT202P
Pulse Rating 250Hz
Recommended Generator size* 5 KVA
Type TIG AC-DC

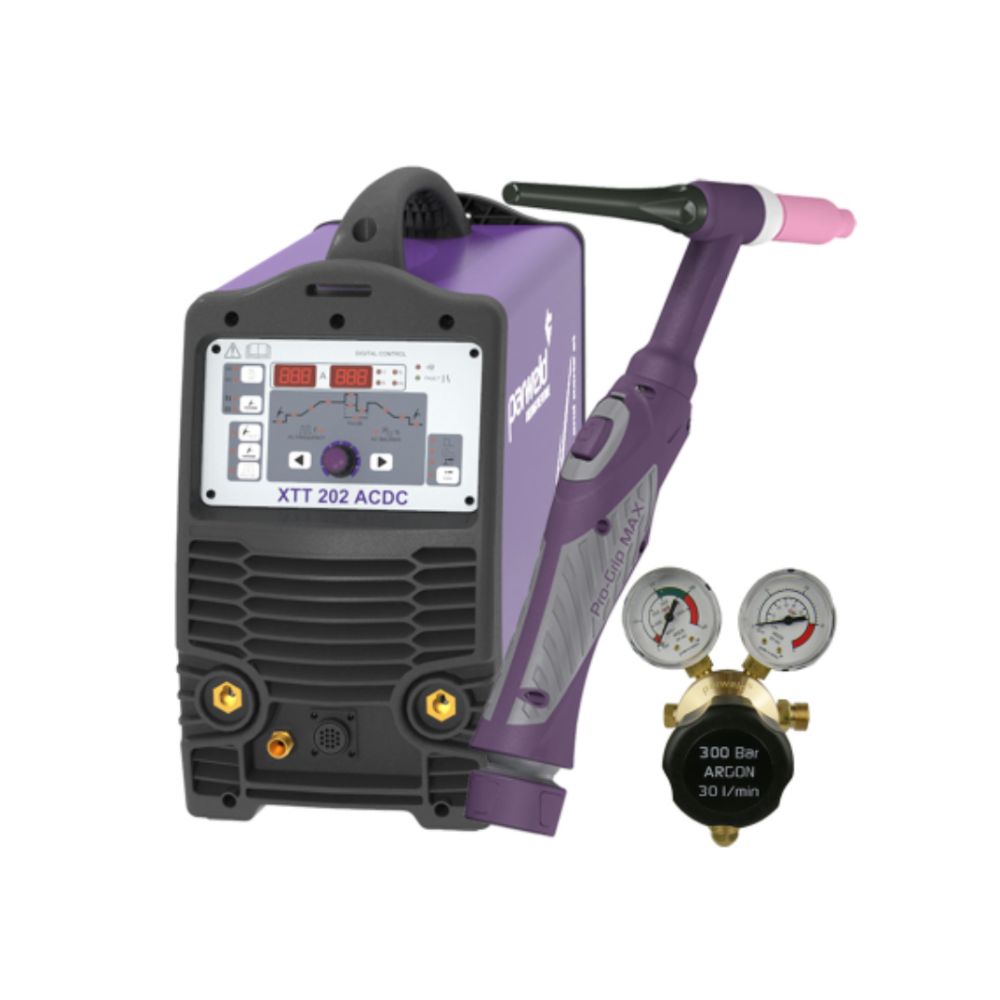

Package 1 - SKU XTT202P-P1 - 200A AC/DC Pulsed TIG Inverter 230V +Inverter c/w PRO26 Torch & Regulator

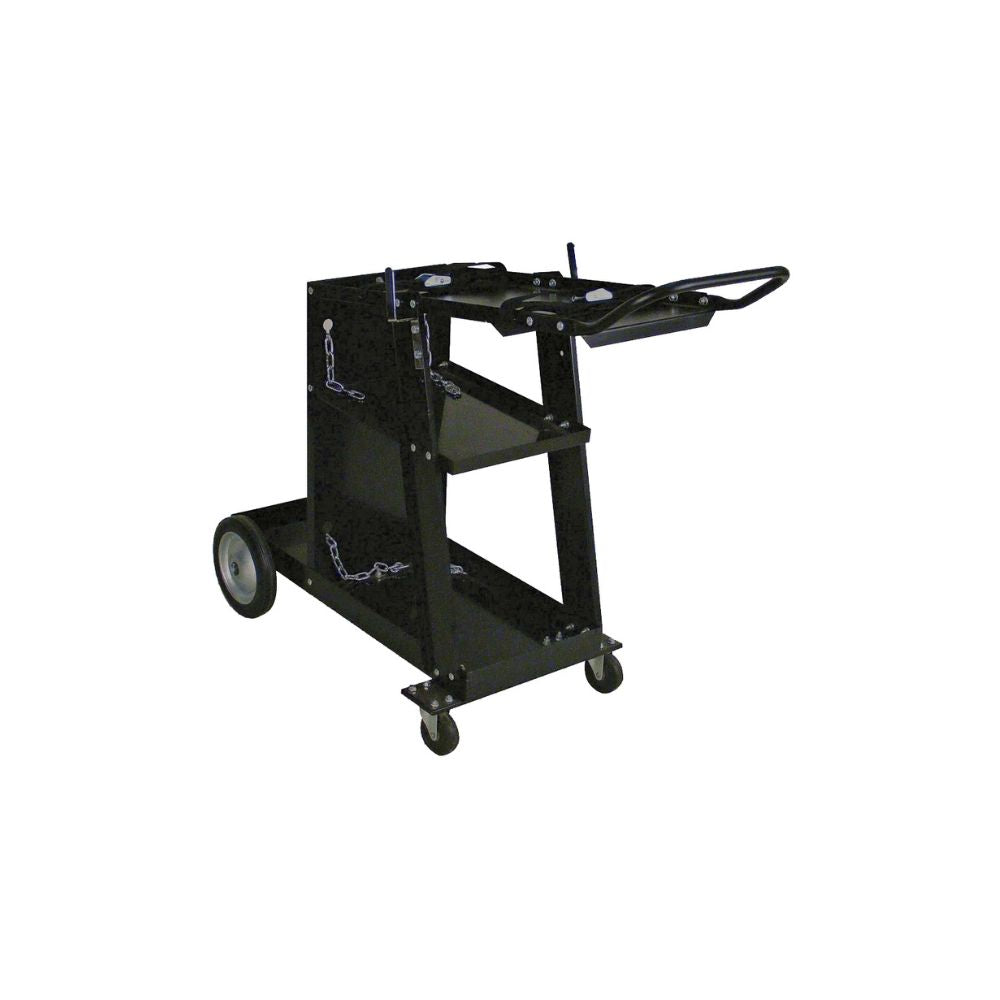

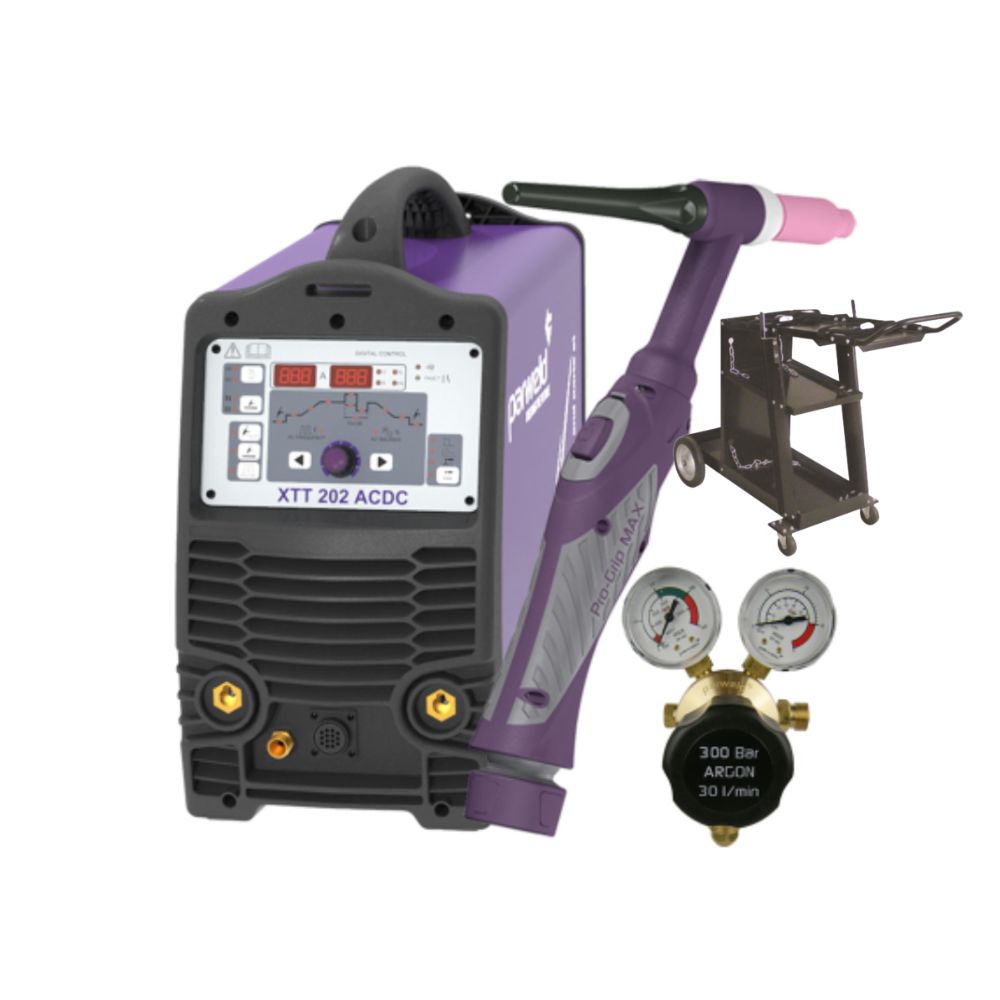

Package 2 - SKU XTT202P-P1T - 200A AC/DC Pulsed TIG Inverter 230V + Inverter c/w PRO26 Torch, Regulator & Trolley (tr005)

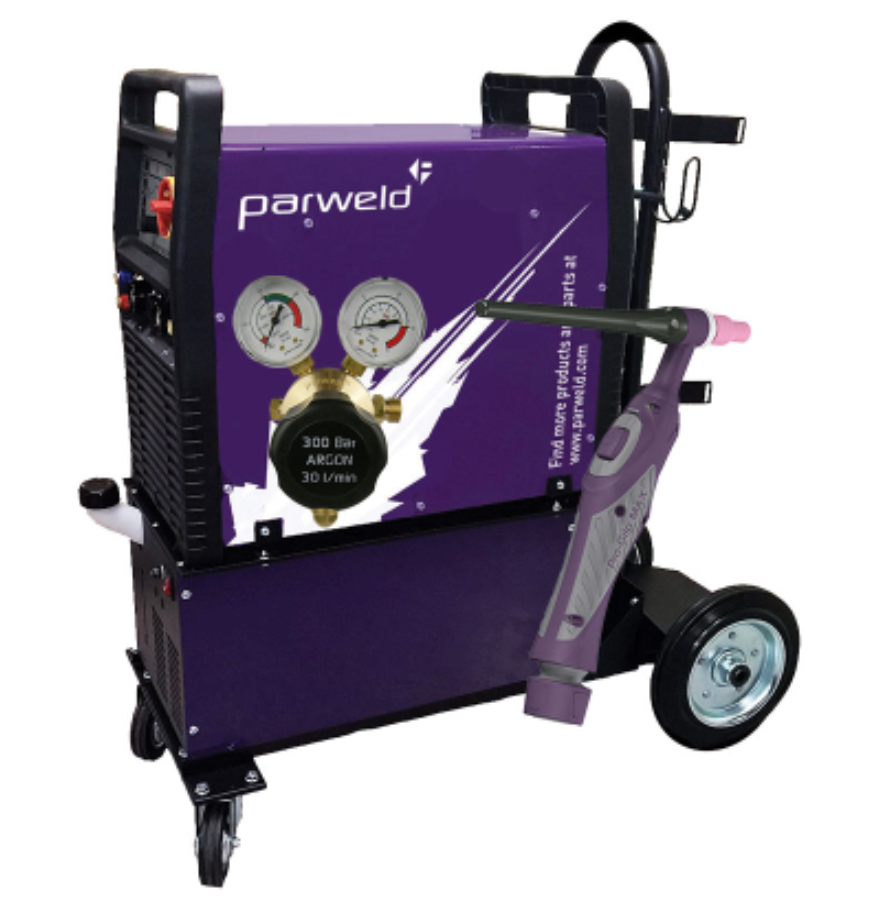

Package 3 - SKU XTT202P-P1WT - 200A AC/DC - Pulsed TIG Inverter 230V + Inverter c/w PRO20 Torch, Regulator, Water Cooler & Trolley (tr005)
