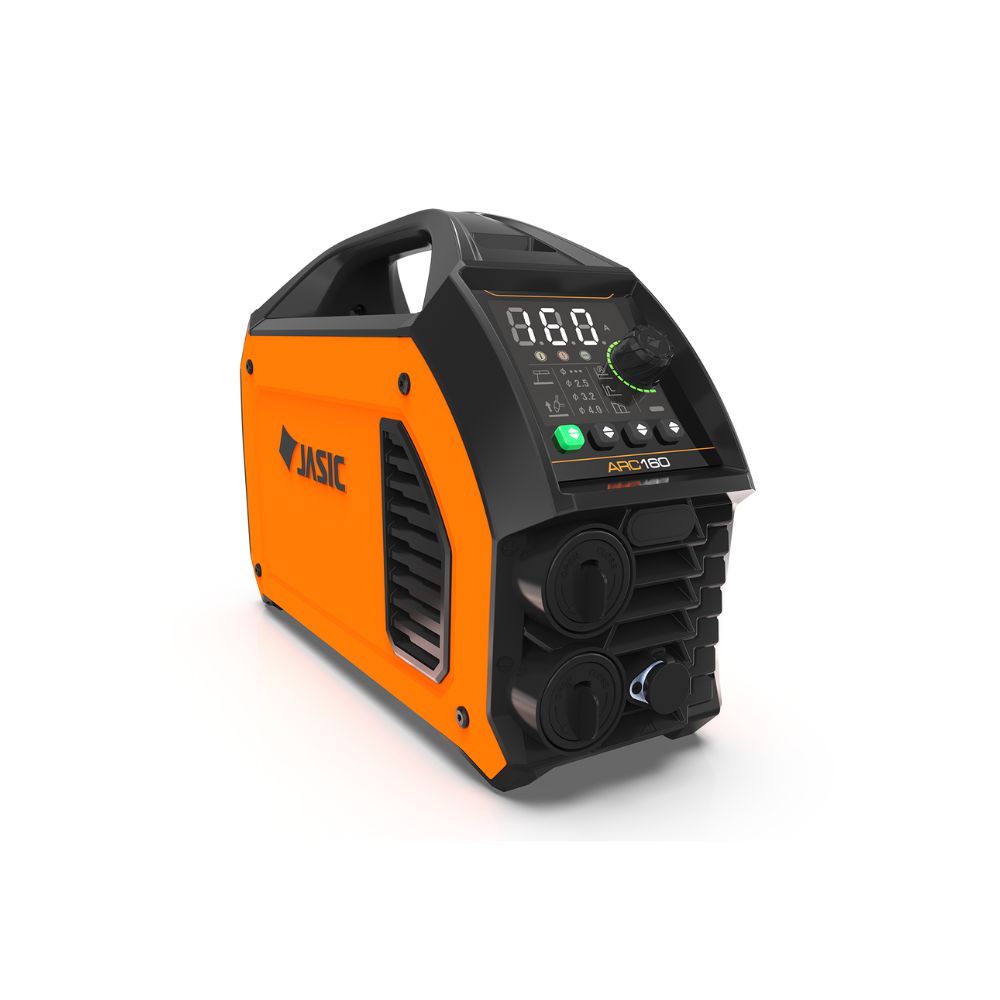

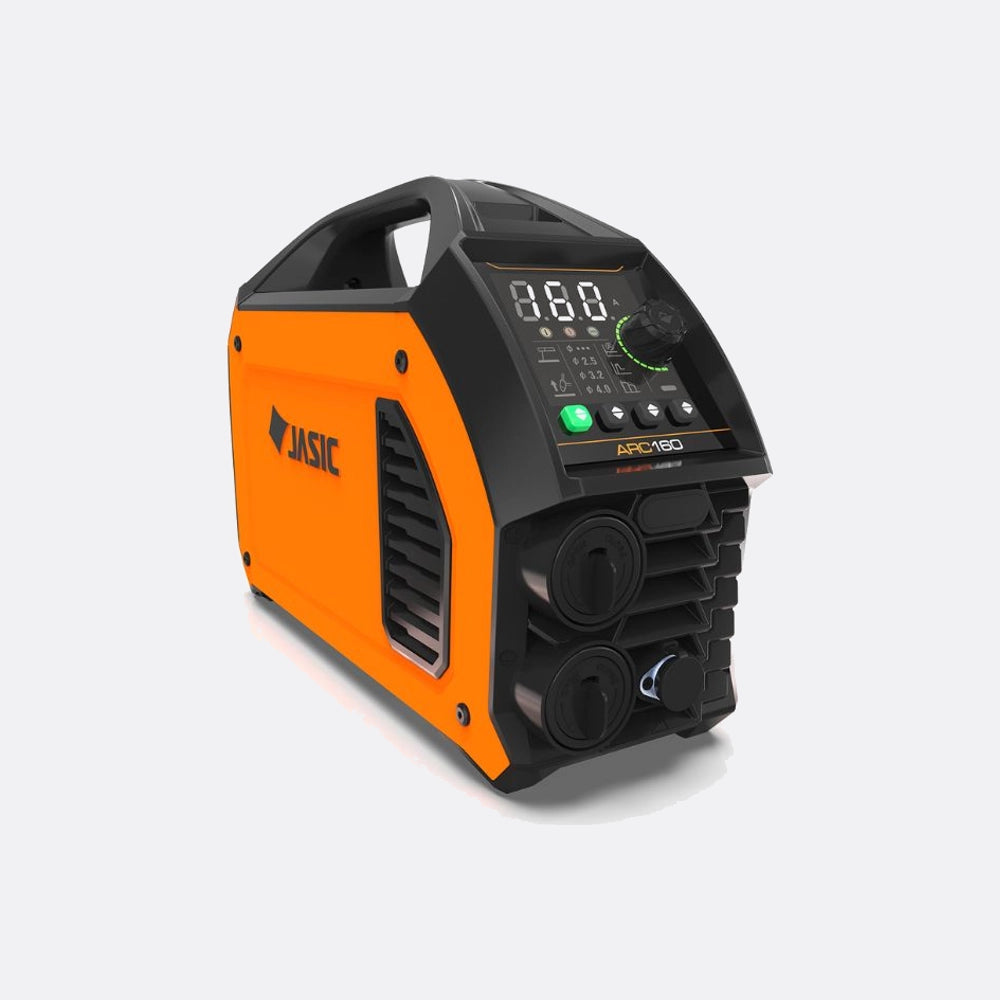

Jasic Evo Arc 160 Pfc Inverter

Name: Jasic Evo Arc 160 Pfc Inverter
Brand: Wilkinson Star
SKU: EA-160
Price: 357.00 GBP
Availability: InStock

£357.00

Shipping calculated at checkout.

Jasic Evo Arc 160 Pfc Inverter is a professional arc welding machine designed for versatility and performance in demanding workshop environments.

Key Features

Rugged, ergonomic design
Intelligent synergic control
Smart Lift TIG functionality
Wide voltage range compatibility
Power factor correction (PFC)
Overcurrent and overheat protection

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

110V-230V

Warranty

5 Years

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

The Jasic Evo Arc 160 PFC Inverter is a compact and efficient welding machine, well-suited for various workshop environments, including bodyshops and vehicle repair centres. Its portability allows for easy movement between work areas, making it practical for tasks that require flexibility.

In real-world applications, this inverter excels when working with mild steel and aluminium, especially for thin materials. However, it’s crucial to pay attention to the setup. Ensure that your amperage settings are appropriate for the material thickness to avoid burn-through, which is a common issue when aiming for precision welds. The power factor correction feature helps maintain weld quality, but you still need to monitor your electrode type and gas flow for optimal results.

From my experience, careful adjustment of settings and a thorough understanding of your materials can significantly enhance the reliability and efficiency of the welds produced. With proper usage, the Jasic Evo Arc 160 provides consistent performance, making it a solid choice for both professional use and workshop needs.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Compact and lightweight design facilitates easy transportation and handling in busy workshops.
PFC technology enhances efficiency, making the machine generatorfriendly.
Stable arc performance ensures consistent weld quality across various applications.
Compatible with a wide range of electrodes for versatility in welding tasks.
Simple operation allows for quick setup and use, ideal for both seasoned welders and trainees.
Rugged and ergonomic construction enhances user comfort during extended use.
Intelligent synergic control optimises settings for improved welding results.
Antistick feature prevents electrode sticking, improving workflow efficiency.
Adjustable hot start and arc force settings enable finetuning based on material thickness and type.
Smart Lift TIG mode allows for easy TIG welding with minimal initial arc strike issues.
Fan on demand keeps internal components cool without excessive noise during operation.

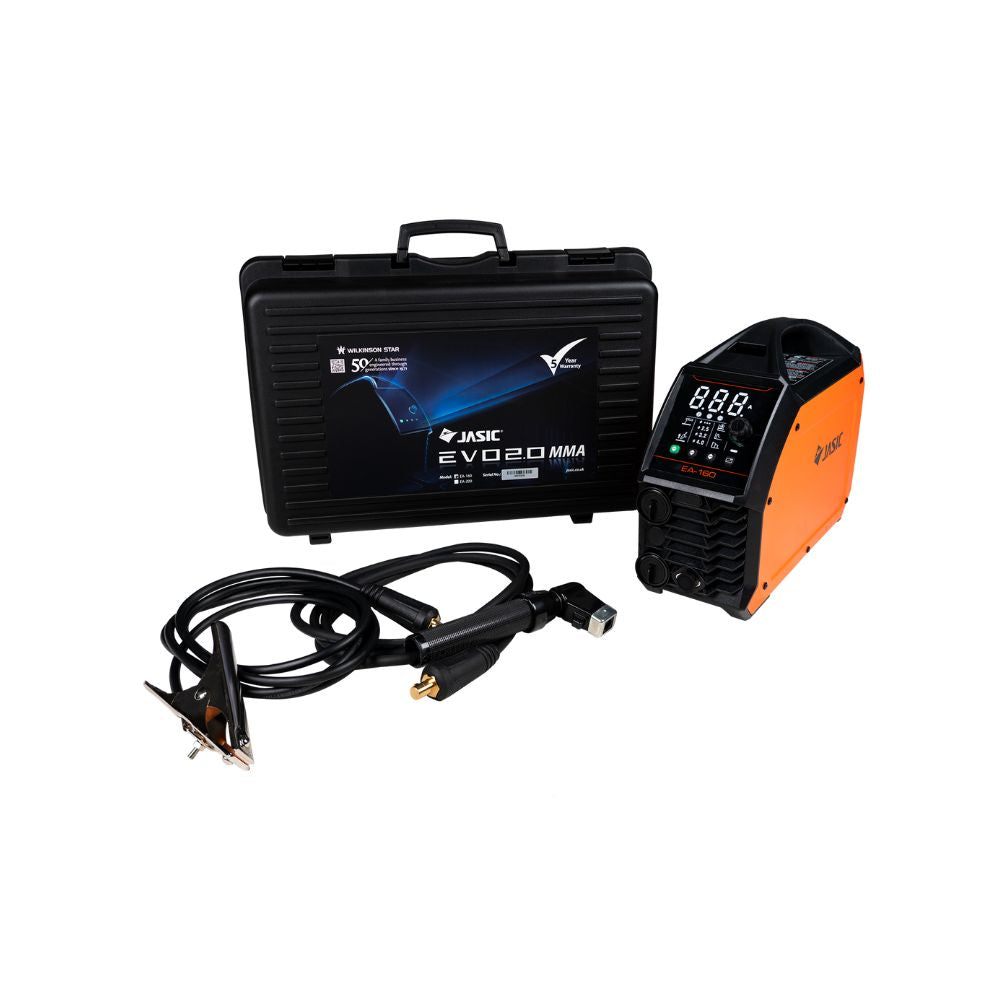

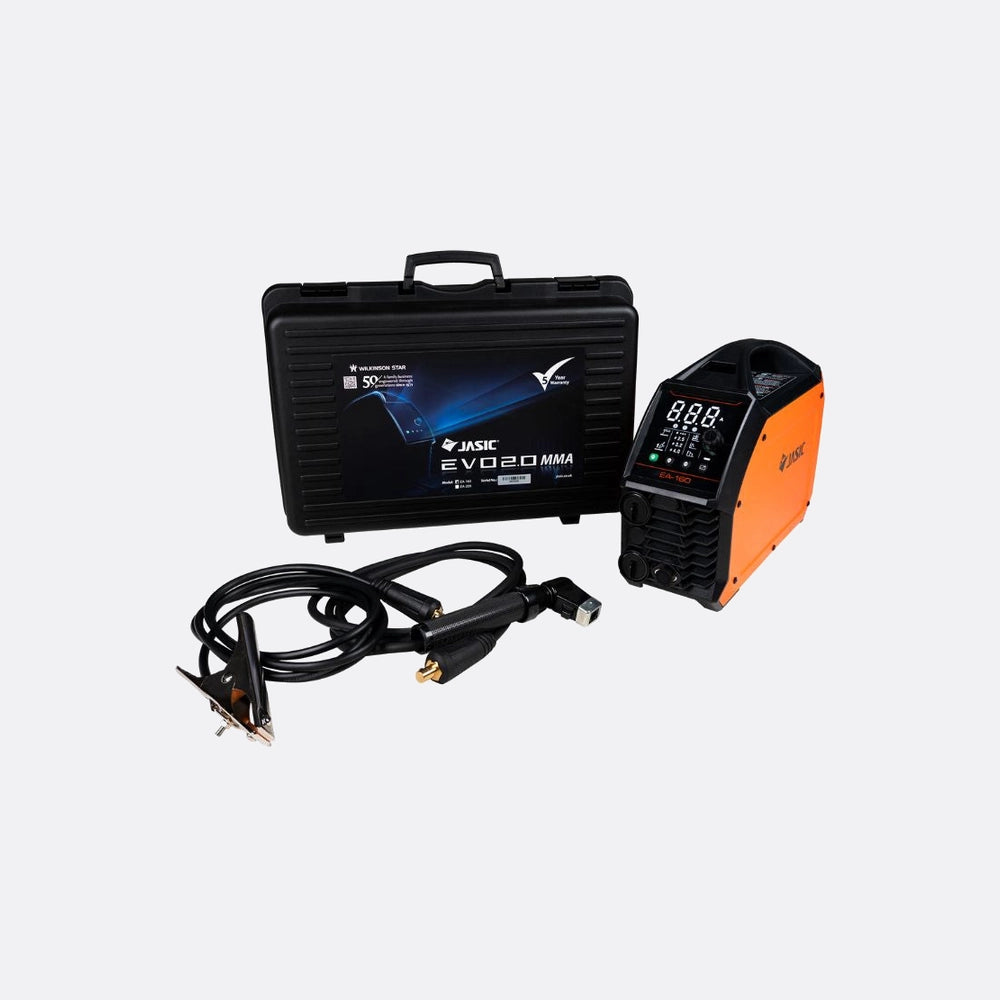

Includes a protective carry case and MMA leads for immediate usability in workshop environments.
Overcurrent and overheat protection ensures safety and prolongs the life of the welder.
Voltage Reduction Device (VRD) enhances safety for operators working in potentially hazardous environments.
ClearVision technology aids visibility and accuracy during welding tasks.
Optional dedicated wireless remote control offers convenience for remote operation.
Adaptable wide voltage range accommodates different power supply conditions.
Quick factory reset function allows for easy troubleshooting and return to factory settings.
Active Balancing Air Passage (ABAP) optimises airflow for better cooling and consistent performance.

Specification

Input Voltage

95-265V AC, 50

No Load Voltage

78V

MMA Rated Input Current

28.7A

Rated Input Power

3.3kVA

Current Range

20-160A

Rated Duty Cycle @ 40ºC

25%

Efficiency

86%

Power Factor

0.99

Idle State Power

38.2W (MMA), 7W (TIG)

Protection Class

IP23S

Insulation Class

H

Dimensions

413 x 150 x 311mm (L x W x H)

Weight

7.2kg

Recommended Generator Size

5kVA

FAQs

What is the input voltage range for the Jasic Evo Arc 160 PFC Inverter?

It operates on a voltage range of AC 95-265V, allowing for flexible usage in various workshop environments.

What electrodes are compatible with this welder?

This inverter is compatible with a range of electrodes for MMA welding, allowing for applications in various materials including mild steel and stainless steel.

How does the PFC technology benefit workshop use?

Power Factor Correction (PFC) improves efficiency and allows the welder to operate effectively from a generator, making it a reliable choice for mobile or remote jobs.

What is the duty cycle at high temperature for the Jasic Evo Arc 160?

At a temperature of 40ºC, the rated duty cycle is 25%, meaning it can operate continuously at full power for a quarter of the cycle before needing to cool.
