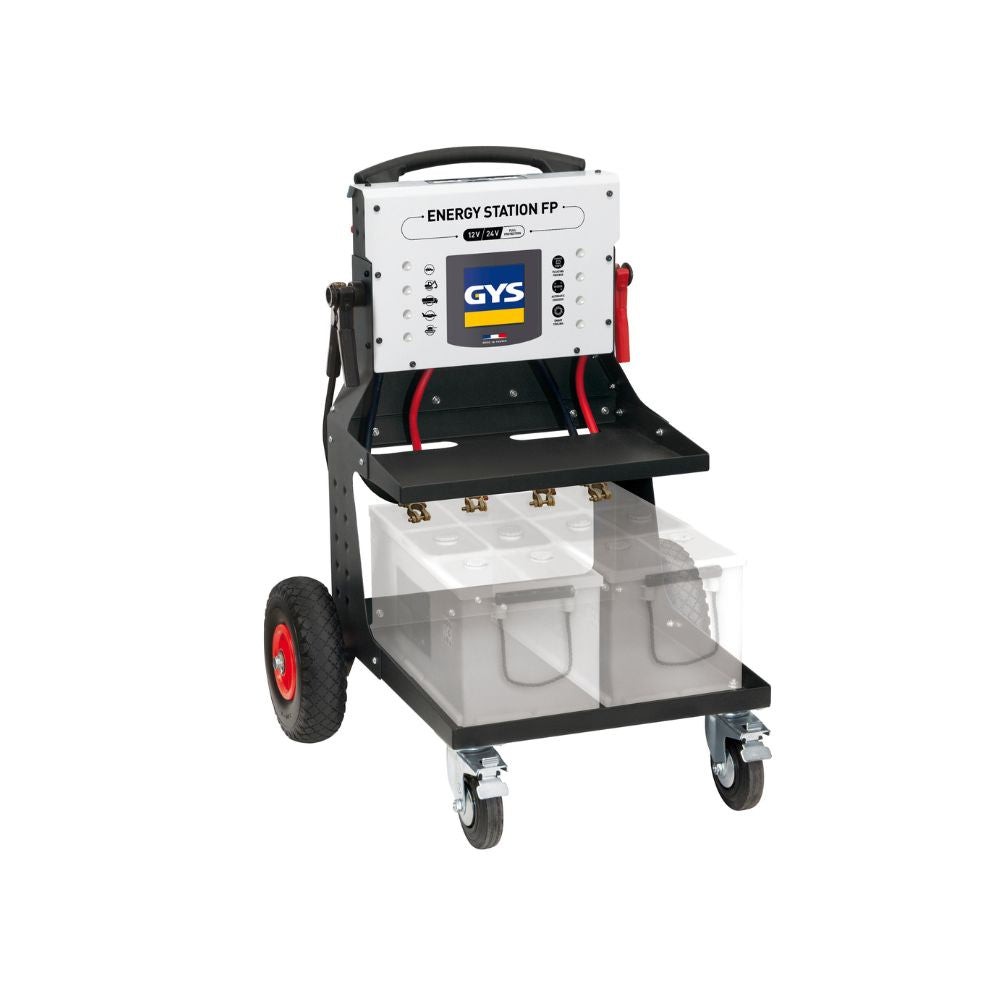

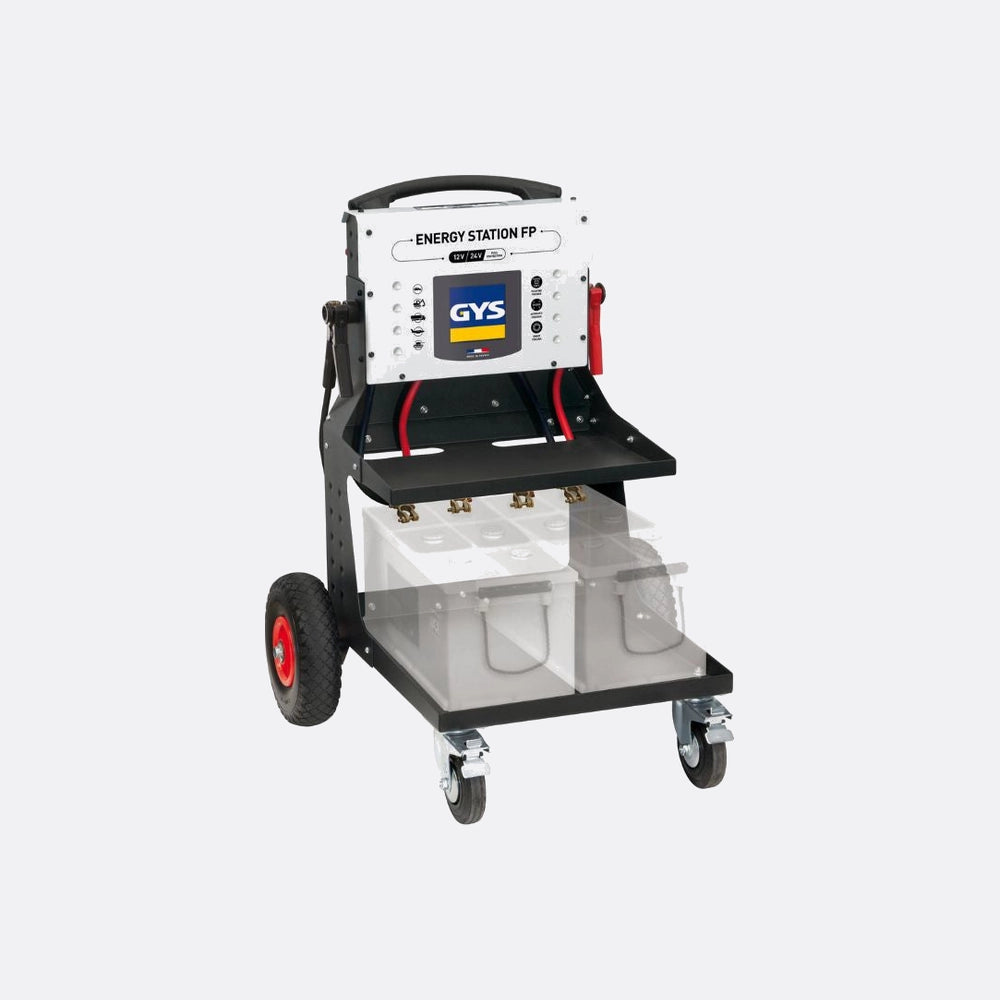

GYS ENERGY BOOSTER STATION

GYS Heavy Duty Mobile Starter Station for 12-24V

SKU: 069589

For use with one or two lead-acid or gel batteries (not supplied) between 100 - 375 Ah each. • The starting power will vary depending on the chosen batteries’ capacity.

The GYS ENERGY STATION FP is specifically designed to start HGVs, agricultural and construction machinery and buses. • It has a built-in tester to check the internal batteries’ state of charge and to ensure that they are fully charged before an engine start is carried out. It's designed to start HGVs, agricultural and construction machinery, and buses, using one or two lead-acid or gel batteries (not included) with a capacity ranging from 100 - 375 Ah. The built-in tester checks the internal batteries' state of charge and ensures they're fully charged before the start of your engine.

GYS Energy Station Fp Booster Datasheet Download



• The ENERGY STATION FP has a smart 12 V / 30 A charger that can charge
independently or simultaneously: the internal batteries are charged alternately and autonomously.
• An external, lead-acid battery with gel or liquid electrolytes from 100 - 375 Ah

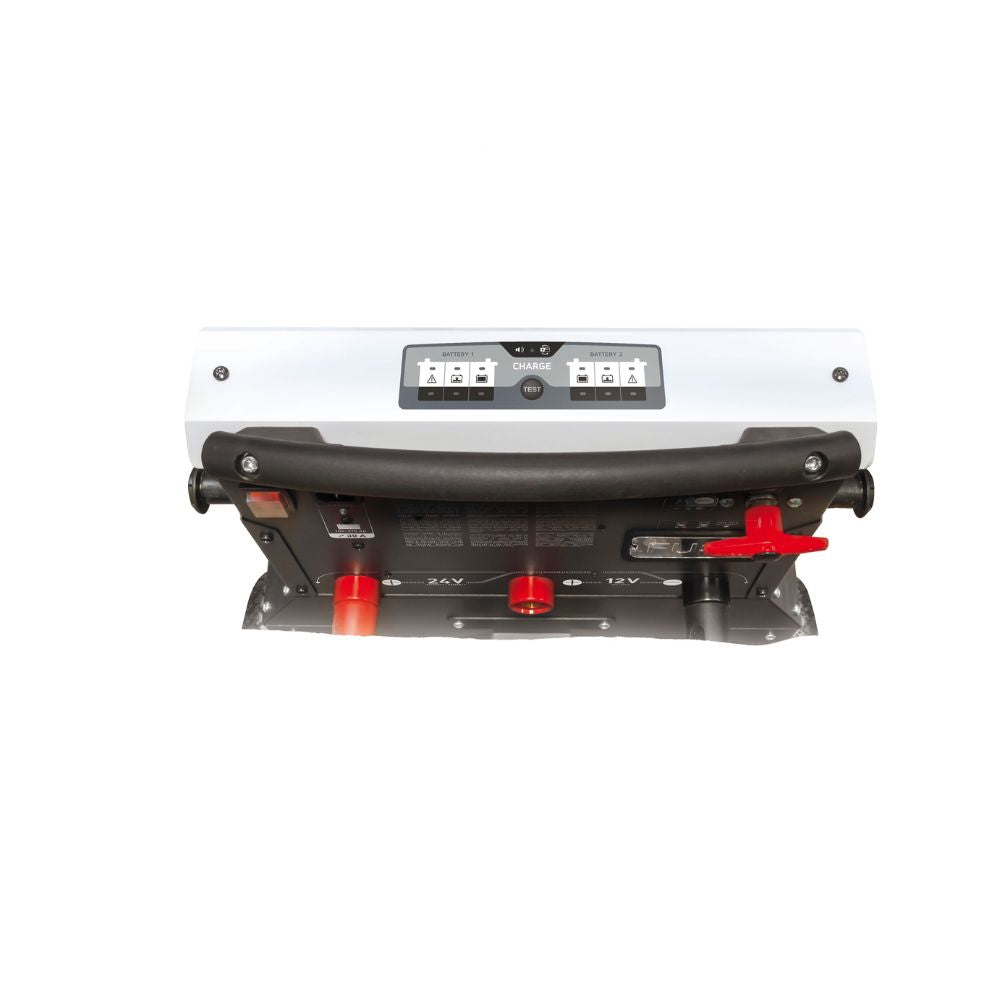

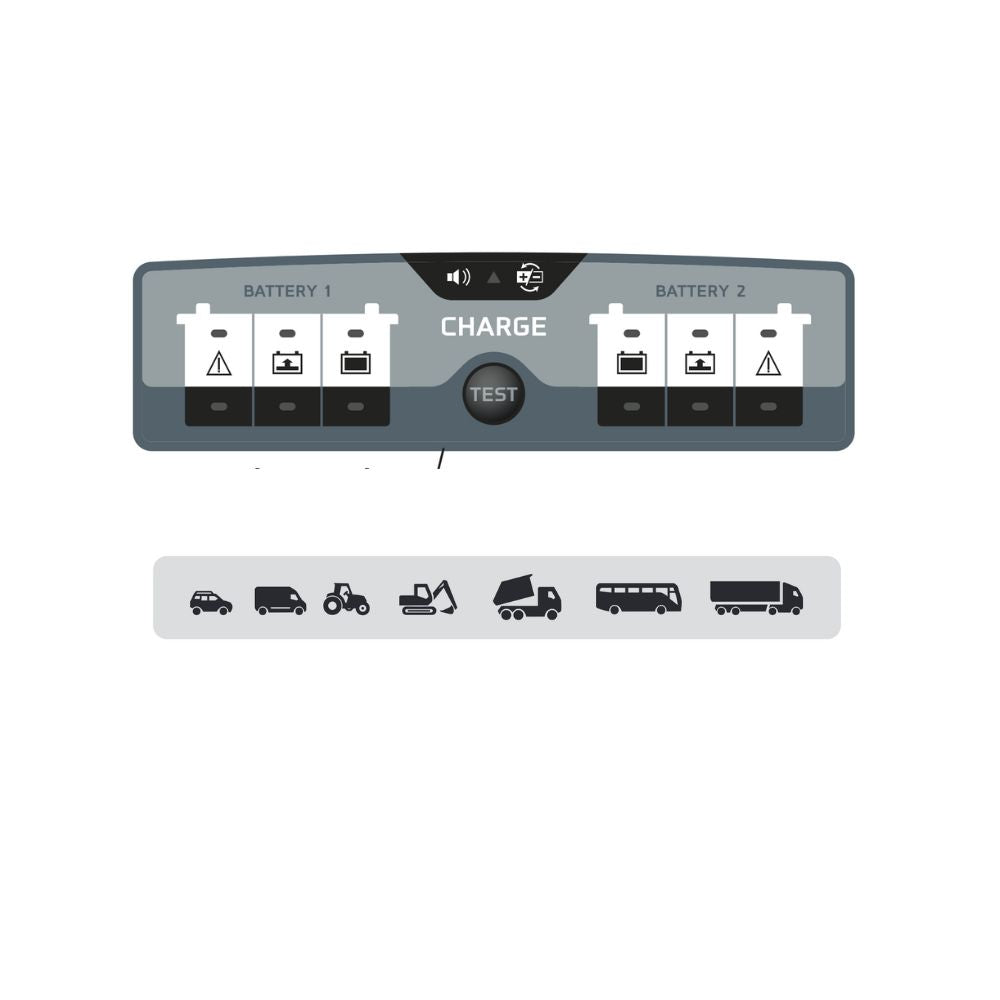

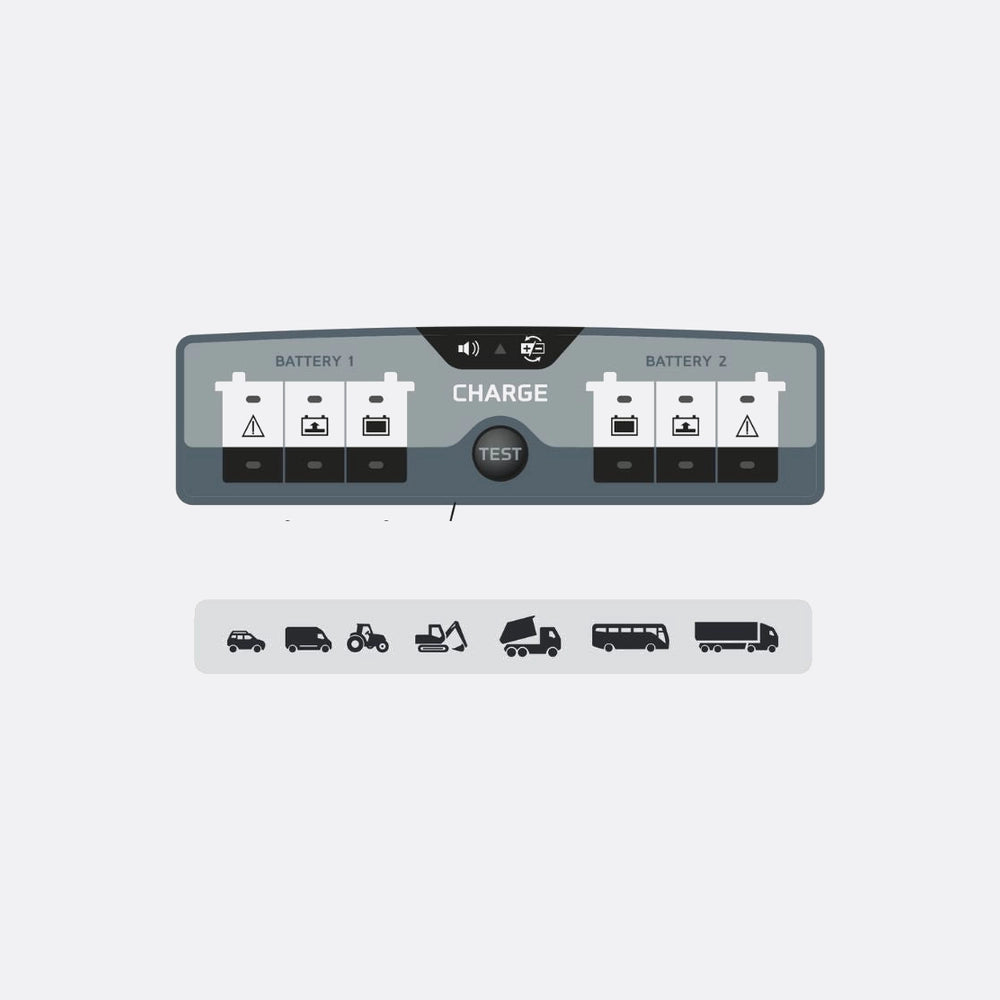

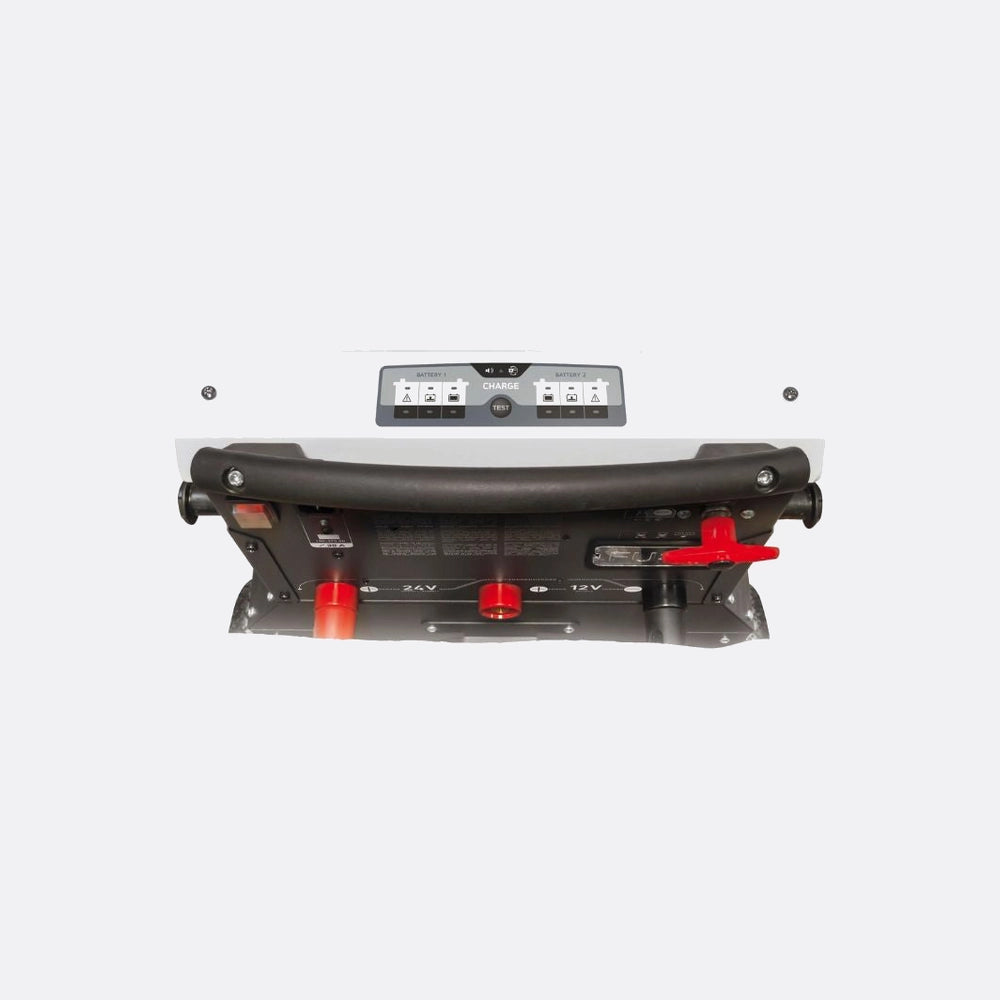

• The control panel is equipped with indicator lights to display each battery’s state of
charge.
• Features a 6 stage charging curve:

Product Name: ENERGY STATION FP
Type: SELF-CONTAINED STARTER
Voltage: 12 V / 24 V
Charger: 230 V
Battery Compatibility: 12 - 24 V, 100 - 375 Ah each
Charger Capacity: 12 V, 30 A
Charging Stages: 6 stages
Maximum Charging Current: 300 A
Protection: IP23
Dimensions: 70 cm x 62 cm x 92 cm
Weight: 29 kg (excluding batteries), 100 kg (with batteries)
Designed For: HGVs, agricultural, and construction machinery, buses
Battery Selection: User-selectable
Built-in Tester: Internal batteries' state of charge
Charging Modes: Alternately and autonomously for internal batteries, external battery charging
Charging Curve: 6 stages (Analysis, Recovery, Test, Desulphation, Charge, Maintenance charge)
Safety Features: Safety switch, reverse polarity protection with visual and audio alarm
Mobility: All-terrain rear wheels,castor front wheels
Certification: IP23 (protected against rainfall)
Origin: Made in France
