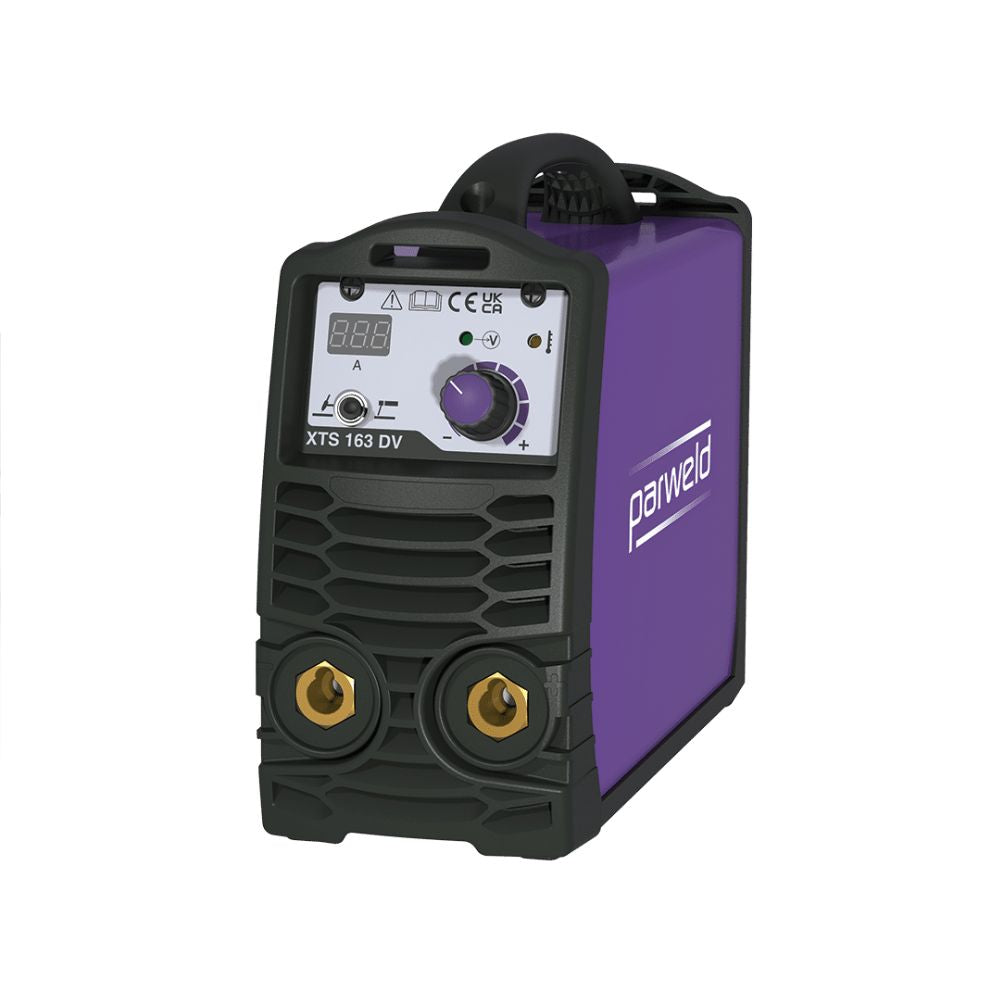

Parweld XTS163DV 160A MMA Inverter Welder Dual Voltage

Parweld XTS163DV is a light Dual Voltage 110-230v  MMA inverter with Lift TIG function designed for light fabrication and site work. A comprehensive 3-year warranty makes it an ideal package

The XTS 163DV MMA Inverter has dedicated welding modes for rutile and cellulosic electrodes. The touch button interface is easy to use and ideal for harsh environments.
Electrodes up to 3.2mm can be used with ease.

By fitting the optional TIG torch and coupling to a suitable gas supply, the XTS 163DV can be used for TIG welding and is suitable for welding steel and stainless steel.
The lift arc mode limits the arc current when the tungsten touches the workpiece preventing electrode damage.

The XTS 163DV is able to cope with inputs that fluctuate by +/- 15% and can be used with the majority of generators.
The machine is housed in a rugged steel case. A carry case is available as an optional extra.

Professional MMA Inverter With Lift Tig Function, suitable for Light Industrial Manufacturing, Metal Fabrication, Maintenance Repair, Agricultural and DIY and Site Work.

• Dual voltage 110/230V
• Smart switching
• 160A @ 25% duty cycle
• Generator friendly
• Easy electrode striking with arc force and re-striking with hot start

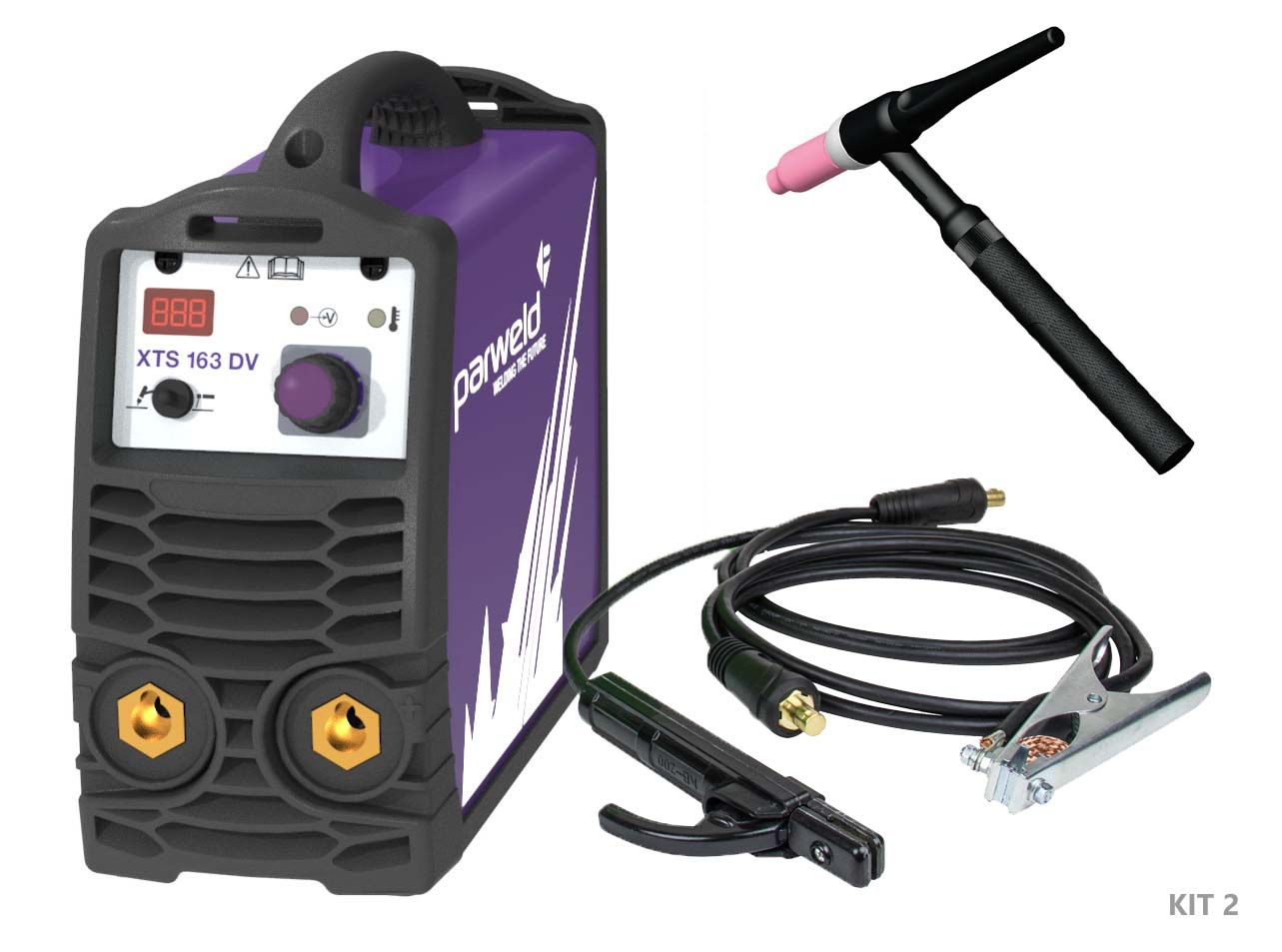

• Supplied with electrode holder, 3m cable, 3m earth lead
• Connections 35-50mm dinse
• Overvoltage & over current protection
• 3 Years return to base warranty + 3 years servicing plan
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant
Manufacturer Parweld
Part No. XTS 163DV-P1
Supply  230V/110V
Fuse 16A/240V 32A/110V
Output 160A @ 25% Duty Cycle
Download Parweld XT202 AC/DC TIG Instruction Manual
