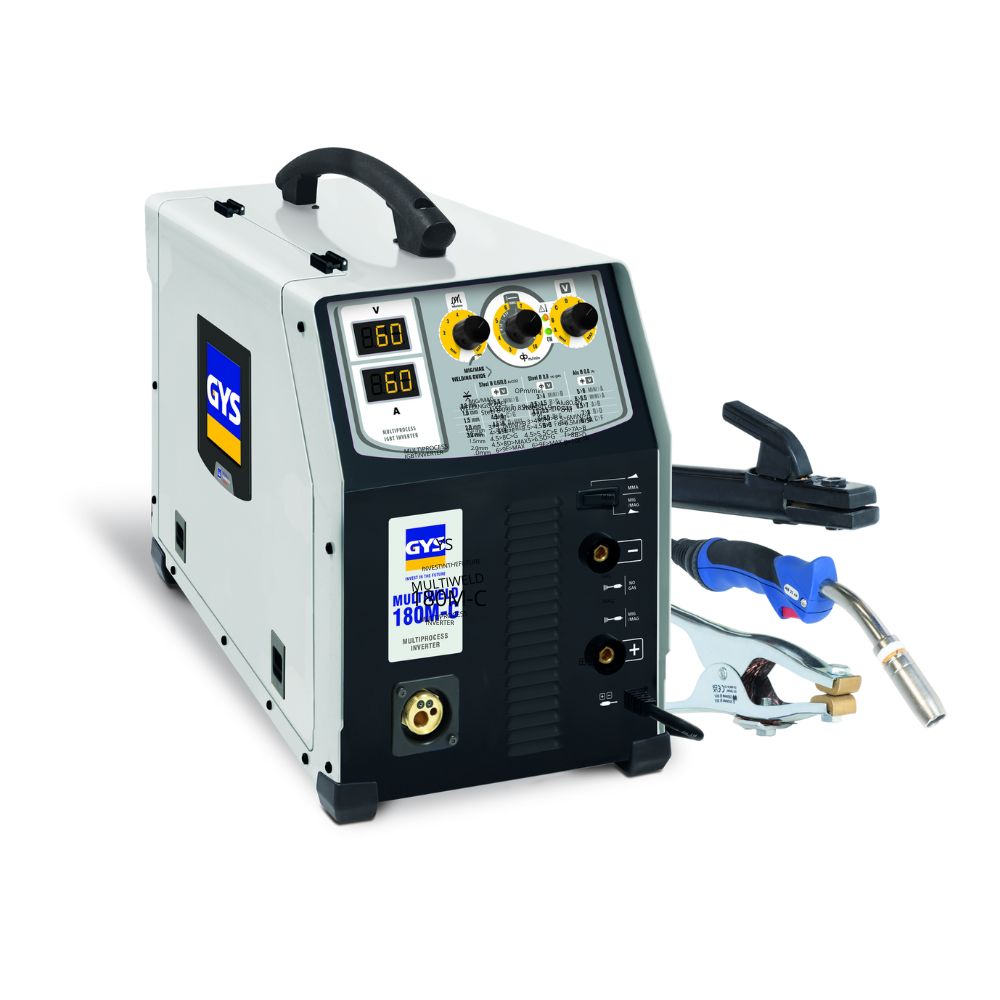

MULTIWELD 180M-C - WITH ACCESSORIES

Compact Multi-Process Inverter Welder for MIG/MAG and MMA Applications

The GYS MULTIWELD 180M-C is a versatile single-phase inverter power source designed for both MIG/MAG and MMA welding processes. Combining advanced digital control with portability, this 180-amp machine offers professional performance for workshops and on-site work alike. It delivers precise, stable welding on steel, stainless steel, and aluminium up to 3 mm thick in MIG/MAG mode and handles rutile or basic electrodes up to Ø 3.2 mm in MMA mode. Its dual digital display provides easy parameter adjustment, while a four-roller wire feed system ensures smooth, consistent feeding of wire spools up to 300 mm. Built into a reinforced, compact chassis with anti-shock feet, the MULTIWELD 180M-C combines reliability, mobility, and user-friendly controls, making it the perfect solution for both maintenance and light fabrication work.

WHY BUY FROM BWS?

Specification

• Reference: 078727
• Input Voltage: 230 V single-phase, 50/60 Hz
• Welding Current Range: 30 – 180 A
• MIG/MAG Wire Range: Ø 0.6 – 1.0 mm (steel/aluminium), Ø 0.6 – 0.9 mm (flux-cored)
• MMA Electrode Size: Ø 1.6 – 3.2 mm
• Duty Cycle (60 %): 110 A (MIG) / 100 A (MMA)
• Wire Reel Compatibility: Ø 200 mm and Ø 300 mm spools
• Weight: 16.5 kg
• Protection Rating: IP 21
• Dimensions: 53 × 28 × 45 cm

Features

• Multi-Process Capability: Performs MIG/MAG, flux-cored, and MMA welding from a single compact unit.
• Intuitive Dual Display: Clear digital screens for voltage and wire-feed adjustment.
• 4-Roller Wire Feeder: Ensures consistent wire feed for all materials, including aluminium.
• Portable Design: Reinforced housing with anti-shock feet for easy site use.
• Advanced Cooling System: Integrated thermal and overcurrent protection extends component life.
• Optimised MIG/MAG Settings: Front-panel guide for quick setup based on material thickness.
• Universal Compatibility: Works with steel, stainless steel, and aluminium wires up to 3 mm thickness.

FAQs

1. What welding processes does the MULTIWELD 180M-C support?

This machine supports MIG/MAG, flux-cored (gasless), and MMA welding, offering full flexibility for workshop and on-site applications.

2. What materials can it weld?

It welds steel, stainless steel, and aluminium up to 3 mm thick in MIG/MAG mode, and uses electrodes up to Ø 3.2 mm in MMA mode.

3. What wire sizes are compatible?

It accepts Ø 0.6–0.8 mm steel wire, Ø 0.8 mm stainless steel wire, Ø 0.8–1.0 mm aluminium wire, and Ø 0.6–0.9 mm flux-cored wire.

4. Is it suitable for portable or site work?

Yes. At just 16.5 kg with a reinforced casing and carry handle, it is ideal for mobile use and light fabrication on site.
