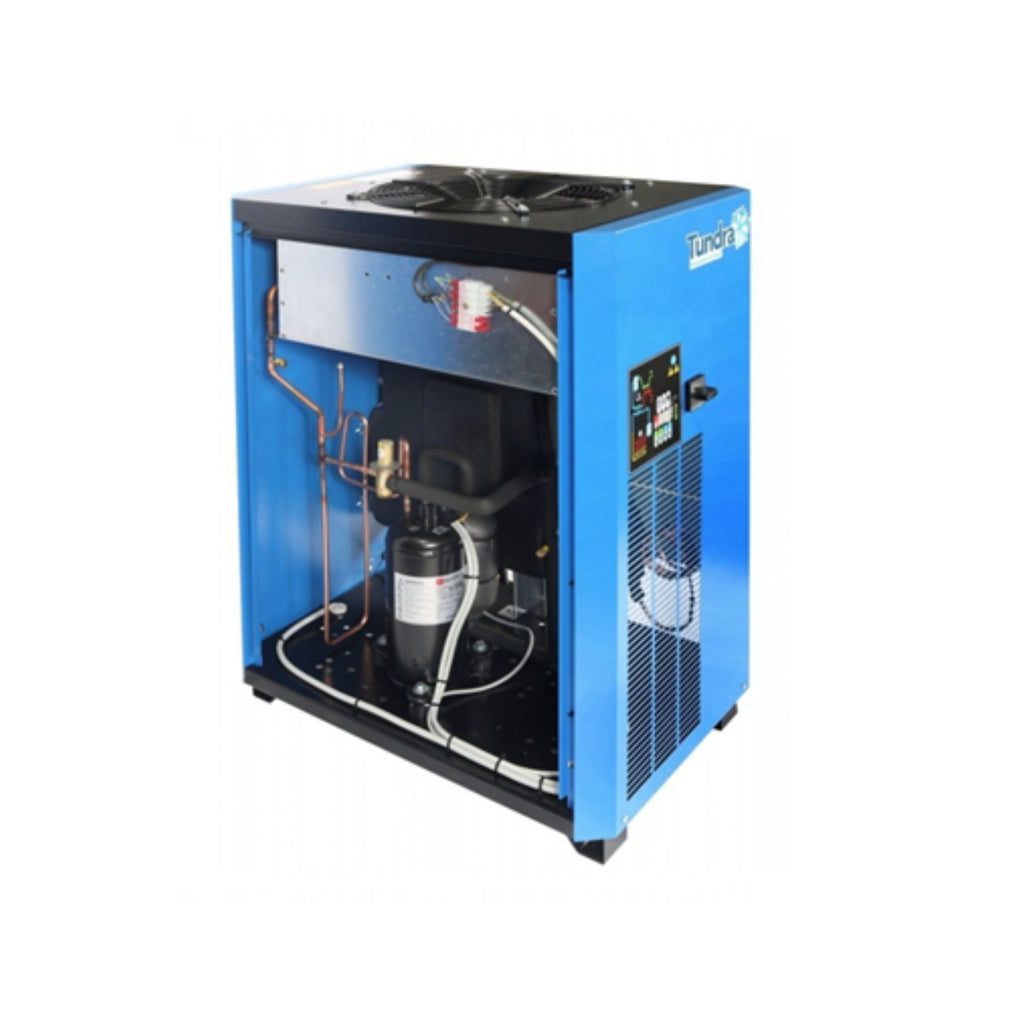

TUNDRA REFRIGERATED DRYER 22CFM C/W FILTERS
TUNDRA REFRIGERATED DRYER 22CFM C/W FILTERS
Compact, Efficient Air Dryer with Integrated Filtration
The Tundra Refrigerated Dryer 22CFM c/w Filters by FIAC ensures consistently clean, dry compressed air for workshop and industrial use. Designed for reliability and low operating costs, the Tundra dryer features an advanced refrigeration circuit using R134a refrigerant, delivering a stable +3°C dew point across its entire operating range. The unit includes both pre- and after-filters for optimal air quality and system protection. With its ultra-efficient heat exchanger, minimal pressure drop, and compact footprint, this model is ideal for small to medium air compressor systems where moisture removal and consistent air purity are essential for performance and equipment longevity.
WHY BUY FROM BWS?
Specification
- Displacement: 21 CFM (35 m³/h)
- Operating Pressure Range: 2–16 BAR
- Maximum Inlet Air Temperature: 60°C
- Ambient Temperature Range: 0°C–50°C
- Dew Point: +3°C (constant)
- Refrigerant Type: R134a
- Connection: ½” BSP
- Input Voltage: 230V
- Dimensions: 365 × 455 × 500 mm
- Weight: 23 kg
Features
- Includes pre- and after-filters for clean, dry air
- Constant dew point for consistent performance
- Ultra-efficient heat exchanger minimises pressure drop
- Energy-saving refrigeration circuit with R134a gas
- Illuminated power switch and dewpoint indicator
- Compact and robust design for easy installation
- Low maintenance with durable internal components
FAQs
1. What size air compressor is suitable for this dryer?
The Tundra 22CFM dryer is ideal for small to medium air compressor systems up to approximately 5.5 kW output, depending on air demand and duty cycle.
2. Does the unit include filtration?
Yes, it comes complete with both pre- and after-filters, ensuring maximum air purity and protecting downstream tools and equipment.
3. What is the dew point temperature maintained?
The dryer maintains a constant dew point of +3°C, providing reliably dry air even during variable load conditions.
4. Is installation straightforward?
Yes, the compact footprint, ½″ BSP connections, and single-phase 230 V power input make installation quick and simple in most workshops.
