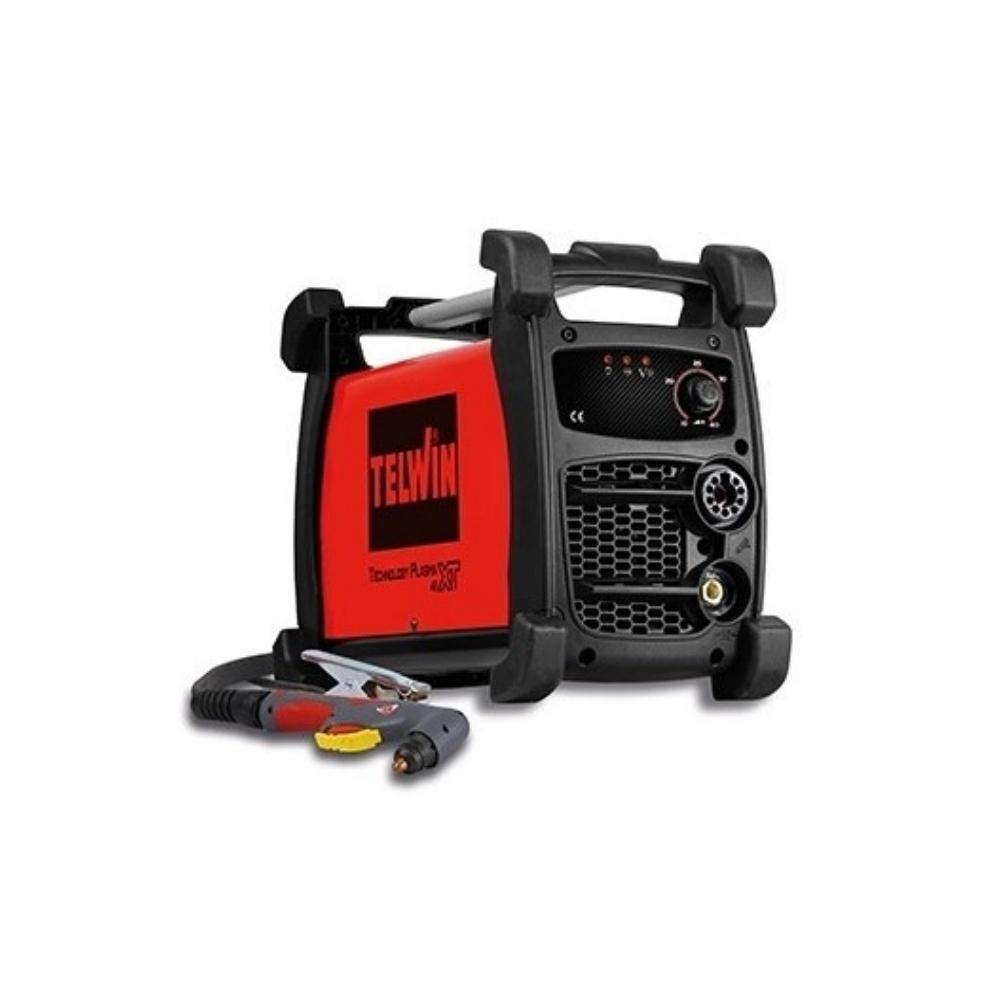

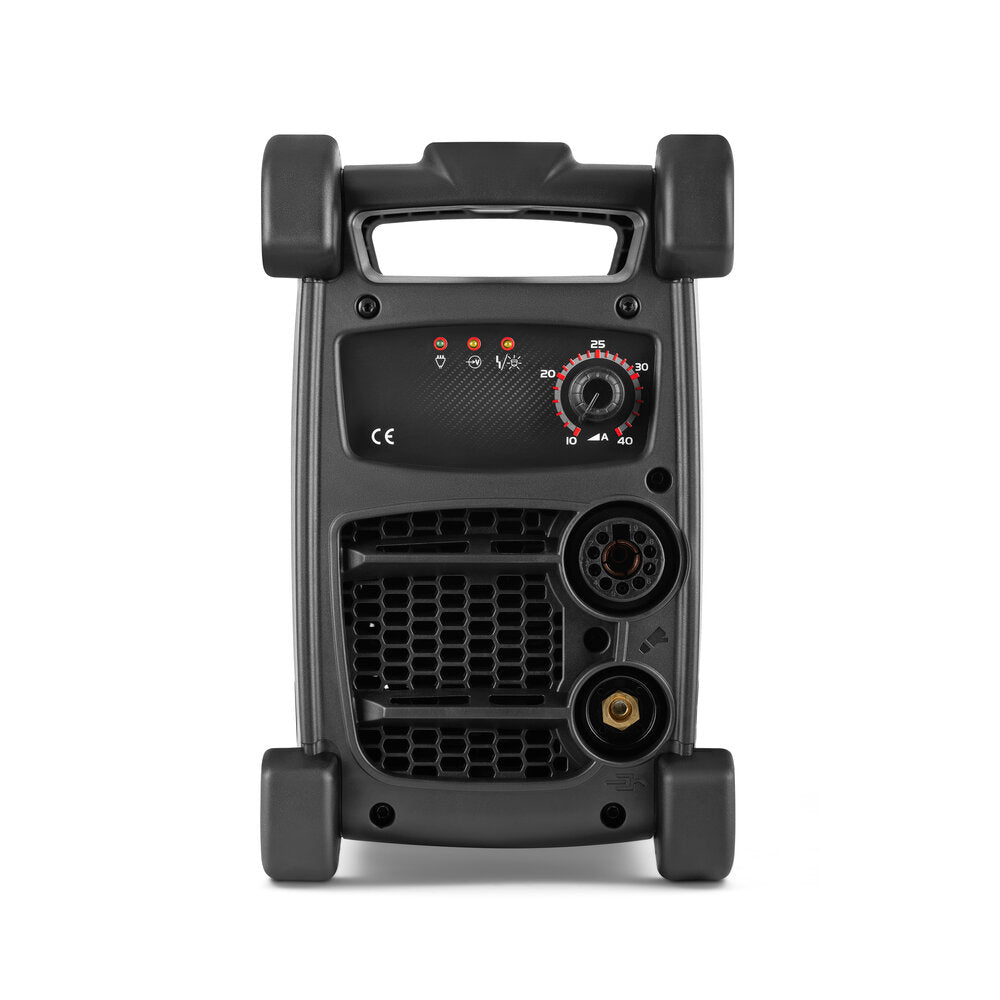

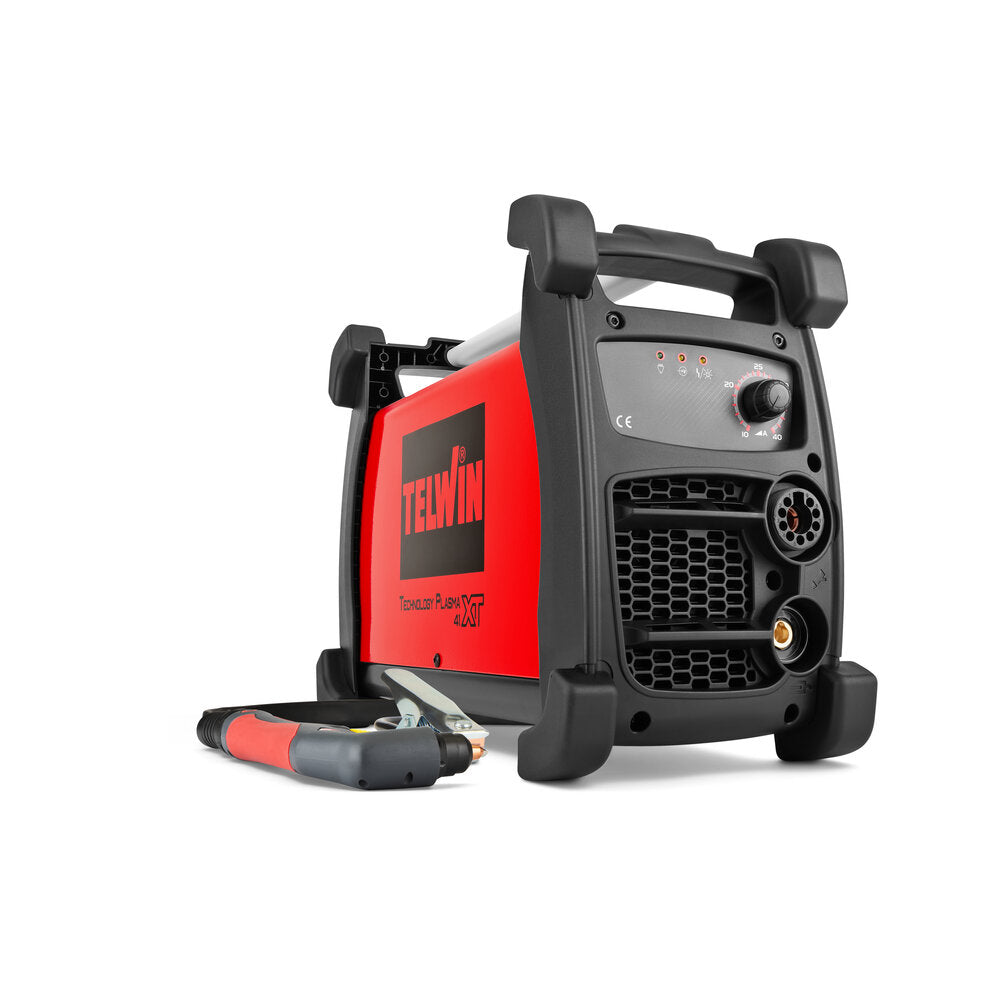

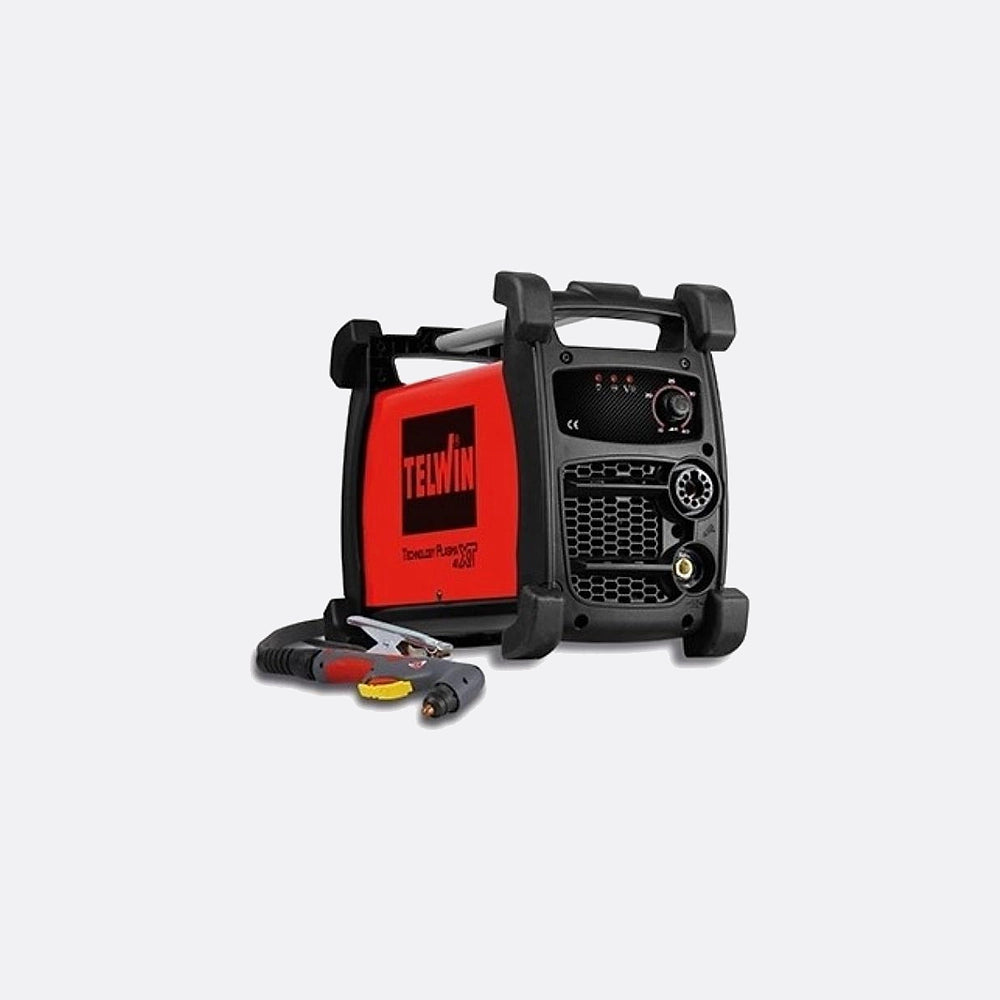

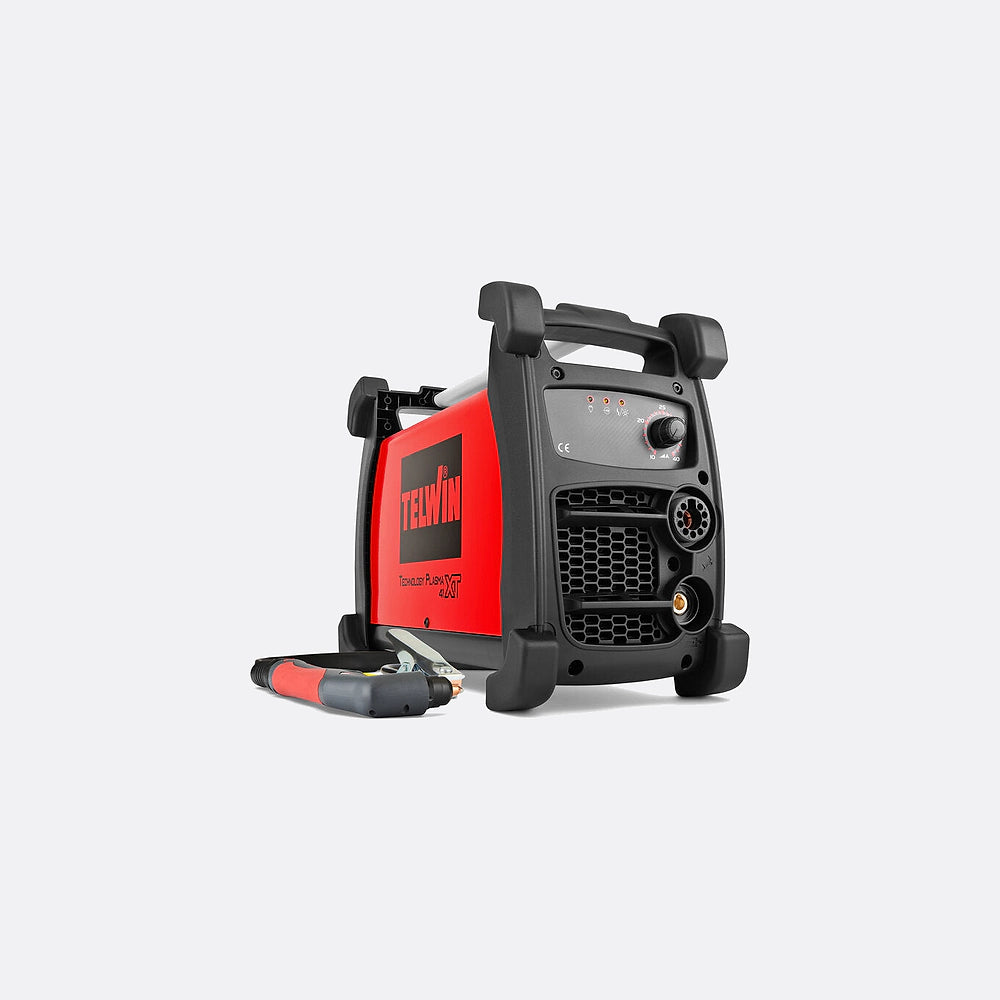

Telwin Technology Plasma Cutter 41 Xt

Name: Telwin Technology Plasma Cutter 41 Xt
Brand: Telwin
SKU: 816146
Price: 550.00 GBP
Availability: InStock

£550.00

Shipping calculated at checkout.

TELWIN TECHNOLOGY PLASMA CUTTER 41 XT is a compact professional plasma cutting system for fast, clean cutting of conductive materials in bodyshops, maintenance and fabrication workshops.

Key Features

10–40 A cutting current range
Up to 15 mm cutting thickness
Compressed-air plasma cutting system
Strike-on-contact pilot arc
Consumables change warning
Thermal and air-failure protection

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

This is a 40 amp compressed-air plasma cutter for controlled cutting of steel, stainless steel, galvanised steel and aluminium in a workshop environment.

I would use it for cutting brackets, panels, sections and repair pieces where a saw or abrasive disc would be slower and introduce more distortion. The contact-start torch makes it practical for general fabrication and bodyshop work, provided the material is clean and there is a suitable earth connection.

The air supply needs attention. Clean, dry compressed air is essential, as moisture or contamination will affect the arc, consumable life and cut quality. Although it is capable of cutting material up to around 15 mm, the best results come from matching the current, travel speed and air pressure to the material thickness rather than relying on the maximum figure.

A common issue is poor cutting caused by worn torch consumables or dragging the torch too slowly, which leaves excessive dross underneath. Keeping the torch consumables in good condition and setting the machine correctly makes a noticeable difference.

Used within its practical capacity, it is a reliable workshop cutter for repeatable repair and fabrication work.

Dan Jennings, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

40A inverter plasma cutter for fast, clean cutting of conductive metals including mild steel, stainless steel, galvanised steel, aluminium, copper and brass
Cuts material up to 15 mm thick, subject to material type, preparation and operating conditions
Adjustable cutting current from 10 to 40A for matching the output to different materials and thicknesses
Strikeoncontact pilot arc helps start the cut reliably without highfrequency contact
Compressedair operation suits maintenance work, fabrication and professional bodyshop applications
Suitable for cutting hollow sections and tube
Designed for fast cutting with minimal heat input and reduced distortion compared with conventional thermal cutting methods

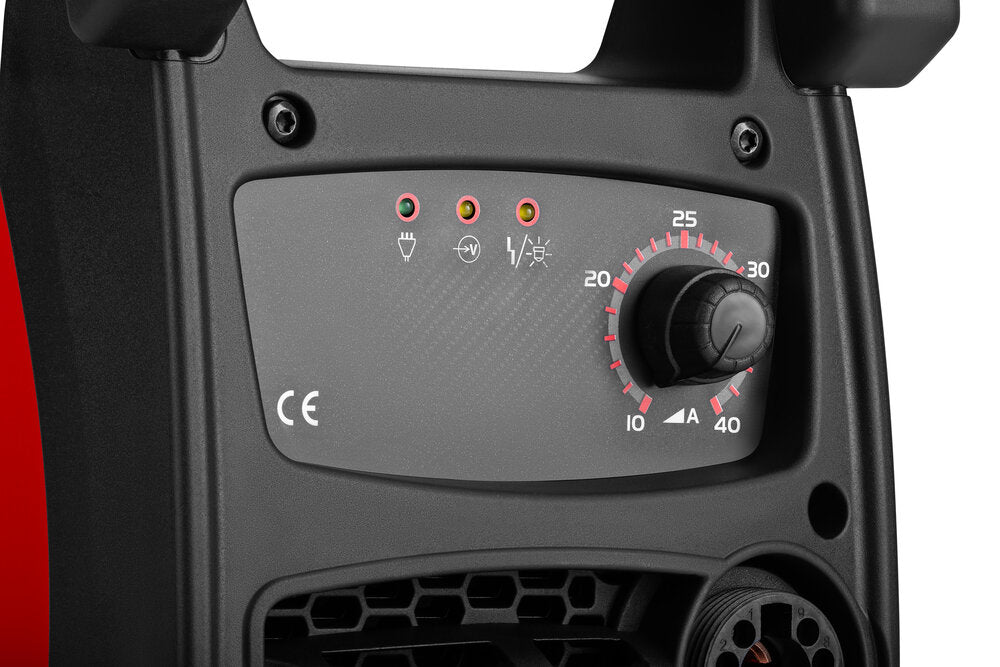

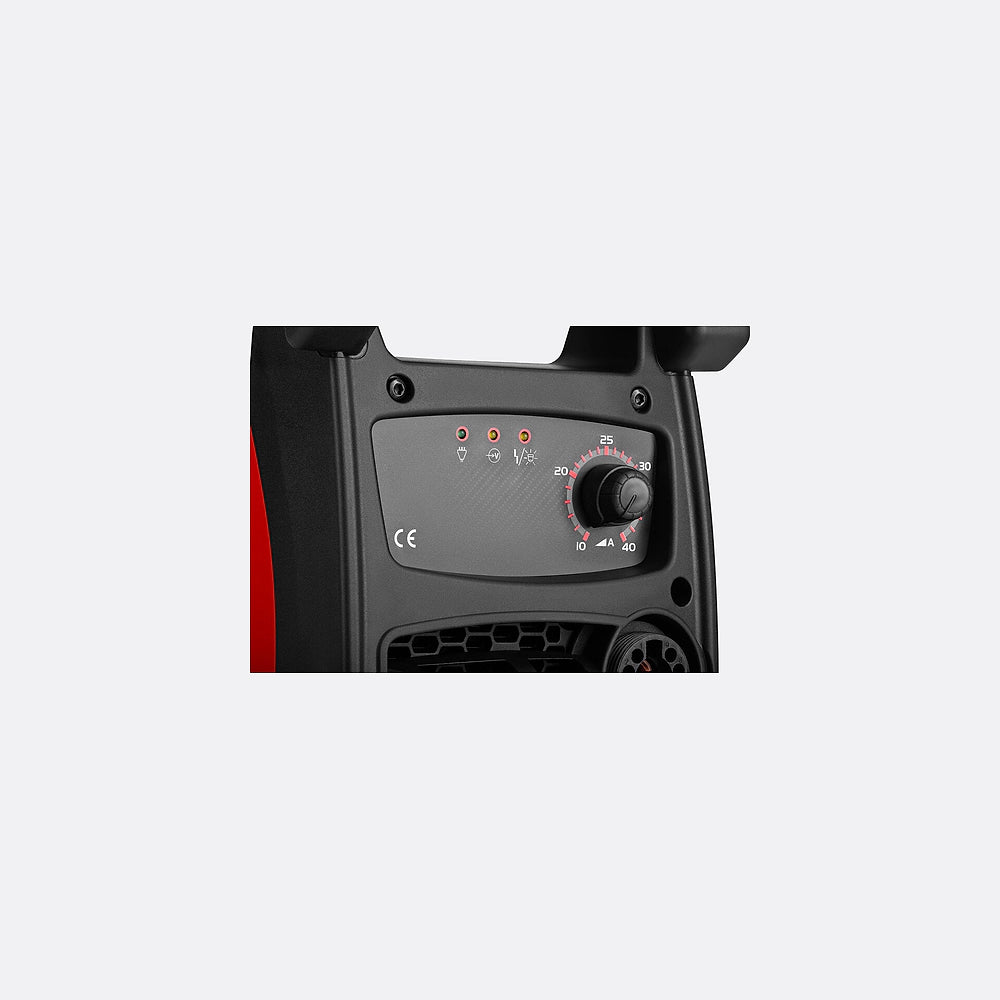

Intuitive controls make output adjustment straightforward for daytoday workshop use
Consumableschange warning helps identify when the torch consumables need attention, helping maintain cut quality

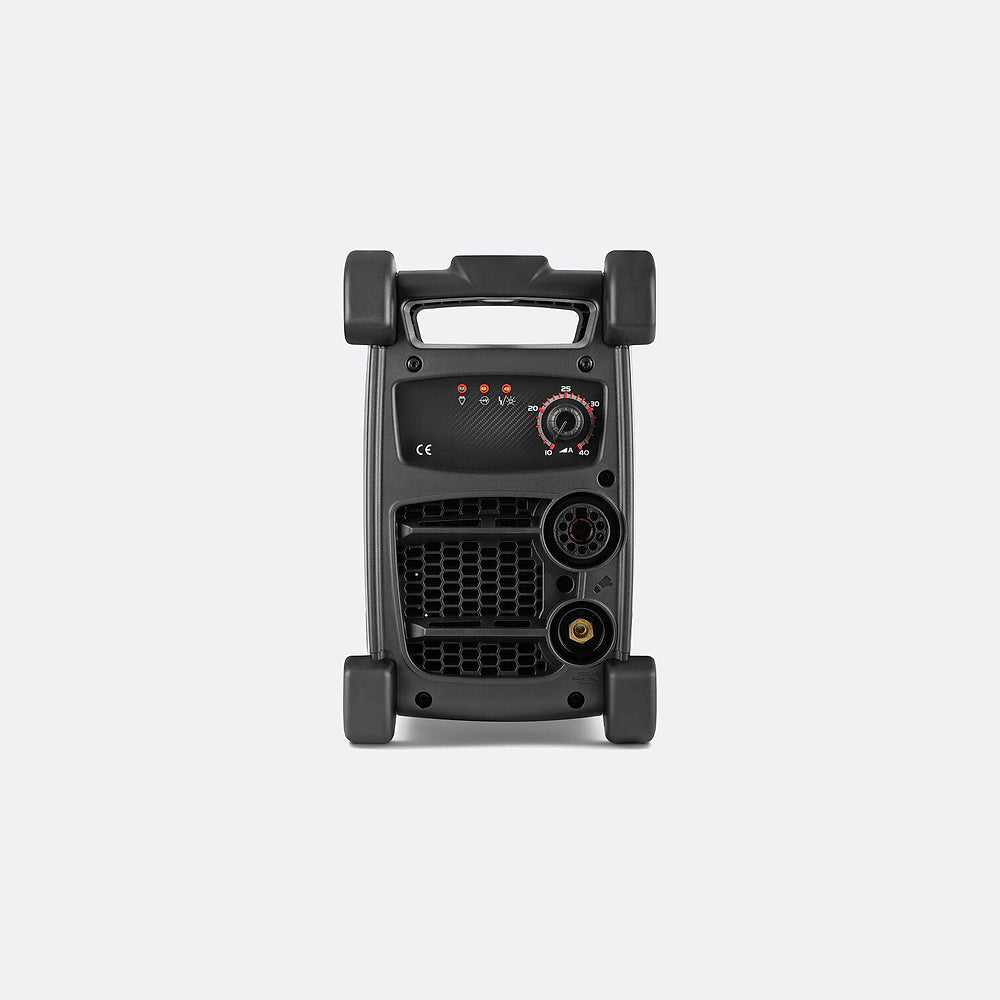

Centralised DINSE 25mm torch connection keeps the torch connection accessible and practical in workshop use
Metal carrying handle provides a secure grip when moving the unit around the workshop or between repair areas
Antishock bumpers help protect the machine during transport and demanding workshop use
Thermostatic, overvoltage, undervoltage, overcurrent and airfailure protection support dependable operation
Works from a 230V singlephase supply for use in standard workshop environments
Requires a suitable clean, dry compressedair supply for consistent cutting performance
Supplied with a 4m plasma torch for practical working reach around vehicles, fabrications and bench work
Compatible with optional circular cutting equipment for producing repeatable round cuts up to 680mm diameter
Suitable for professional maintenance, fabrication and automotive bodyshop repair work

Specification

Input Voltage

230V, 1ph, 50

Cutting Current Range

10–40A

Maximum Absorbed Current

25A

Maximum Absorbed Power

4kW

Efficiency

85%

Power Factor

0.7

Maximum No-Load Voltage

313V

Maximum Cutting Thickness

15mm

Compressed Air Flow

100 l

Compressed Air Pressure

4–5 bar

Protection Rating

IP23

Dimensions

47.5 x 18.2 x 29.2cm

Weight

9kg

Torch Length

4m

Standard

EN 60974-1

Torch Connection

DINSE socket, Ø25mm

FAQs

What can the Telwin Technology Plasma 41 XT cut?

It cuts conductive metals including mild steel, stainless steel and aluminium, with a maximum cutting thickness of 15mm. It is suitable for workshop fabrication, maintenance, tube and box-section work, and vehicle bodyshop repairs.

What power supply does the Technology Plasma 41 XT need?

It runs from a single-phase 230V supply and has a 10–40A cutting range. The machine is rated at 35A at a 30% duty cycle at 40°C, so allow for suitable workshop circuit protection and ventilation.

Does this plasma cutter need compressed air?

Yes. The Technology Plasma 41 XT uses an external compressed-air supply, with the manufacturer specifying approximately 100 litres per minute at 4–5 bar. A clean, dry air supply is essential for reliable arc performance and reasonable consumable life.

What is supplied and what consumables does it use?

The machine is supplied with a 4m plasma torch and uses replaceable plasma torch consumables. It includes consumables-change warning and protective features for thermal, overvoltage, undervoltage, overcurrent and air-failure conditions. Genuine Telwin consumables and suitable air filtration should be used for professional workshop service.
