Telwin Technomig 223 Treo 230v
£1,995.00
Sale price
£1,995.00
Regular price
Skip to product information

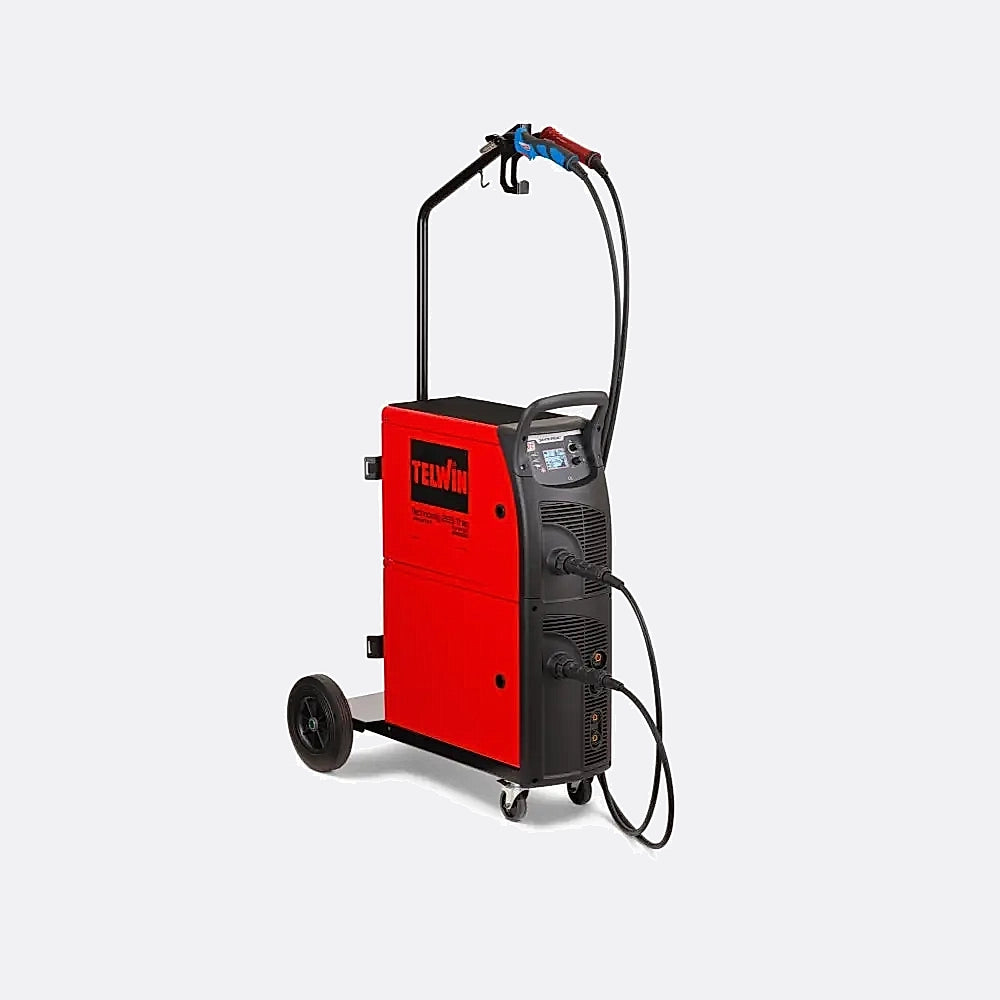

Telwin Technomig 223 Treo 230v
£1,995.00
Sale price
£1,995.00
Regular price
Shipping calculated at checkout.

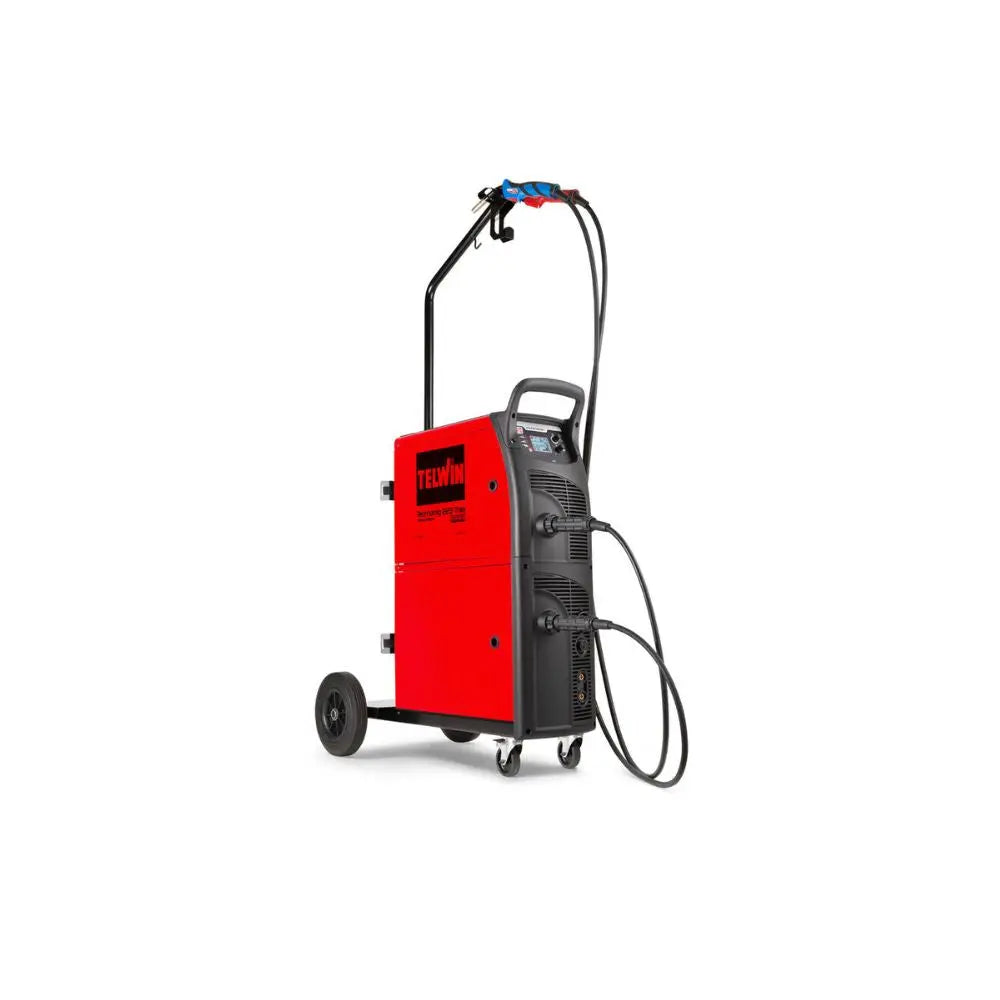

The TELWIN TECHNOMIG 223 TREO 230V is a professional multi-process MIG/MAG welding inverter designed for BODYSHOPS , demanding workshops and industrial applications.
Key Features
- Multi-process MIG/MAG capability
- Compact inverter-based power source
- Single-phase 230V power supply
- Synergic welding parameter control
- Compatible with flux-cored wire
- Suitable for steel, aluminium and braze
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- Technical Features
- True MultiProcess Capability: Seamlessly switches between MIG/MAG, MMA stick, and TIG liftarc welding, eliminating the need for multiple machines and saving valuable workshop space and cost.
- Synergic MIG Control: The synergic function automatically calculates and sets optimal voltage and wire feed speed based on the selected wire diameter and material type, dramatically speeding up setup time and ensuring consistent weld quality even for less experienced operators.
- Advanced Inverter Technology: Highfrequency inverter circuitry delivers a stable, responsive arc with significantly lower energy consumption compared to traditional transformerbased machines, reducing running costs without sacrificing output performance.
- Dual Wire Feed Drive System: A precision fourroll wire feed mechanism (on the Treo variant) ensures consistent and reliable wire delivery, minimising feed irregularities and birdnesting, particularly when using softer fluxcored or aluminium wires.
- Thermal Overload Protection: An integrated thermal cutout with automatic reset safeguards the machine's internal components during extended welding sessions, and a clearly visible indicator alerts the operator before any interruption to workflow occurs.

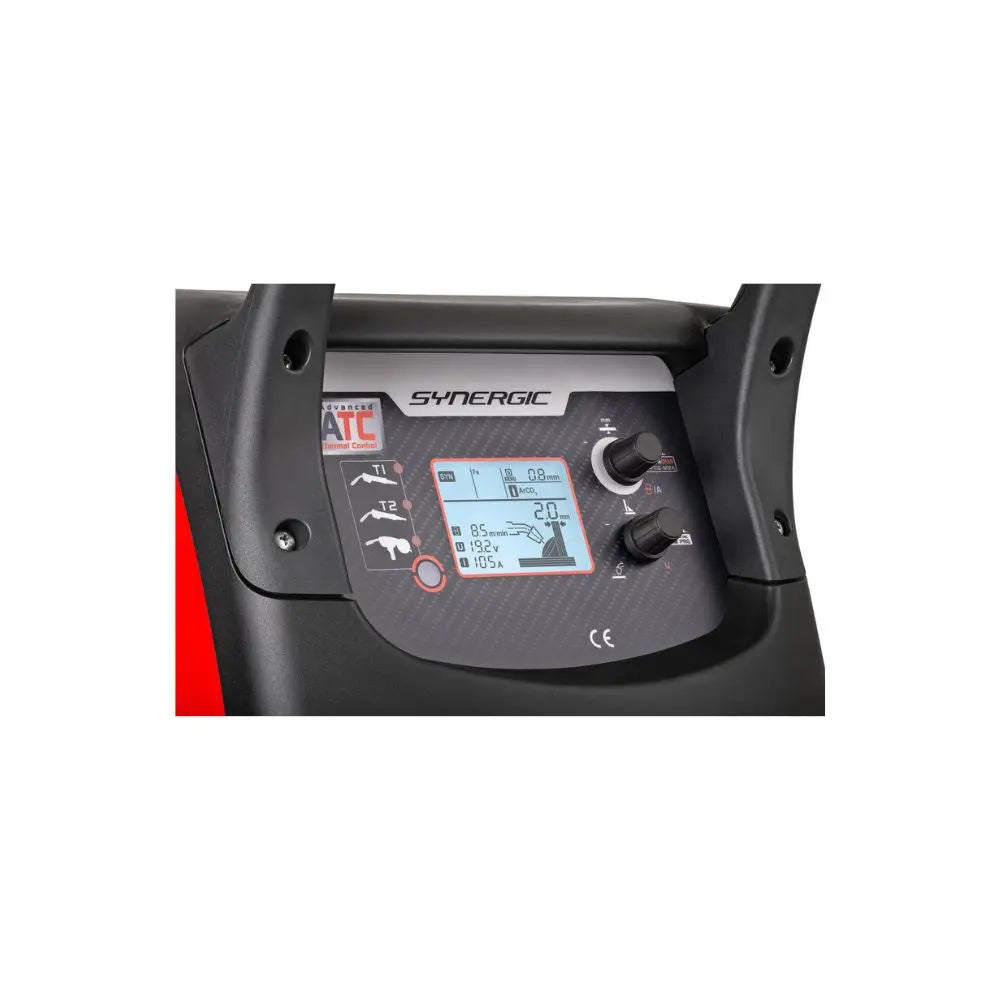

- Comprehensive Parameter Adjustment: Independent controls for inductance, burnback time, spot welding timer, and 2T/4T trigger modes give the operator finegrained control over arc behaviour and weld pool characteristics to suit every application and material thickness.
Specification
FAQs
What materials can the Telwin Technomig 223 Treo weld, and does it require gas?
The Technomig 223 Treo is capable of welding mild steel, stainless steel, and cast iron in MMA mode, and mild steel, stainless steel, and aluminium in MIG/MAG mode (aluminium requires an optional spool gun and appropriate shielding gas). In MIG/MAG operation, the machine supports both gas-shielded welding — using CO₂ or Argon/CO₂ mixed gas — and gasless flux-cored wire welding, which is ideal for outdoor or site use where bottled gas is impractical. The TIG lift function is suited to stainless steel and mild steel with a suitable Argon shielding gas supply. This broad material compatibility makes the Technomig 223 Treo an exceptionally flexible machine for workshops handling a variety of fabrication tasks.
Is the Telwin Technomig 223 Treo suitable for a single-phase domestic or garage supply?
Yes, the Technomig 223 Treo is designed to operate on a standard 230V single-phase supply, which is the typical voltage found in domestic properties, garages, and small workshops throughout the UK. However, it is important to ensure your supply circuit is adequately rated — Telwin recommends a dedicated 16A or 32A circuit with an appropriate MCB or RCD for safe and consistent operation. At higher output settings, the machine draws a significant inrush current, so running it from a long or lightweight extension lead is not advisable. For garage or home workshop use, having the machine connected to a robust, correctly rated outlet will ensure both safety and the best possible welding performance.
What accessories and consumables are included with the Technomig 223 Treo, and what extras might I need?
The Telwin Technomig 223 Treo is supplied as a comprehensive package that typically includes a MIG welding torch (Euro-fit connector), an earth clamp and cable, an electrode holder and cable for MMA welding, and a gas hose. A TIG torch is not always included as standard, so if you intend to use the TIG lift function regularly, a compatible 150A or 200A TIG torch with gas valve should be sourced separately. You will also need to supply your own shielding gas cylinder and regulator for gas-shielded MIG or TIG welding. Consumables such as contact tips, shrouds, and wire spool (the machine does not come pre-loaded with wire) will need to be purchased. BWS stocks a full range of compatible Telwin and universal consumables to get you started.
How does the synergic function on the Technomig 223 Treo work, and when should I use it?
The synergic function is an intelligent preset system built into the MIG/MAG mode of the Technomig 223 Treo. When you select your wire diameter and material type (for example, 0.8 mm steel wire), the machine automatically calculates and applies a matched voltage and wire feed speed, giving you a stable starting point with minimal manual setup. You can then use the single main control knob to increase or decrease the overall welding energy — the machine adjusts both parameters together in a coordinated way, maintaining the correct ratio for clean arc behaviour. Synergic mode is especially useful when you're moving between different material thicknesses during a job, as a quick adjustment keeps your settings optimised without resetting each parameter individually. For highly specialised applications or non-standard wires, you can switch to manual mode for full independent control over all variables.
MIG Welding Information
