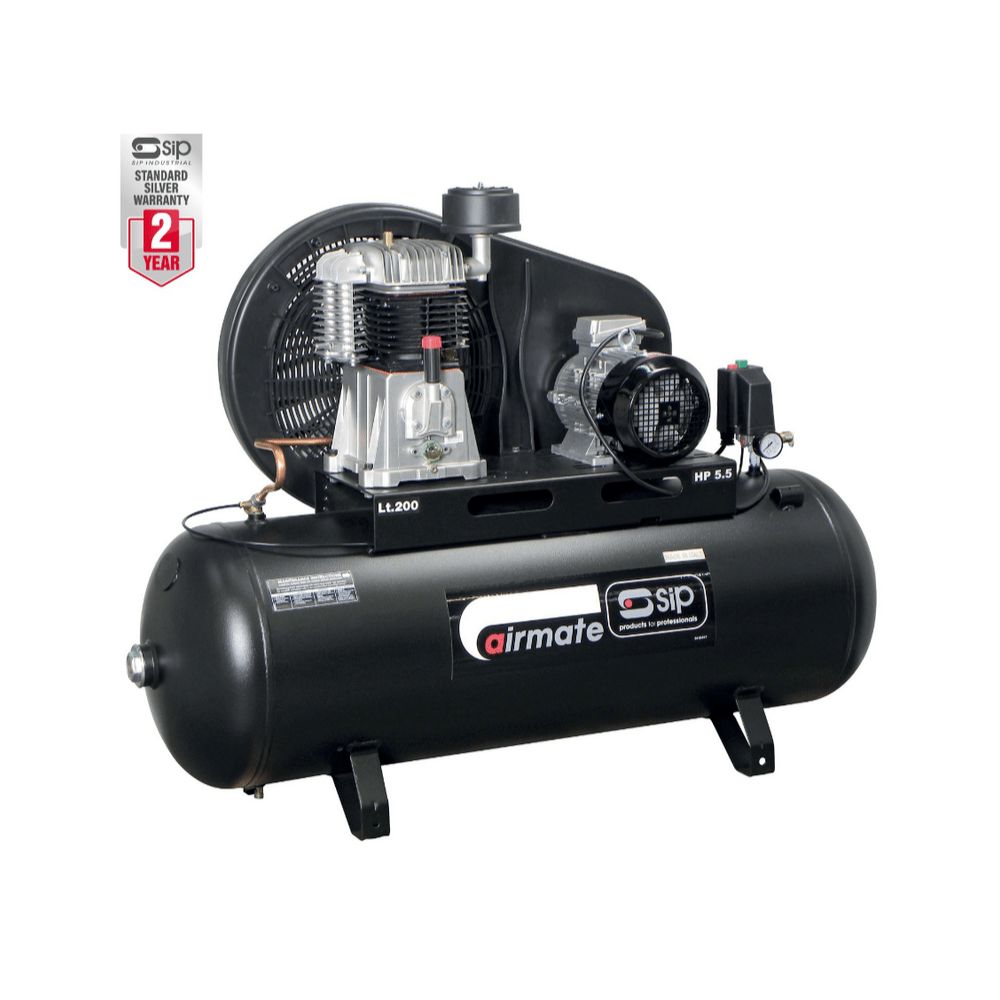

SIP TN5.5/200 Belt-Driven Compressor

Name: SIP TN5.5/200 Belt-Driven Compressor
Brand: SIP
SKU: 06583
Price: 1246.00 GBP
Availability: InStock

£1,246.00

Shipping calculated at checkout.

SIP TN5.5/200 Belt-Driven Compressor is an oil-lubricated, two-stage belt-driven compressor intended for trade and professional workshop air supply duties.

Key Features

SIP TN5.5/200 Belt-Driven Compressor
Oil-lubricated, heavy-duty 2-stage pump
Cast iron barrel construction
Finned manifolds and aftercooler
SIP TN5.5/200 Belt-Driven Compressor support
Pro installation and delivery available

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

2 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Oillubricated, beltdriven compressor designed for trade and professionalgrade workshop use
Heavyduty twostage highefficiency pump for increased durability and efficiency
Heavyduty cast iron compressor barrel for extended service life
Finned manifolds and aluminium aftercooler to aid thermal management of the compressed air
200 litre receiver for bulk air storage
Motor rated 5.5hp (4.1kW)
Piston displacement 24 CFM (680 litres/min) and maximum free air delivery 18 CFM (510 litres/min)
Maximum working pressure 145 psi (10 bar)」「Noise level 97 dB(A) for siting and PPE planning」「Extrastrong moulded plastic guards for improved protection of belts and flywheels」「Professional installation and delivery by qualified engineers available」「Twoyear warranty

Specification

Model

SIP TN5.5/200 Belt-Driven Compressor

Manufacturer

SIP

SKU

06583

Input Supply

400v(20amp)

Motor Power

5.5hp (4.1kW)

Receiver Size

200 litres

Piston Displacement

24CFM (680 litres/min)

Max. Free Air Delivery

18CFM (510 litres/min)

Max. Pressure

145psi (10 bar)

Noise Level

97dB(A)

Gross Weight

127kg

Packaged Dimensions

1220 x 1440 x 470mm

Lubrication

Oil-lubricated

Drive Type

Belt-driven

Pump Type

2-stage high-efficiency pump

Barrel Material

Cast iron

Manifolds

Finned manifolds

Aftercooler

Aluminium aftercooler

Warranty

2 years

FAQs

What electrical supply does the SIP TN5.5/200 require?

The technical data lists the input supply as 400V (20A). Confirm your site electrical capacity and isolation/protection arrangements before installation. Professional installation and delivery by qualified engineers is available.

What are the tank size and air delivery figures?

Receiver size 200 litres. Piston displacement 24 CFM (680 litres/min). Maximum free air delivery 18 CFM (510 litres/min). Maximum working pressure 145 psi (10 bar). Use these figures when matching tools and estimating simultaneous demand.

What construction features support trade and professional use?

Oil-lubricated, belt-driven design with a heavy-duty 2-stage pump. Heavy-duty cast iron barrel, finned manifolds and an aluminium aftercooler are specified for durability and longer service life. The unit also has extra-strong moulded plastic guards for improved safety.

What should I consider for installation, noise and warranty?

Gross weight 127 kg and packaged dimensions 1220 x 1440 x 470 mm — plan handling and floor space accordingly. Noise level is listed at 97 dB(A), so site noise control should be considered. Pro installation and delivery by qualified engineers is available and a 2 year warranty is stated.

📄

Technical Datasheet

Download the official manufacturer datasheet for SIP TN5.5/200 Belt-Driven Compressor including specifications, compatibility information and technical details.

Download SIP TN5.5/200 Belt-Driven Compressor Datasheet
