SEALEY COMPRESSOR 3HP 200L 230V

Save 20%
Original price £998.75
Current price £799.00

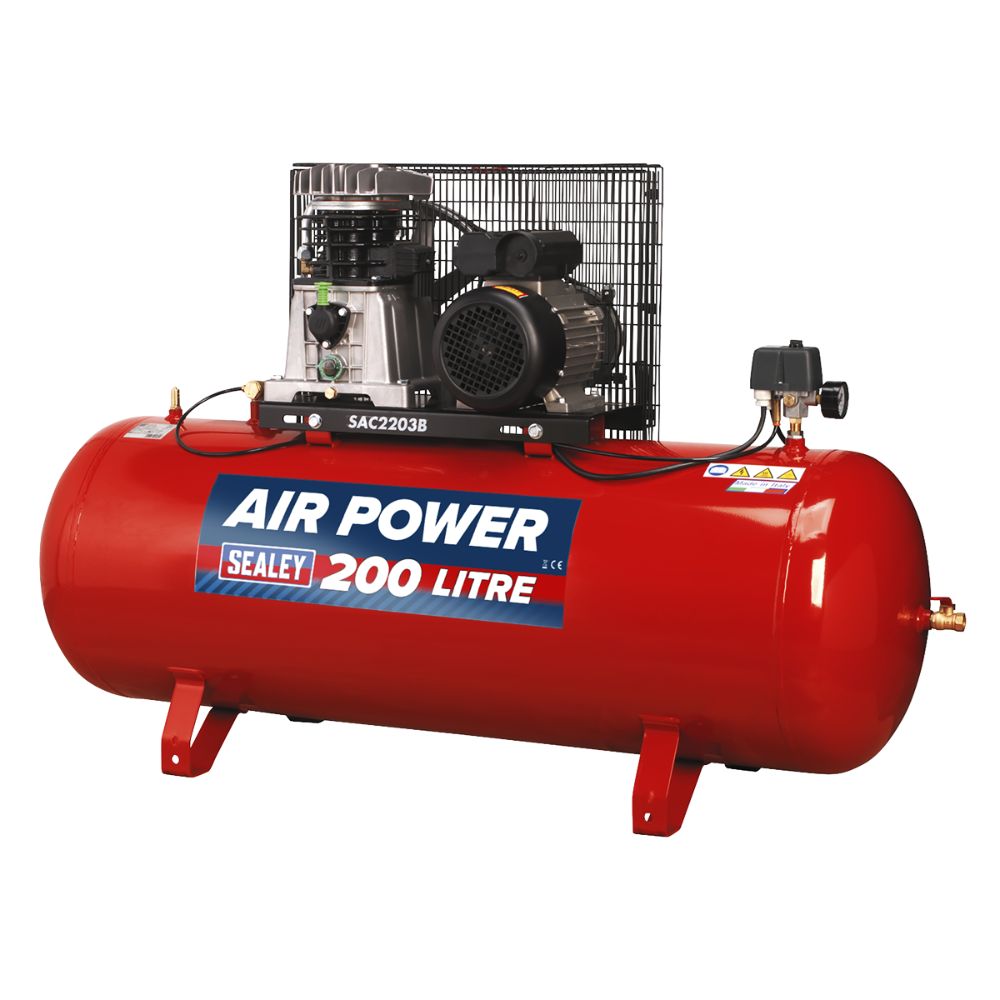

SEALEY BELT DRIVE COMPRESSOR 200L  230V

Our top of the range single phase 200ltr compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.
• Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13Amp supply
• However, on this model, we recommend fitting a 16Amp plug and connecting to a 20Amp supply protected by a type C circuit breaker for an easier start-up.
• Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long life.
• Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling
• Supplied with full CE certification, test certificates and operating/maintenance manual.

SPECIFICATION
Manufacturer SEALEY
Part No. SAC2203B
Air Displacement cfm(L/min) 15(425)
Maximum Free Air Delivery cfm(L/min) 10.9(309)
Maximum Pressure 145psi(10bar)
Minimum Rated Supply 16A
Motor Output 3hp
Nett Weight 97kg
Outlet 1/2"BSP Female Tap
Phase 1ph
Receiver Capacity 200L
Size (W x D x H) 1440 x 440 x 900mm
Speed 1280rpm
Supply 230V
