SCANGRIP LINE LIGHT C+R 03.5243

Scangrip Line Light C+R

$103.00
Skip to product information
SCANGRIP LINE LIGHT C+R 03.5243

Scangrip Line Light C+R

$103.00
Shipping calculated at checkout.

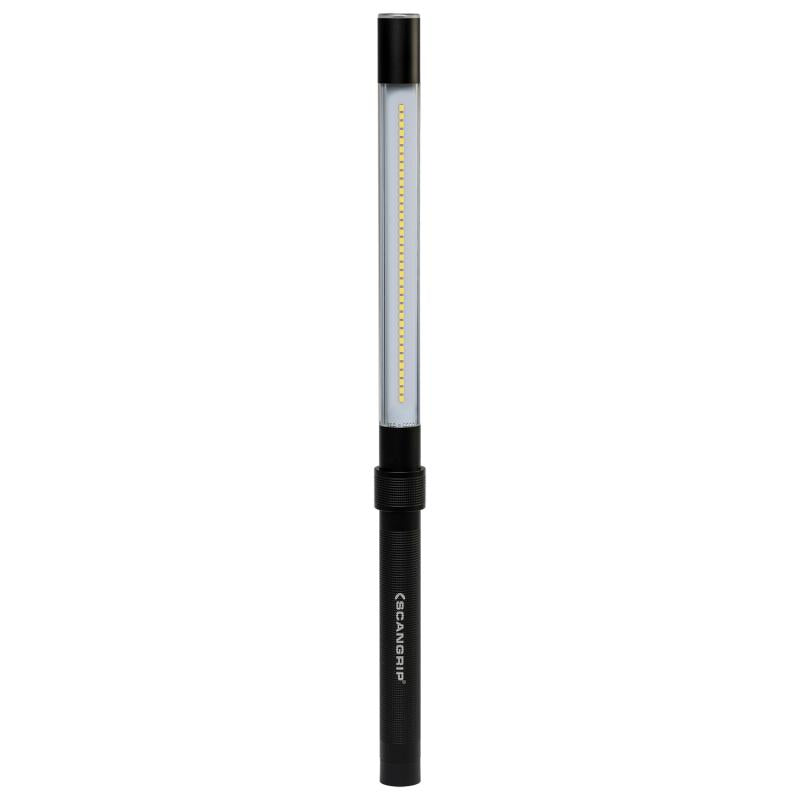

Scangrip Line Light C+R is a slim inspection hand lamp for workshop diagnostics and close-access assembly or repair work. The Scangrip Line Light C+R features a dual-system design for both rechargeable and mains operation, allowing wired use via a 5 m rubber cable. Scangrip Line Light C+R's 25 mm profile and 75° prism deliver focused illumination where access is restricted.

Key Features

  • Dual system: rechargeable and mains
  • Up to 600 lumen output
  • Slim 25 mm diameter profile
  • 75° beam angle prism
  • 5 m rubber cable
  • Up to 8 hours runtime
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.

Supply voltage

Supply

3.7V

Warranty

Warranty

5 years

Special offer

Special Offer

* 2 week lead time for this product*

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

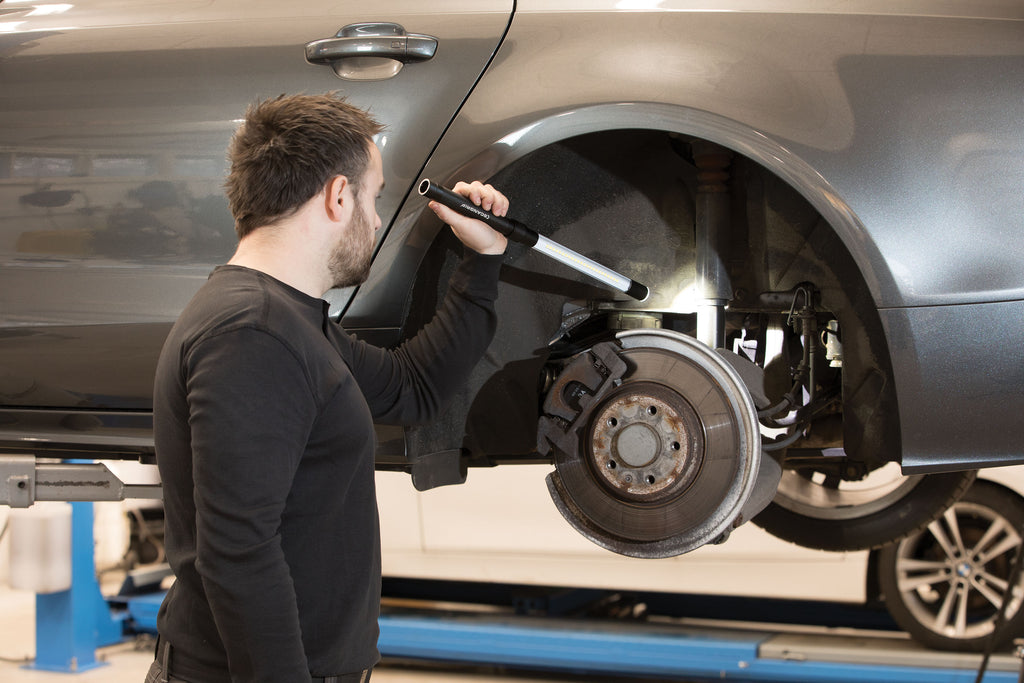

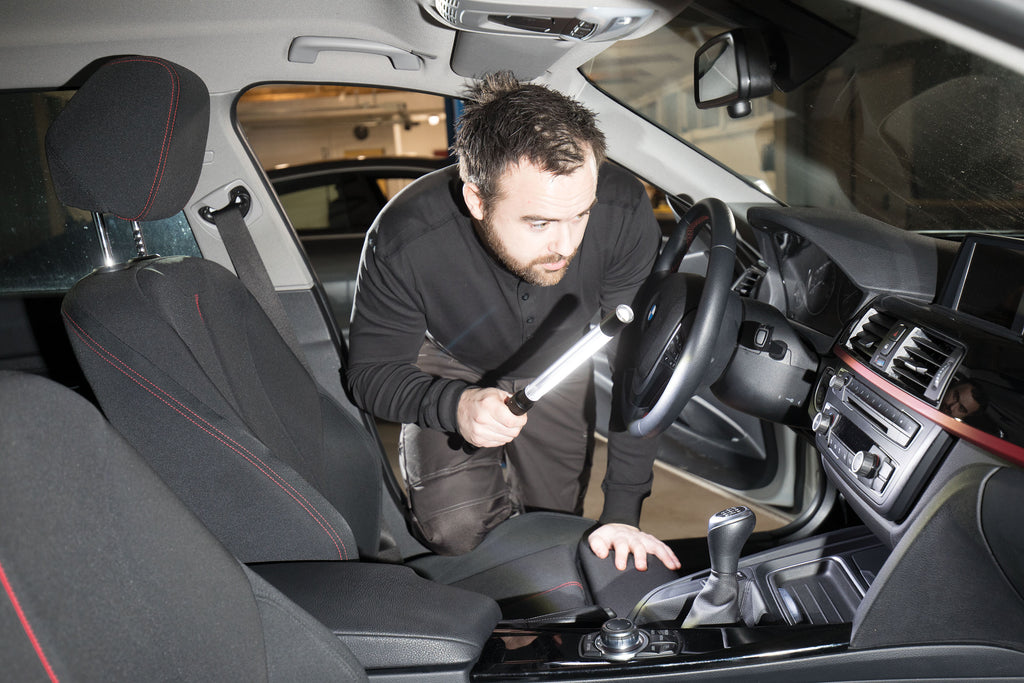

I’m Paul Jones, Technical Director at BWS. This is a slim inspection hand lamp intended for close-access workshop diagnostics and inspection. In the workshop I use it for illuminating tight cavities, underbonnet areas and around welded seams where a slim profile is needed. It operates as a dual system — mains via the 5 m rubber cable or cordless after twisting off the cable — and offers focused illumination through a 75° prism from a 25 mm body. Two technical points for setup: keep the twist-to-remove connector free of dirt and avoid routing the cable over sharp edges; the rechargeable system gives long runtime but needs regular charging. From experience the most common issue is strain and wear at the cable connector or users hanging the lamp by the cable, which shortens service life. Proper handling and routine battery care make this a dependable, efficient inspection light in a busy bodyshop.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

At BWS, we do more than supply equipment. Our experienced engineers work with the products we sell every day, providing practical advice to help you choose the right equipment for your workshop.

From installation and training to servicing, calibration and repairs, we’re here to support you long after your purchase. You’re not simply buying a machine — you’re gaining access to a team that understands how to keep it working.

See What We Do!

Technical Features

  • Dual system providing rechargeable battery operation and mains use via a detachable 5 m rubber cable
  • Twisttoremove detachable cable for quick conversion between wired and cordless use
  • Rechargeable operation with up to 8 hours runtime
  • Approx. 4 hours charging time for the internal battery
  • Ultraslim Ø25 mm profile to access tight and compact inspection areas
  • Builtin prism concentrates the flood beam to a 75° angle to focus illumination and reduce glare
  • Combined floodandspot arrangement: 36 SMD LEDs for area lighting plus a dedicated CREE XPG2 for spot projection
  • Separate spot beam with a narrower 50° angle for longerrange inspection tasks within the same lamp head configuration (flood + spot)

Specification

Manufacturer
Scangrip
Product No.
03.5243
LEDs
36 x SMD LEDs, Spot: 1 x CREE XP-G2
Luminous output
900 lumen, Spot: 150 lumen
Luminous efficacy
189 lm/W
Illuminance
1800 lux@0.5m, Spot: 1500 lux@0.5m
Beam angle
75°, Spot: 50°
Operating time (main)
2.5 h
Operating time (spot)
8 h
Charging time
4 h
Battery
3.7 V / 5200 mAh Li-ion
Power system
Dual system (rechargeable and wired)
Cord length
5 m rubber cable
Detachable cable
Twist-to-remove
Dimensions
ø25 x 461 mm
Ingress protection
IP65
Impact protection
IK07
Country of manufacture
Denmark
Optional accessory
Flexible arm with suction cup

FAQs

What power options does the Scangrip Line Light C+R offer and how long will it run on battery?
The Line Light C+R has a dual system: rechargeable operation and mains use via the supplied 5 m rubber cable. The lamp uses a 3.7 V rechargeable battery and is specified with a rechargeable runtime of up to 8 hours. Charging time is listed as 4 hours. The cable is twist-to-remove so you can switch between wired and cordless use.
How bright is the lamp and what sort of beam does it produce?
The lamp is designed for focused inspection work using a built-in prism that concentrates the output into a 75° beam angle for targeted illumination. Luminous output is listed as 600 lumens in the product specification; product documentation also notes an increased output on the newer version. The slim profile helps keep the light concentrated on the work area.
Is the Line Light C+R suitable for use in workshops and tight spaces?
Yes. The lamp has a slim 25 mm diameter to access confined areas and is specified with protective ratings suitable for workshop use (IP65 dust/water resistance and IK07 impact resistance). The 5 m rubber cable gives reach when used wired, and the cordless option lets you inspect tight or awkward locations without trailing cables.
What mounting and accessory options are available for positioning the light?
The lamp includes an adjustable hook and magnetic mounting for simple positioning. The cable is detachable by twisting off. Optional accessories listed include a flexible arm with suction cup or flexible gooseneck fixtures for more stable or hands-free mounting.
📄

Technical Datasheet

Download the official manufacturer datasheet for Scangrip Line Light C+R including specifications, compatibility information and technical details.

Download Scangrip Line Light C+R Datasheet
