PROTECTOXTRACT MOBILE EXTRACTOR LEV
DESCRIPTION

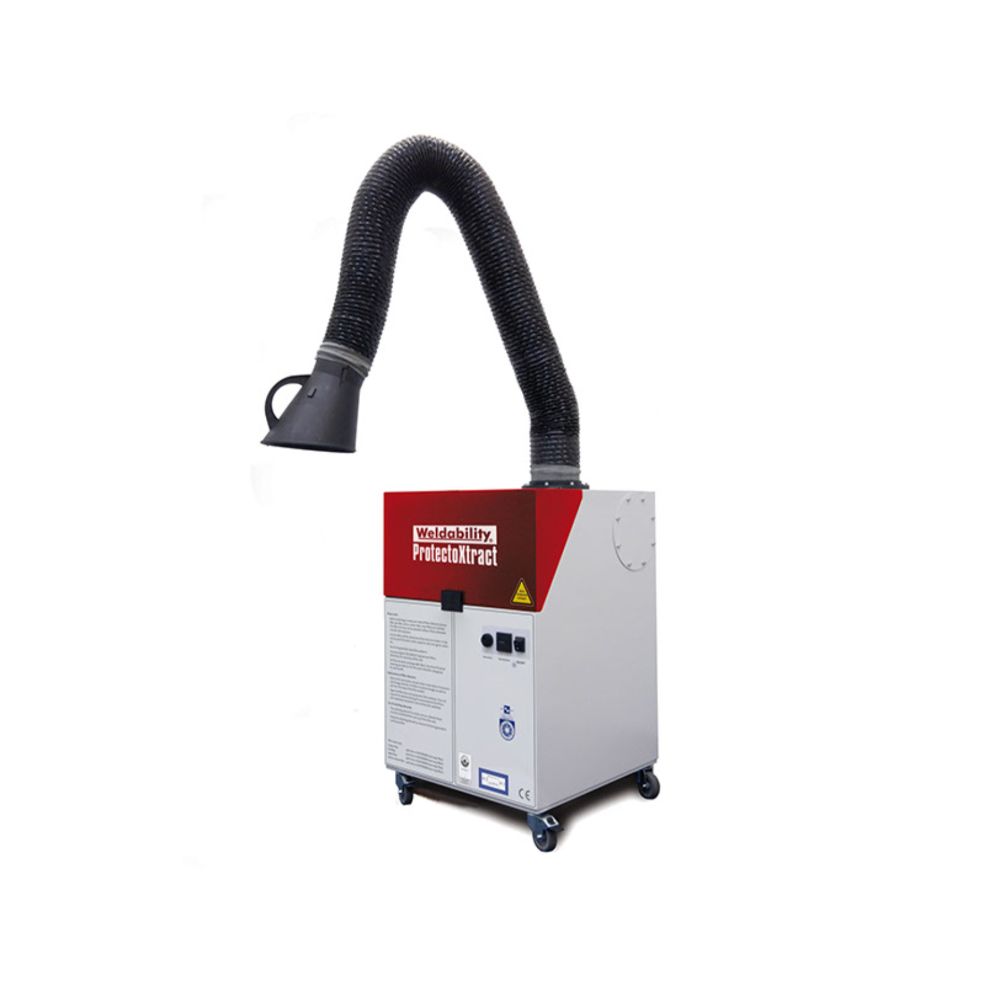

PROTECTOXTRACT Portable Weld Fume Extraction Unit With Mobile Trunk And Hood (Includes Protectospark Kit As Standard)
ProtectoXtract is a BGIA approved mobile high-vacuum extraction system for filtration of particulate fumes, dust and some gases.
The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability.
Operates from a 110v/230v mains input supply.
5 STAGE FILTRATION
The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation (<68dB[A]).
The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h.
When used with processes that produce spatter and/or grinding sparks the optional ProtectoSpark (EXT978013) MUST be used. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes (>30% Ni+Cr).
Compliant with DIN EN ISO 15012-1
Suitable for category W3 stainless welding fumes >30 NiCr.
USES
For welding fume only and should not be used for filtering fumes containing oil, solvents, explosive dust/gases.
SPECIFICATIONModel: | PROTECTOXTRACT |
Part No. | EXT978094 |
Supply: | 240V |
Capacity: | 230v- 1600 m3/h |
Filter Efficiency: | >99% |
Dimensions: | 580x580x900mm |
Product Download | Download |
