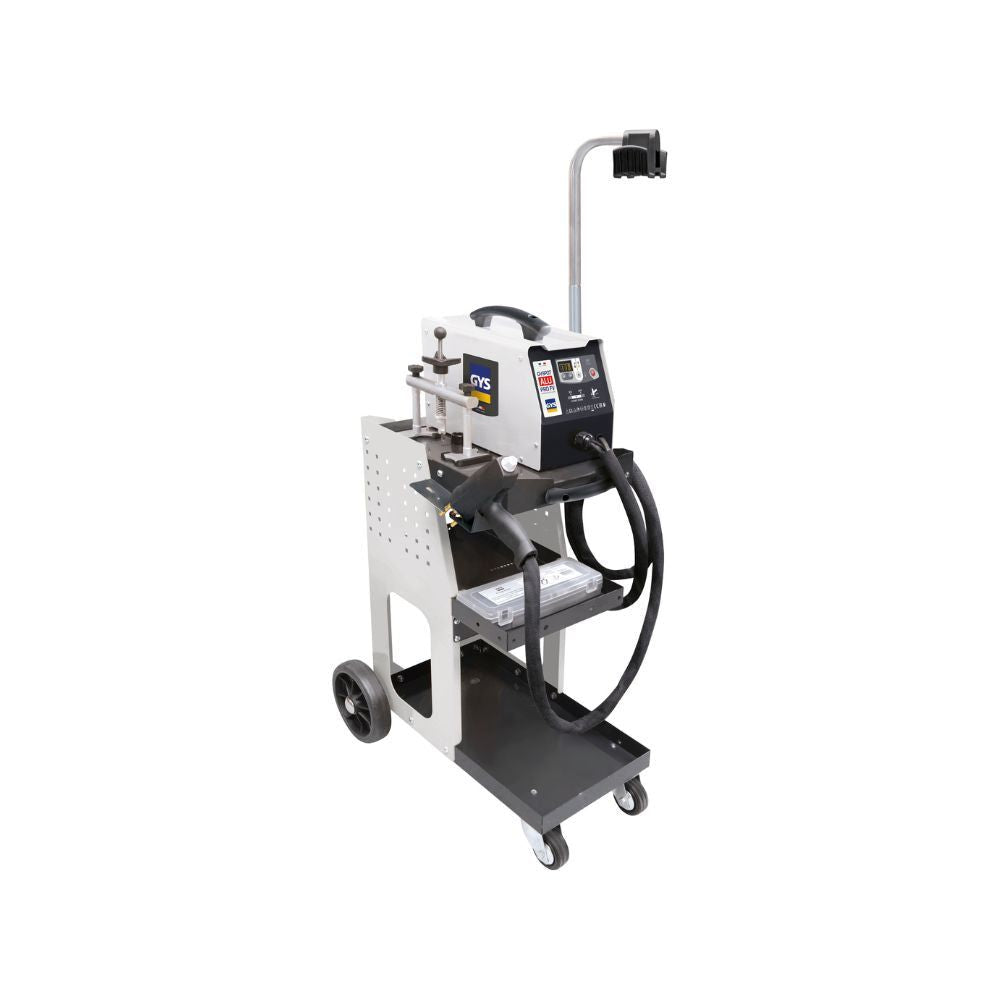

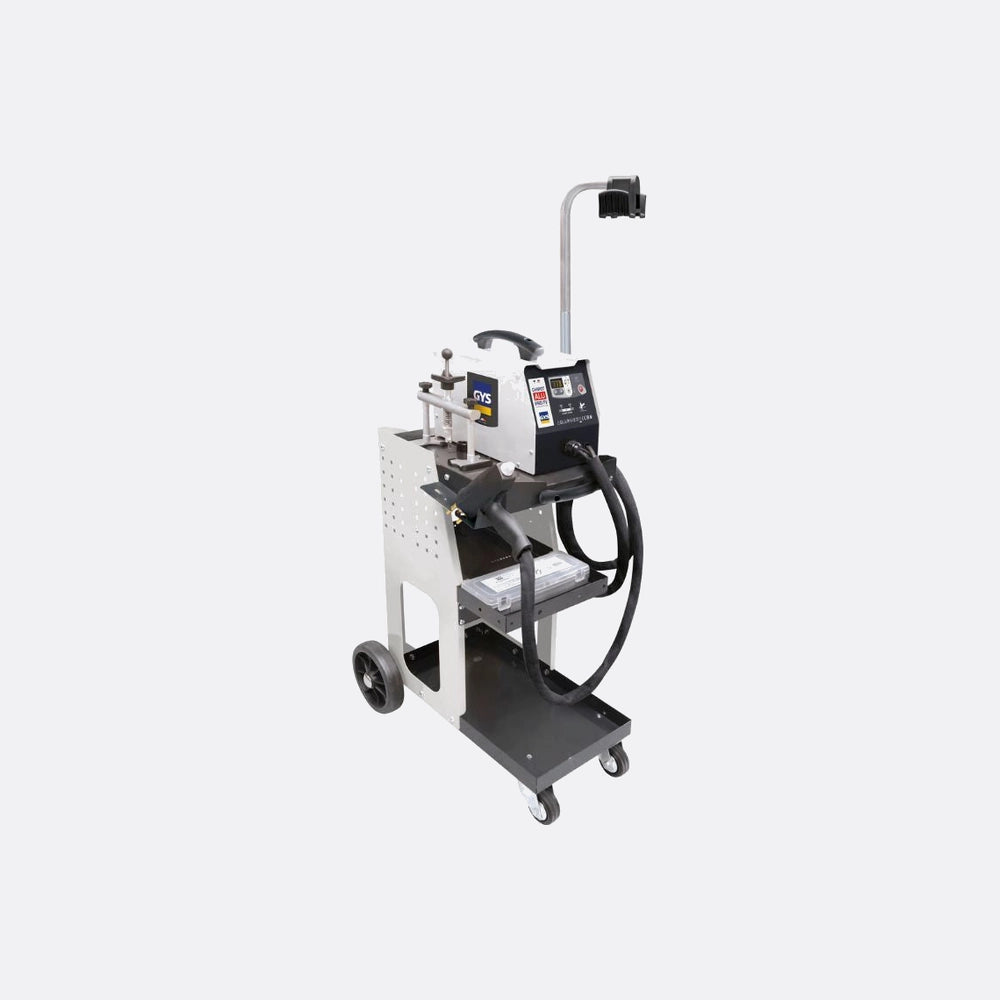

GYS Proliner Alu Fv Aluminium Dent Puller Kit

Name: GYS Proliner Alu Fv Aluminium Dent Puller Kit
Brand: IMS
SKU: U35065
Price: 1999.00 GBP
Availability: InStock

£1,999.00

Shipping calculated at checkout.

GYS Proliner Alu Fv Aluminium Dent Puller Kit is a professional aluminium dent repair system for controlled pulling of damaged body panels in bodyshops and vehicle repair workshops.

Key Features

Dedicated aluminium dent repair
Capacitive discharge welding process

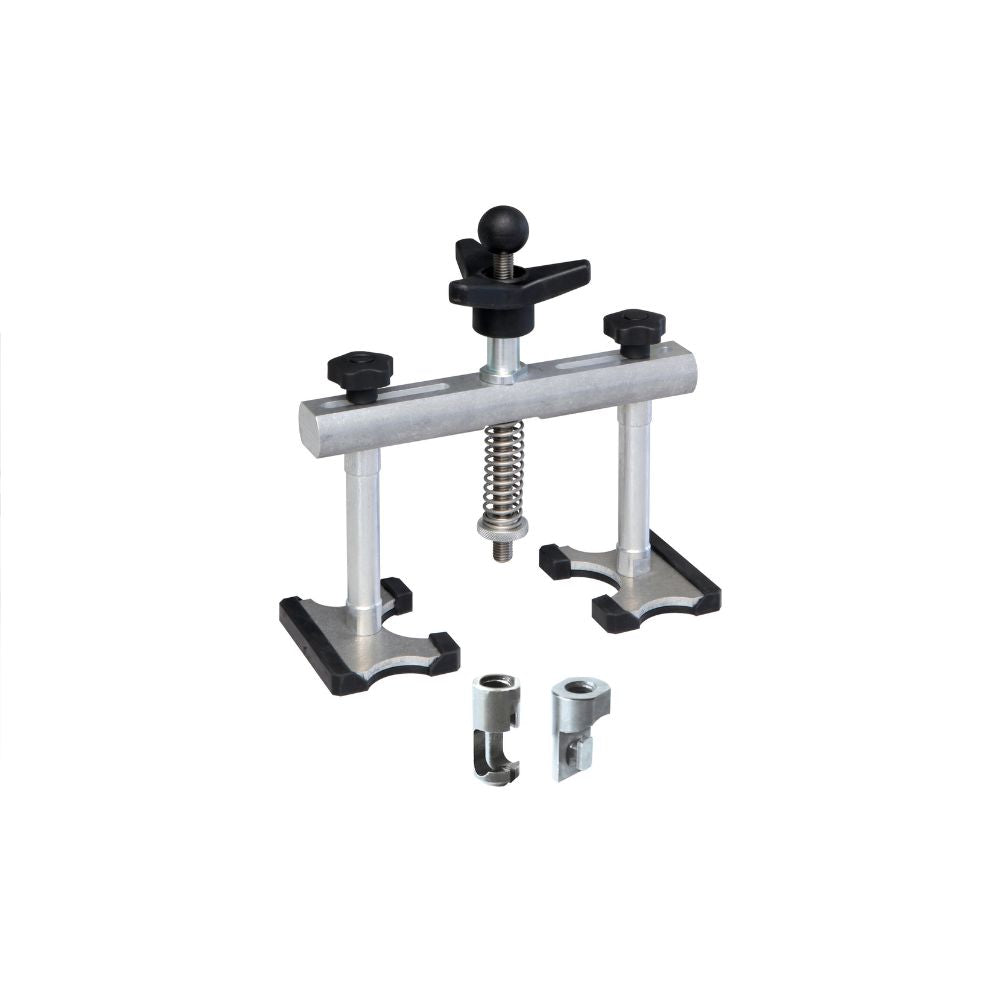

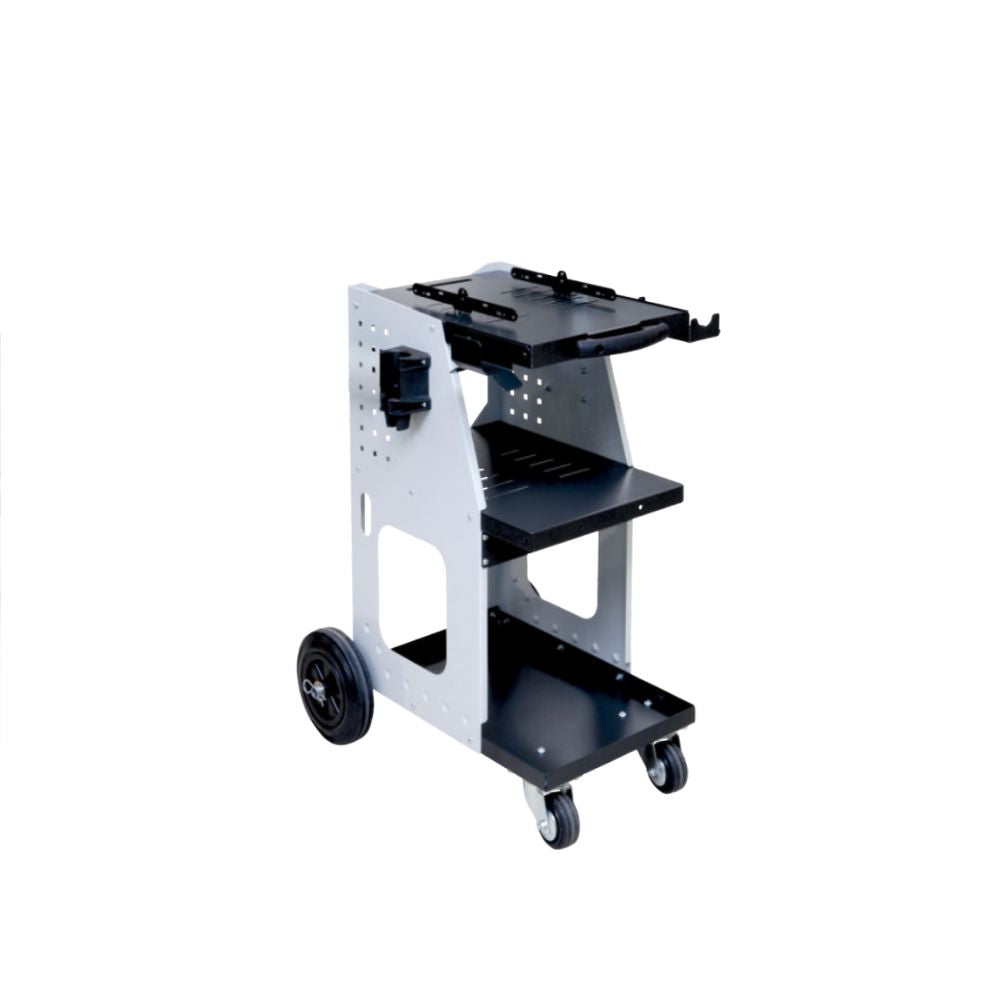

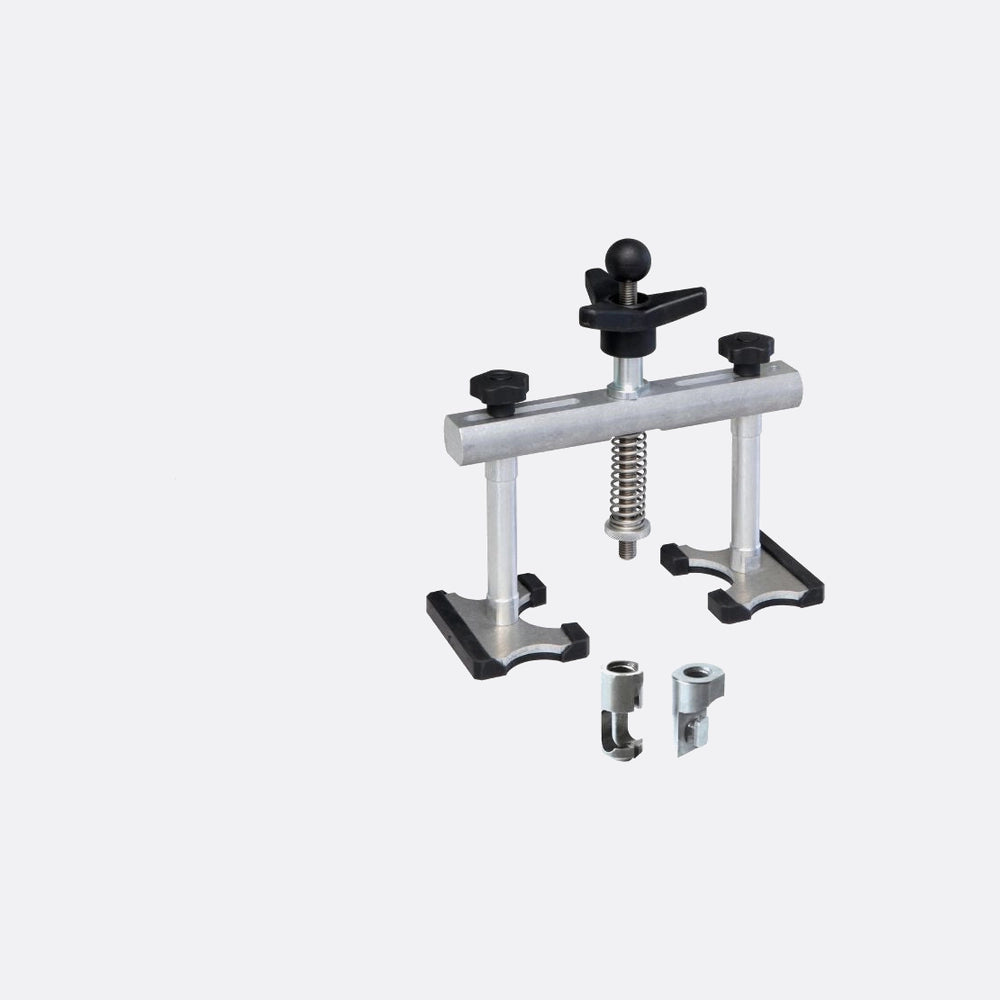

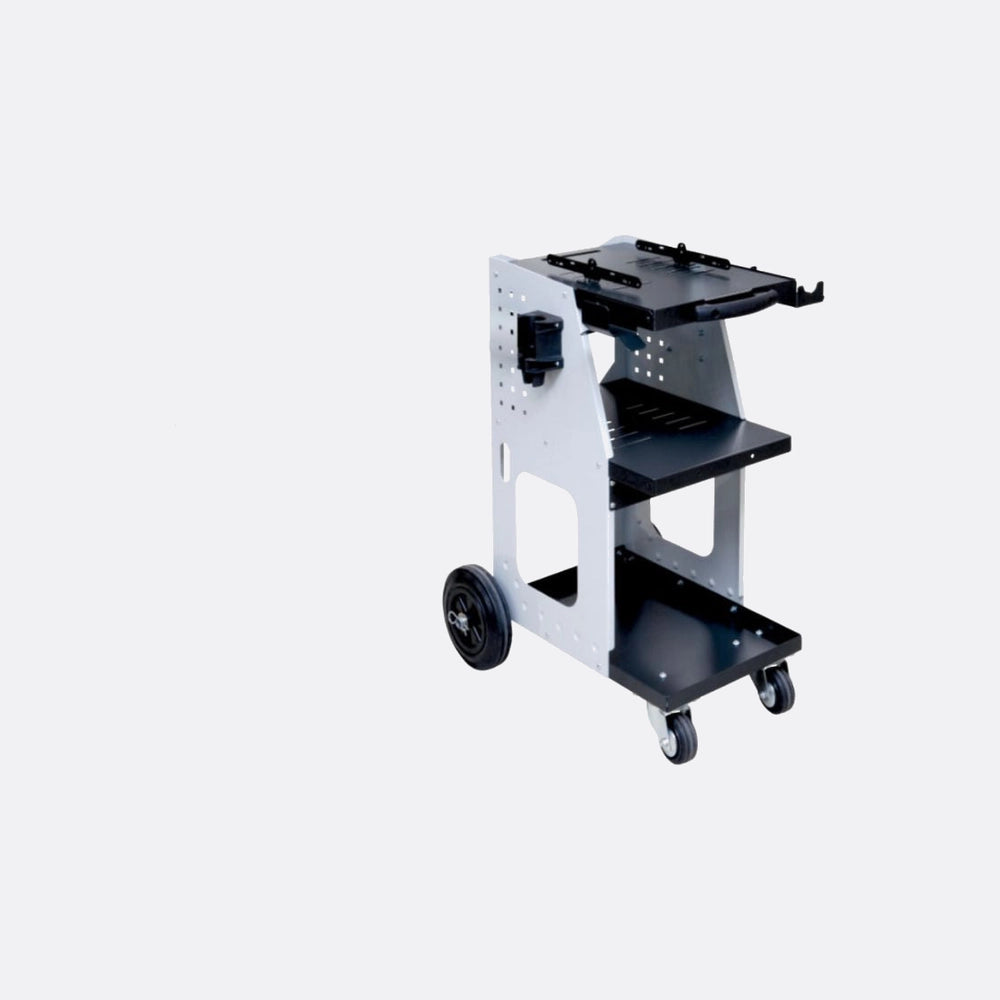

Professional pulling bridge and trolley
Aluminium studs and pulling rings
Suitable for panel dent correction
Expandable accessory and consumable system

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

This aluminium dent pulling equipment is designed for straightening aluminium body panels using welded studs and controlled pulling, without removing the panel in many repairs.

In a bodyshop, I would use it on doors, bonnets, wings, sills and wheelhouses where access behind the panel is limited or replacement would add unnecessary time. The process involves cleaning the repair area, isolating aluminium contamination, welding suitable aluminium studs, then pulling progressively with the bar or bridge while checking panel movement.

Correct preparation is important. Aluminium needs clean, dedicated abrasives and tools, as steel contamination can affect weld quality and corrosion resistance. The selected stud and power setting must also suit the panel thickness and the pull required; excessive force can stretch the metal rather than restore it.

A common issue is trying to pull a large area in one operation. Controlled, localised pulls usually give better results and reduce finishing work. Keep the earth and gun contacts clean, and inspect every weld before loading it.

Used with the correct consumables and a steady repair sequence, the kit provides a reliable way to reduce aluminium panel damage and unnecessary dismantling.

Dan Jennings, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

At BWS, we do more than supply equipment. Our experienced engineers work with the products we sell every day, providing practical advice to help you choose the right equipment for your workshop.

From installation and training to servicing, calibration and repairs, we’re here to support you long after your purchase. You’re not simply buying a machine — you’re gaining access to a team that understands how to keep it working.

See What We Do!

Technical Features

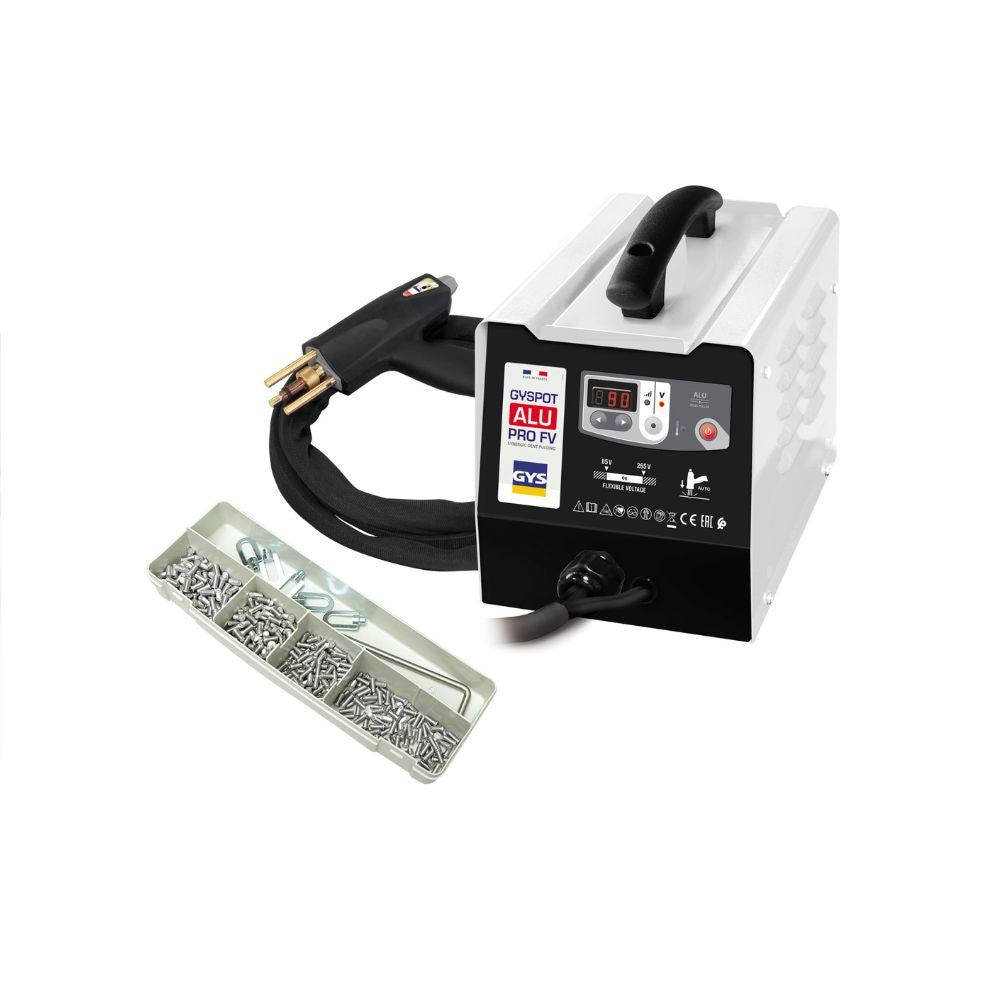

Dedicated system for straightening aluminium vehicle body panels and removing dents without stripping fittings
Automatic aluminium pulling gun starts welding when the gun tip slides into position
Integrated earth terminals in the gun provide stable electrical contact during stud welding
M4 aluminium stud welding capability for attaching pulling points to damaged panels
Capacitordischarge welding supports rapid welding cycles for efficient dent repair
Microprocessor control provides straightforward operation and repeatable settings
Voltage mode allows adjustment from 50 V to 200 V
Power mode provides adjustable output from 0 to 10
Manual springforce adjustment helps adapt the gun to different panel surfaces
Flexiblevoltage supply operates from 85 V to 265 V for use with suitable 110 V or 230 V workshop sockets
Aluminium dent repair can be carried out without panel replacement where the damage is suitable for pulling
Included aluminium accessory box provides the dedicated tooling needed for aluminium panel repair
Suitable for professional bodyshops carrying out aluminium vehicle body repairs

Specification

Model

ALU PRO FV

Reference

U35065

Maximum Welding Current

7500A

Power Supply

110

Number of Guns

1

Gun Type

Automatic aluminium gun

Gun Cable

25mm²

Welding Capability

M4, M5 and M6 aluminium studs

Included Accessory Box

Standard aluminium box

Capacitor

66mF

Welding Time

3 milliseconds

Voltage Adjustment

50–200V

Power Adjustment

0–10

Operating Supply Range

85–265V

FAQs

What is the GYS Proliner Alu FV Aluminium Dent Puller Kit used for?

It is a professional aluminium bodywork repair system for straightening vehicle panels and removing dents without stripping fittings or replacing the panel. It is suited to aluminium doors, bonnets, wings and other body components in professional bodyshops.

What type of aluminium studs can the system weld?

The system is designed for capacitor-discharge welding of M4, M5 and M6 aluminium studs. The automatic aluminium gun starts the weld when the gun tip is correctly positioned, helping provide consistent stud attachment during dent repair.

What power supply does the GYS Proliner Alu FV require?

The unit has a flexible single-phase supply and can operate from 110 V or 230 V. The GYS system is suitable for workshop use where the available supply may vary, but the installation should still be checked by a competent person before use.

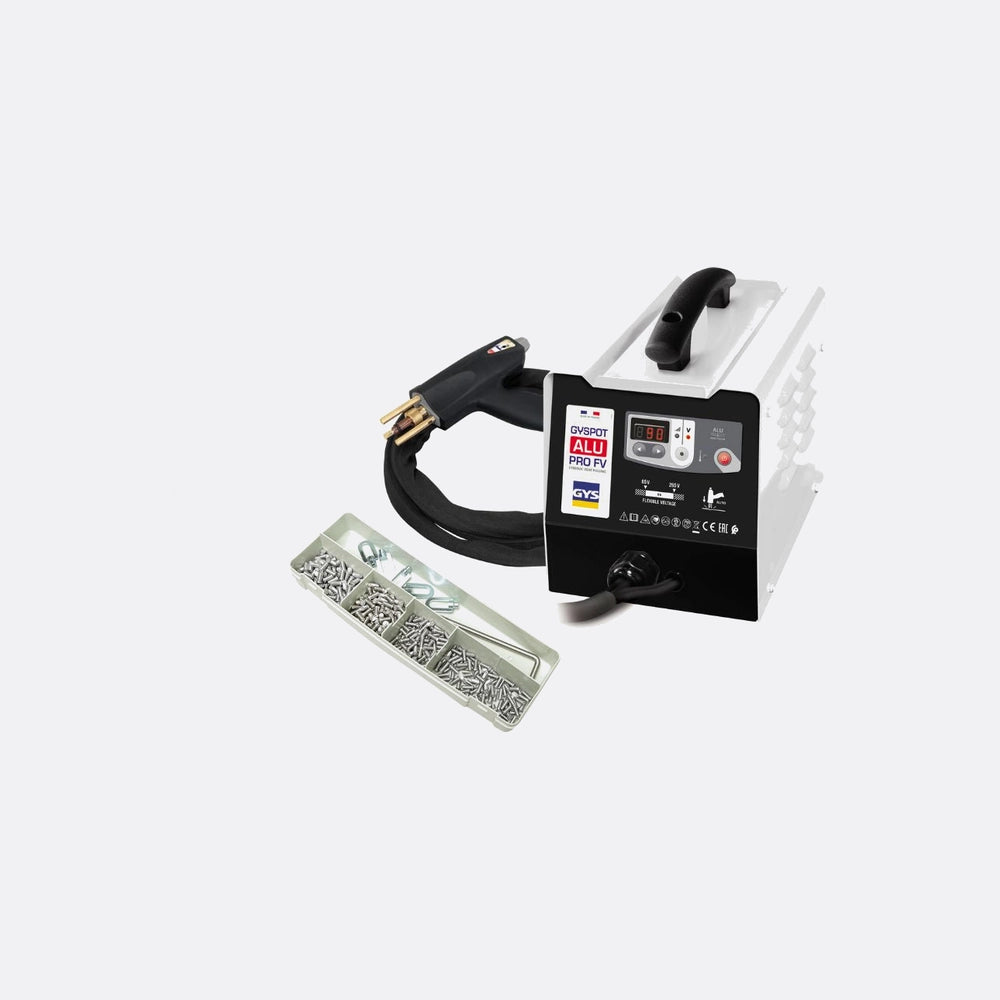

What is included with the aluminium dent puller kit?

The kit includes the automatic aluminium pulling gun, aluminium dent-removal accessory box and equipment for M4 stud welding. Check the supplied package against the current BWS specification when ordering, as trolley and additional pulling accessories may depend on the exact Proliner package.
