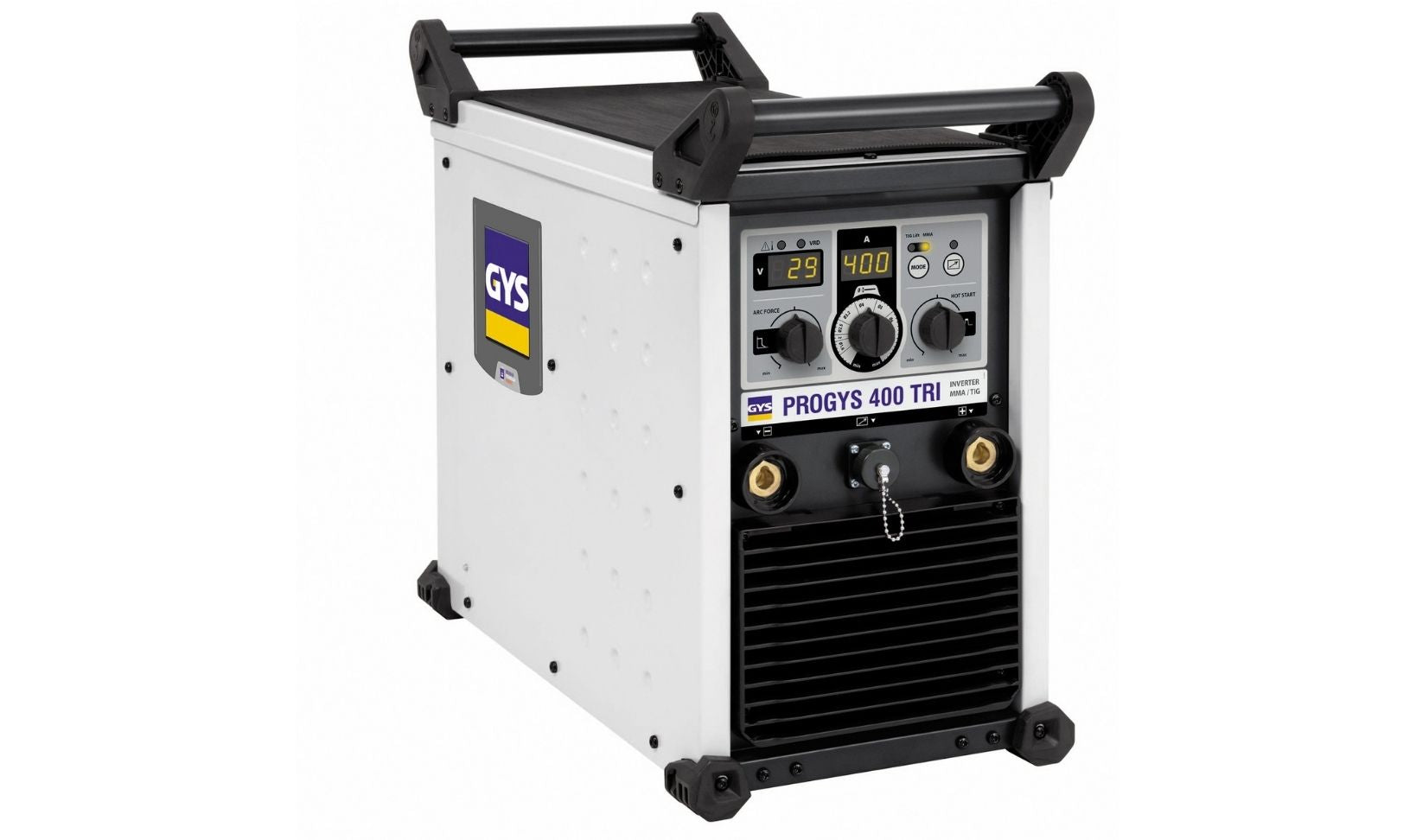

PROGYS 400 TRI - WITHOUT ACCESSORIES

Prices Exclude Tax

High-Performance 400A Three-Phase MMA & TIG Lift Industrial Power Source

The PROGYS 400 TRI is a heavy-duty three-phase inverter welding power source engineered for intensive industrial applications, including fabrication, structural steelwork, shipbuilding, and maintenance in harsh environments. Offering a welding current range of 20–400A, it supports MMA (SMAW) and TIG Lift (GTAW) processes with exceptional arc stability and dynamic performance. Capable of welding rutile (6013), basic (7018), cellulosic (6010), and aluminium electrodes up to Ø6 mm, it also enables carbon arc gouging up to Ø8 mm for demanding material removal tasks. With a high duty cycle of 400A at 60% and an 84V no-load voltage, it ensures excellent ignition characteristics, particularly for cellulosic electrodes. Designed with reinforced construction, IP23 protection, optimised cooling, and a switchable VRD safety system, the PROGYS 400 TRI delivers reliability, productivity, and operator protection in the most challenging jobsite conditions.

WHY BUY FROM BWS?

Mobile Service Engineer support
Technical Support Engineers
Equipment Trained Engineers

Specification

  • Welding current range: 20 – 400 A
  • Power supply: 400V three-phase (3~)
  • Welding processes: MMA (SMAW) and TIG Lift (GTAW)
  • Electrode capacity: Up to Ø6.0 mm
  • Carbon arc gouging capacity: Up to Ø8.0 mm
  • Duty cycle: 400A @ 60% / 350A @ 100%
  • No-load voltage: 84V
  • Protection rating: IP23
  • Generator compatible: 30 kW / 36 kVA (±15%)
  • Dimensions: 58 x 52 x 30 cm
  • Weight: 39.5 kg

Features

  • Three-phase inverter technology for stable, high-current performance
  • Welds rutile, basic, cellulosic, and aluminium electrodes
  • Supports heavy-duty carbon arc gouging applications
  • High 400A @ 60% duty cycle for continuous industrial use
  • High 84V no-load voltage for superior cellulosic arc ignition

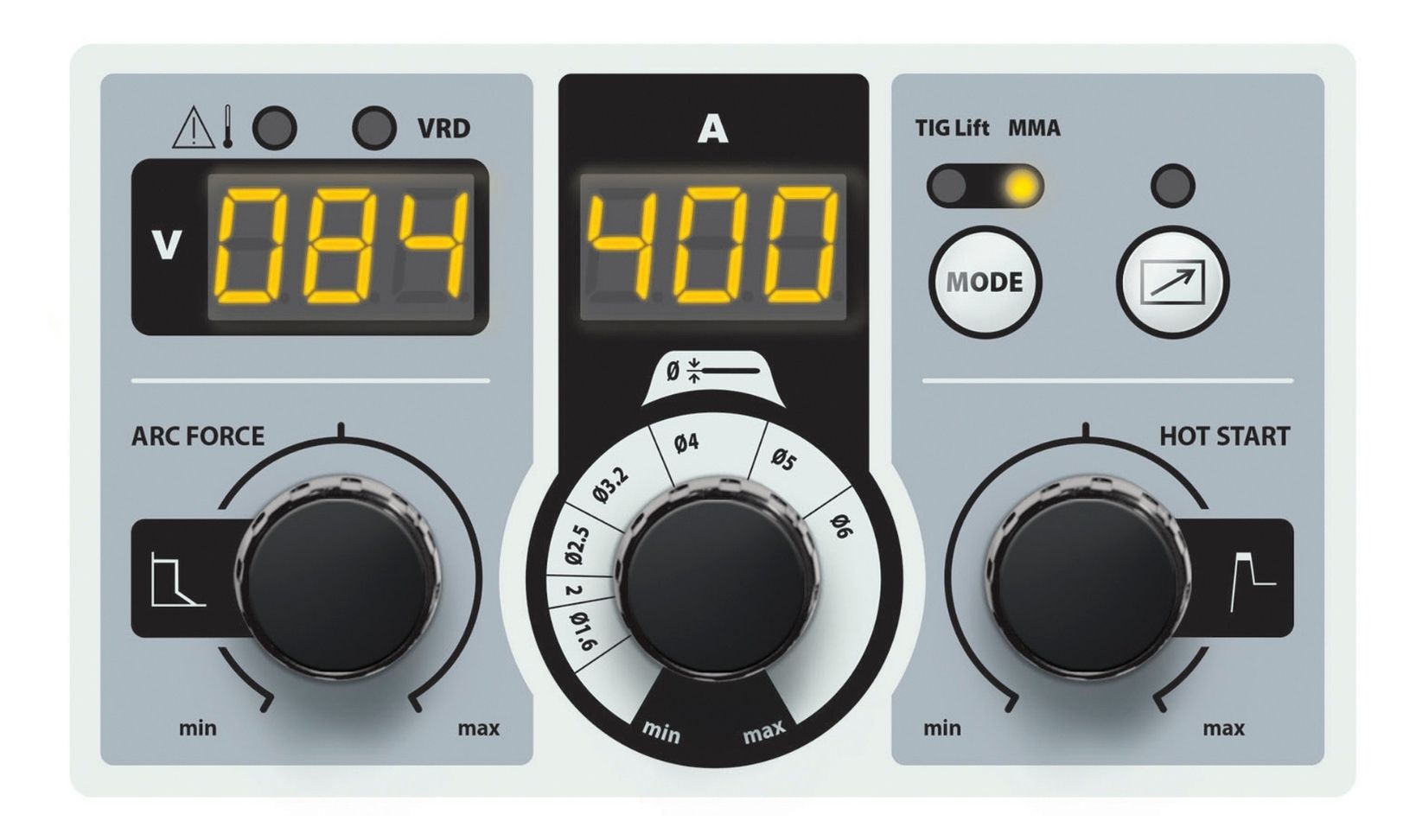

  • Adjustable Hot Start for improved arc striking
  • Adjustable Arc Force for enhanced penetration control
  • Anti-Sticking function to reduce electrode sticking
  • Switchable VRD for enhanced operator safety in hazardous areas
  • Reinforced structure with dual steel handles
  • Optimised cooling system with sealed ventilation corridor
  • Optional remote control compatibility

FAQs

1. What applications is the PROGYS 400 TRI best suited for?

It is ideal for heavy industrial fabrication, structural steelwork, shipyards, petrochemical plants, and other demanding three-phase environments.

2. Can it perform carbon arc gouging?

Yes, it supports carbon arc gouging with electrodes up to 8.0 mm diameter.

3. Does the machine support cellulosic electrodes?

Yes, the high 84V no-load voltage ensures reliable ignition and stable arc performance when welding 6010 cellulosic electrodes.

4. What safety features are included?

The PROGYS 400 TRI features a switchable VRD to reduce no-load voltage for safer operation, reinforced casing, IP23 protection, and overvoltage protection for demanding environments.
