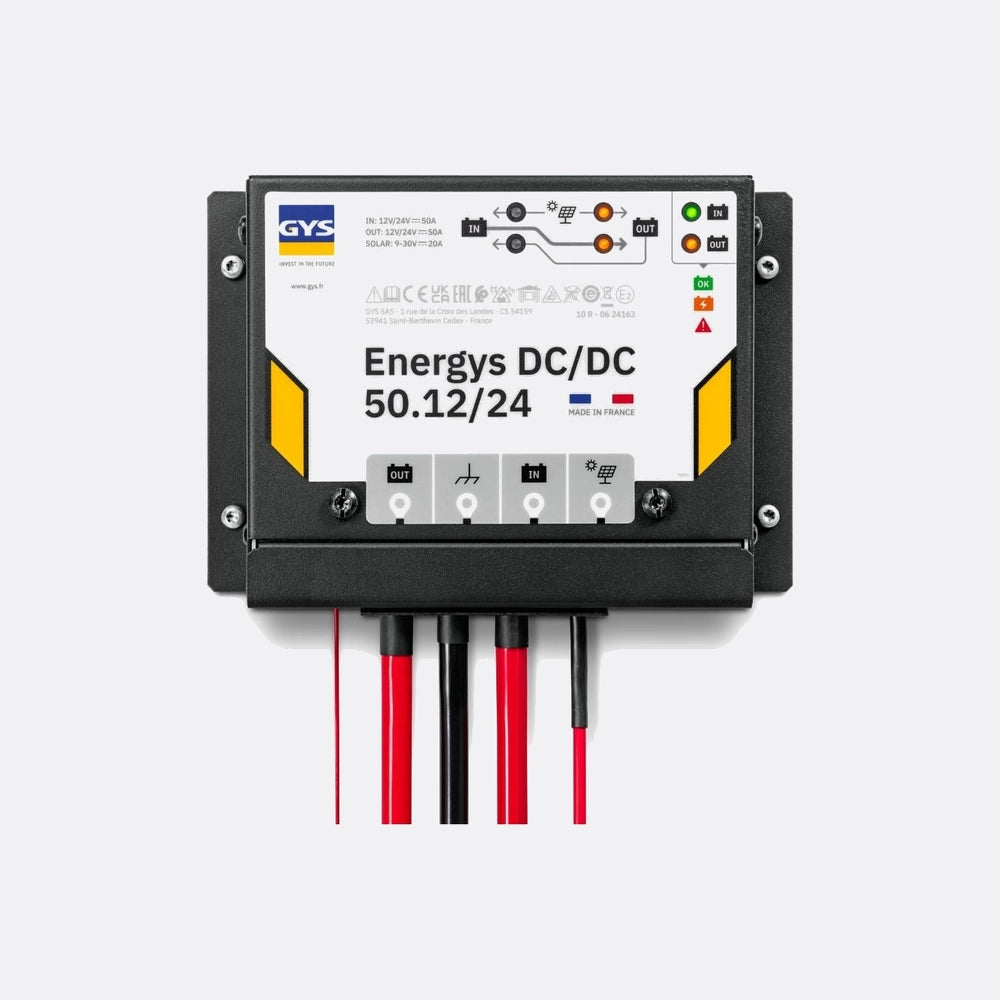

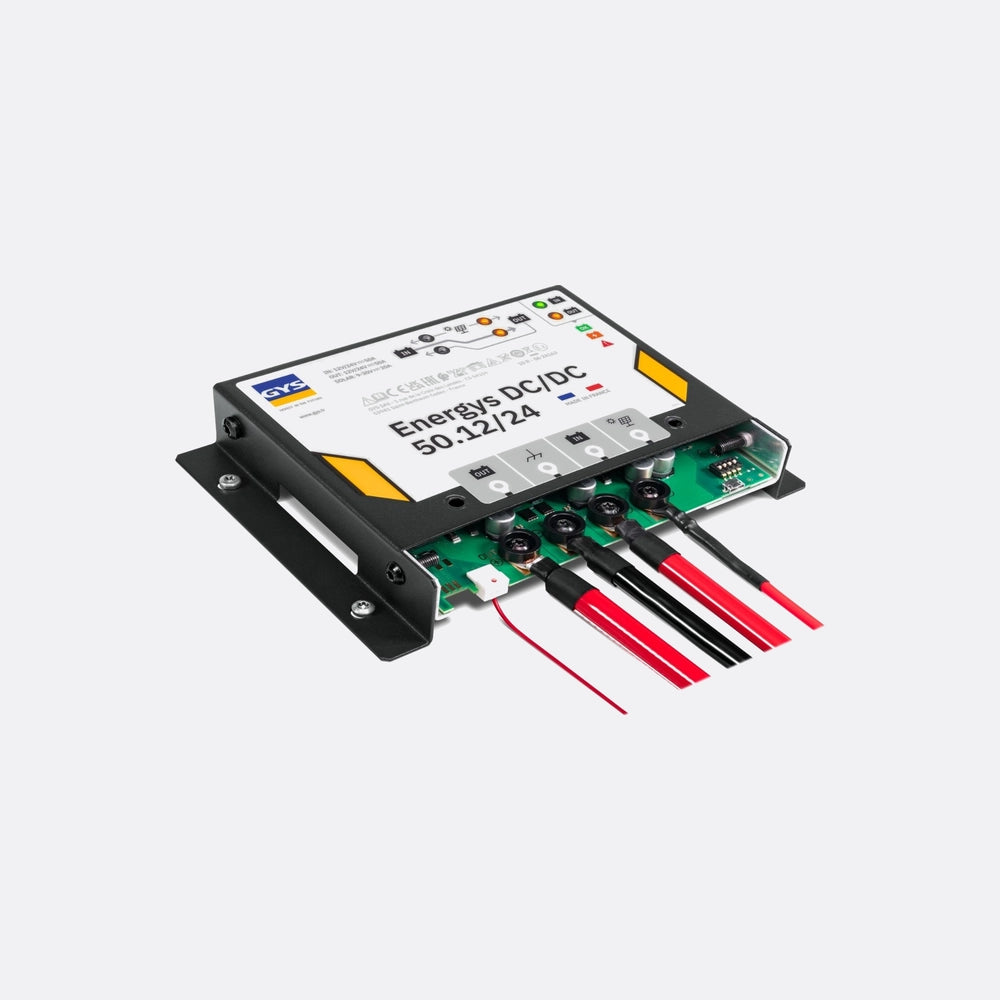

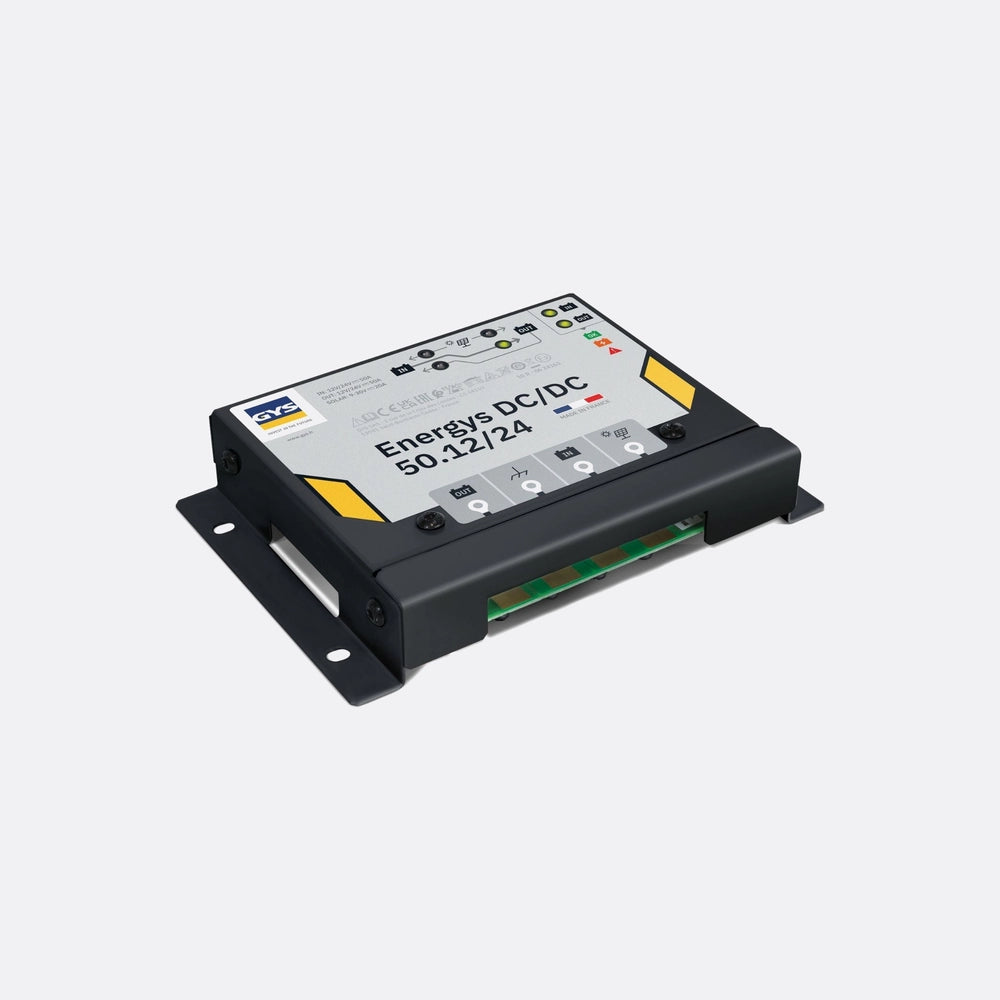

GYS Power Inverter Energys Dc/dc 50.12/24
GYS Power Inverter Energys Dc/dc 50.12/24
GYS 50A Dual-Battery DC/DC Charger with Integrated MPPT Solar Regulation
The ENERGYS DC/DC 50.12/24 is an advanced 12V/24V DC/DC converter engineered to optimise energy distribution in dual-battery vehicle systems. Designed for leisure vehicles, commercial vans, and specialist applications, it ensures reliable charging of auxiliary batteries using alternator and solar input simultaneously. Delivering up to 50A output with 98% efficiency, it integrates a battery isolator, multi-stage charger, and MPPT solar regulator in a single compact unit. Compatible with lead-acid (AGM, Gel, Liquid) and LiFePO4 batteries, it features automatic 12V/24V detection and a UVP wake-up function for lithium batteries. Fully compatible with smart alternators (EURO 6 vehicles), it guarantees 100% charge even with voltage drop over long cable runs. With fanless ultra-quiet operation, integrated temperature protection, and E-Mark Regulation No.10 certification, the ENERGYS DC/DC provides safe, efficient, and intelligent onboard energy management.
WHY BUY FROM BWS?
Specification
- Battery input voltage: 12 / 24 V
- Battery output voltage: 12 / 24 V
- Maximum charge current: 50 A
- Solar input (MPPT): 9 – 30 V, 20 A max
- Efficiency: 98%
- Standby consumption: < 2.5 mA
- Dimensions: 135 x 35 x 200 mm
- Weight: 570 g
- Protection: E-Mark Regulation No.10 certified
Features
- 3-in-1 unit: DC/DC charger, battery isolator, and MPPT solar regulator
- Automatic 12V / 24V detection
- Compatible with lead-acid and LiFePO4 batteries
- UVP wake-up function for deeply discharged lithium batteries
- Smart alternator (EURO 6) compatibility
- Advanced multi-stage charging curve for 100% charge
- Overwintering function to maintain starter battery charge
- Fanless, ultra-quiet compact design
- Integrated thermal, reverse polarity, short-circuit and overvoltage protection
- Parallel coupling capability for increased charging power
FAQs
1. Is the ENERGYS DC/DC compatible with lithium batteries?
Yes, it supports LiFePO4 lithium batteries and includes a UVP wake-up function for deep discharge recovery.
2. Can it work with smart alternators?
Yes, it is fully compatible with modern smart alternators found in EURO 6 vehicles.
3. Does it require an external solar controller?
No, the integrated MPPT regulator eliminates the need for an external solar charge controller.
4. What happens during winter storage?
The overwintering function maintains the starter battery charge by drawing controlled energy from the auxiliary battery while stationary.
