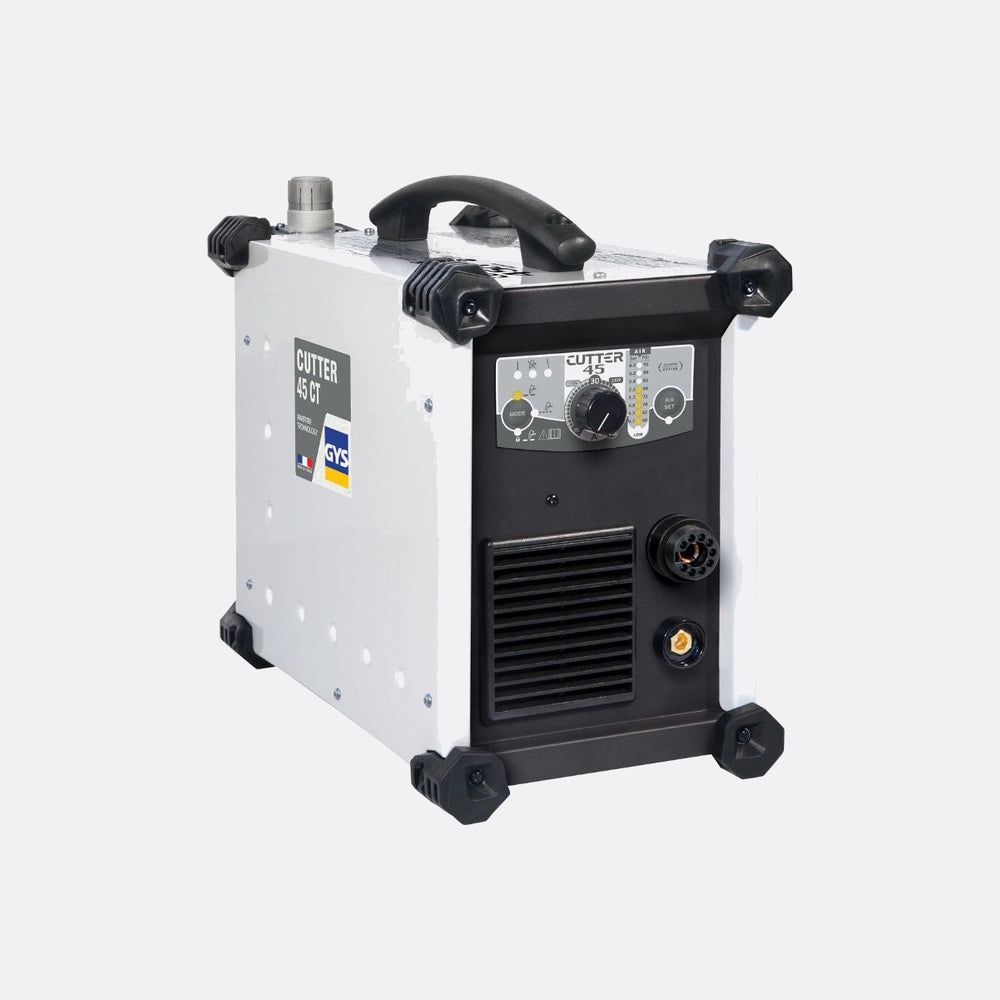

GYS Plasma Cutter 45 Ct - Without Torch
GYS Plasma Cutter 45 Ct - Without Torch
Compact High-Performance Plasma Cutting System for Workshop and Site Use
The CUTTER 45 CT is a robust and versatile 45 A plasma cutting system designed for clean, fast and precise cutting across a wide range of conductive materials. Engineered for professional workshops and on-site applications, it delivers reliable cutting performance on mild steel, stainless steel, aluminium, copper and high-strength steels. With a clean cut capacity of up to 20 mm and a separation cut of up to 30 mm, the CUTTER 45 CT offers an efficient alternative to oxy-fuel cutting with significantly faster cutting speeds and reduced heat distortion.
Equipped with HF-free ignition technology, the machine protects nearby electronic equipment while extending consumable life. Its optimised cooling system channels airflow away from sensitive electronics, ensuring durability in dusty or harsh environments. The reinforced metal casing, IP23 protection rating and compact, portable design make the CUTTER 45 CT ideal for both workshop-based fabrication and mobile maintenance tasks. CNC compatibility further enhances its flexibility for automated cutting tables.
WHY BUY FROM BWS?
Specification
- Cutting Current Range: 15 – 45 A
- Input Voltage: 110 V / 230 V single phase (50/60 Hz)
- Duty Cycle: 41 A @ 60% (40°C)
- Clean Cut Capacity: Up to 20 mm
- Separation Cut Capacity: Up to 30 mm
- Piercing Capacity: Up to 12 mm
- Protection Rating: IP23
- Dimensions: 480 x 370 x 230 mm
- Weight: 14 kg
Features
- HF-free ignition to protect electronic equipment and consumables
- Fast cutting speeds compared to oxy-fuel processes
- Compatible with CNC cutting tables via optional CNC kit
- Optimised internal cooling system for harsh environments
- Reinforced metal casing with non-slip rubber feet
- User-friendly interface with three cutting modes
- Manual air pressure adjustment with front panel reference chart
- Flexible voltage technology with PFC for energy efficiency
FAQs
1. What materials can the CUTTER 45 CT cut?
It is suitable for cutting mild steel, stainless steel, aluminium, copper and high-strength or tempered steels.
2. Is the CUTTER 45 CT suitable for CNC cutting tables?
Yes, it is pre-wired for use with automated cutting tables when fitted with the optional CNC interface kit.
3. What air supply is required?
The machine requires a clean, dry compressed air supply with adjustable pressure, set manually using the front panel guide.
4. Can it be used on-site with generators?
Yes, the CUTTER 45 CT is generator compatible and features flexible voltage input with PFC technology for stable operation.
