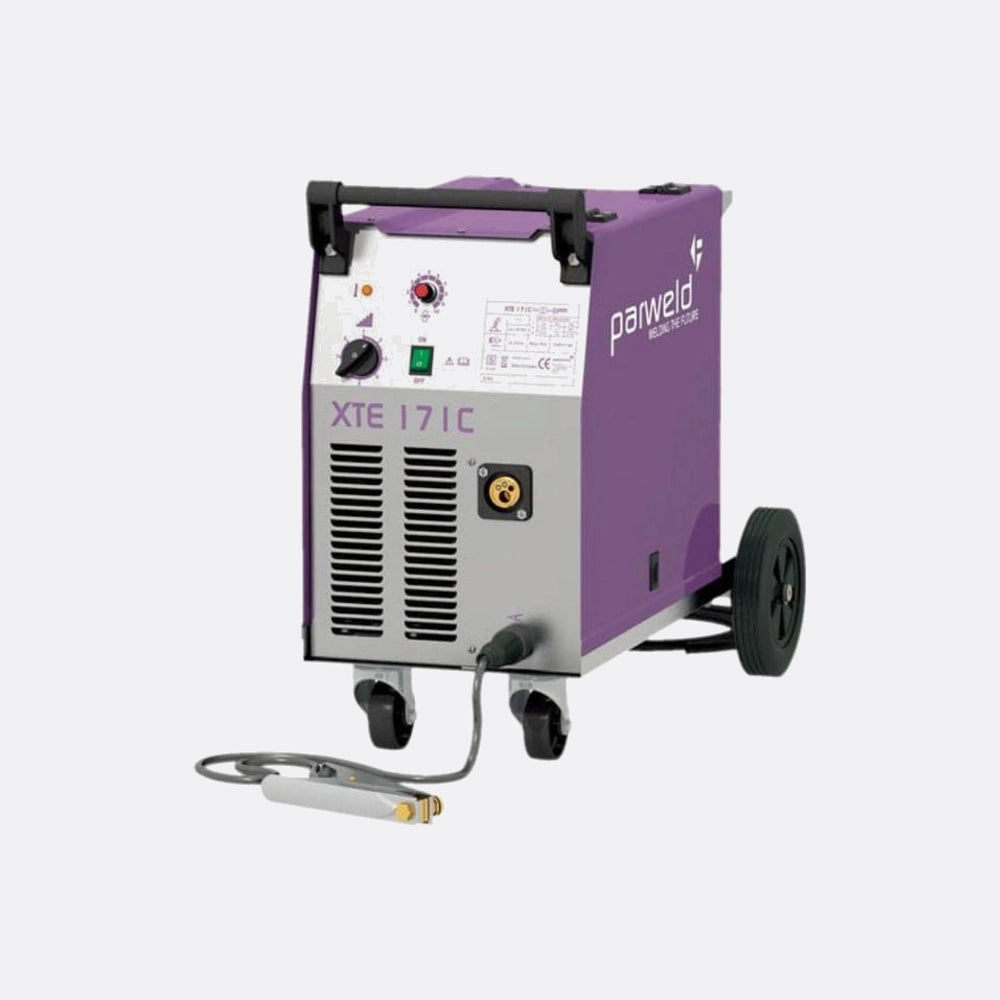

Designed for automotive and light fabrication use. It has a metal wire feed unit (compared to plastic on many manufacturers) and professional euro adapter torch connection. The case is sturdy and well made and fits full-size bottles. Quality rubber wheels enable easy manoeuvrability. It comes with a comprehensive return to base 2-year warranty.

Built to last, the PARWELD XTE 171C MIG WELDER is the perfect tool for automotive and light fabrication tasks. With a sturdy metal wire feed unit and professional euro adapter torch connection, it provides reliable performance and effortless welding. The rubber wheels ensure easy manoeuvrability, while the full-size bottle compatibility makes it a convenient choice for professionals.

WHY BUY FROM BWS?



Why Buy From BWS

30 years experience and our own mobile team of welding engineers offering advice, service, repairs and training means you can buy with confidence knowing you have a great team behind you supporting you!

Metal wire feed

The Parweld XTM 171C comes with a robust metal wire feed not a plastic one that normally comes at this price point. The better the wire feed the better and more professional the welding.

Comprehensive Warranty

With a comprehensive 2-year warranty, you can trust in its quality and durability for years to come. This is also backed up by our own in house

FAQs

1. What is the maximum weld thickness for mild steel?

The Parweld XTE 171C MIG Welder can weld up to 5mm thick mild steel.

2. What are the included accessories in the package?

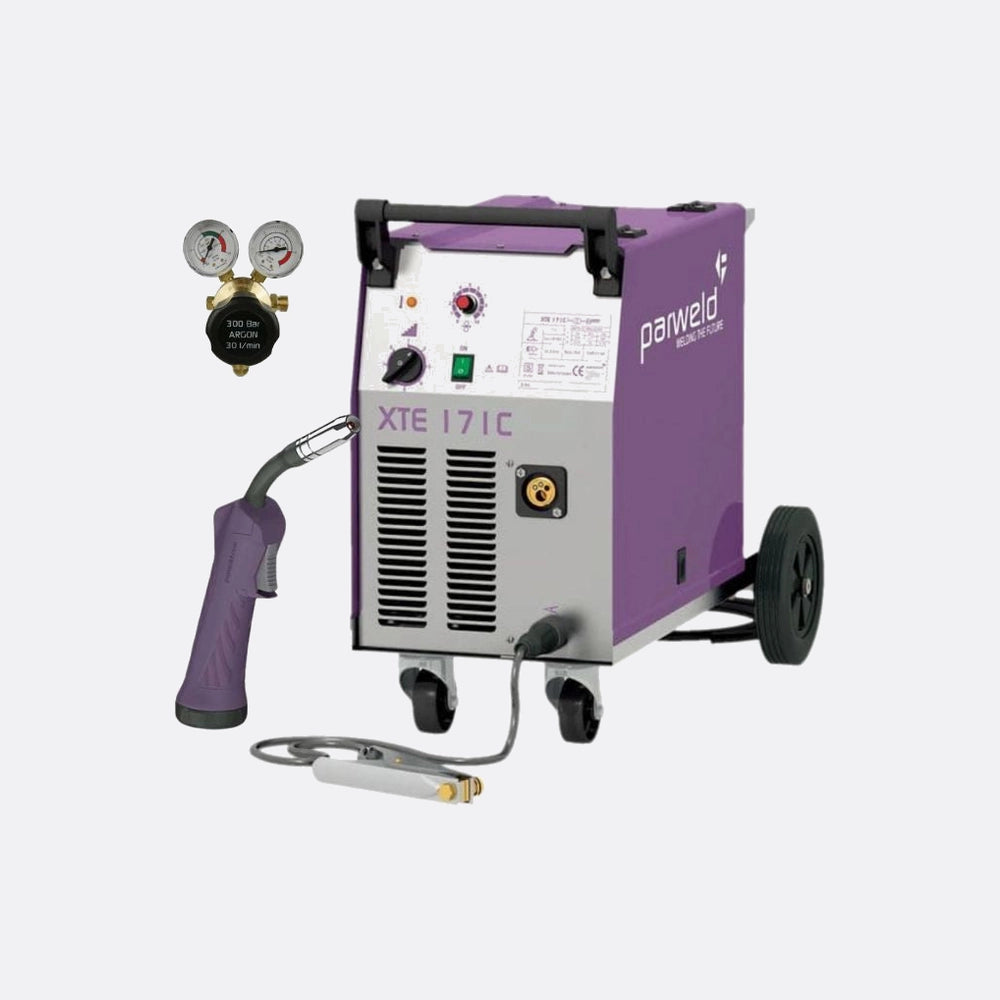

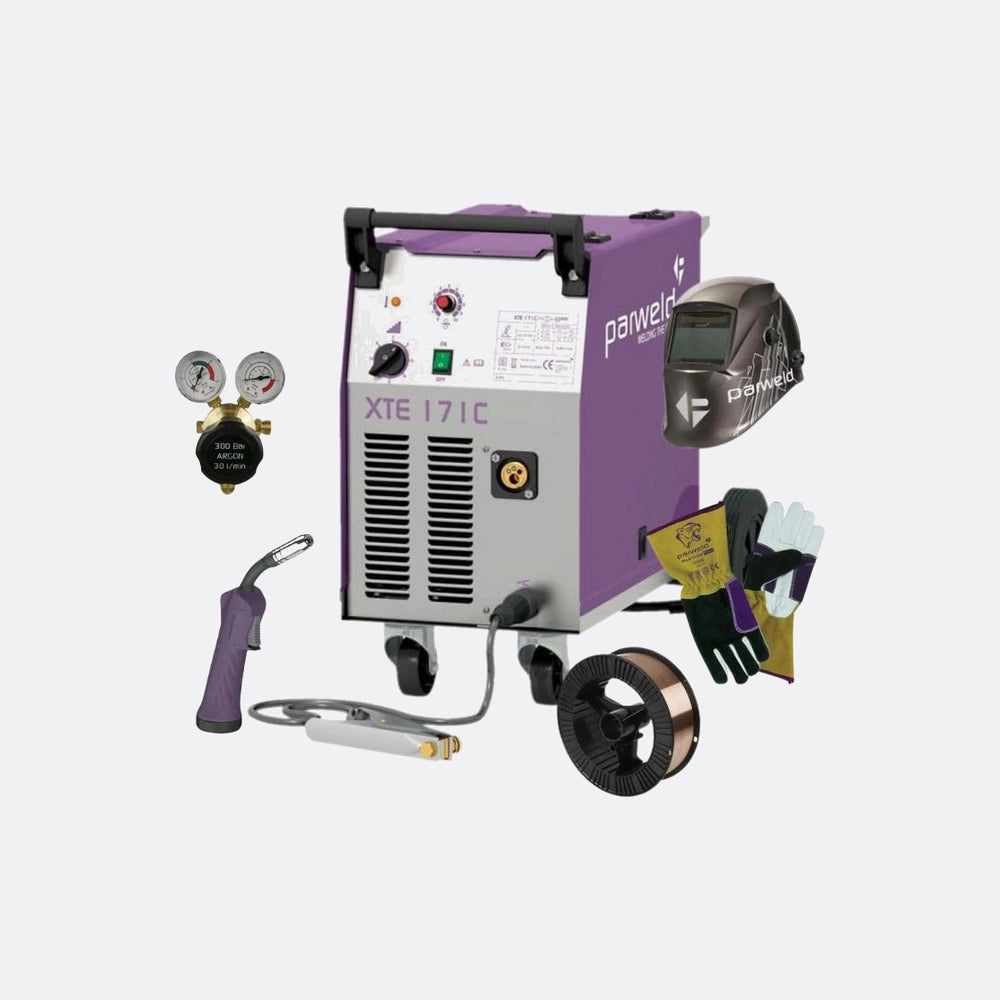

The package includes the Parweld XTE 171C MIG welding machine, a 3 metre Eco-Grip Max MIG Torch, a 3 metre earth lead, a 3 metre gas hose, and a regulator (300 Bar SS 2G Argon or similar depending on the package)

3. What is the duty cycle of the welder?

The duty cycle is 100% at 65A, 60% at 80A, and 15% at 165A

4. What is the weight and dimensions of the welder?

The weight of the welder is approximately 38.3-40 kg, and the dimensions are 705-706mm x 420mm x 630mm.

Operation Guide for Parweld XTE 171C / 181C / 201C MIG Welders

The following guide provides key steps and settings for operating your Parweld XTE series MIG welder safely and effectively. Always read the full instruction manual before use and ensure correct personal protective equipment (PPE) is worn.

Operation

1. Switch on the machine using the main ON/OFF switch. The green LED will light, and the voltage selector switch becomes active.
2. Select your voltage by turning the “VOLTAGE SELECTOR” to one of the available settings.
3. Check drive rolls and torch parts to ensure they match the wire size and type being used.
4. The optimum wire feed pressure will vary depending on wire type, size, and condition. As a general rule:
   • Hard wires may require slightly greater pressure.
   • Soft or aluminium wires require less pressure than factory settings.
   To test, press the gun against a solid object (isolated from the workpiece) and pull the trigger for a few seconds. Adjust as needed:
   • If wire slips, increase tension slightly.
   • If wire kinks or birds-nests, reduce pressure gradually until feed is smooth.
5. If replacing wire, loosen the adjustment knob about half a turn and refit the wire. Feed forward until a slight waviness appears in the exposed wire — too much tension indicates over-pressure.

Feeding the Welding Wire

1. When the trigger is pulled, both the drive motor and electrode are LIVE. Always treat the torch as live until several seconds after releasing the trigger.
2. Safety Warning: When using an open-arc process, correct eye, head, and body protection must always be worn.
3. Position the wire at the joint, lightly touching the workpiece, and begin welding.
4. Hold the torch 8–10 mm from the contact tip to the workpiece and maintain a steady travel speed.
5. When stopping, release the trigger, pull the torch away, and close the gas valve (if fitted).
6. When welding is complete, purge gas briefly to release pressure and then switch off the machine.

Optimising Weld Parameters

Note: The following settings are guidelines only. Adjustments may be required based on material thickness, wire type, joint design, shielding gas, and torch angle. Always produce test welds before proceeding.

Material Thickness and Amperage

1. Convert material thickness to amperage using the rule: 0.25 mm ≈ 1 Amp
   Example: 3.2 mm steel ≈ 125 A.
2. Select wire size based on amperage:
   • 40 – 145 A → 0.8 mm wire
   • 50 – 180 A → 1.0 mm wire
   • 75 – 250 A → 1.2 mm wire
3. Recommended wire feed speeds per amp:
   • 0.8 mm → 0.05 m/min per Amp
   • 1.0 mm → 0.04 m/min per Amp
   • 1.2 mm → 0.025 m/min per Amp
   Example: for 3.2 mm material at 125 A using 1.0 mm wire, feed rate ≈ 5 m/min.
4. Voltage setting:
   • Low voltage → wire stubs into work
   • High voltage → unstable arc with spatter
   Set midway between high/low values and fine-tune for best results.

Proper setup of amperage, wire feed, and voltage ensures optimum weld penetration, minimal spatter, and a clean bead appearance.
